Schlage B-Series Auxiliary Locks Specifications

Auxiliary locks for added security.

Auxiliary locks not only provide added protection for exterior entrance doors, they can also protect common use areas like pool gates and storage/utility spaces from unauthorized access. Schlage delivers flexibility and performance with a full line of auxiliary locks that range from heavy-duty to high-traffic performance, and complement our lock lines. A choice of styles and finishes ensures a consistent look across doors and throughout your building.

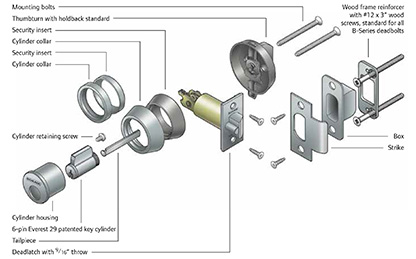

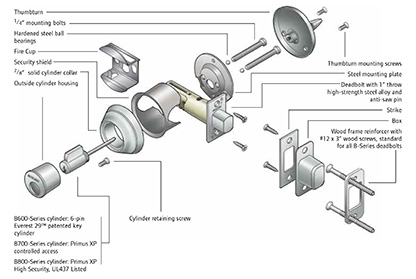

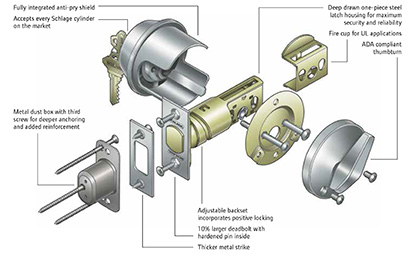

B-Series Features and Benefits:

• 1” (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
• Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
• Tough nickel silver keys for smooth, long-lasting operation
• Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
• Large inside thumbturn makes it easy to throw and retract deadbolt
• Security shield protects bolt from ice-pick attack through the door
• Hardened steel ball-bearings protect mounting bolts from drill attack

Handing:  B250-Series deadlatches are reversible. All other B-Series locksets are non-handed.

Door Thickness:

• B250-Series, 5-pin: 1-3/8” to 1-3/4” (35mm to 44mm) standard. Available to 2-1/4” (57mm), assembled to order.
• B500-Series, 5-pin: 1-3/8” to 1-3/4” thick (35mm to 44 mm) standard. Available to 2-1/4” (57mm), assembled to order.
• B600/700/800-Series: 1-3/4” to 2” (44mm to 51mm) standard. Available for 1-3/8” (35mm) and doors up to 2-1/2” (63mm), assembled to order. Door ranges may vary by function.

Backset:

• B250-Series: 2-3/8” (60mm) standard. 2-3/4” (70mm) optional.
• B500-Series: Adjustable for 2-3/8” (60mm) or 2-3/4” (70mm) standard.
• B600/700/800-Series: 2-3/4” (70mm) standard, 23/8” (60mm), 3-3/4” (95mm), 5” (127mm) optional.
• Front: Brass, bronze or stainless steel. 1-1/8” x 2-1/4” (29mm x 57mm) square corner, beveled.

Dead Bolt:  1” (25 mm) throw with saw-resistant hardened steel insert.

Latch Bolt:  Brass, 9/16” (14mm) throw, deadlocking on keyed and exterior functions.

Exposed Trim:  Wrought brass, bronze or stainless steel.

Thumbturn:  Pressure cast zinc, plated to match finish symbols.

Strike:

• B500 Series: 1-1/8” x 2-3/4”, metal dust box reinforcer and three 3” screws. Optional strikes, lip lengths and ANSI strike box available.
• B600 and B250-Series: 1-1/8” x 2-3/4” (32mm x 70mm) with steel reinforcer and two 3” screws standard.

Certifications:

• ANSI: B600/700/800-Series meets or exceeds A156.5 Grade 1 strength and operational requirements.
• UL / cUL: B600/700/800-Series locks are UL10B Listed auxiliary locks for A label single doors, 4’ x 8’. UL10B Listing optional for B500-Series as auxiliary locks. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: Specify Primus 20-500 Series cylinder for B500 and B250-Series Grade 2 products, or specify B800-Series Grade 1 products.

Cylinder & Keys: 6-pin patented Everest C123 keyway standard with two nickel silver keys per lock. Items specified in C keyway will be furnished 5-pin.

Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying and construction keying.

Warranty: Commercial – 3 year limited; residential – full lifetime mechanical.

Primus XP High Security Cylinders

Primus XP high security cylinders are available to add patented* key control and varying degrees of geographical exclusivity to most Schlage 6-pin key systems, whether using Everest or Classic keyways. In addition to a conventional pin tumbler mechanism, Primus XP cylinders incorporate a patented* finger pin and sidebar design providing a “dual-locking” cylinder that is highly pick-proof. Resistance to drilling and other physical attack is optional by specifying 20-500 Series UL437 Listed cylinders. *Patented key protection applies to Everest Primus XP and Classic Primus XP only.

Primus XP Lockout Cylinders

Available in rim and mortise cylinders only, lockout cylinders are designed for doors where it is frequently desirable to disable all keys from operating the lock temporarily. The special lockout key can be removed while the plug is turned to the 11 o’clock position, preventing all normal operating keys, including master keys, from fully entering the cylinder. Suggested applications for lockout cylinders include laboratories, dark rooms, clean rooms, and exterior doors to dormitories. Schlage will not master key lockout cylinders.

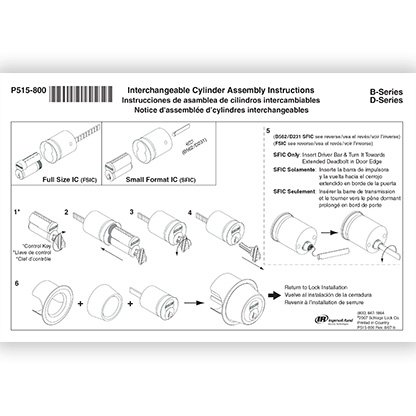

Interchangeable Core (IC) Cylinders (Full Size and Small Format)

For use where fast rekeying by non-technical personnel is desired, Schlage Primus XP and conventional interchangeable cores offer a great blend of security and convenience. The special control key for the system is all you need to remove the old core and install a new one. The core itself can be rekeyed with standard Schlage pin kits. Unlike some other brands, Schlage interchangeable cores can always be integrated into existing systems with no adverse effect on the key system. IC locks are especially well-suited to chain stores and restaurants where frequent employee turnover requires immediate rekeying by store management. Use IC cylinders to save time and energy when changing labor-intensive locks on exit devices and other door hardware.

Full Size Interchangeable Core (FSIC):  Schlage interchangeable core (IC) locksets allow immediate rekeying at the door simply by using the special control key to replace the core in seconds. Available in B500, B250, B600 and B700-Series, full size interchangeable cores can be integrated into any 5 or 6-pin Schlage key with no adverse affects on keying capacity.

Small Format Interchangeable Core (SFIC):  Available in B500 and B600-Series, the small format IC option is designed for Schlage Everest B Family restricted keyway cores and is also completely compatible with Best®, Falcon, and other small format cores.

Door Reinforcement

Reinforcing unit is required to reinforce and help prevent the collapse of hollow metal doors when locksets are tightly mounted. This kit should be used with long backsets for B-Series lock installations in hollow metal doors to prevent lateral movement of the latchbolt. Specify door thickness, 1-3/8” (35 mm) or 1-3/4” (44 mm), when ordering reinforcement kits.

Strikes

All B-Series strikes are fully reversible for right handed and left handed doors, and are furnished complete with screws. Strike boxes are also included with all standard strikes. B-Series deadbolt strikes are also packed with our exclusive wood frame reinforcer or a metal dust box reinforcer for added protection against “kick-in” attack.
