Doors

Architectural Wood

Custom-designed and built to last, Baillargeon Architectural Wood Doors are designed and custom-built to the strictest standards. These custom built doors can match the finest of millwork, be stained to match any decor, or have a multitude of CNC engraved lines, logos, or patterns. A perfect blend of beauty and durability, at competitive prices.

Specifications
Cores
Veneers
Options
Finishes
Downloads

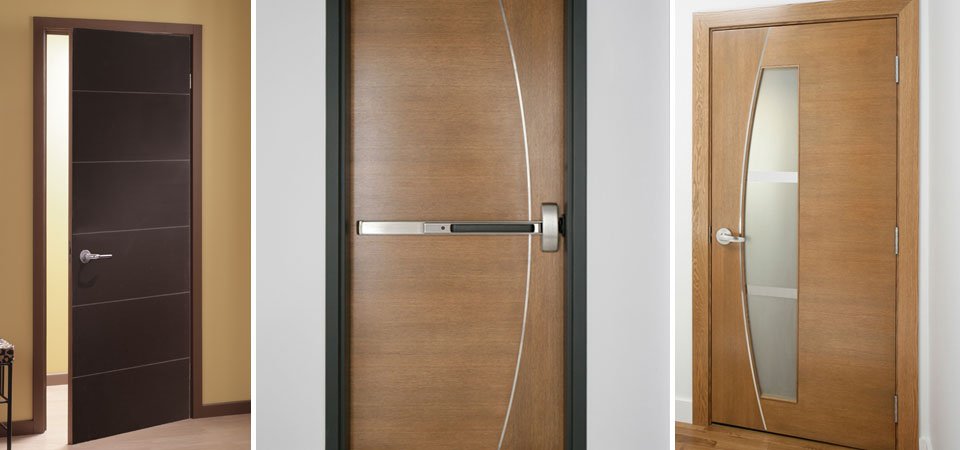

ARCHITECTURAL WOOD DOORS

Architectural, institutional, commercial, and luxury residential applications
Fire Rated Options: 20, 45, 60, 90 minute
Product meets or exeeds all industry standards
Environmentally friendly finishing process
Special Products:
- Oversized doors
- High impact doors- Radiology doors
- Autonomy doors
- Soundproof doors
- French doors
- Panel doors
- Dutch doors
- Full glass
Simple or Complex Machining:
- Aesthetic grooves
- Hardware machining
- Multiple glass options
- CNC engraving

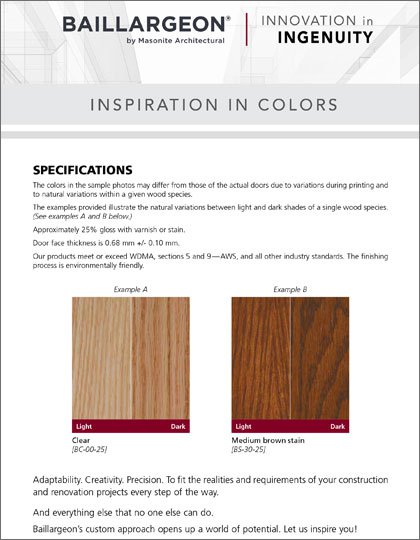

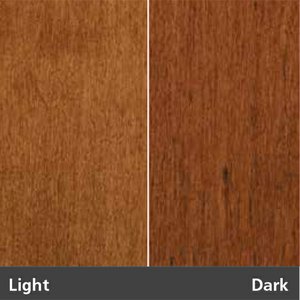

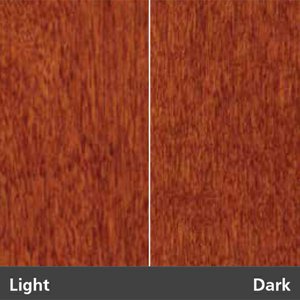

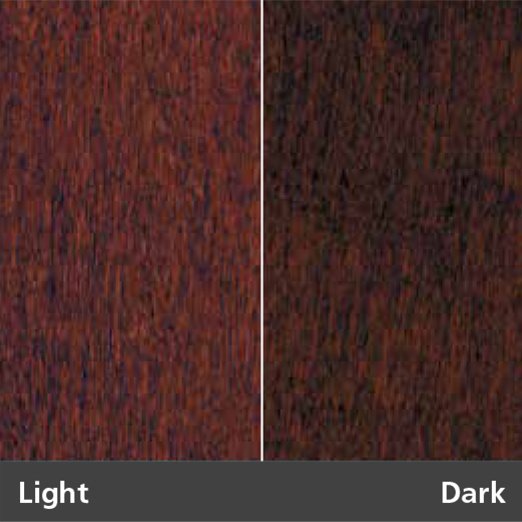

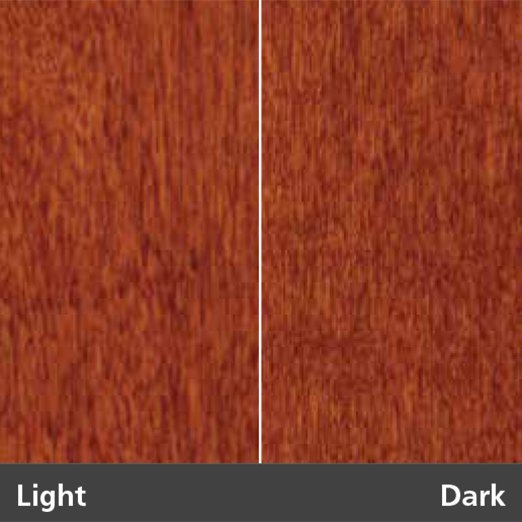

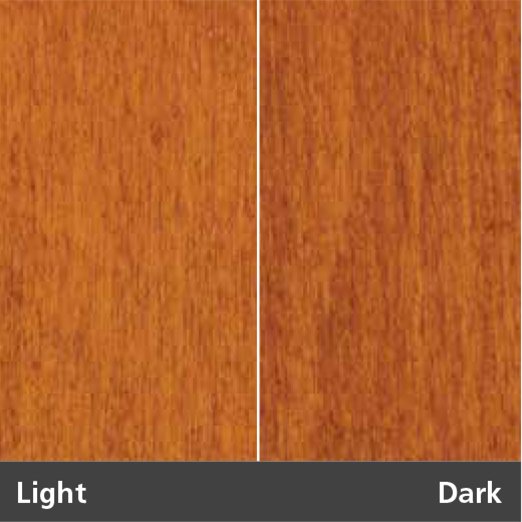

Stain Finishes – Specifications

Sample stain finishes may differ from actual product, due to natural variations within a given wood species

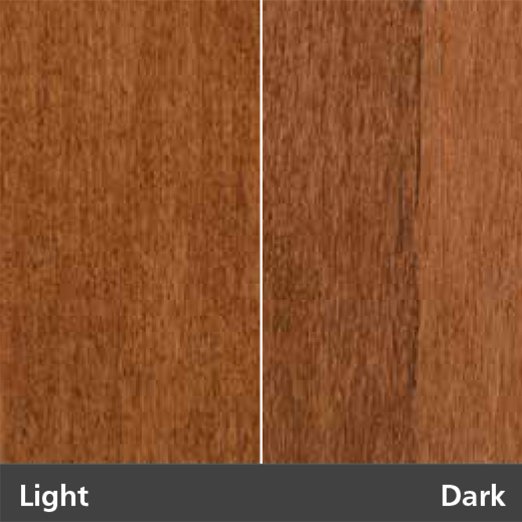

Natural variations occur between light and dark shades of a single wood species
Approximately 25% gloss with varnish or stain
Door face thickness is 0.68 mm +/- 0.10 mm
Meets or exceeds WDMA, sections 5 and 9 - AWS, and all other industry standards
Custom colour blends and environmentally friendly water-based stains available

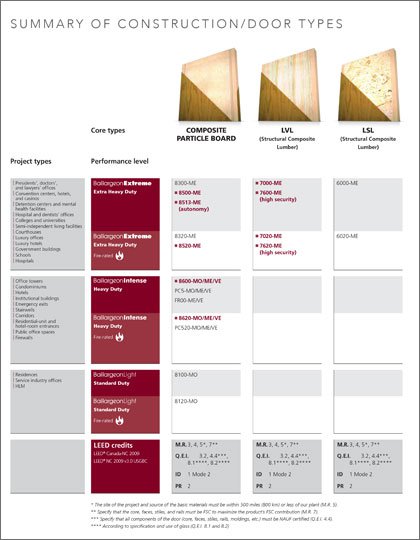

Core Construction – Specifications

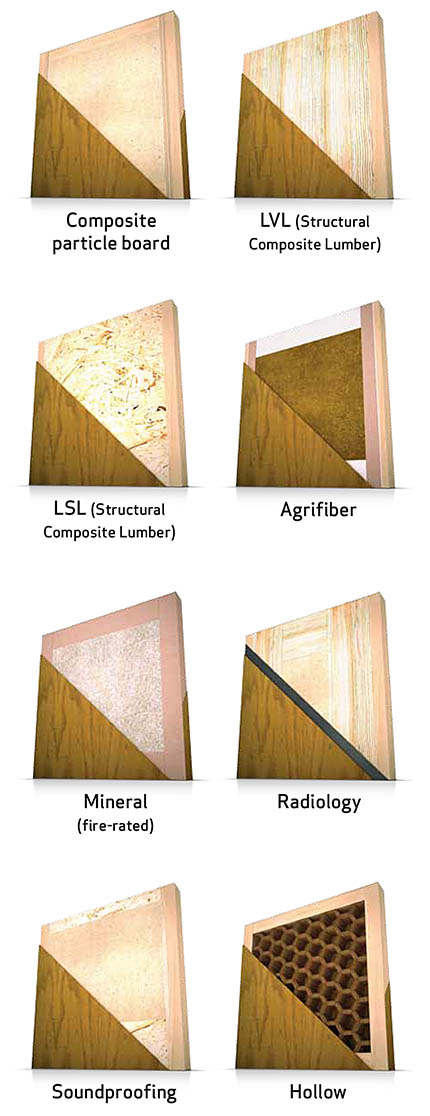

There are eight core types available, with options for face veneers, hardboard or plastic laminate faces for interior use.

Solid composite particleboard: Great for everyday use where
no special requirements are needed.

Density of 28-32 lbs per cubit foot
Complies with CSA-0188 and ANSI A208-1 standards (LD-1/LD-2)
Options: 20-minute fire rating, agrifibre, autonomy door

Agrifibre (UFF):

Neutral FSC
Options: 20-minute fire rating, autonomy door

Hollow core:

4-3/4" (120 mm) honeycomb (100% recycled)

1-ply LVL core:

Structural composite lumber, 1/8" (3 mm) thick veneer, longitudinally laminated by hot pressing with type 1 structural glue, as per ASTM-D5456-93 (LVL FSC)
LVL is FSC Certified (NAUF)
Option: 20-minute fire rating

LSL core:

Laminated strand lumber
Complies with ANSI 1.S.4 (UFF)
Option: 20-minute fire rating

Mineral core, 45 minute fire rating:

Neutral pressue, low combustible mineral
Density of 28-32 lbs per cubic foot
Neutral FSC (NAUF)
Option: positive pressure (PP), thickness up to 2-1/4"

Mineral core, 60 minute fire rating:

Neutral pressue, low combustible mineral
Density of 34-38 lbs per cubic foot
Neutral FSC (NAUF)
Option: positive pressure (PP), thickness up to 2"

Mineral core, 90 minute fire rating:

Neutral pressue, non-combustible mineral
Option: positive pressure (PP)

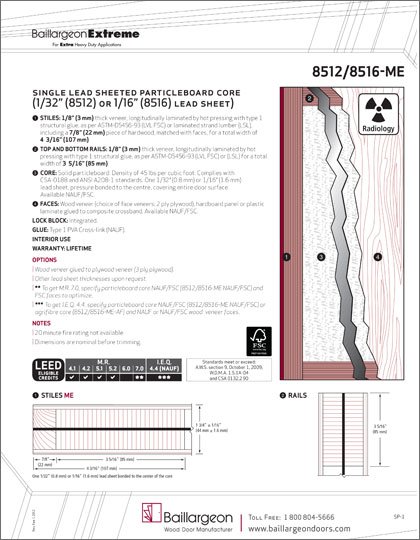

Radiology single lead sheeted:

Solid particleboard
Density of 45 lbs per cubic foot
Complies with CSA-0188 and ANSI A208-1 standards
One 1/32” (0.8 mm) or 1/16” (1.6 mm) lead sheet, pressure bonded to the centre, covering entire door surface
Available NAUF/FSC
Other lead sheet thicknesses upon request
FIre rating not available

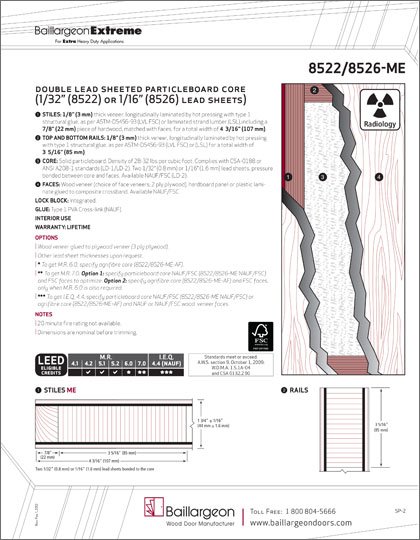

Radiology double lead sheeted:

Solid particleboard
Density of 28-32 lbs per cubic foot
Complies with CSA-0188 or ANSI A208-1 standards (LD-1/LD-2)
Two 1/32” (0.8 mm) or 1/16” (1.6 mm) lead sheets, pressure bonded between core and faces
Available NAUF/FSC (LD-2)
Other lead sheet thicknesses upon request
FIre rating not available

Fire rated cores available. FSC Chain of Custody Certification and LEED credits for sustainable building and design needs.

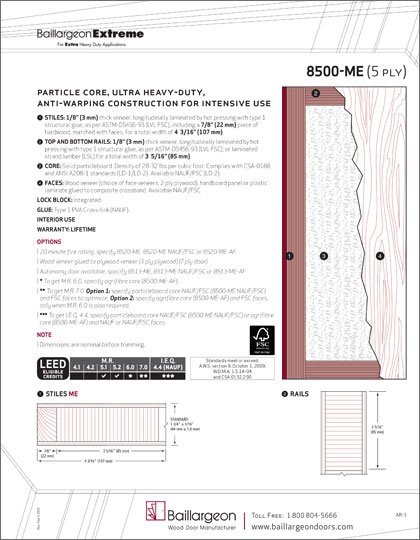

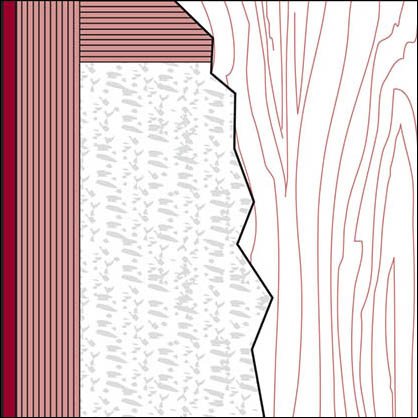

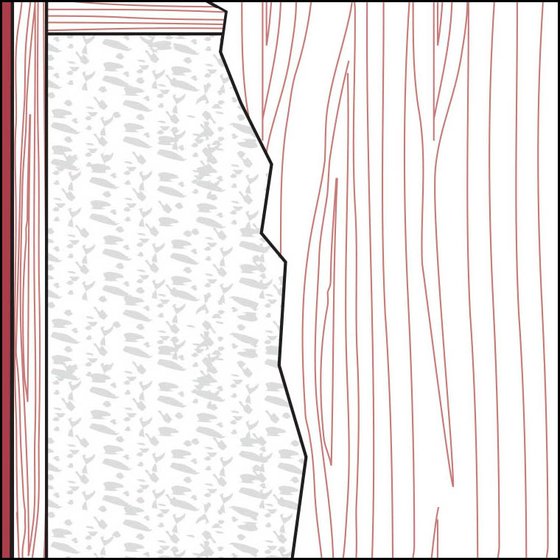

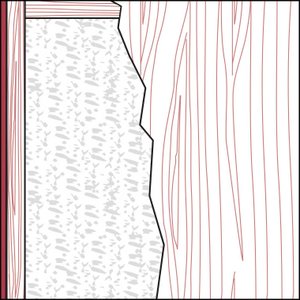

Architectural particle core

Solid particleboard,
28-32 lbs density/cu ft

Anti-warping construction
for intensive use

See "Downloads" tab
for specifications

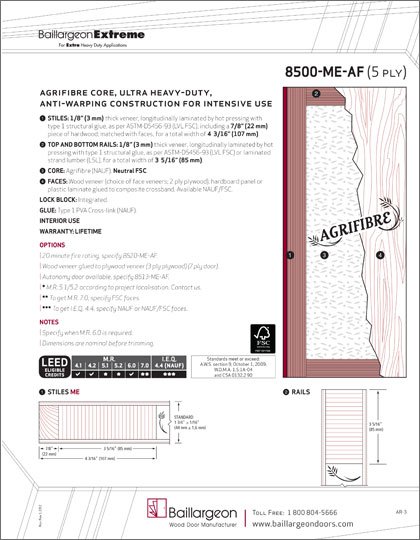

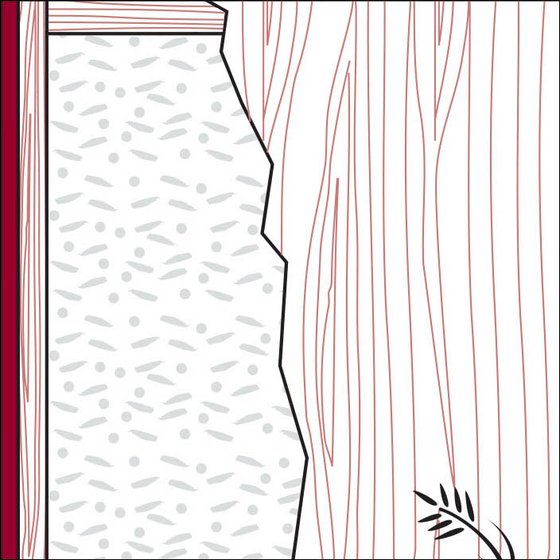

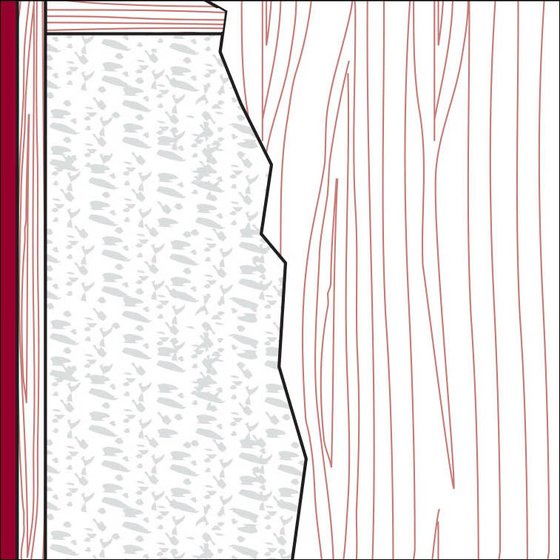

Architectural agrifibre core

Agrifibre (UFF) core,
neutral FSC

Anti-warping construction
for intensive use

See "Downloads" tab
for specifications

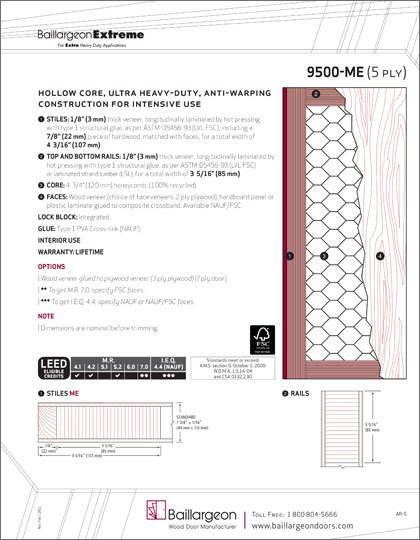

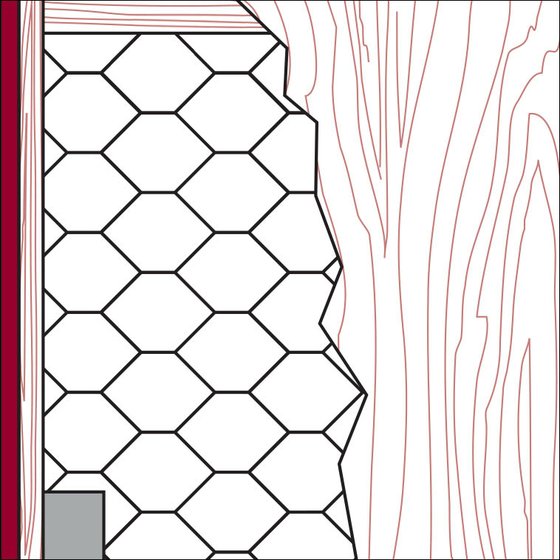

Architectural hollow core

4-3/4" (120 mm) honeycomb,
100% recycled

Anti-warping construction
for intensive use

See "Downloads" tab
for specifications

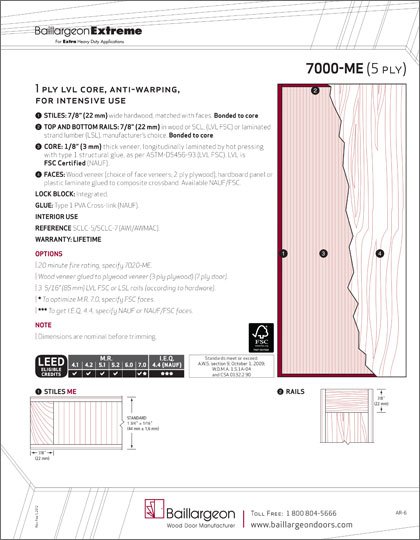

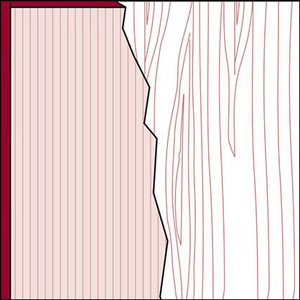

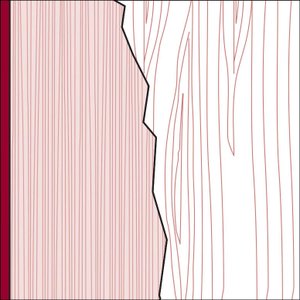

Architectural LVL core

1/8" (3 mm) laminated veneer

Anti-warping construction
for intensive use

See "Downloads" tab
for specifications

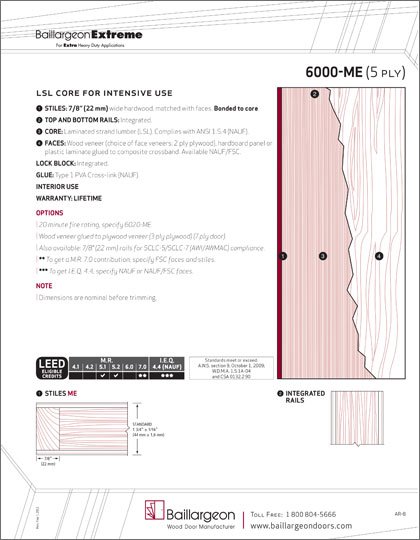

Architectural LSL core

Laminated strand lumber

For intensive use

See "Downloads" tab
for specifications

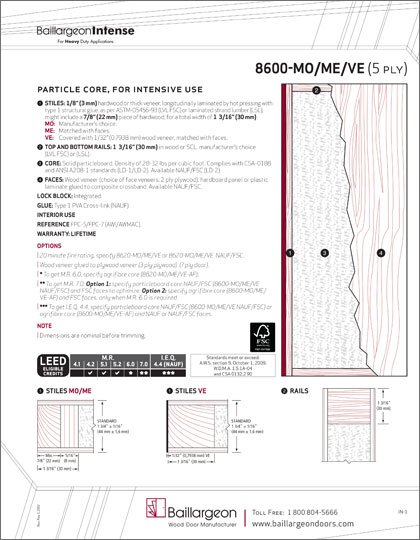

Institutional particle core

Solid particleboard,
28-32 lbs density/cu ft

For intensive use

See "Downloads" tab
for specifications

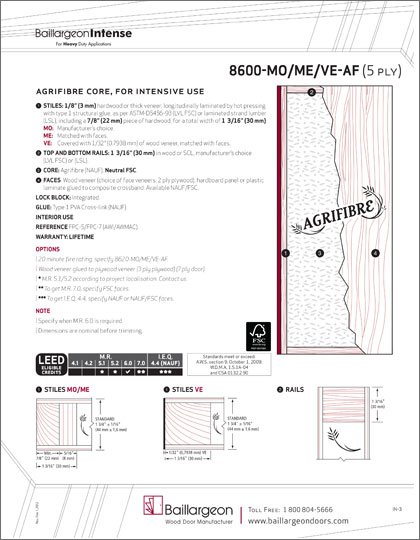

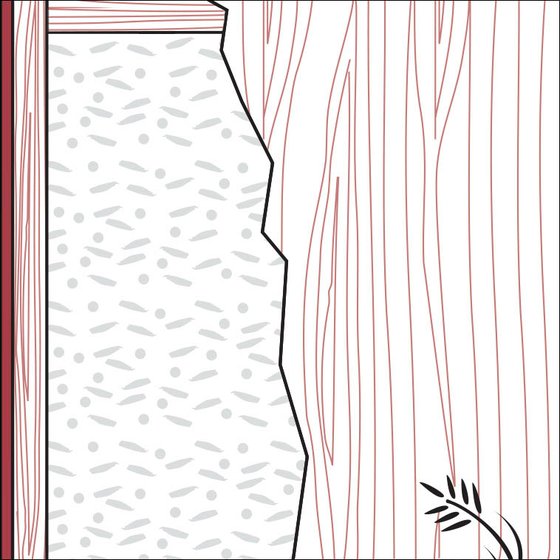

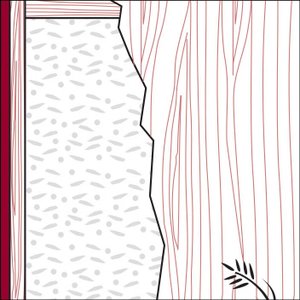

Institutional agrifibre core

Agrifibre (UFF) core,
neutral FSC

For intensive use

See "Downloads" tab
for specifications

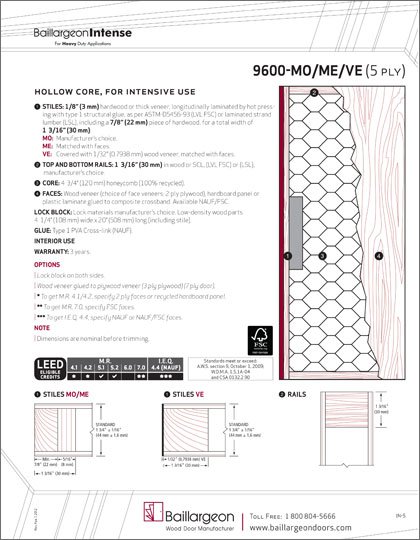

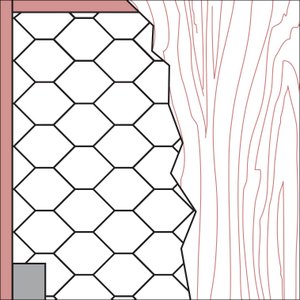

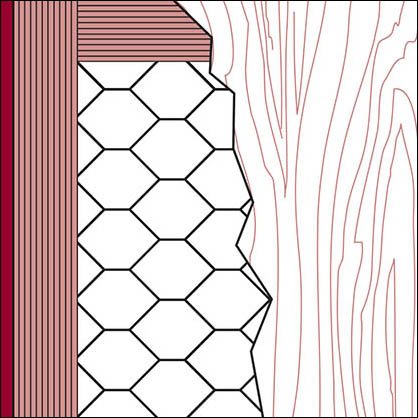

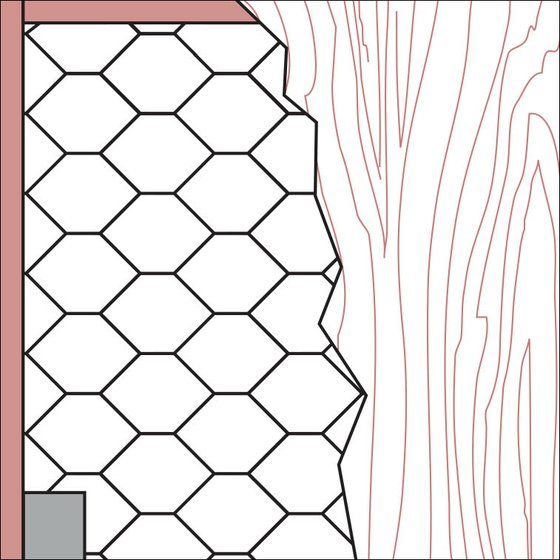

Institutional hollow core

4-3/4" (120 mm) honeycomb,
100% recycled

For intensive use

See "Downloads" tab
for specifications

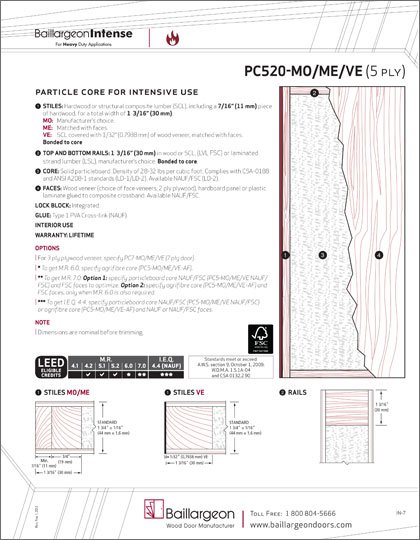

Institutional particle core/SCL

Solid particleboard,
28-32 lbs density/cu ft

Hardwood or SCL stile & rail

See "Downloads" tab
for specifications

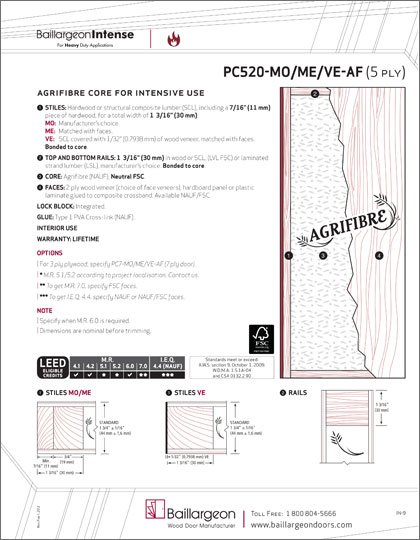

Institutional agrifibre core/SCL

Agrifibre (UFF) core,
neutral FSC

Hardwood or SCL stile & rail

See "Downloads" tab
for specifications

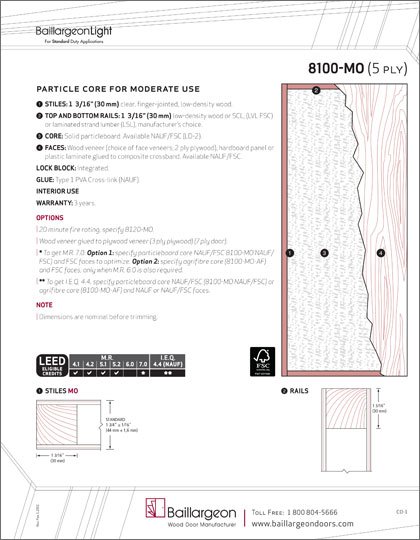

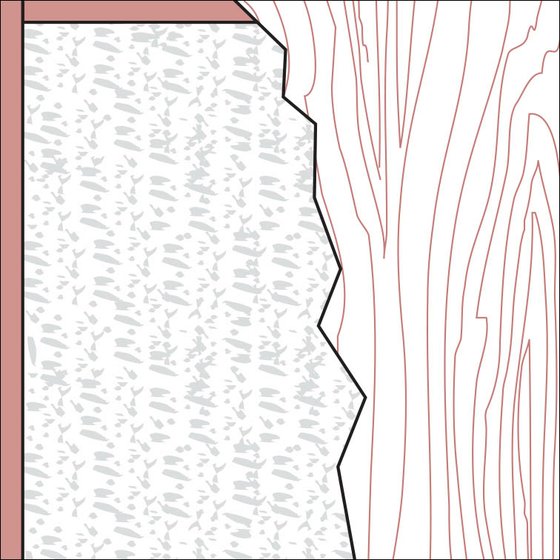

Commercial particle core

Solid particleboard

3-yr warranty

See "Downloads" tab
for specifications

Commercial hollow core

4-3/4" (120 mm) honeycomb,
100% recycled

3-yr warranty

See "Downloads" tab
for specifications

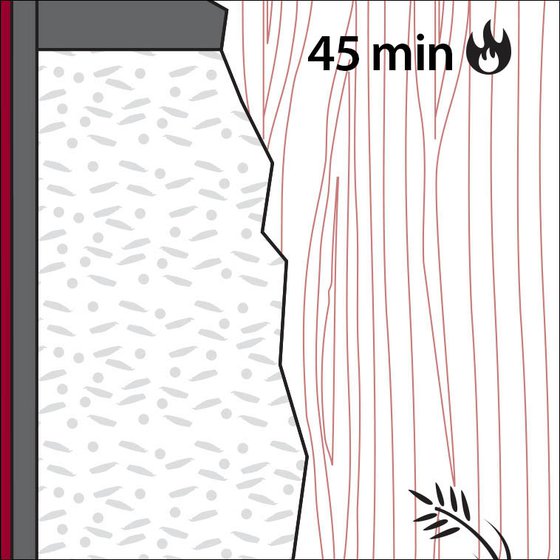

45 minute fire-resistant agrifibre core

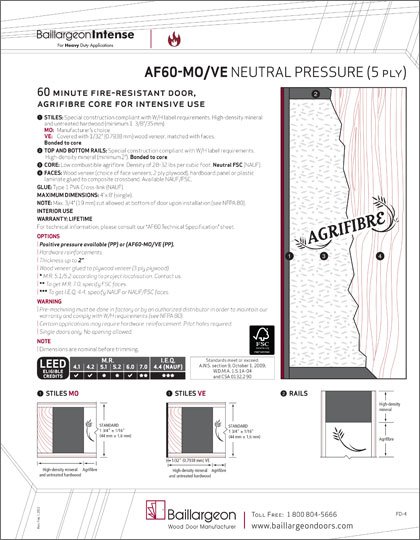

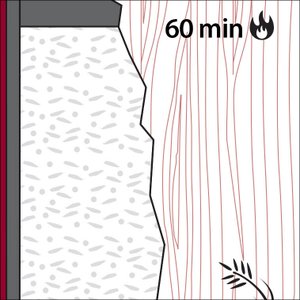

60 minute fire-resistant agrifibre core

Low combustible agrifibre,
34-38 lbs density/cu ft,
neutral FSC (UFF)

For intensive use

See "Downloads" tab
for specifications

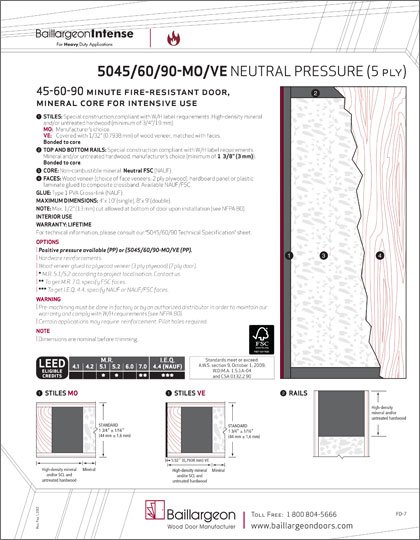

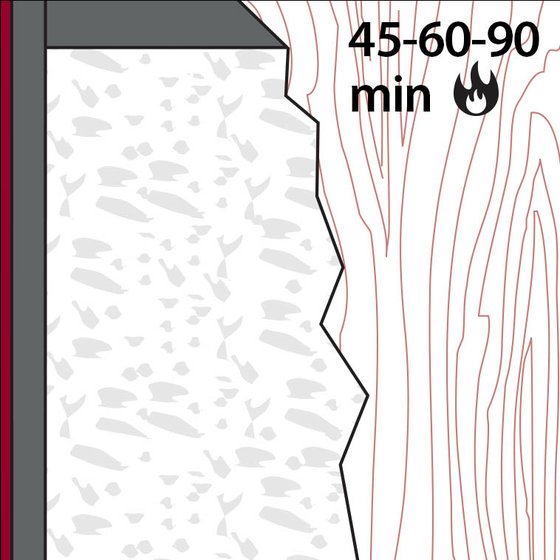

45-60-90 minute fire-resistant mineral core

Non-combustible mineral,
neutral FSC (NAUF)

For intensive use

See "Downloads" tab
for specifications

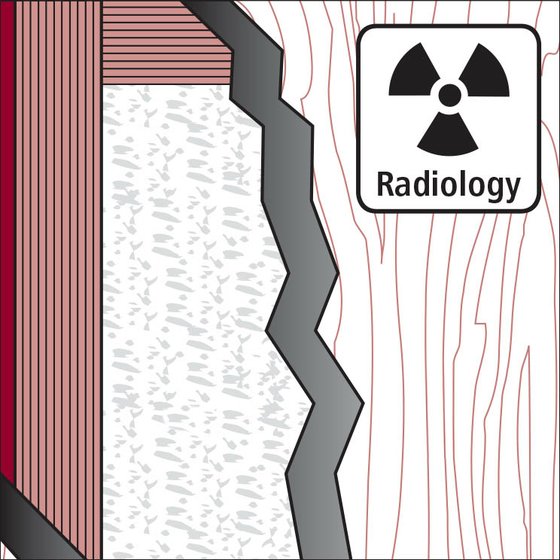

Radiology single lead sheeted

Solid particleboard,
45 lbs density/cu ft

1 lead sheet, 1/32" or 1/16"

See "Downloads" tab
for specifications

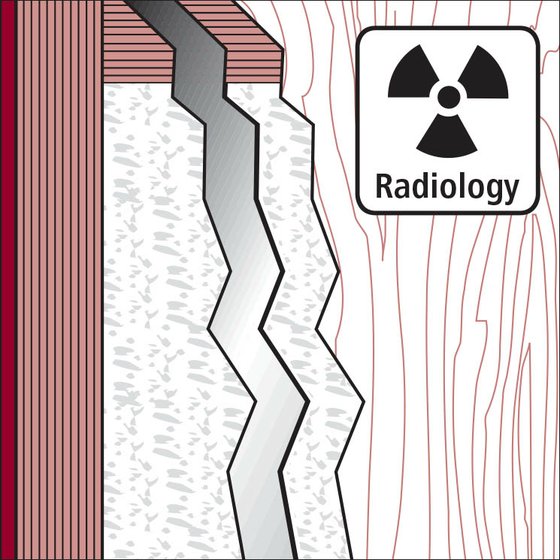

Radiology double lead sheeted

Solid particleboard,
23-32 lbs density/cu ft

2 lead sheets, 1/32" or 1/16"

See "Downloads" tab
for specifications

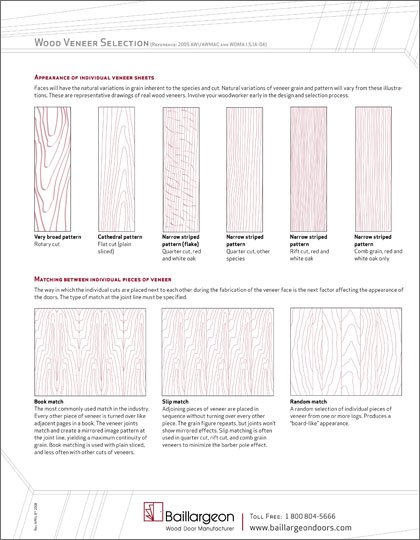

A cut sheet, joint option, and match assembly must be chosen. Graining is available in both vertical and horizontal applications.

See Downloads tab for graining information with double doors or doors with transoms (General Instructions: Wood Veneer Selection).

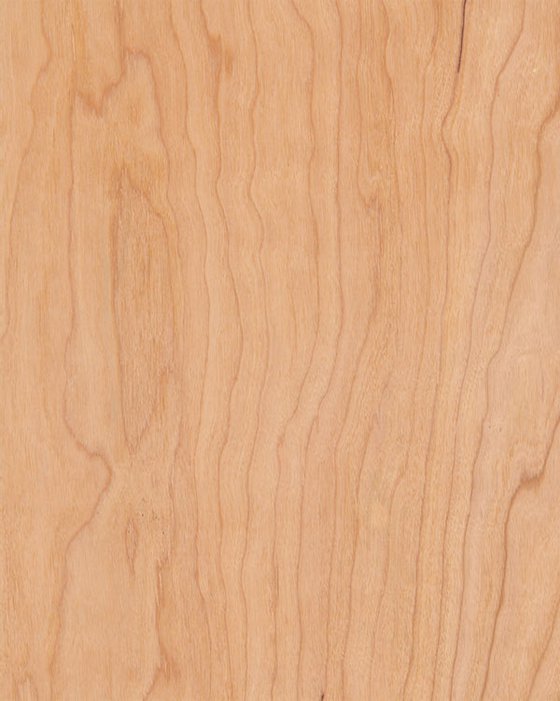

Cherry

Heartwood varies from rich red to reddish-brown.

Custom

Reclaimed hardwood, exotic Zebrawood, or the finest burlwood - all can be crafted into a beautiful door. All you need to do is know what you want and leave the rest to us.

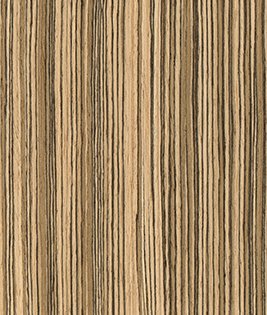

Shown in Zebrawood

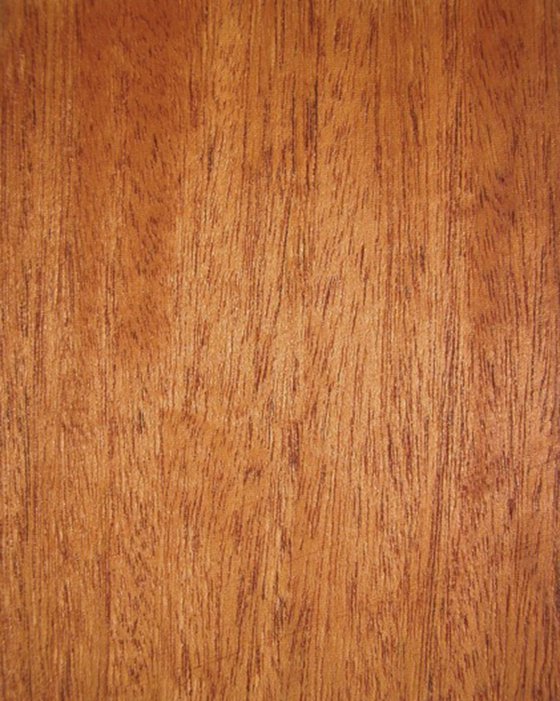

Mahogany

Heartwood varies from rich red to reddish-brown.

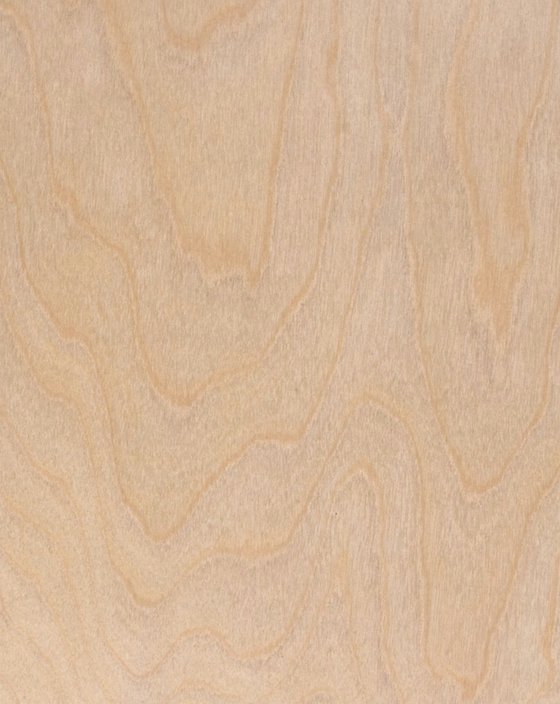

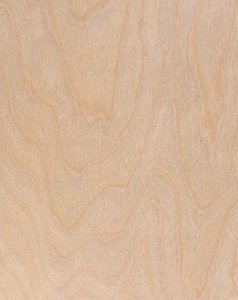

Natural Birch

Noticeable color and grain variations. May contain a combination of creamy white sapwood and pale brown heartwood.

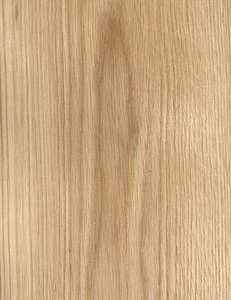

Red Oak

This hardwood resembles other oaks with a biscuit to pink color, but has a reddish tinge.

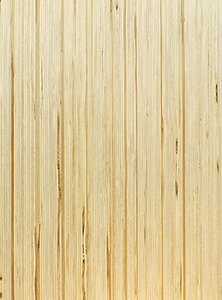

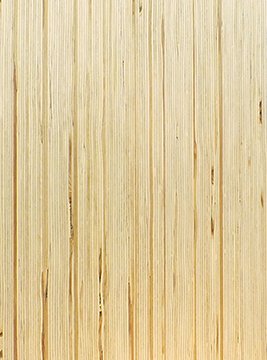

Structural LVL Core

The structural LVL core has gained popularity as both a high strength core option and for its unique aesthetic appearance when used without a face veneer. Often used in high security areas, the strength of the LVL core is highly praised. By leaving the LVL core exposed, it offers a unique aesthetic that would be perfect for any office, luxury home, or hotel.

Walnut

Rich dark brown to purplish-black heartwood, mostly straight grain.

White Ash

Heartwood is grey-brown, sometimes tinged with red.

White Birch

Wide, creamy white sapwood with pale brown heartwood.

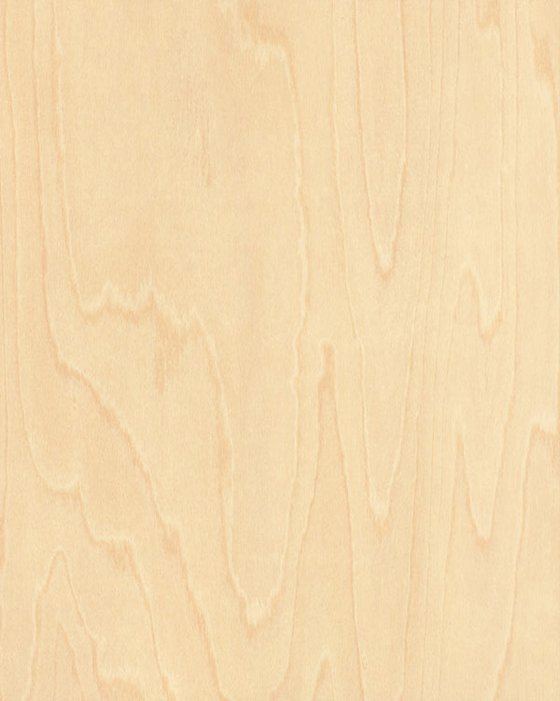

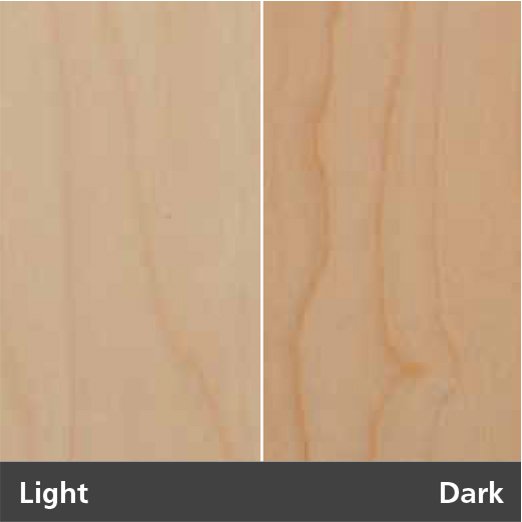

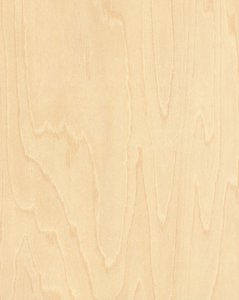

White Maple

Creamy white with a reddish tinge.

White Oak

Varies in color from pale yellow-brown to biscuit with a pinkish tint, similar to European oak.

Custom Laminate

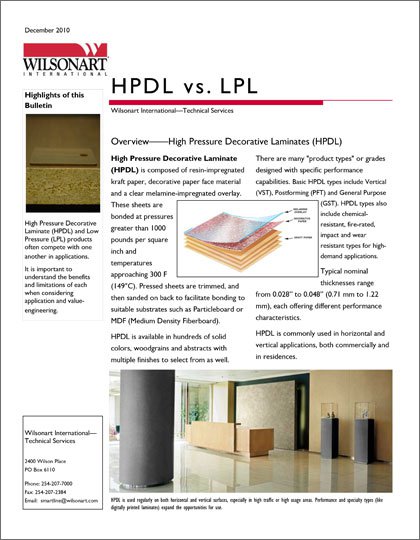

Architectural decorative laminate wood doors provide long lasting value for commercial and multi-family applications. High pressure laminate offers an excellent low maintenance alternative to wood veneer.

The physical properties of laminate combine durability with unlimited design options.

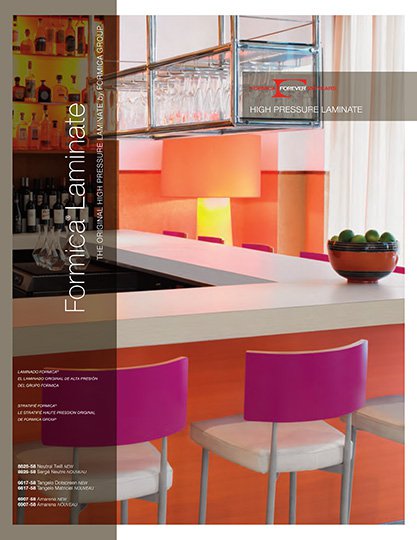

Modern Laminate

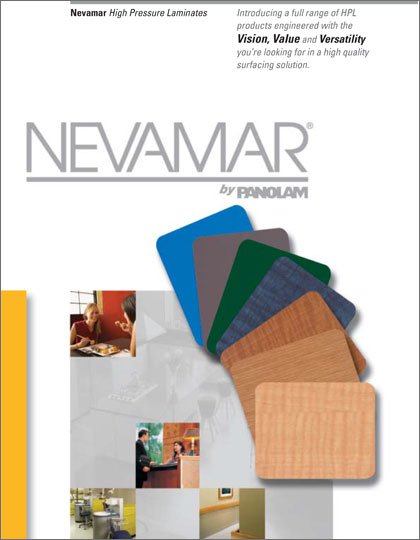

High pressure laminate offers an excellent cost effective alternative to wood veneer. The physical properties of laminate combine durability with unlimited design options.

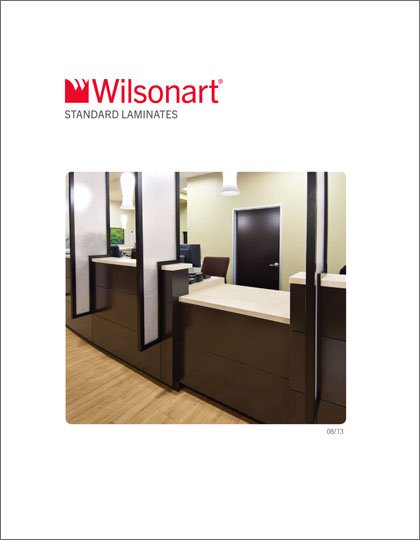

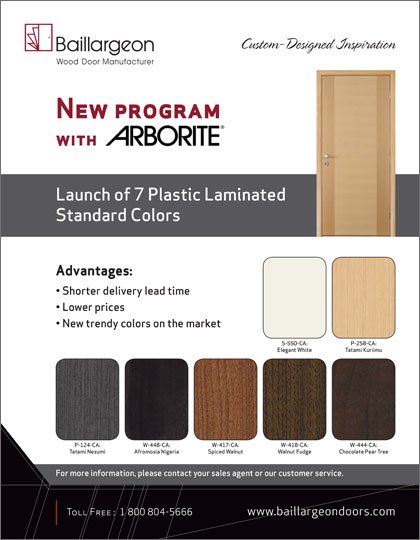

For more information, refer to 'Arborite Laminates' in the 'Downloads' section.

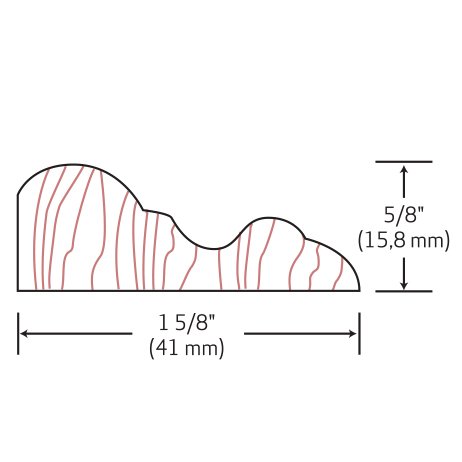

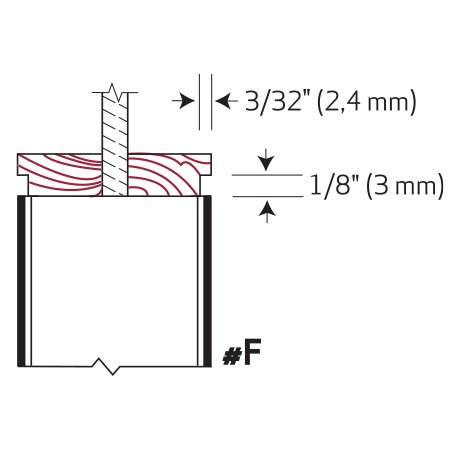

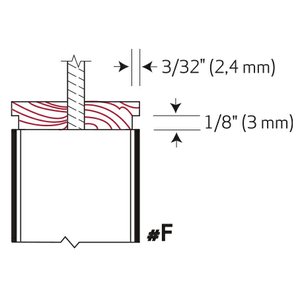

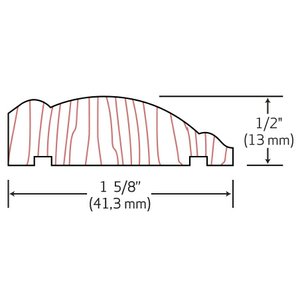

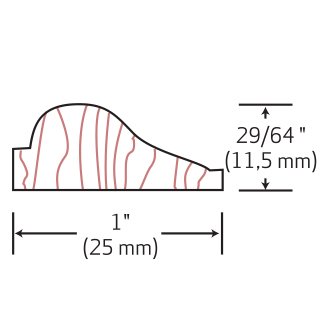

Lite bead profile #F

Standard models

Manufacturer’s choice of moulding milled from the same wood as the faces or matched to the face

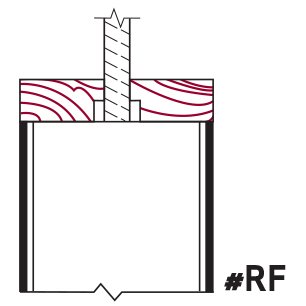

Lite bead profile #RF

Standard models

Manufacturer’s choice of moulding milled from the same wood as the faces or matched to the face

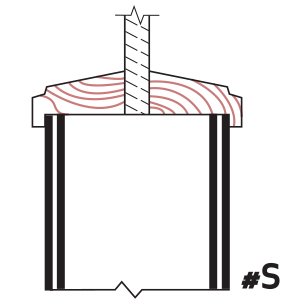

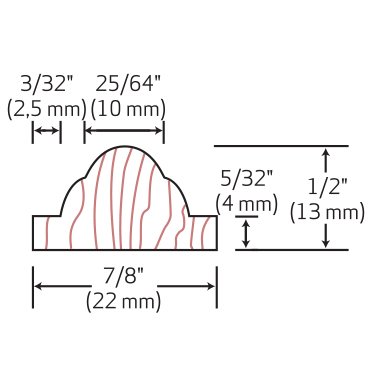

Lite bead profile #S

Standard models

Manufacturer’s choice of moulding milled from the same wood as the faces or matched to the face

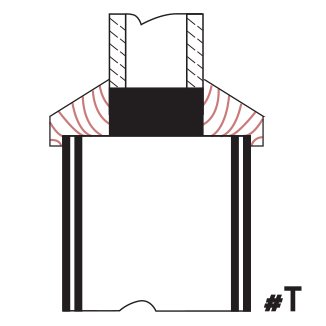

Lite bead profile #T

Thermos (Thermal)

3/4” (19 mm) thick for
1-3/4” (44 mm) or 2-1/4”
(57 mm) door

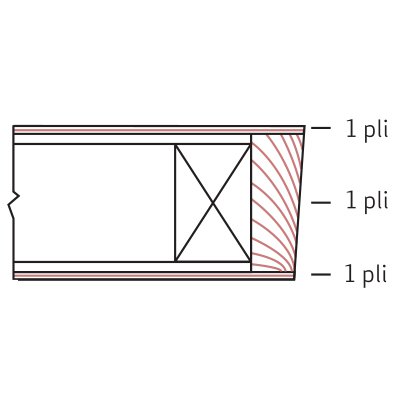

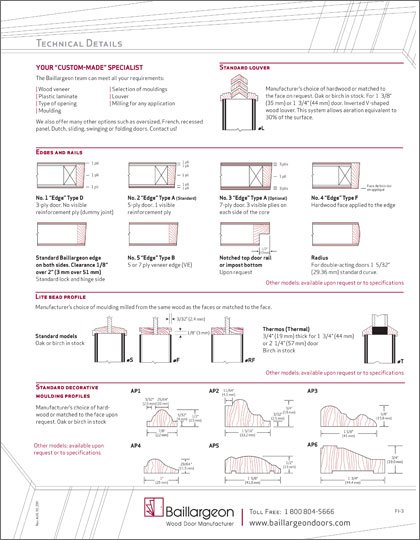

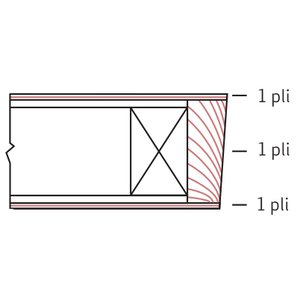

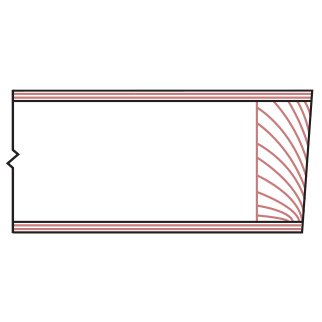

No. 1 "Edge" Type D

3-ply door

No visible reinforcement ply
(dummy joint)

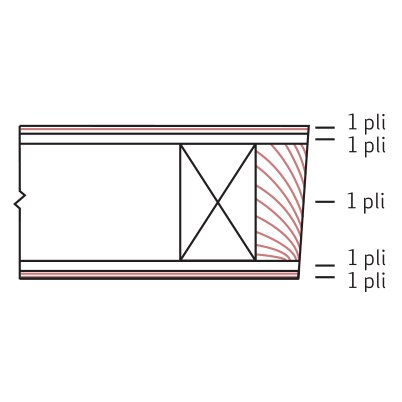

No. 2 "Edge" Type A

5-ply door

1 visible reinforcement ply
(standard)

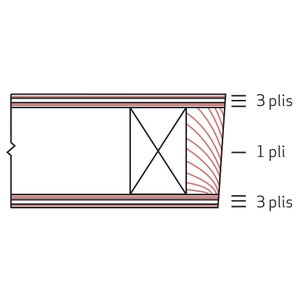

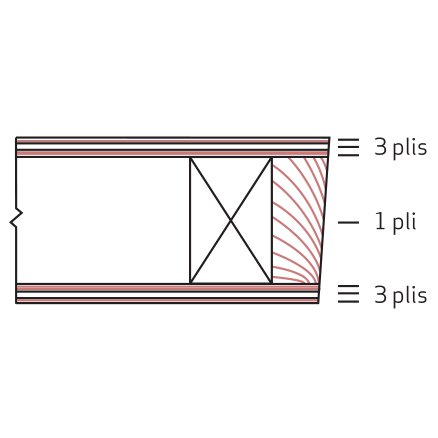

No. 3 "Edge" Type A

7-ply door

3 visible plies on each side of the core

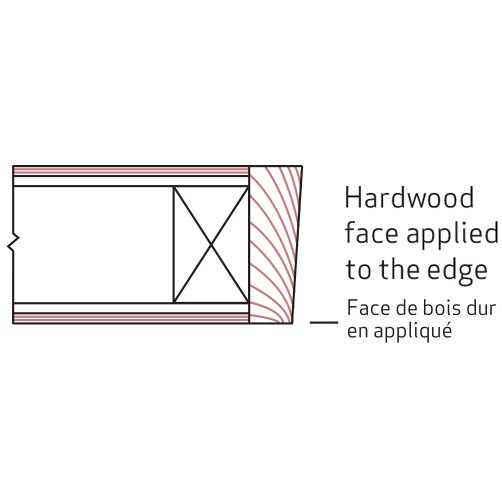

No. 4 "Edge" Type F

Hardwood face applied to the edge

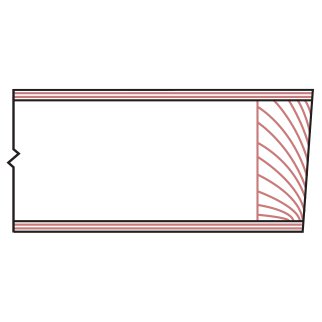

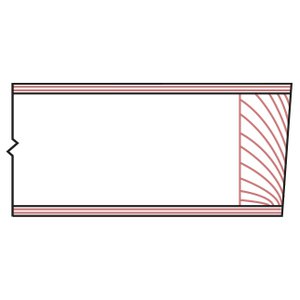

No. 5 "Edge" Type B

5- or 7-ply veneer edge (VE)

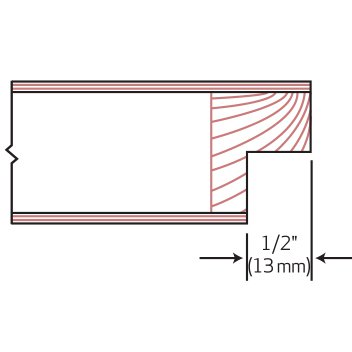

Notched top door rail or impost bottom

Upon request

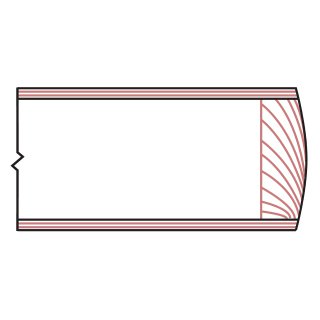

Radius edge rail

For double-acting doors

1-5/32” (29.36 mm) standard curve

Standard Baillargeon edge both sides

Clearance 1/8” over 2” (3 mm over 51 mm)

Standard lock and hinge side

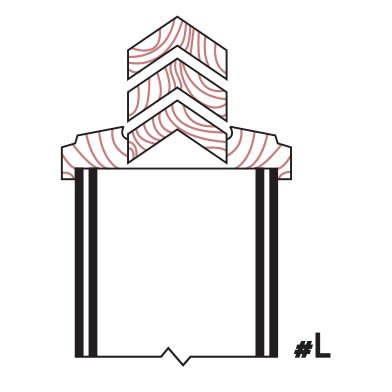

Standard louver profile #L

Manufacturer’s choice of hardwood or matched to the face on request

For 1-3/8” (35 mm) or 1-3/4” (44 mm) door

Inverted V-shaped louver

30% surface aeration
