Catch'N'Close™

Catch'N'Close Closing System Benefits:

Silent close

If noise reduction and privacy is a priority, the Catch´N´Close closing system is ideal. Long-term care facilities, hotels, hospitals, offices, conference rooms, bedrooms and bathrooms are just a few spaces that can benefit from this new technology.

Safety

The Catch´N´Close closing system eliminates accidental closure of the door on users’ fingers. Residential and commercial facilities who are catering to small children, the elderly, or individuals who require additional care are perfect candidates for the system.

Ease of use

The Catch´N´Close closing system is extremely user friendly as the door gently glides into the open/closed position without user assistance. The user is no longer responsible for ensuring that the door is either in the fully open or closed position as the Catch´N´Close mechanism does it for them.

The Technology

K.N. Crowder is the first to use the gas spring technology to create a top of the line door closing system. The closing system can be installed on both the opening and closing ends of doors up to 300 lbs. or as narrow as 18 inches wide. It has been cycle tested for up to 50,000 cycles without fail.

The Catch´N´Close closing system has the unique ability to safeguard the door and hardware from wear and tear. The system eliminates slamming; protecting the user, the door and the door frame.

Installation

The installation is easy as the Catch´N´Close closing system is hidden inside the Crowdertrack and requires no additional installation efforts. The product can be used on top/side mounted doors, pocket doors, single and bi-parting doors and some barn door applications. In the event there is any issue, or customers want to replace the closing device with a new one, there is no need to take apart the door or wall as the new closing system can easily be accessed or installed/removed from underneath the track.

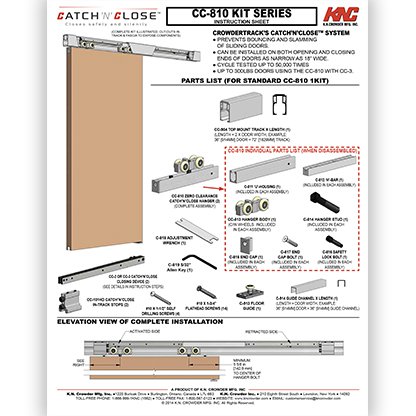

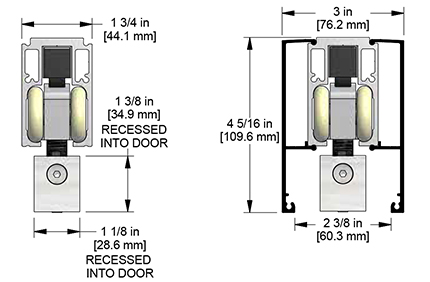

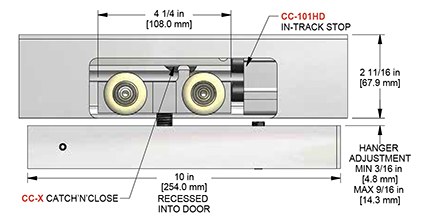

CC-810 Zero Clearance Hanger

With CC-904 Top Mount Track

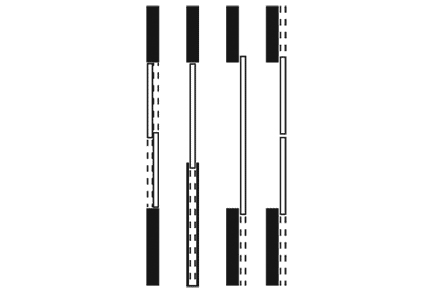

For Single or Bi-Parting, By-Passing, Pocket or Wall Mounted Doors

Using the popular design from the standard C-810 Zero Clearance Hangers, our well-known precision ball bearing nylon tire wheels, and adding Catch’N’Close technology, results in the ultimate sliding door system! The CC-810 Hanger allows for a minimal clearance of 3/16” [4.8mm] between the door and underside of track which also reduces light and sound entry.

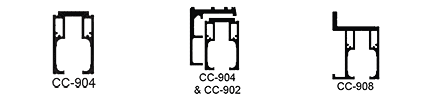

Using the new CC-904 Track, combined with the CC-940 Fascia can result in significant savings by eliminating the need for constructing a bulkhead to hide the track & hardware.

• CC-810 Hanger Load Capacity 300 lbs. (two Hangers)
• Use with Extruded Aluminum CC-904 Track, 6061T6 Alloy
• Use with CC-2 Catch’N’Close closing device for up to 200lbs. doors
• Use with CC-3 Catch’N’Close closing device for up to 300lbs. doors

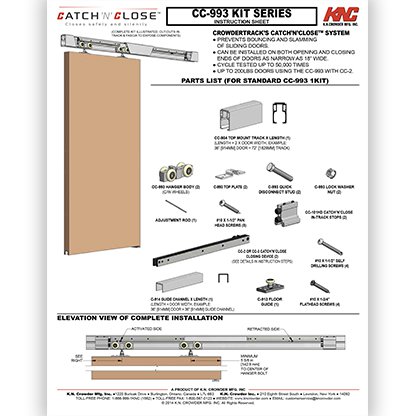

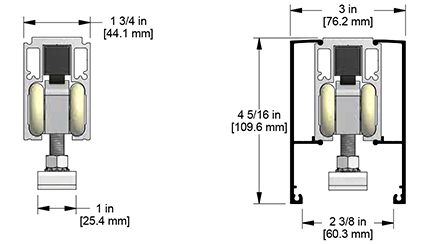

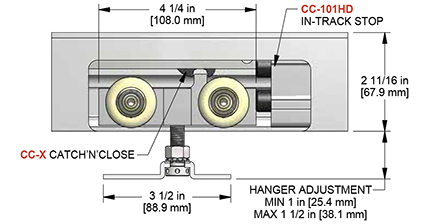

CC-993 Easy Connect Hanger

With CC-904 Top Mount Track

For Single or Bi-Parting Wall Mounted Doors

Using the popular design from the standard C-993 Easy Connect Hangers, our well-known precision ball bearing nylon tire wheels, and adding Catch’N’Close technology, results in the ultimate sliding door system! The CC-993 Hanger has a quick disconnect stud which allows hanger body and stud to be inserted into the track while mounting. The top plate is mounted to the top of the door and accepts the quick disconnect stud, therefore reducing installation time.

Using the new CC-904 Track, combined with the CC-940 Fascia can result in significant savings by eliminating the need for constructing a bulkhead to hide the track & hardware.

• CC-993 Hanger Load Capacity 200 lbs. (two Hangers)
• Use with Extruded Aluminum CC-904 Track, 6061T6 Alloy
• Use with CC-2 Catch’N’Close closing device for up to 200lbs. doors
