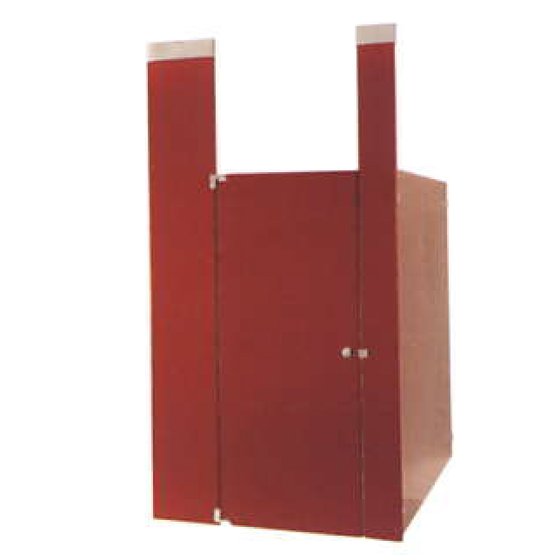

Citation (Ceiling Hung)

GSS Steel Toilet Compartments are the strongest standard door on the market. Every door has an emergency access to the stall. Hinges are heavy duty chrome plated wrap around non-ferrous alloy castings. Pilaster and panels are reversible, constructed of galvanneal steel and formed with snap lock edges with welded corners. Hinge side of doors are internally reinforced with a full length high density particle board structural member. Latching mechanism is internally reinforced with a 6" x 12" high density particle structural member. Each unit is finished with an abrasion and graffiti resistant, electro statically applied Polymer Powder Coating.

Product Features

• The Citation (Ceiling Hung) model is used in applications where
  visual security and ease of cleaning are a top priority.
• Ideal for hospitals, clinics, and quality restaurants.

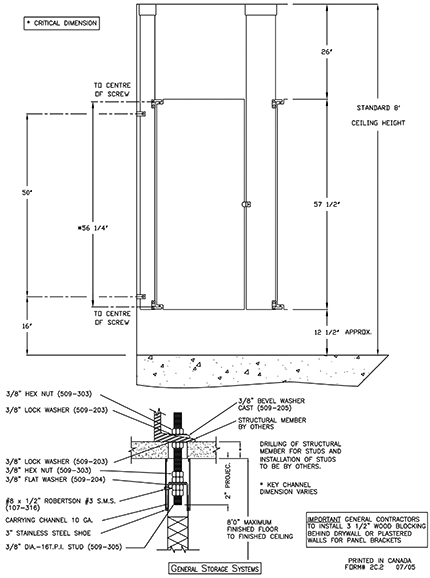

• Secured to the ceiling through the arc welded 12 gauge steel bracket
  by 3/8” diameter steel studs.

Doors and Dividing Panels: 57½" high x 1" thick.

Material: Panels and doors 22 gauge galvanneal steel; pilasters 20 gauge galvanneal steel.

Finishing: Pretreated with an iron phosphate corrosion inhibitor and finished with an abrasion and graffiti resistant, electro-statically applied polymer powder coating.

Color: See Finishes tab for availability. Graffiti-resistant powder coating available in all standard colours for an upcharge. Premium charge for textured or metallic effects.

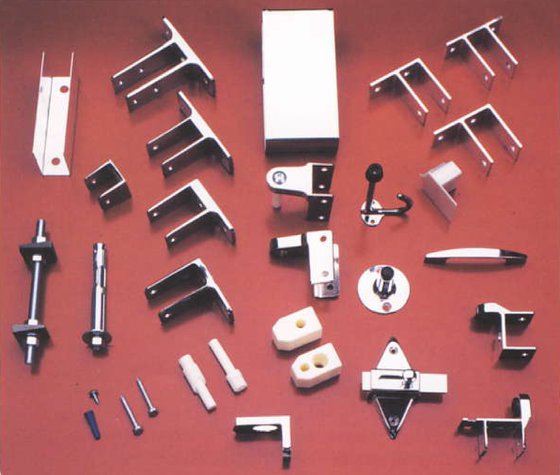

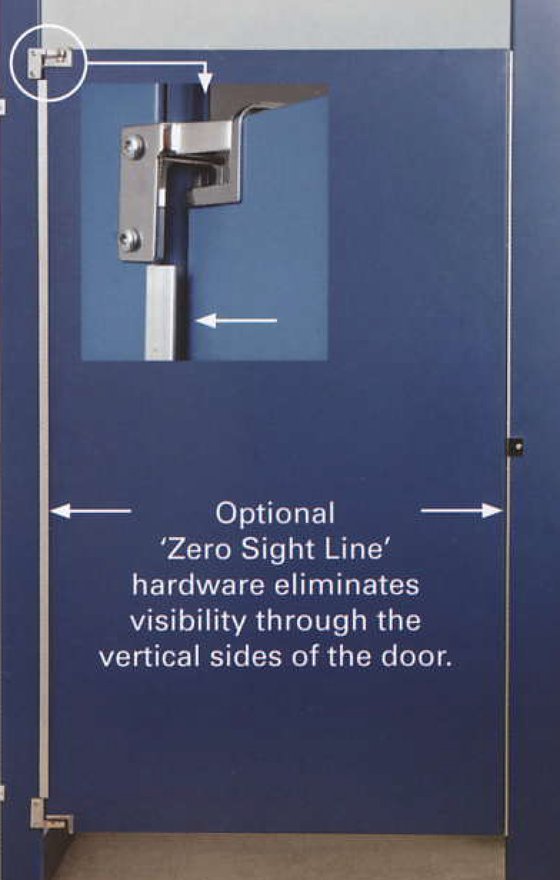

Hinges: Heavy duty chrome plated wrap around non-ferrous alloy castings.

Pilasters: Pilasters and panels are reversible, constructed of galvanneal steel formed with snap lock edges with welded corners.

Latching: Chrome plated non-ferrous slide bolt type with combination door stop and keeper.

Wall and connecting brackets: Heavy duty extruded aluminum alloy, brightened and polished or heavy duty chromium plated die-cast ZAMAC.

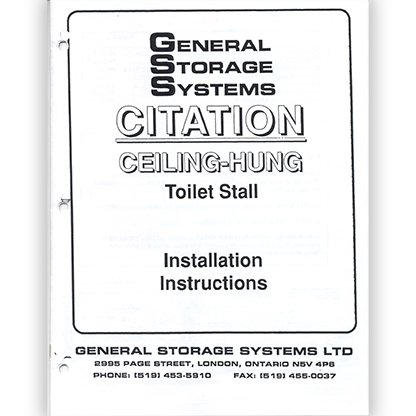

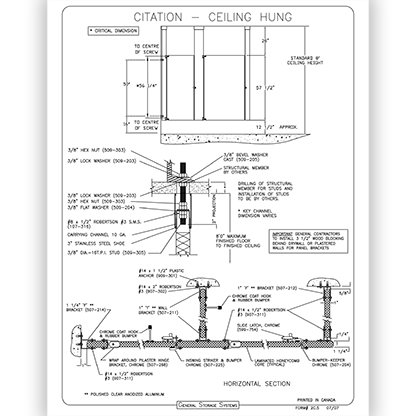

For detailed drawings and specifications, see Downloads tab.
