Hand Dryers

Warm Air Hand Dryers Technical Data

NO-TOUCH OPERATION: electronic sensor automatically turns dryer on when hands are held under air‑outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Dryer will not stop by itself before user is satisfied hands are dry. Dryer operates only when actually drying hands which saves energy and operating costs. Electronic sensor will automatically shut dryer off 1-1/2 minutes after dryer turns on if an inanimate object, such as tape or chewing gum, is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.

SAFETY WARNING: Installation and wiring must conform to current local regulations and building codes. Unit must be installed by a qualified electrician. Turn off electrical power supply before making electrical connections. If the unit fails or malfunctions, it should be disconnected from the power supply and a qualified electrician should be called. To avoid potential injury, the building owner or maintenance personnel should remove the unit from service if the grille is missing or damaged.

AirCraft® Hand Dryers

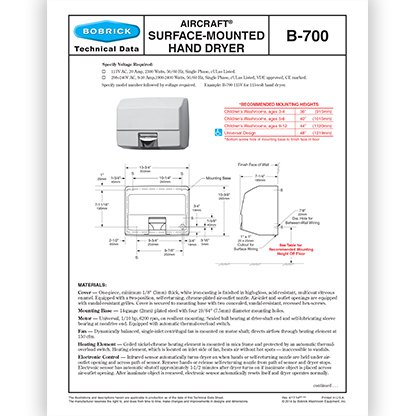

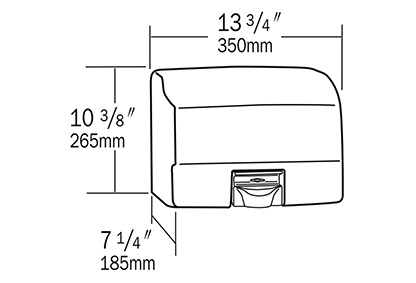

B-700 AirCraft Touch-Button Dryer

Cast iron with white vitreous enamel finish, automatic (B-731: touch-button operation, 80-sec. drying cycle), ƒ115V AC, 20 Amp, 2300 Watts, 50/60 Hz, cULus Listed, or 208–240V AC, 9–10 Amp, 1900–2400 Watts, 50/60 Hz, cULus Listed, VDE approved, CE marked and CCC approved.

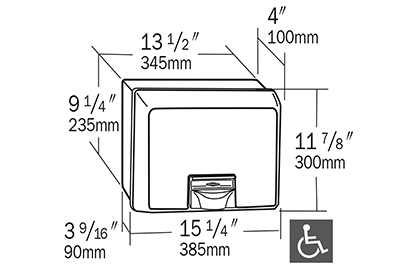

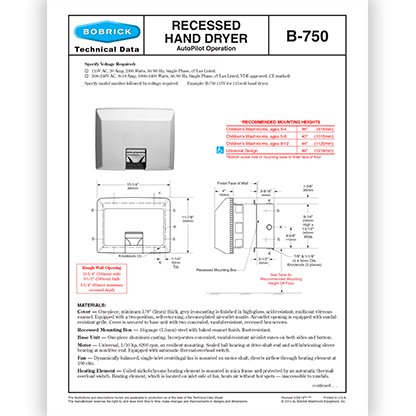

B-750 AirCraft Recessed Auto-Sensor Dryer

Durable, cast-iron with white vitreous enamel finish, automatic sensor, ƒ115V AC, 20 Amp, 2300 Watts, 50/60 Hz, cULus Listed, or 208–240V AC, 9–10 Amp, 1900–2400 Watts, 50/60 Hz, cULus Listed, VDE approved, CE marked and CCC approved.

MATERIALS:

• Cover – One-piece, minimum 1/8'' (3mm) thick, white iron-casting is finished in high-gloss, acid-resistant, multicoat vitreous enamel. Equipped with a two-position, self-returning, chrome-plated air-outlet nozzle. Air-inlet and -outlet openings are equipped with vandal-resistant grilles. Cover is secured to mounting base with two concealed, vandal-resistant, recessed hex-screws.

• Mounting Base – 14 gauge (2mm) plated steel with four 19/64'' (7.5mm) diameter mounting holes.

• Motor – Universal, 1/10 hp, 6200 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end. Equipped with automatic thermal-overload switch.

• Fan – Dynamically balanced, single-inlet centrifugal fan is mounted on motor shaft; directs airflow through heating element at 150 cfm.

• Heating Element – Coiled nickel-chrome heating element is mounted in mica frame and protected by an automatic thermal-overload switch. Heating element, which is located on inlet side of fan, heats air without hot spots — inaccessible to vandals.

• Electronic Control – Infrared sensor automatically turns dryer on when hands or self-returning nozzle are held under airoutlet opening and across path of sensor. Remove hands or release self-returning nozzle from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 1-1/2 minutes after dryer turns on if inanimate object is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.

AirCraft 10-Year Limited Warranty: In addition to Bobrick’s one-year guarantee, Bobrick extends a limited 10-year warranty from the date of purchase for AirCraft hand and hair dryers on all parts, except motor brushes, to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. Motor brushes are warranted for three years from date of purchase. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.

AirGuard™ Hand Dryers

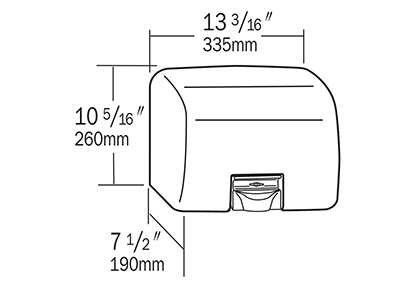

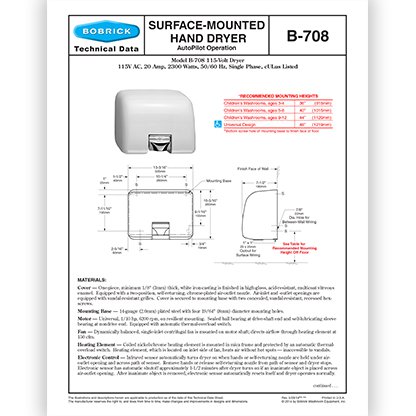

B-708 AirGuard Auto-Sensor Dryer

Durable, cast-iron with white vitreous enamel cover, automatic sensor, ƒ115V AC, 20 Amp, 2300 Watts, 50/60 Hz, cULus Listed.

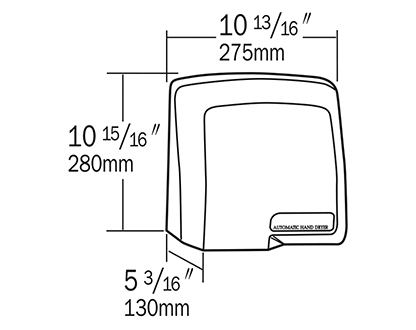

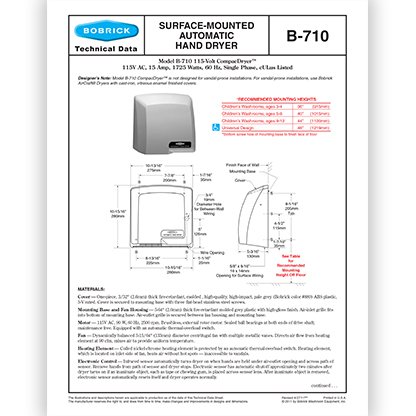

B-710 CompacDryer

One-piece grey-molded plastic cover, automatic sensor, ƒ115V AC, 15 Amp, 1725 Watts, 60 Hz, cULus Listed. Patented.

TrimLine™ Hand Dryers

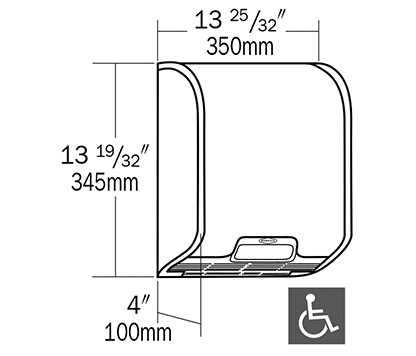

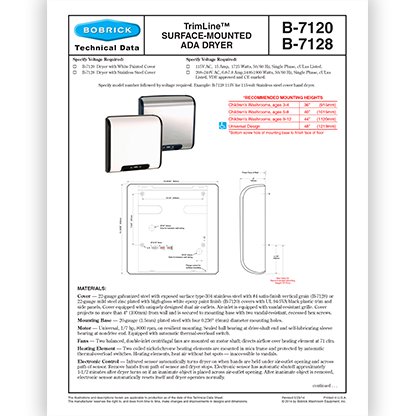

B-7120 TrimLine Auto-Sensor Dryer

Durable, 22-gauge, zinc-plated steel with white epoxy cover with black plastic trim, automatic sensor, dual air outlets, ƒ115V AC, 15 Amp, 1725 Watts, 50/60 Hz, Single Phase, cULus Listed, or 208-240V AC, 6.8-7.8 Amp, 1400-1900 Watts, 50/60 Hz, Single Phase, cULus Listed, VDE approved, and CE marked. Patent pending.

B-7128 TrimLine Auto-Sensor Dryer

Durable, 18-gauge, type 304 satin-finish stainless steel cover with black plastic trim, automatic sensor, dual air outlets, ƒ115V AC, 15 Amp, 1725 Watts, 50/60 Hz, Single Phase, cULus Listed, or 208-240V AC, 6.8-7.8 Amp, 1400-1900 Watts, 50/60 Hz, Single Phase, cULus Listed, VDE approved, and CE marked. Patent pending.

Elan™ Hand Dryers

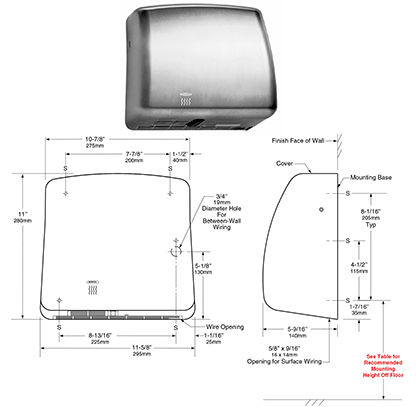

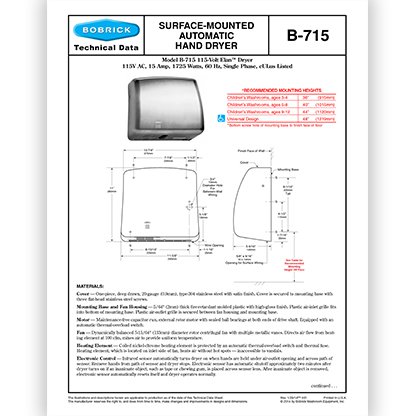

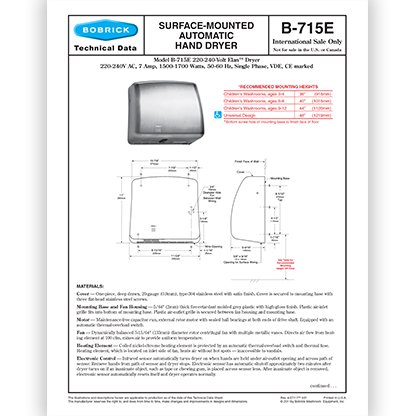

B-715 & B-715E Elan Auto-Sensor Dryer

Model B-715: 115-Volt Elan™ Dryer 115V AC, 15 Amp, 1725 Watts, 60 Hz, Single Phase, cULus Listed. Model B-715E: 220-240-Volt Elan™ Dryer 220-240V AC, 7 Amp, 1500-1700 Watts, 50-60 Hz, Single Phase, VDE, CE marked.

Eclipse™ Hand Dryers

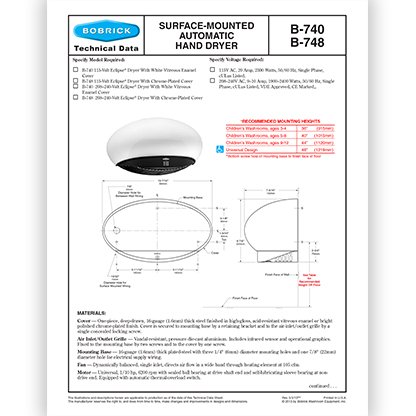

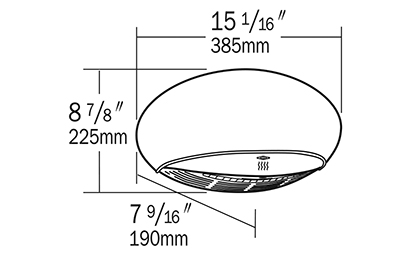

B-740 Eclipse Auto-Sensor Dryer

Durable, drawn-steel white vitreous enamel cover, automatic sensor, ƒ115V AC, 20 Amp, 2300 Watts, 50/60 Hz, cULus Listed, or 208-240V AC, 9–10 Amp, 1900–2400 Watts, 50/60 Hz, cULus Listed, VDE approved, CE marked and CCC approved. Patented.

B-748 Eclipse Auto-Sensor Dryer

Durable, drawn-steel bright-polished chrome-plated cover, automatic sensor, 115V AC, 20 Amp, 2300 Watts, 50/60 Hz, cULus Listed, or 208–240V AC, 9–10 Amp, 1900–2400 Watts, 50/60 Hz, cULus Listed, VDE approved, CE marked and CCC approved. Patented.

ClassicSeries® QuietDry Hand Dryers

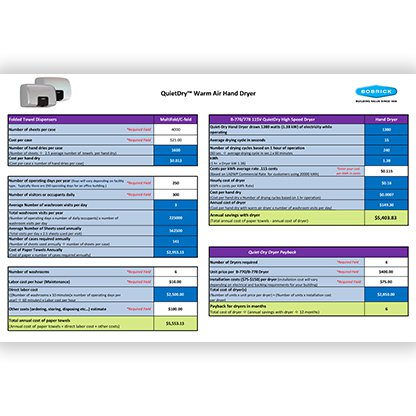

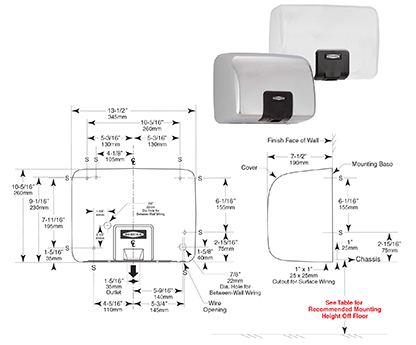

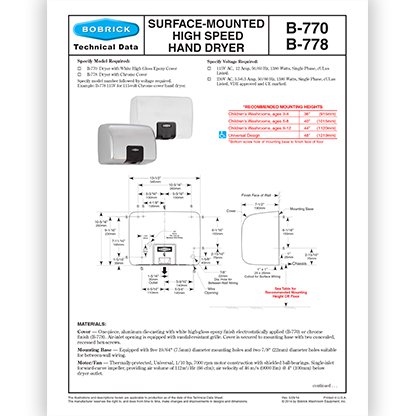

B-770 & B-778 QuietDry Infrared-Sensor Dryer

B-770 Dryer with White High Gloss Epoxy Cover; B-778 Dryer with Chrome Cover. Specify Voltage Required:  115V AC, 12 Amp, 50/60 Hz, 1380 Watts, Single Phase, cULus Listed; OR:  230V AC, 5.5-6.3 Amp, 50/60 Hz, 1380 Watts, Single Phase, cULus Listed, VDE approved and CE marked.

MATERIALS:

• Cover – One-piece, aluminum die-casting with white high-gloss epoxy finish electrostatically applied (B-770) or chrome finish (B-778). Air-inlet opening is equipped with vandal-resistant grille. Cover is secured to mounting base with two concealed, recessed hex-screws.

• Mounting Base – Equipped with five 19/64" (7.5mm) diameter mounting holes and two 7/8" (22mm) diameter holes suitable for between-wall wiring.

• Motor/Fan – Thermally-protected, Universal, 1/10 hp, 7000 rpm motor construction with shielded ball-bearings. Single-inlet forward-curve impeller, providing air volume of 112m3/Hr (66 cfm); air velocity of 46 m/s (9000 lfm) @ 4" (100mm) below dryer outlet.

• Heating Element – Coiled Nichrome heating element, protected by integral automatic thermal overload device. Located on fan inlet, to heat air without hot spots and remain inaccessible to vandals.

• Electronic Control – Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.

QuietDry 5-Year Limited Warranty: In addition to Bobrick’s one-year guarantee, Bobrick extends a limited 5 year warranty from the date of purchase for Model B-770 and B-778 hand dryers on all parts, except motor brushes, to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. Motor brushes are warranted for 3 years from date of purchase. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.

Bobrick – Building Value Since 1906

Bobrick is a century-old global washroom accessory and partition company with six manufacturing divisions across the United States and Canada, and business operations that extend into 85 markets worldwide.

A leader in product innovation and manufacturing, Bobrick prides itself as a company that delivers best-in-class products and service, while fostering an environment of collaboration and continuous learning.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
