Tubular Collection

Rockwood's 1-1/4" and 1-1/2" diameter tubular pulls and pushes are made from rugged 16 gauge wall tubing with solid brass end inserts.

These large diameter pulls provide a greater door contact area, which ensures that Rockwood's guaranteed fastening system will provide a tight permanent installation.

(1-1/4" pulls have 60% larger mounting area, and 1-1/2" pulls have 125% larger mounting area, than 1" pulls.)

RM257 pulls are made from solid 1-1/4" rod, and its 30-degree angle cut provides a mounting area 80% larger than 1" pulls.

Designs
Specifications
Options
Finishes
Downloads

RM201 - offset pull

1-1/4" diameter

12" CTC

3" projection

RM202 - offset pull

1-1/4" diameter

18" CTC

3" projection

RM203 - offset pull

1-1/4" diameter

24" CTC

3" projection

RM204 - offset pull

1-1/4" diameter

36" CTC

3" projection

RM221 - offset pull

1-1/2" diameter

12" CTC

3-1/2" projection

RM222 - offset pull

1-1/2" diameter

18" CTC

3-1/2" projection

RM223 - offset pull

1-1/2" diameter

24" CTC

3-1/2" projection

RM224 - offset pull

1-1/2" diameter

36" CTC

3-1/2" projection

RM251 - offset push-pull

1-1/4" diameter

Specify push CTC

12" pull CTC

RM252 - offset push-pull

1-1/4" diameter

Specify push CTC

18" pull CTC

RM257 - angle pull

1-1/4" diameter

10" CTC

3-3/4" projection

RM258 - angle pull

1-1/4" diameter

12" CTC

3-3/4" projection

RM259 - angle pull

1-1/4" diameter

18" CTC

3-3/4" projection

RM271 - offset push-pull

1-1/2" diameter

Specify push CTC

12" pull CTC

RM272 - offset push-pull

1-1/2" diameter

Specify push CTC

18" pull CTC

RM301 - straight pull

1-1/4" diameter

12" CTC

3" projection

RM302 - straight pull

1-1/4" diameter

18" CTC

3" projection

RM303 - straight pull

1-1/4" diameter

24" CTC

3" projection

RM304 - straight pull

1-1/4" diameter

36" CTC

3" projection

RM321 - straight pull

1-1/2" diameter

12" CTC

3-1/2" projection

RM322 - straight pull

1-1/2" diameter

18" CTC

3-1/2" projection

RM323 - straight pull

1-1/2" diameter

24" CTC

3-1/2" projection

RM324 - straight pull

1-1/2" diameter

36" CTC

3-1/2" projection

RM350 - push bar

1-1/4" diameter

Specify CTC

3" projection

RM351 - straight push-pull

1-1/4" diameter

Specify push CTC

12" pull CTC

RM352 - straight push-pull

1-1/4" diameter

Specify push CTC

18" pull CTC

RM370 - push bar

1-1/2" diameter

Specify CTC

3-1/2" projection

RM371 - straight push-pull

1-1/2" diameter

Specify push CTC

12" pull CTC

RM372 - straight push-pull

1-1/2" diameter

Specify push CTC

18" pull CTC

Tubular Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the Tubular Collection are aluminum, stainless steel, brass or bronze.

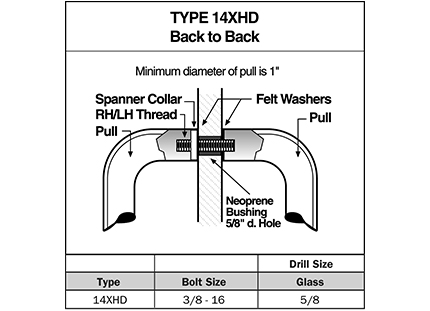

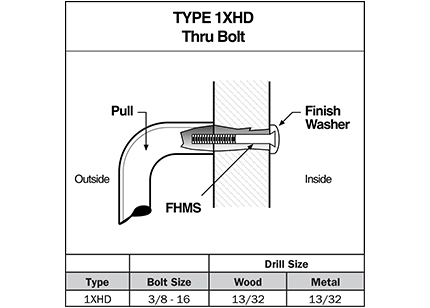

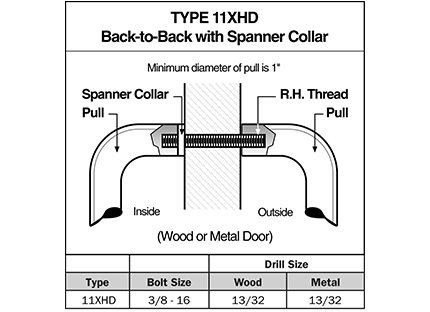

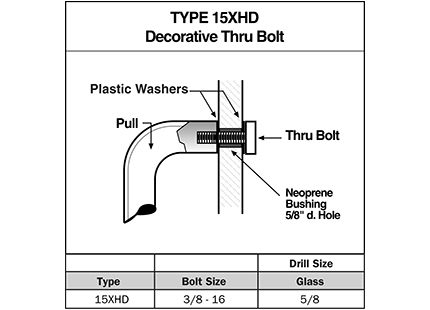

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.

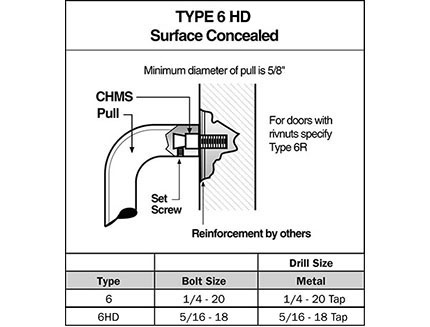

Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM350-3).
Note: Phantom lines depict optional multi-bar sets (see Designs tab).

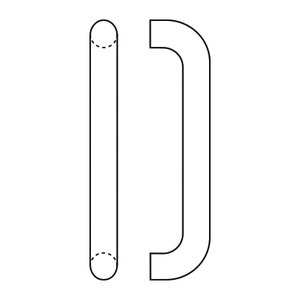

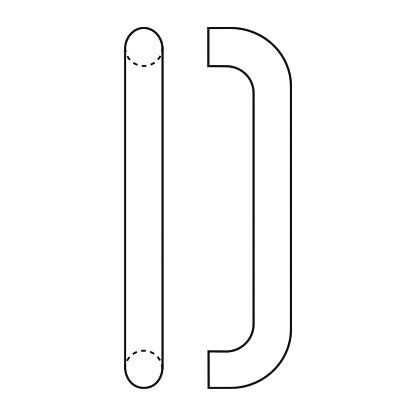

Straight Pull

RM301 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3"

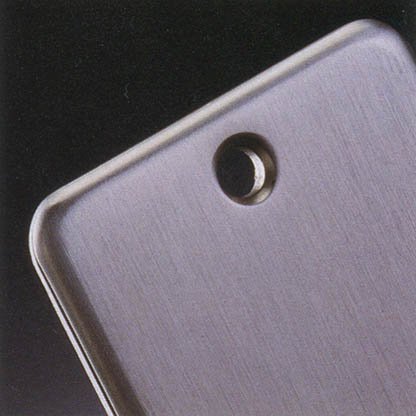

Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM302 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM303 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 24" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM304 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM321 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM322 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM323 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 24" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM324 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

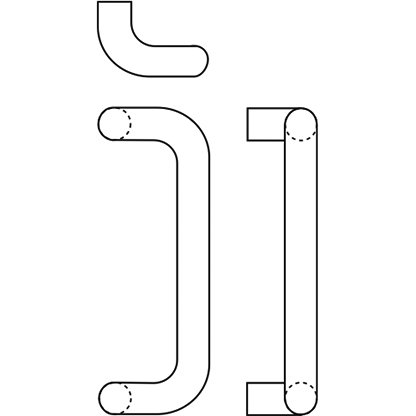

Offset Pull

RM201 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM202 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM203 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 24" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM204 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM221 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM222 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM223 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 24" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM224 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

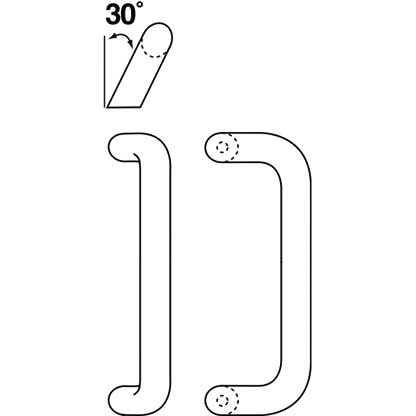

Solid Angle Pull

RM257 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 10" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Feature: 30-degree angle cut for larger mounting footprint
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM258 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Feature: 30-degree angle cut for larger mounting footprint
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM259 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Feature: 30-degree angle cut for larger mounting footprint
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

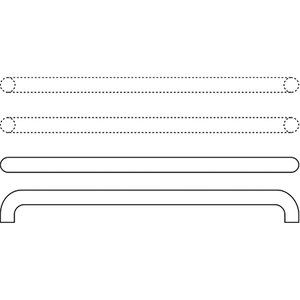

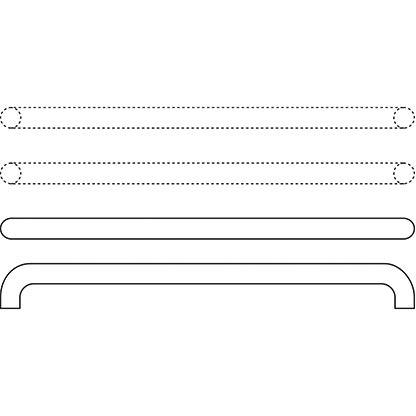

Push Bar

RM350 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM350-3)
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM370 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM350-3)
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Push-Pull Set

RM351 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: Specify push CTC; 12" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM351-2)
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM352 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: Specify push CTC; 18" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM352-2)
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM371 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: Specify push CTC; 12" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM371-3)
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM372 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: Specify push CTC; 18" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM372-3)
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

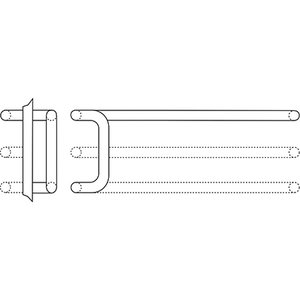

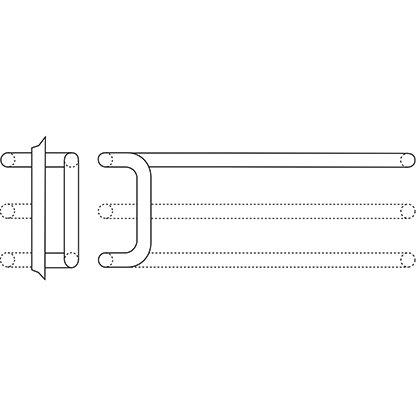

Offset Push-Pull Set

RM251 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: Specify push CTC; 12" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM251-2)
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM252 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: Specify push CTC; 18" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM252-2)
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM271 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: Specify push CTC; 12" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM271-3)
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM272 Specifications (XHD Mounting):

Base Metal: Aluminum, Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: Specify push CTC; 18" pull CTC (center-to-center measurement between mounts)
Option: For multi-bar set, suffix -2 or -3 to pull number (example: RM272-3)

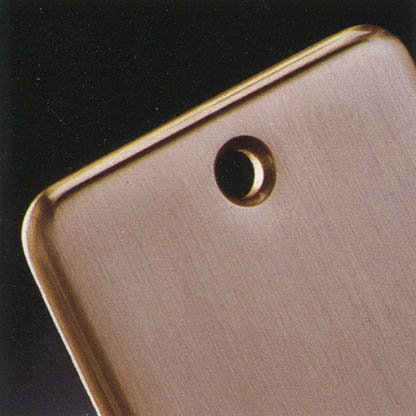

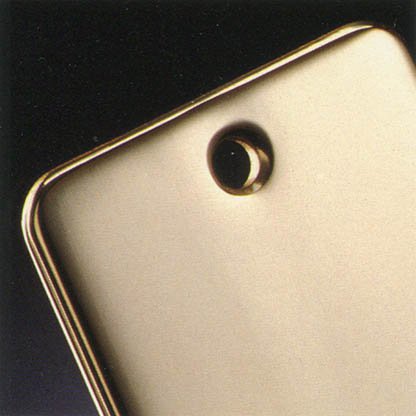

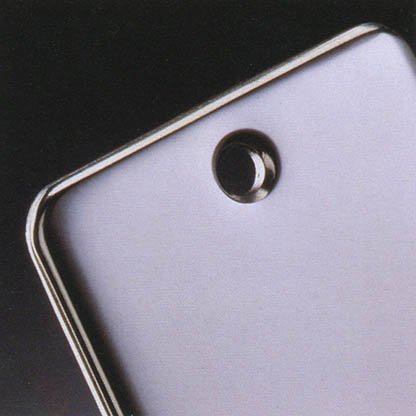

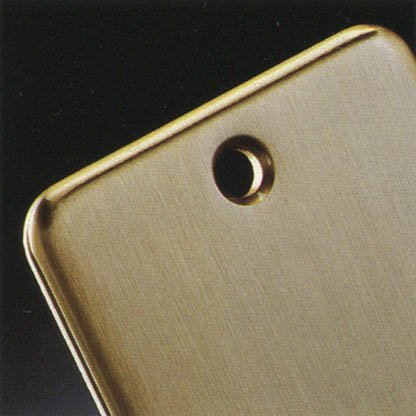

Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
