Hardware > Miscellaneous > Door Viewers

TAYMOR

A home is built on safety and security. That’s why Taymor has an extensive range of door security products that offer peace of mind, as well as quality design.

From door chains and bolts, to padlocks and door guards, Taymor delivers items that provide families with the confidence that their home is secure.

Designs
Specifications
Downloads

25-D4841B - 12mm

160° door viewer

Adjustable from 1-3/8" to 2-1/8"

Plastic lens; polished brass

25-D4841N - 12mm

160° door viewer

Adjustable from 1-3/8" to 2-1/8"

Plastic lens; nickel finish

25-D4841SC - 12mm

160° door viewer

Adjustable from 1-3/8" to 2-1/8"

Plastic lens; satin chrome

25-D4841SN - 12mm

160° door viewer

Adjustable from 1-3/8" to 2-1/8"

Plastic lens; satin nickel

25-D4846 - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; polished chrome

25-D4846AB - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; antique brass

25-D4846AN - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; antique nickel

25-D4846B - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; polished brass

25-D4846N - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; nickel finish

25-D4846ORB - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; oil-rubbed bronze

25-D4846SC - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; satin chrome

25-D4846SN - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Plastic lens; satin nickel

37-B4820B - 12mm

160° door viewer

Adjustable from 1-5/16" to 2-1/4"

Glass lens; dull brass

37-B4820N - 12mm

160° door viewer

Adjustable from 1-5/16" to 2-1/4"

Plastic lens; nickel finish

37-B4825B - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Glass lens; polished brass

37-B4825N - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Glass lens; nickel finish

37-B4825ORB - 14mm

180° door viewer

Adjustable from 1-3/8" to 2-1/4"

Glass lens; oil-rubbed bronze

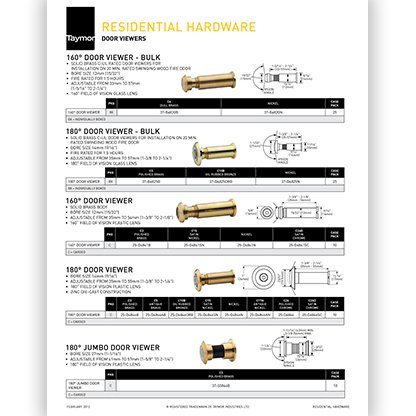

Taymor Residential Hardware – Door Viewers

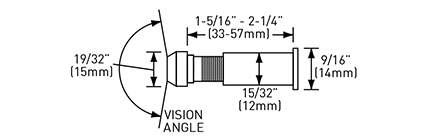

160° DOOR VIEWER - BULK (37-B4820 Series)

• SOLID BRASS C-UL RATED DOOR VIEWERS FOR INSTALLATION ON
20 MIN. RATED SWINGING WOOD FIRE DOOR
• BORE SIZE 12mm (15/32")
• FIRE RATED FOR 1.5 hours
• ADJUSTABLE FROM 33mm TO 57mm (1-5/16" TO 2-1/4")
• 160˚ FIELD OF VISION GLASS LENS

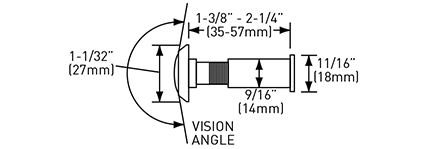

180° DOOR VIEWER - BULK (37-B4825 Series)

• SOLID BRASS C-UL DOOR VIEWERS FOR INSTALLATION ON 20 MIN.
RATED SWINGING WOOD FIRE DOOR
• BORE SIZE 14mm (9/16")
• FIRE RATED FOR 1.5 hours
• ADJUSTABLE FROM 35mm TO 57mm (1-3/8 TO 2-1/4")
• 180˚ FIELD OF VISION GLASS LENS

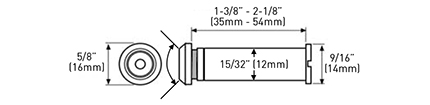

160° DOOR VIEWER (25-D4841 Series)

• SOLID BRASS BODY
• BORE SIZE 12mm (15/32")
• ADJUSTABLE FROM 35mm TO 54mm (1-3/8" TO 2-1/8")
• 160˚ FIELD OF VISION PLASTIC LENS

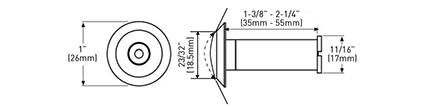

180° DOOR VIEWER (25-D4846 Series)

• BORE SIZE 14mm (9/16")
• ADJUSTABLE FROM 35mm TO 55mm (1-3/8" TO 2-1/4")
• 180˚ FIELD OF VISION PLASTIC LENS
• ZINC DIE-CAST CONSTRUCTION

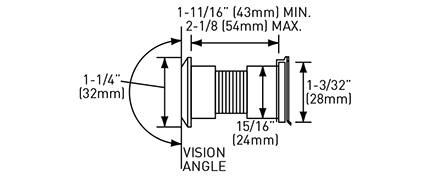

180° JUMBO DOOR VIEWER (37-S5846 Series)

• BORE SIZE 27mm (1-1/16")
• ADJUSTABLE FROM 41mm TO 57mm (1-5/8" TO 2-1/4")
• 180˚ FIELD OF VISION PLASTIC LENS
