SculpTrex Collection

Convey a sense of sophisticated quality with a SculpTrex pull.

The collection consists of flowing designs or graceful curved designs in cast brass, bronze or white bronze.

The inviting shapes are as comfortable to the hand as they are appealing to the eye, with a variety of finishes available.

Designs
Specifications
Finishes
Downloads

RM5032

20" CTC

3-1/4" projection

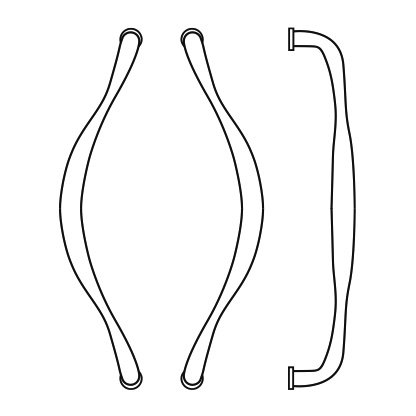

RM5042

20" CTC

3-1/4" projection

SculpTrex Collection Specifications

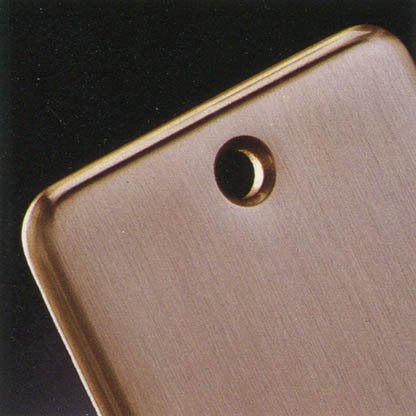

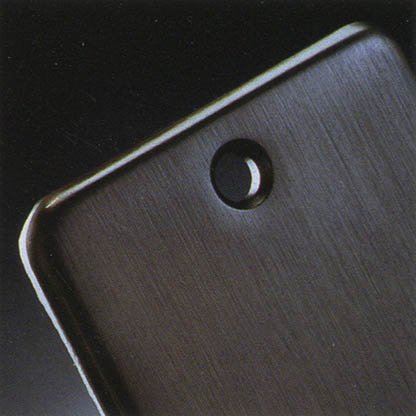

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metals for the SculpTrex Collection are brass, bronze, or white bronze.

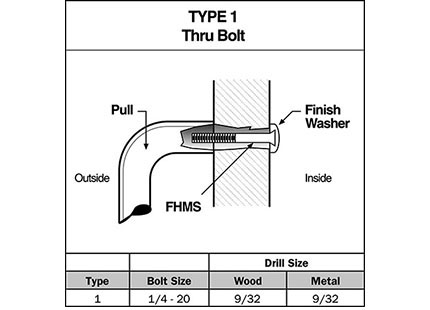

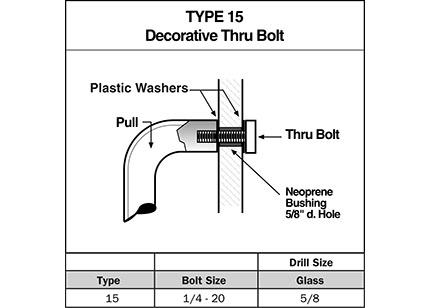

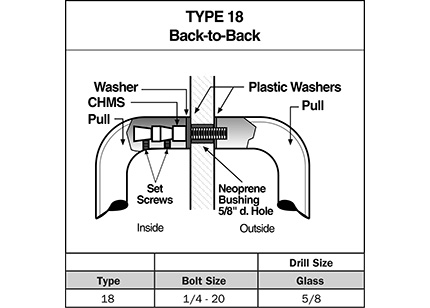

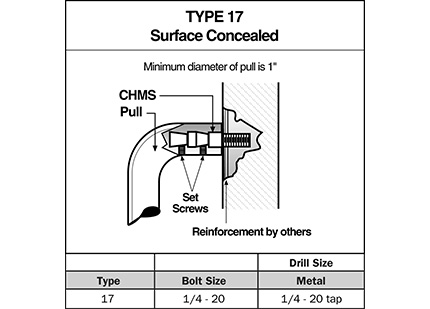

Rockwood Door Pulls – Mounting Types

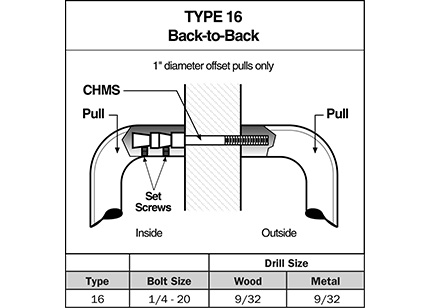

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

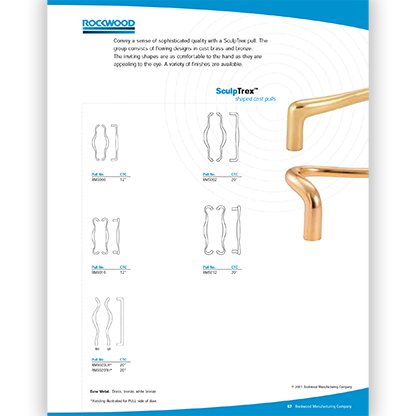

Flowing Design Cast Pulls

RM5000 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

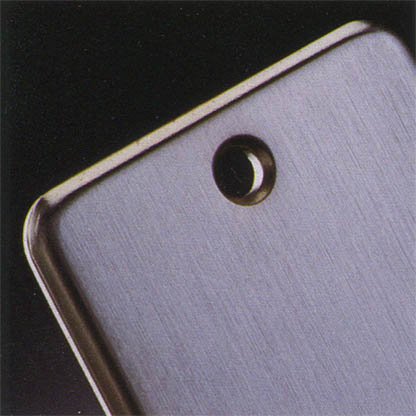

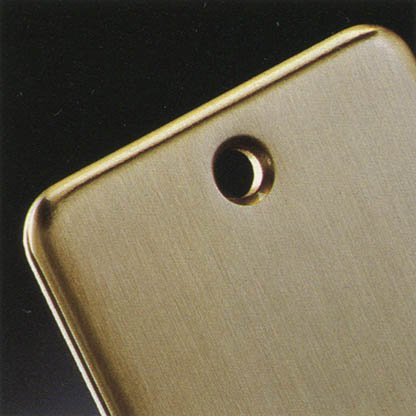

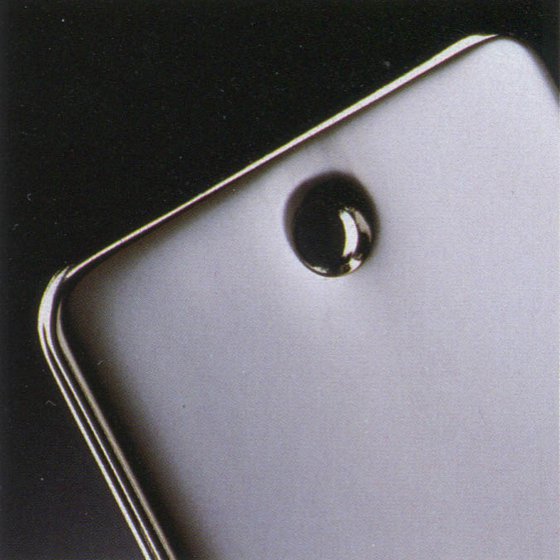

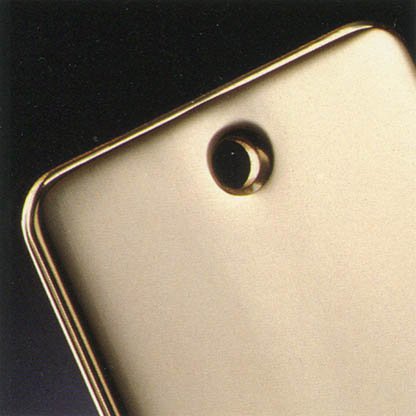

Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5002 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5010 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-3/8"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5012 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 20" CTC (center-to-center measurement between mounts)
Projection: 3-5/8"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5020 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 20" CTC (center-to-center measurement between mounts)
Projection: 3-7/8"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Ordering: Specify handing (LH or RH)

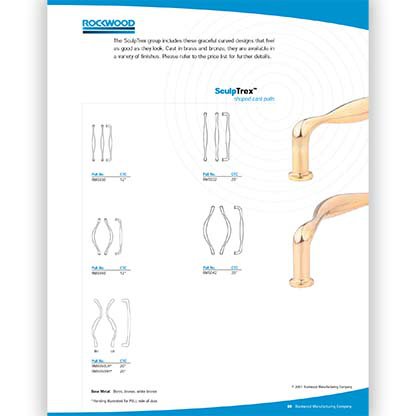

Graceful Curved Cast Pulls

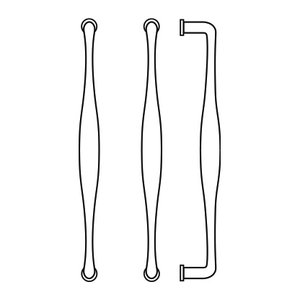

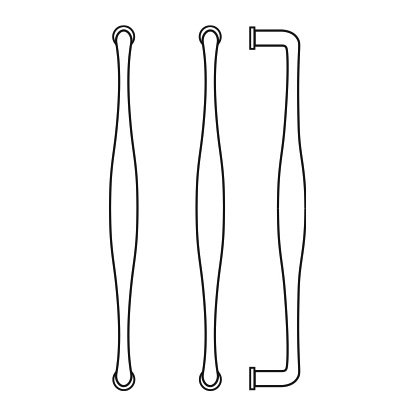

RM5030 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5032 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5040 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-3/8"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

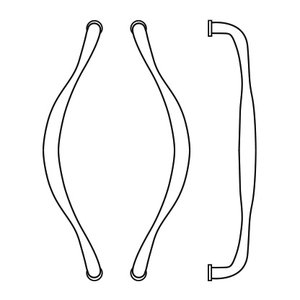

RM5042 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5050 Specifications:

Base Metal: Brass, Bronze, or White Bronze
Length: 20" CTC (center-to-center measurement between mounts)
Projection: 4-1/2"
Finishes: US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Ordering: Specify handing (LH or RH)

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
