Sargent 80 Series
SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation.
- Maintenance-free design
- Easy installation, quick retrofit
- Made of the finest component materials

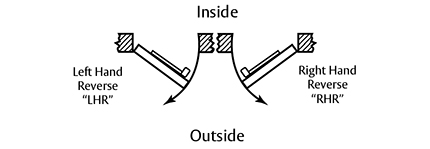

- Non-handed available
- Multiple through-bolt options
- Keying accomplished without removing device from door
- Designs
- Specifications

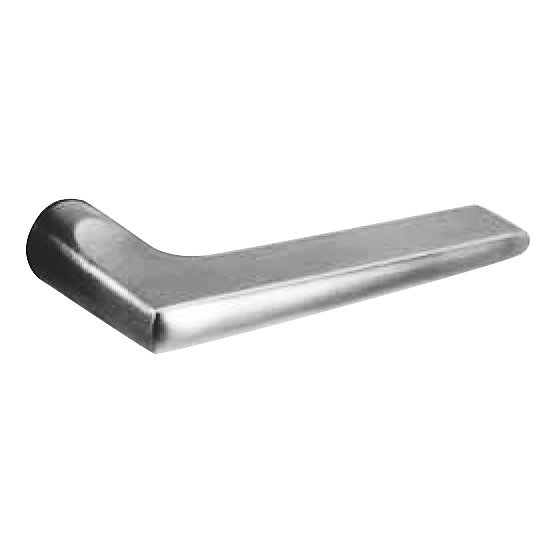

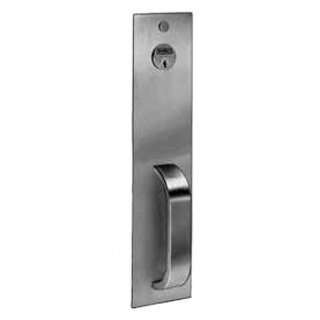

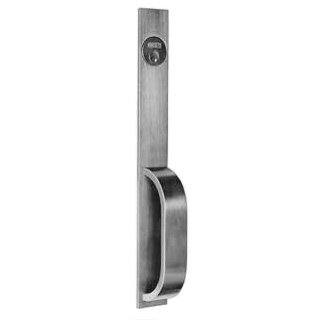

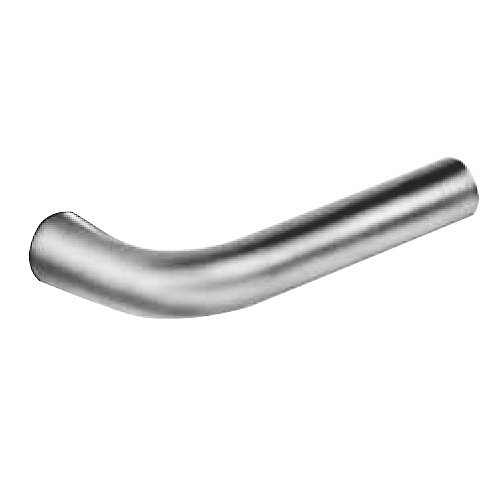

- Trim
- Options
- Functions
- Finishes
- Downloads
8300 Series
Close
8300 Series
The SARGENT 8300 Series Exit Device is a narrow design, push rail style, mortise lock exit device.
8500 Series
Close
8500 Series
The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.
8700 Series
Close

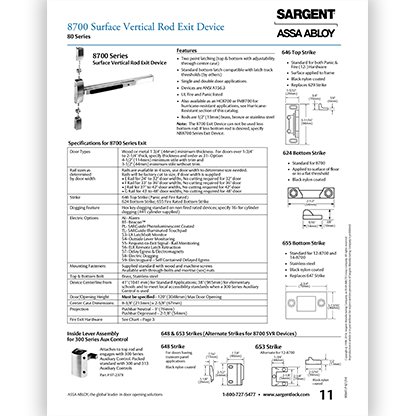

8700 Series
The SARGENT 8700 Surface Vertical Rod Exit Device has two point latching (top and bottom of the door) and is adjustable through the center case.
8800 Series
Close

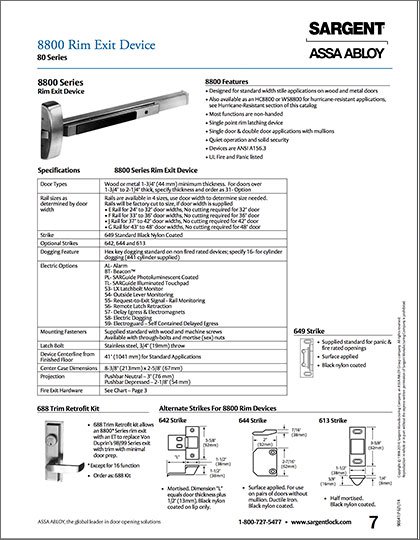

8800 Series
The 8800 series is designed for standard width stile applications on wood and metal doors. This reversible rim exit device sets the industry standard for durability and reliability.
8888 Series
Close
8888 Series

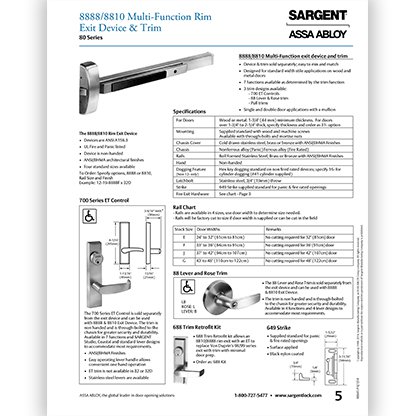

The 8888 is designed for standard width stile applications on wood and metal doors, and has 7 functions determined by the trim function.
8900 Series
Close

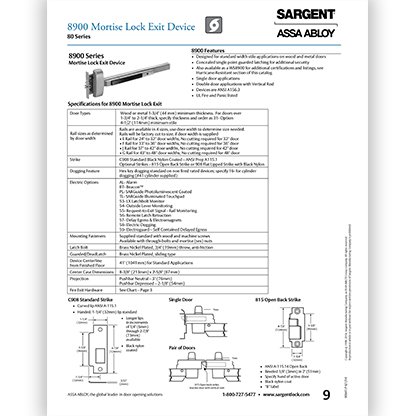

8900 Series
8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

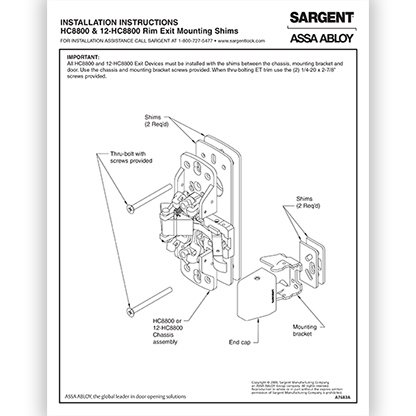

HC8800 Series
Close

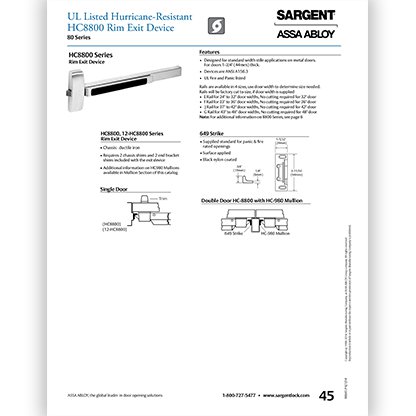

HC8800 Series
The HC8800 device is designed for standard width stile applications on metal doors
Sargent 80 Series Mortise Lock Exit Devices

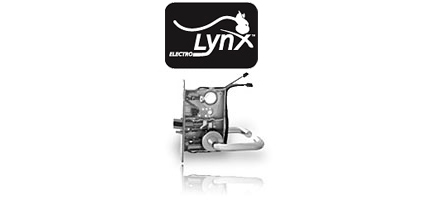

ElectroLynx™: The New Standard in Door Wiring
The plug-in connector system that allows installers to quickly and easily connect SARGENT electromechanical locks with CECO and Graham doors and frames, McKINNEY hinges and other ASSA ABLOY products.
The plug-in universal connectors and easy, color-coded wire system eliminate matching wires. Wiring is a snap and completely fool-proof. This pre-wired opening system – standard on most SARGENT electromechanical products – features Molex® connectors that snap together, attaching the door, hinge and lock to the building’s power source. Whether you use the system now, or plan to upgrade in the future, changing the components is as easy as plugging a phone into a wall jack.
MicroShield™ Hardware Finish Coating
MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.
- Supresses microbes
- Long lasting
- Non-toxic
- Available on most SARGENT product lines
- Lasts for the life of the hardware
- State-of-the-art protection and peace of mind 24/7
MicroShield treated hardware reduces bacterial growth quickly!
MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.
The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)
SARGuide™
The SARGuide™ exit device contains an illuminated touchpad to enhance the visibility of exit locations in dark or smoke-filled passages. As a supplement to existing codes for egress lighting, SARGuide effectively improves the safety of any public building.
- Highly visible in smoke and other low visibility conditions
- Three to five times greater visibility than any other light source
- Can be easily spotted from considerable distances
- Green/blue color conducive to night vision
- No filaments to break or fail
- Immune to vibration or shock
- Extremely durable construction – continues to operate even if pierced
- Intuitive operation – integral "EXIT" signage guides users directly to the means of egress

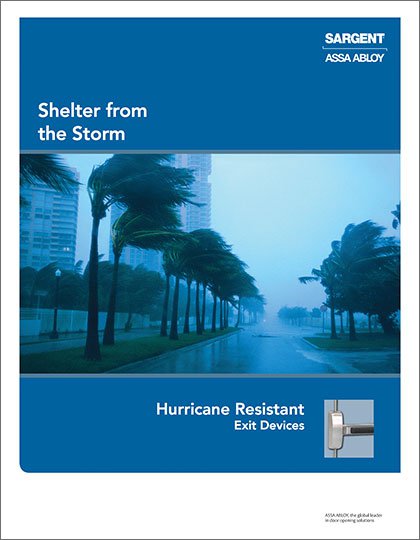

Tornado and Hurricane Resistant Products
SARGENT® leads the industry in developing products that withstand vigorous hurricane and tornado codes and standards. We have a broad selection of products designed to meet the needs in the most vulnerable locations in the country.
SARGENT products are tested to meet these codes and standards: FEMA (Federal Emergency Management Agency), NSSA (National Storm Shelter Association), IBC (International Building Code), FBC (Florida Building Code), including the Florida HVHZ (High Velocity Hurricane Zone), and ANSI A250.13.

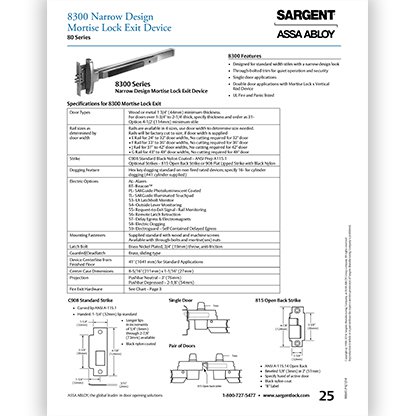

Sargent 8300 Narrow Design Mortise Lock Exit Device
Features
- Designed for standard width stiles with a narrow design look
- Through-bolted trim for quiet operation and security
- Single door applications
- Double door application with Mortise Lock & Vertical Rod Device
- UL Fire and Panic Listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Specifications
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
- Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
No cutting required for 32" door; - F Rail - 33" to 36" (84cm to 91cm)
No cutting required for 36" door - J Rail - 37" to 42" (94cm to 107cm)
No cutting required for 42" door; - G Rail - 43" to 48" (110cm to 122cm)
No cutting required for 48" door
- E Rail - 24" to 32" (61cm to 81cm)
- Strike: C908 Standard Black Nylon Coated - ANSI Prep A115.1
- Optional Strikes: 815 Open Back Strike
- Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
- Electric Options: AL- alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL-SARGuide illuminated touchpad, 53-LX Latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit- signal-rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric Dogging, 59-Electroguard-self contained delayed egress
- Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
- Latch Bolt: Brass Nickel Plated, 3/4" (19mm) throw, anti-friction
- Guarded/Dead Latch: Brass, sliding type
- Device Centerline from Finished Floor: 41” (1041 mm)
- Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)
- Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10-63 - SARGENT Signature removable core cylinder
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-21 - XC construction key system (lost ball)
- 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
- 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
- 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
- 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
- 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
- 12 - UL Fire Label
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 23 - Flat 4-7/8" ANSI Strike
- 31 - Special Thickness Doors (specify door thickness)
- 36 - 6 lobe security head screws
- 37 - Spanner Head Screws
- 43 - Flush End Cap
- 51 - Old Style Removable Core Cylinders (existing systems only)
- 52 - Old Style Removable Construction Core Cylinders (existing systems only)
- 53 - Latchbolt Monitor Switch
- 54 - Outside Lever Monitoring Option
- 55 - Request-to-Exit Signal Switch, Rail Monitoring Option
- 56 - Remote Electric Latch Retraction (ELR)
- 57 - Delayed Egress Option & Electromagnets
- 58 - Electric dogging
- 59 - Electroguard Delayed Egress Device
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- 76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
- 81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
- 82 - SARGENT Keso Security Cylinder (existing systems only)
- 83 - SARGENT Keso Security Removable Core Cylinder
- 84 - SARGENT Keso Security Removable Construction Core Cylinder
- 85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
- 86 - Abrasive Coating, outside lever (Not available with Studio Levers)
- 87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
- AL - Alarmed exit
- BC59 - Boco Code (NY) - Electroguard
- BR - Bump Resistant Cylinder
- BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG2-65- - Degree Level 2 Unassembled/Uncombined Core
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- F182 - Lock provided with SARGENT Keso F1 Security Cylinder
- F183 - SARGENT Keso F1 Security Removable Core cylinder
- HK56 - Latch Retraction with Hex Key Dogging
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
- TL - SARGuide™ - Illuminated Touchpad

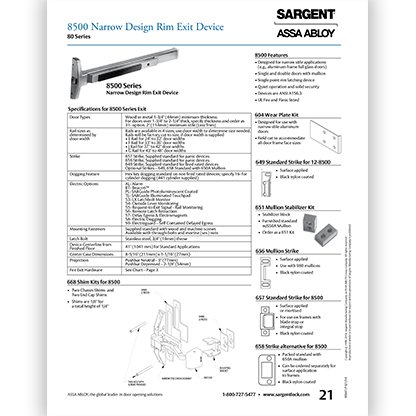

Sargent 8500 Narrow Design Rim Exit Device
Features
- Designed for narrow stile applications such as aluminum frame full glass doors
- Single and double doors with mullion
- Single point rim latching device
- Quiet operation and solid security
- Devices are ANSI A156.3 - 2001 Grade 1 Panic listed
- UL Fire and Panic listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Specifications
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
- Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
No cutting required for 32" door; - F Rail - 33" to 36" (84cm to 91cm)
No cutting required for 36" door - J Rail - 37" to 42" (94cm to 107cm)
No cutting required for 42" door; - G Rail - 43" to 48" (110cm to 122cm)
No cutting required for 48" door
- E Rail - 24" to 32" (61cm to 81cm)
- Strike: 657 Standard Black Nylon Coated
- Optional Strikes: 649, 658 Standard with 650A Mullion
- Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
- Electric Options: AL-alarm, PL-SARGuide Photoluminescent Coated, BT-Beacon, TL- SARGuide Illuminated Touchpad, 53-LX Latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit Signal-Rail Monitoring, 56-ELR Remote Latch Retraction, 57-Delay Egress & Electromagnets, 58-Electric Dogging, 59-Electroguard-Self Contained Delayed Egress
- Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
- Latch Bolt: Stainless steel, 3/4" (19mm) throw
- Device Centerline from Finished Floor: 41” (1041 mm)
- Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)
- Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10-63 - SARGENT Signature removable core cylinder
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-21 - XC construction key system (lost ball)
- 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
- 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
- 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
- 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
- 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
- 12 - UL Fire Label
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 31 - Special Thickness Doors (specify door thickness)
- 36 - 6 lobe security head screws
- 37 - Spanner Head Screws
- 43 - Flush End Cap
- 51 - Old Style Removable Core Cylinders (existing systems only)
- 52 - Old Style Removable Construction Core Cylinders (existing systems only)
- 53 - Latchbolt Monitor Switch
- 54 - Outside Lever Monitoring Option
- 55 - Request-to-Exit Signal Switch, Rail Monitoring Option
- 56 - Remote Electric Latch Retraction (ELR)
- 57 - Delayed Egress Option & Electromagnets
- 58 - Electric dogging
- 59 - Electroguard Delayed Egress Device
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- 76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
- 81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
- 82 - SARGENT Keso Security Cylinder (existing systems only)
- 83 - SARGENT Keso Security Removable Core Cylinder
- 84 - SARGENT Keso Security Removable Construction Core Cylinder
- 85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
- 86 - Abrasive Coating, outside lever (Not available with Studio Levers)
- 87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
- AL - Alarmed exit
- BC59 - Boco Code (NY) - Electroguard
- BR - Bump Resistant Cylinder
- BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
- CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG2-65- - Degree Level 2 Unassembled/Uncombined Core
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- F182 - Lock provided with SARGENT Keso F1 Security Cylinder
- F183 - SARGENT Keso F1 Security Removable Core cylinder
- GL - Guarded latchbolt
- HK56 - Latch Retraction with Hex Key Dogging
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
- TL - SARGuide™ - Illuminated Touchpad
Sargent 8700 Surface Vertical Rod Exit Device
Features
- Two point latching (top and bottom of door)
- Top & bottom latchbolt projection adjustable through center case
- Standard bottom latch compatible with latch track thresholds (by others)
- Single and double door applications
- Devices exceed ANSI A156.3 - 2001 Grade 1; tested to over 16 million cycles
- UL Fire and Panic listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire ratings of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
- Rods are 1/2" (13mm) brass, bronze or stainless steel
Specifications
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
No cutting required for 32" door; - F Rail - 33" to 36" (84cm to 91cm)
No cutting required for 36" door - J Rail - 37" to 42" (94cm to 107cm)
No cutting required for 42" door; - G Rail - 43" to 48" (110cm to 122cm)
No cutting required for 48" door
- E Rail - 24" to 32" (61cm to 81cm)
- Strikes: 646 Top Strike (Panic and Fire Rated), 624 Bottom Strike; 655 Fire Rated Bottom Strike
- Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
- Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
- Top and bottom bolt: Brass, Stainless Steel
- Device Centerline from Finished Floor: 41” (1041 mm) for standard applications: 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 series auxiliary control is used
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
- Door opening/height: must be specified (102" max door opening)
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10-63 - SARGENT Signature removable core cylinder
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-21 - XC construction key system (lost ball)
- 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
- 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
- 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
- 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
- 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
- 1170 - Small Format interchangeable disposable construction core - to accept 7 pin XC permanent core
- 12 - UL Fire Label
- 14 - Sliding Bolt Bottom Case
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 31 - Special Thickness Doors (specify door thickness)
- 36 - 6 lobe security head screws
- 37 - Spanner Head Screws
- 43 - Flush End Cap
- 51 - Old Style Removable Core Cylinders (existing systems only)
- 52 - Old Style Removable Construction Core Cylinders (existing systems only)
- 53 - Latchbolt Monitor Switch
- 54 - Outside Lever Monitoring Option
- 55 - Request-to-Exit Signal Switch, Rail Monitoring Option
- 56 - Remote Electric Latch Retraction (ELR)
- 57 - Delayed Egress Option & Electromagnets
- 58 - Electric dogging
- 59 - Electroguard Delayed Egress Device
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- 76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
- 77 - Milled Both Levers (Mortise) Handicap Warning on Both Levers (Cylindrical)Abrasive Strip on rail, abrasive coating on lever (Exits)
- 81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
- 82 - SARGENT Keso Security Cylinder (existing systems only)
- 83 - SARGENT Keso Security Removable Core Cylinder
- 84 - SARGENT Keso Security Removable Construction Core Cylinder
- 85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
- 86 - Abrasive Coating, outside lever (Not available with Studio Levers)
- 87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
- AL - Alarmed exit
- AL93 - Continuous Alarm
- BC59 - Boco Code (NY) - Electroguard
- BR - Bump Resistant Cylinder
- BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
- CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG2-65- - Degree Level 2 Unassembled/Uncombined Core
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- F182 - Lock provided with SARGENT Keso F1 Security Cylinder
- F183 - SARGENT Keso F1 Security Removable Core cylinder
- HK56 - Latch Retraction with Hex Key Dogging
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
- TB - Through Bolts (8700 devices only)
- TL - SARGuide™ - Illuminated Touchpad
Sargent 8800 Rim Exit Device
Features
- Designed for standard width stile applications on wood and metal doors
- Most functions are non-handed
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - 2001 Grade 1
- UL Fire and Panic listed
- Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire ratings of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Specifications
- Door Types: Wood or metal 1-3/4"(44mm) thick door; over 1-3/4": specify thickness and order as a 31- prefix
- Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
- No cutting required for 32" door; - F Rail - 33" to 36" (84cm to 91cm)
- No cutting required for 36" door - J Rail - 37" to 42" (94cm to 107cm)
- No cutting required for 42" door; - G Rail - 43" to 48" (110cm to 122cm)
- No cutting required for 48" door
- E Rail - 24" to 32" (61cm to 81cm)
- Strike: 649 Standard Black Nylon Coated
- Optional Strikes: 642, 644 and 613
- Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
- NEW! - Visual Status Lock/Unlock Indicator (49-) available on 8816 devices only
- Electric Options: AL-Alarm, PL-SARGuide Photoluminescent, BT-Beacon, TL-SARGuide Illuminated Touchpad, 53-LX latchbolt Monitor, 54-Outside lever monitoring, 55-Request-to-exit Signal-Rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & Electromagnets, 58-Electric Dogging, 59-Electroguard-Self contained Delayed egress
- Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
- Latch Bolt: Stainless steel, 3/4" (19mm) throw
- Device Centerline from Finished Floor: 41” (1041 mm)
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Projection: Pushbar Neutral – 3" (76 mm);
- Pushbar Depressed – 2-1/8" (54 mm)
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10-63 - SARGENT Signature removable core cylinder
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-21 - XC construction key system (lost ball)
- 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
- 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
- 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
- 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
- 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
- 12 - UL Fire Label
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 31 - Special Thickness Doors (specify door thickness)
- 36 - 6 lobe security head screws
- 37 - Spanner Head Screws
- 43 - Flush End Cap
- 49 - Visual Status Lock/Unlock Indicator (Available with 8816 only)
- 51 - Old Style Removable Core Cylinders (existing systems only)
- 52 - Old Style Removable Construction Core Cylinders (existing systems only)
- 53 - Latchbolt Monitor Switch
- 54 - Outside Lever Monitoring Option
- 55 - Request-to-Exit Signal Switch, Rail Monitoring Option
- 56 - Remote Electric Latch Retraction (ELR)
- 57 - Delayed Egress Option & Electromagnets
- 58 - Electric dogging
- 59 - Electroguard Delayed Egress Device
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- 75 - Handicap Warning on Inside of Lever – Embossed Plastic backing
- 76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
- 81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
- 82 - SARGENT Keso Security Cylinder (existing systems only)
- 83 - SARGENT Keso Security Removable Core Cylinder
- 84 - SARGENT Keso Security Removable Construction Core Cylinder
- 85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
- 86 - Abrasive Coating, outside lever (Not available with Studio Levers)
- 87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
- AL - Alarmed exit
- AL93 - Continuous Alarm
- BC59 - Boco Code (NY) - Electroguard
- BR - Bump Resistant Cylinder
- BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
- CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- F182 - Lock provided with SARGENT Keso F1 Security Cylinder
- F183 - SARGENT Keso F1 Security Removable Core cylinder
- GL - Guarded latchbolt
- HK56 - Latch Retraction with Hex Key Dogging
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
- TB - Through Bolts (8700 devices only)
- TL - SARGuide™ - Illuminated Touchpad
Sargent 8888 Reversible Rim Exit Device
Features
Non-handed
- Single and double door applications
- Devices are ANSI A156.3 - 2001 Grade 1
- UL Fire and Panic Listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
- 7 functions determined by the trim
- Device & trim sold separately; easy to mix and match
- 3 available trim designs; trim is field reversible
Specifications
- For wood or metal doors. 1-3/4 in. (44 mm) and 2-1/4 in. (57 mm) thick
- Mounting is supplied standard with wood and machine screws. Available on order with through bolts and mortise nuts
- Chassis Cover: cold drawn stainless steel, bronze or bronze with ANSI/BHMA finishes
- Nonferrous alloy chassis (Panic); Ferrous alloy chassis (Fire Rated)
- Allen-type dogging furnished standard
- Stainless steel latchbolt, 3/4 in. (19 mm) throw
- 649 strike standard (panic & fire rated)
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
- 1170 - Small Format interchangeable disposable construction core - to accept 7 pin XC permanent core
- 12 - UL Fire Label
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 43 - Flush End Cap
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- BR - Bump Resistant Cylinder
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG2-65- - Degree Level 2 Unassembled/Uncombined Core
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- GL - Guarded latchbolt
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
Sargent 8900 Mortise Lock Exit Device
Features
- Designed for standard width stile applications on wood and metal doors
- Concealed single point guarded latching for additional security
- Single door applications
- Double door applications with Vertical Rod
- Devices are ANSI A156.3 - 2008 Grade 1
- UL Fire and Panic listed Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Specifications
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
- Door Widths:
- E Rail - 24" to 32" (61cm to 81cm)
No cutting required for 32" door; - F Rail - 33" to 36" (84cm to 91cm)
No cutting required for 36" door - J Rail - 37" to 42" (94cm to 107cm)
No cutting required for 42" door; - G Rail - 43" to 48" (110cm to 122cm)
No cutting required for 48" door
- E Rail - 24" to 32" (61cm to 81cm)
- Strike: C908 Standard Black Nylon Coated - ANSI Prep A115.1
- Optional Strikes: 815 Open Back Strike
- Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
- Electric Options: AL-alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL-SARGuide illuminated touchpad, 53-LX latchbolt monitor, 54-Outside lever monitor, 55-Request-to-exit signal- rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric Dogging, 59-Electroguard- Self contained Delayed egress
- Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
- Latch Bolt: Brass Nickel Plated, 3/4" (19mm) throw, anti-friction
- Dead Latch: Brass, sliding type
- Device Centerline from Finished Floor: 41” (1041 mm) for standard applications
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10-63 - SARGENT Signature removable core cylinder
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-21 - XC construction key system (lost ball)
- 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
- 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
- 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
- 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
- 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
- 12 - UL Fire Label
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 23 - Flat 4-7/8" ANSI Strike
- 31 - Special Thickness Doors (specify door thickness)
- 36 - 6 lobe security head screws
- 37 - Spanner Head Screws
- 43 - Flush End Cap
- 51 - Old Style Removable Core Cylinders (existing systems only)
- 52 - Old Style Removable Construction Core Cylinders (existing systems only)
- 53 - Latchbolt Monitor Switch
- 54 - Outside Lever Monitoring Option
- 55 - Request-to-Exit Signal Switch, Rail Monitoring Option
- 56 - Remote Electric Latch Retraction (ELR)
- 57 - Delayed Egress Option & Electromagnets
- 58 - Electric dogging
- 59 - Electroguard Delayed Egress Device
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- 76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
- 81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
- 82 - SARGENT Keso Security Cylinder (existing systems only)
- 83 - SARGENT Keso Security Removable Core Cylinder
- 84 - SARGENT Keso Security Removable Construction Core Cylinder
- 85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
- 86 - Abrasive Coating, outside lever (Not available with Studio Levers)
- 87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
- AL - Alarmed exit
- AL93 - Continuous Alarm
- BC59 - Boco Code (NY) - Electroguard
- BR - Bump Resistant Cylinder
- BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
- CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG1-78- - Degree Level 1 Exposed Plug
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG2-65- - Degree Level 2 Unassembled/Uncombined Core
- DG2-78- - Degree Level 2 Exposed Plug
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- DG3-78- - Degree Level 3 Exposed Plug
- F182 - Lock provided with SARGENT Keso F1 Security Cylinder
- F183 - SARGENT Keso F1 Security Removable Core cylinder
- GL - Guarded latchbolt
- HK56 - Latch Retraction with Hex Key Dogging
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
- TL - SARGuide™ - Illuminated Touchpad
Sargent HC8800 Rim Exit Device
Features
- Designed for standard width stile applications on metal doors
- For doors 1-3/4" (44mm) thick
- Single door applications - WS8800 Series
- Single and double door applications - HC8800 Series
- Solid stainless steel latchbolt. Meets UL panic test requirements without roller strikes which compromise strengh and durability
- "Anti-walk" latchbolt design eliminiates the need for guarded latchbolt
- Withstands over 5 times ANSI/BHMA A156.3 2008 grade 1 standards for static load test simulating forced entry
- UL Fire and Panic listed
- Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
- UL listed to ANSI 250.13 Severe Windstorm and listed on Florida Building Code Website
Specifications
- Stainless steel springs throughout
- Simple lever principle with push type action
- Rail travels in direction of door swing
- Trim is thru bolted
- Electric functions available
- All exit devices meet ANSI standard 156.3, Grade 1
- All exit devices are UL Listed
Options/Prefixes:
- 10 - SARGENT Signature key system
- 10-63 - SARGENT Signature removable core cylinder
- 10UL - SARGENT Signature key system meeting UL437 (exit devices & mortise only)
- 11 - SARGENT XC key system
- 11-21 - XC construction key system (lost ball)
- 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
- 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
- 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
- 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
- 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
- 11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
- 12 - UL Fire Label
- 16 - Cylinder lockdown (non fire rated exit devices only)
- 19 - Pushbar without Lexan touchpad
- 21 - SARGENT Lost Ball Construction Key System
- 22 - SARGENT Split Key Key System (existing systems only)
- 31 - Special Thickness Doors (specify door thickness)
- 36 - 6 lobe security head screws
- 37 - Spanner Head Screws
- 43 - Flush End Cap
- 51 - Old Style Removable Core Cylinders (existing systems only)
- 52 - Old Style Removable Construction Core Cylinders (existing systems only)
- 54 - Outside Lever Monitoring Option
- 55 - Request-to-Exit Signal Switch, Rail Monitoring Option
- 56 - Remote Electric Latch Retraction (ELR)
- 57 - Delayed Egress Option & Electromagnets
- 58 - Electric dogging
- 60 - SARGENT Removable Disposable Construction Core
- 63 - SARGENT Removable Core Cylinder
- 64 - Sargent Removable Core Construction Core Cylinder
- 6573 - Small Format Interchangeable Core 6-pin uncombinated core
- 65737P - Small Format Interchangeable Core 7-pin uncombinated core
- 70 - Small Format Interchangeable Disposable Plastic Construction Core
- 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
- 73 - Small Format Interchangeable Core 6-pin
- 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
- 76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
- 81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
- 82 - SARGENT Keso Security Cylinder (existing systems only)
- 83 - SARGENT Keso Security Removable Core Cylinder
- 84 - SARGENT Keso Security Removable Construction Core Cylinder
- 85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
- 86 - Abrasive Coating, outside lever (Not available with Studio Levers)
- 87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
- BR - Bump Resistant Cylinder
- BT - Beacon- Emergency Audio & Visual egress system with a self contained Laser, Flashing LEDs & Audio alert
- CPC - Clear Powder Coat (Available for 26, 26D, 32 & 32D Finishes)
- DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
- DG1-21- - Degree Level 1 Construction Master Keying
- DG1-60- - Degree Level 1 Removable Disposable Construction Core
- DG1-63- - Degree Level 1 Removable Core
- DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
- DG1-65- - Degree Level 1 Unassembled/Uncombined Core
- DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
- DG2-21- - Degree Level 2 Construction Master Keying
- DG2-60- - Degree Level 2 Removable Disposable Construction Core
- DG2-63- - Degree Level 2 Removable Core
- DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
- DG2-65- - Degree Level 2 Unassembled/Uncombined Core
- DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
- DG3-21- - Degree Level 3 Construction Master Keying
- DG3-60- - Degree Level 3 Removable Disposable Construction Core
- DG3-63- - Degree Level 3 Removable Core
- DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
- F182 - Lock provided with SARGENT Keso F1 Security Cylinder
- F183 - SARGENT Keso F1 Security Removable Core cylinder
- HK56 - Latch Retraction with Hex Key Dogging
- LC- - Less Cylinder
- PL - SARGuide PL - Photoluminescent Coated Push Rail (Touchpad elminiated)
- SC - Schlage 'C' Keyway Cylinder '0' Bitted
- SE - Schlage 'E' Keyway Cylinder '0' Bitted
- SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
- TB - Through Bolts (8700 devices only)
- TL - SARGuide™ - Illuminated Touchpad
Sargent 8300 Narrow Design Mortise Lock Exit Device
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad
Sargent 8500 Narrow Design Rim Exit Device
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad

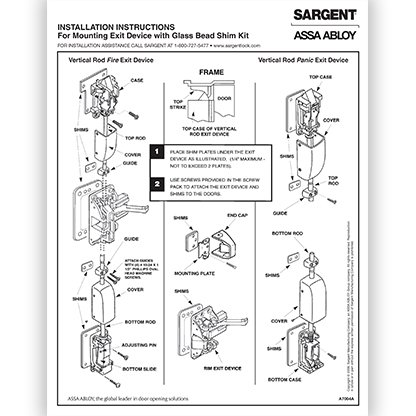

Sargent 8700 Surface Vertical Rod Exit Device
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad
Sargent 8800 Rim Exit Device Specifications
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad
Sargent HC8800 Rim Exit Device Specifications
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad
Sargent 8888 Reversible Rim Exit Device
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad
Sargent 8900 Mortise Lock Exit Device
Handing - Exit Devices
ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
SARGuide™ Illuminated Touchpad

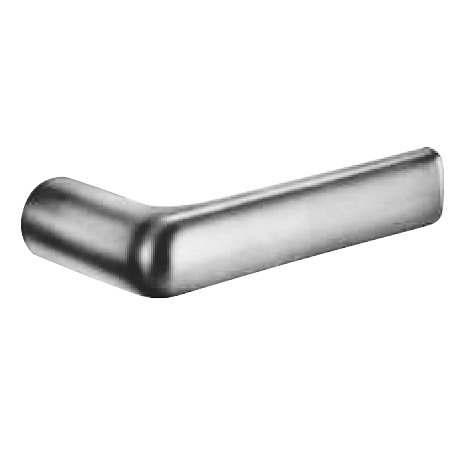

88 - lever & rose
Close
88 - lever & rose
Non-handed; through-
bolted to chassis

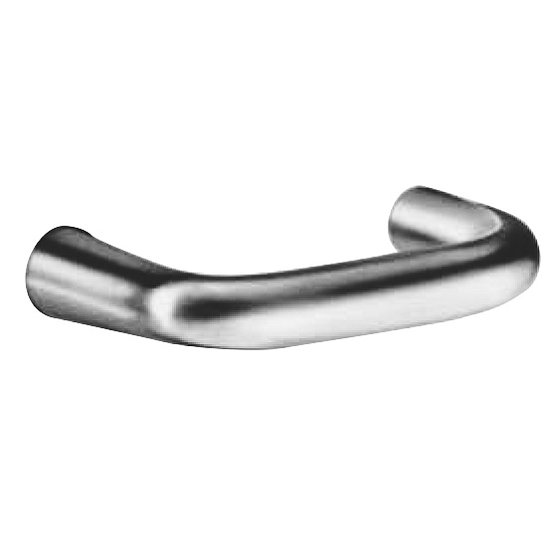

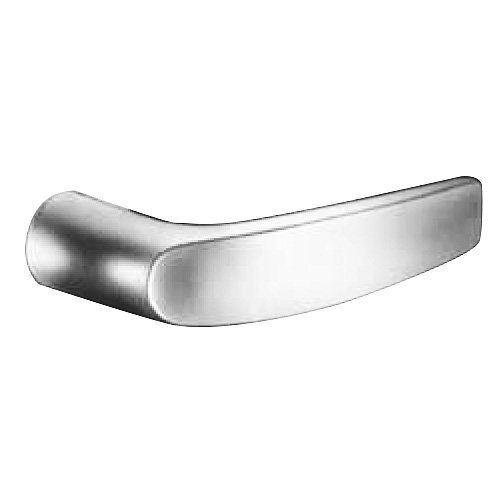

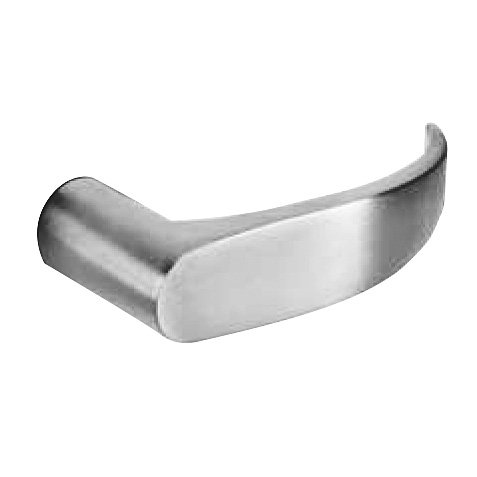

Specify L, B, J or P lever
Shown: LB Trim
(L Rose, B Lever)
bolted to chassis
Specify L, B, J or P lever
Shown: LB Trim
(L Rose, B Lever)

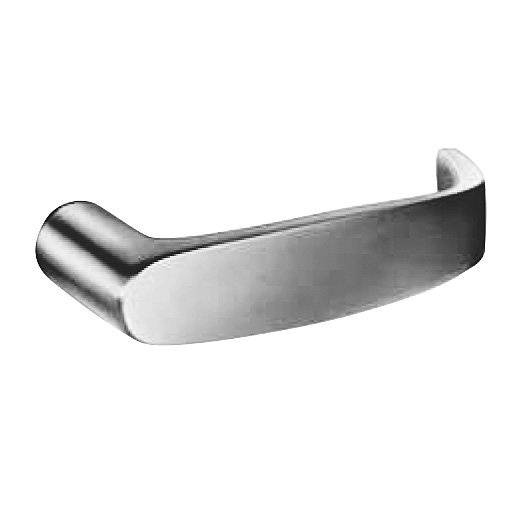

Studio Collection - levers
Close
Studio Collection - levers
Choose from Aventura, Centro, Gramercy, Notting Hill, Odeon, Rialto designs
(Designer Hardware > Architectural Levers > Sargent)
(Designer Hardware > Architectural Levers > Sargent)

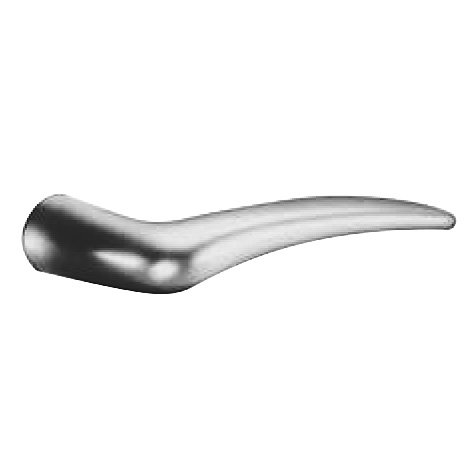

Coastal Series - levers
Close
Coastal Series - levers
Choose from Coronado, Gulfport (Handed), Rockport (O/S Trim), Sanibel (O/S Trim), Yarmouth (O/S Trim)
3487 - door coordinator kit
Close
3487 - door coordinator kit
Prevents active door from closing before inactive door closes
For pairs of doors with outside astragal
Specify finish
For pairs of doors with outside astragal
Specify finish
53 - latch bolt monitoring
Close
53 - latch bolt monitoring
Tamper-resistant latch monitoring
Switch activated when rail is depressed, or movement of latch
Switch activated when rail is depressed, or movement of latch
56 - ELR
Close
56 - ELR
Electric Latch Retraction
Field serviceable, modular design
Digital retraction timer
Field serviceable, modular design
Digital retraction timer
ATV - plate with extended lip
Close
ATV - plate with extended lip
Anti-Vandal Trim
Extra security for exterior doors
12 ga stainless steel, thru-bolted
Specify handing
Extra security for exterior doors
12 ga stainless steel, thru-bolted
Specify handing
PL - photoluminescent
Close
PL - photoluminescent
(Non-electrified)
Recharges from ambient light
Fits all door widths
Recharges from ambient light
Fits all door widths
TL - electroluminescent
Close
TL - electroluminescent
ElectroLynx® 4-pin connector
Requires 24VDC power supply
Minimum 26" door width
Requires 24VDC power supply
Minimum 26" door width

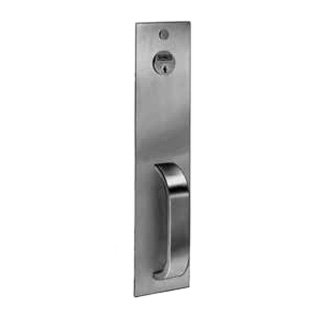

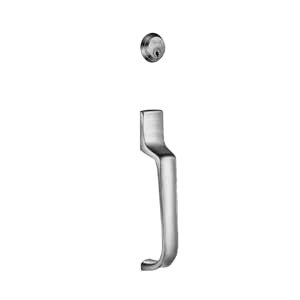

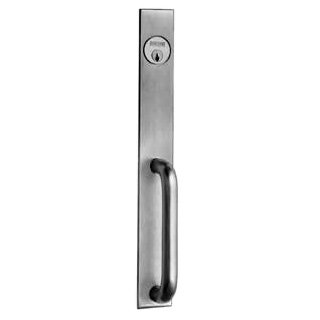

06 - locked trim
Close
06 - locked trim
Key unlocks trim;
trim retracts
Latch/trim relocks when key is removed
#41 cylinder supplied
trim retracts
Latch/trim relocks when key is removed
#41 cylinder supplied
10 - no cylinder, pull only
Close
10 - no cylinder, pull only
No outside operation
(no cylinder)

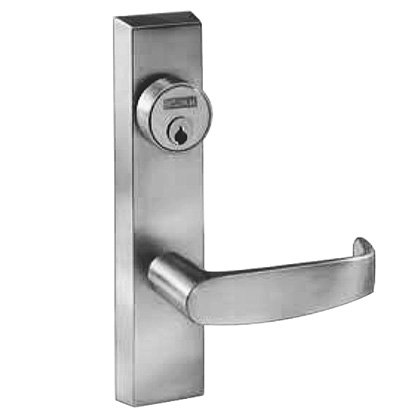

ET Control used as Pull Only
(no cylinder)
ET Control used as Pull Only
16 - freewheeling lever
Close
16 - freewheeling lever
Key outside retracts latchbolt
Key inside locks or unlocks lever
Key inside locks or unlocks lever
46 - keyed trim
Close
46 - keyed trim
Freewheeling trim
Key unlocks trim
Trim retracts latch; relocks when key is removed
Key unlocks trim
Trim retracts latch; relocks when key is removed
62 - locked trim
Close
62 - locked trim
Key unlocks trim; trim retracts latch/trim
Relocks when key is removed
Relocks when key is removed
70 - electrified lock
Close
70 - electrified lock
Electrified Mortise Lock
Power off, unlocks thumbpiece
Key retracts latch
Power off, unlocks thumbpiece
Key retracts latch
73 - fail safe
Close
73 - fail safe
Electrified ET Trim
Fail safe, power off, unlocks lever
(No cylinder)
Fail safe, power off, unlocks lever
(No cylinder)
74 - fail secure
Close
74 - fail secure
Electrified ET Trim
Fail Secure, power off, locks lever
(No cylinder)
Fail Secure, power off, locks lever
(No cylinder)
75 - fail safe
Close
75 - fail safe
Electrified ET Trim - Fail Safe
Power off, unlocks lever, key retracts latch
Power off, unlocks lever, key retracts latch
76 - fail secure
Close
76 - fail secure
Electrified ET Trim - Fail Secure
Power off, locks lever, key retracts latch
Power off, locks lever, key retracts latch
