PostMount Collection

Rockwood post mounted pulls feature smart, clean designs for all kinds of doors.

Offset mounting bases allow this collection
to be used on narrow style doors.

Made-to-order sizes are affordably available.

The simplicity of this group adds a bit of contemporary beauty to even standard entrance doors.

Designs
Specifications
Finishes
Downloads

LP3301 - locking pull, smooth grip

1-1/4" diameter post

For 3/8" to 1" thick glass doors, or 1-3/4" to 2-1/2" thick aluminum, hollow metal or wood doors

Key operates from outside

RM3100 - straight pull, square ends

1" diameter

8", 10", 12" CTC

2-3/4" projection

RM3102 - push bar, square ends

1" diameter

Specify CTC

2-3/4" projection

RM3104 - straight pull, round ends

1" diameter

8", 10", 12" CTC

2-3/4" projection

RM3105 - straight push-pull, square ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3106 - push bar, round ends

1" diameter

Specify CTC

2-3/4" projection

RM3107 - straight push-pull, round ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3110 - straight pull, square ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3112 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM3114 - straight pull, round ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3115 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3116 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM3117 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3120 - straight pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3122 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3124 - straight pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3125 - straight push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3126 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3127 - straight push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3130 - offset pull, square ends

1" diameter

8", 10", 12" CTC

2-1/2" projection

RM3134 - offset pull, round ends

1" diameter

8", 10", 12" CTC

2-1/2" projection

RM3135 - offset push-pull, square ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3137 - offset push-pull, round ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3140 - offset pull, square ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3144 - offset pull, round ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3145 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3147 - offset push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3150 - offset pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3154 - offset pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3155 - offset push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3157 - offset push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

PostMount Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metals for the PostMount Collection are aluminum (except offset pulls), stainless steel, brass or bronze.

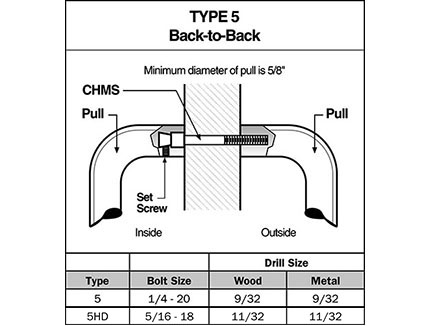

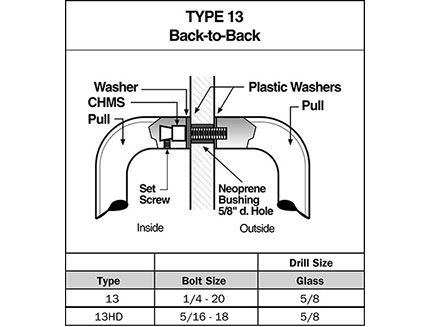

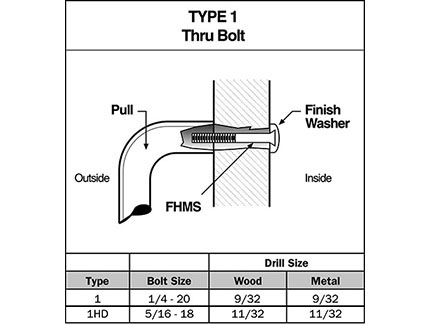

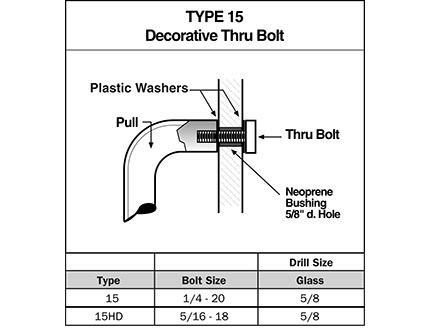

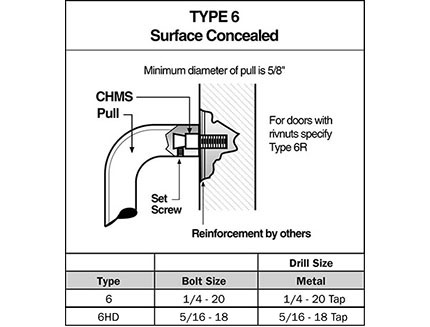

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Post location on push bars can be located 1/8" from end for narrow and medium stile doors, and 1" from end for flush and wide stile doors.
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3112-3).

Straight Pull - Square Ends

RM3100 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

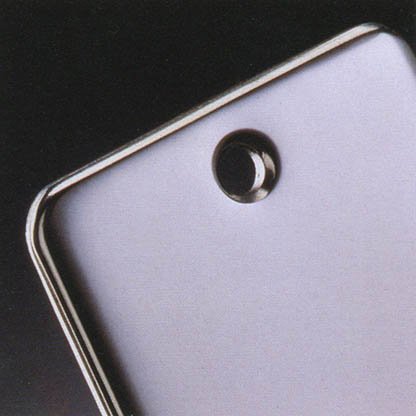

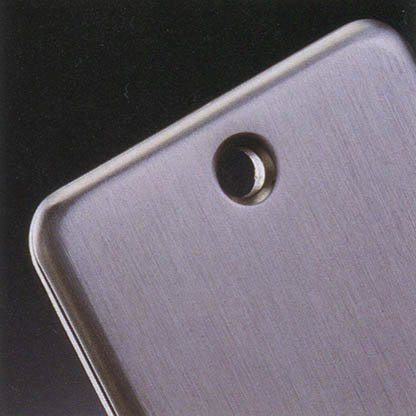

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3110 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3120 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Pull - Round Ends

RM3104 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3114 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3124 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Offset Pull - Square Ends

RM3130 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3140 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3150 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM3134 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3144 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3154 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Square Ends

RM3105 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3115 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3125 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Push-Pull Set - Round Ends

RM3107 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3117 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3127 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Offset Push-Pull Set - Square Ends

RM3135 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3145 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3155 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Round Ends

RM3137 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3147 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3157 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM3102 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3112 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3122 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM3106 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

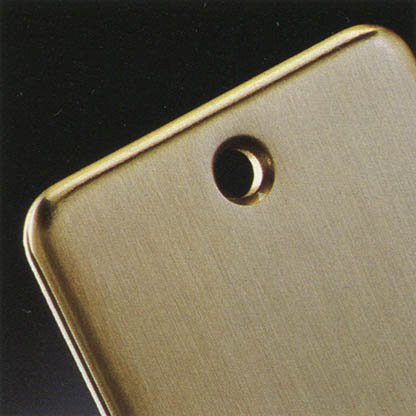

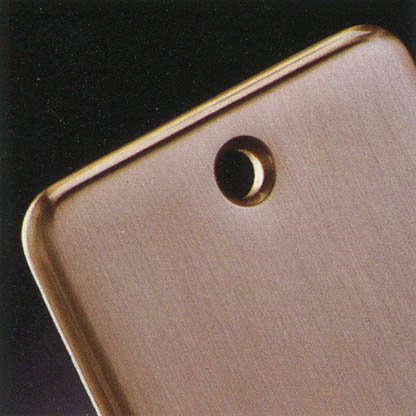

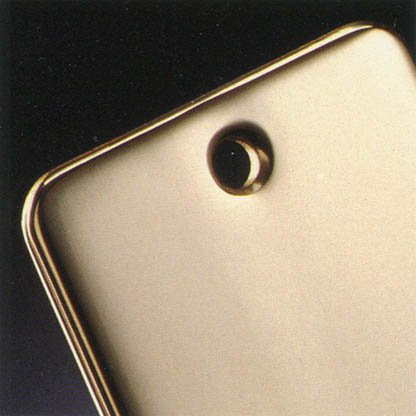

Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3116 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3126 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
