NeoMax Collection
The beauty of long door pulls is enhanced with the contrasting finish system of the NeoMax Collection.
This smart, visually appealing "GripZone" design makes a welcome addition to
any entrance.
Lengths from 3 feet to over 8 feet long
are available, with optional custom
radius bending.
Specify a mid-post on full height pulls, to provide the most rigid grip where heavy doors or high wind loads are present.
- Designs
- Specifications
- Finishes
- Downloads
RM3400 - straight pull, square ends
RM3400 - straight pull, square ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3401 - straight pull, square ends
RM3401 - straight pull, square ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3402 - straight pull, square ends
RM3402 - straight pull, square ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3410 - offset pull, square ends
RM3410 - offset pull, square ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3411 - offset pull, square ends
RM3411 - offset pull, square ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3412 - offset pull, square ends
RM3412 - offset pull, square ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3420 - straight pull, round ends
RM3420 - straight pull, round ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3421 - straight pull, round ends
RM3421 - straight pull, round ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3422 - straight pull, round ends
RM3422 - straight pull, round ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3430 - offset pull, round ends
RM3430 - offset pull, round ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3431 - offset pull, round ends
RM3431 - offset pull, round ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3432 - offset pull, round ends
RM3432 - offset pull, round ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3440 - straight pull, bent ends
RM3440 - straight pull, bent ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3441 - straight pull, bent ends
RM3441 - straight pull, bent ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
RM3442 - straight pull, bent ends
RM3442 - straight pull, bent ends
36" to 96" CTC
Over 96" on select finishes
Specify overall length
NeoMax Collection Specifications
Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the NeoMax Collection are stainless steel, brass or bronze.
Rockwood Door Pulls – Mounting Types

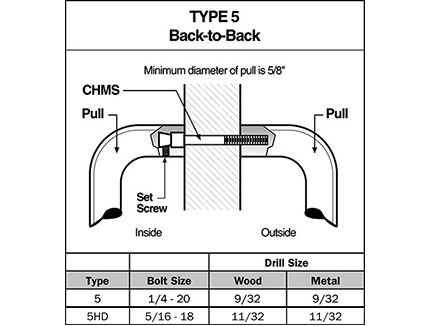

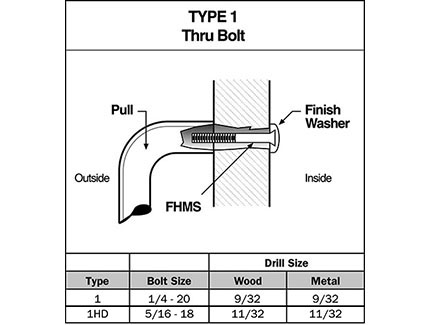

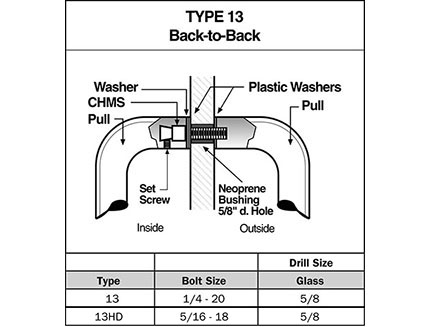

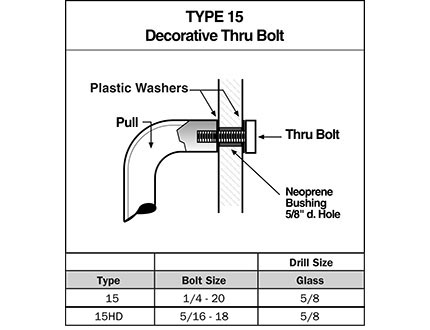

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.
Please note the following:
Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Options:
For optional mid-post, suffix the product number with “MP” (example: RM3401MP).
Over 96" available on select finishes.

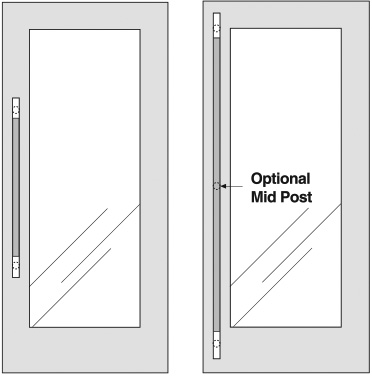

Application Suggestions
RM3400 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length

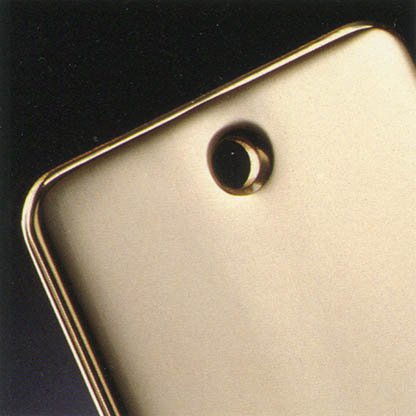

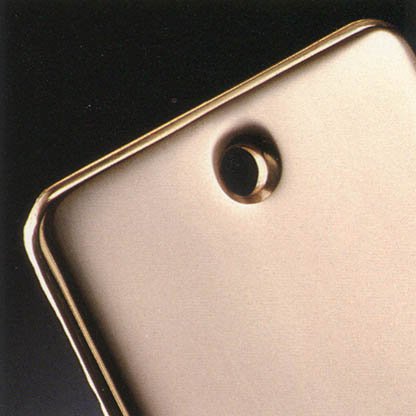

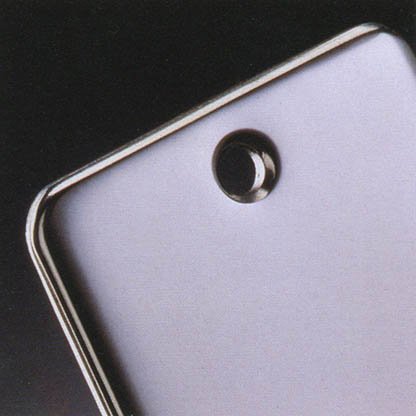

- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3401 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3402 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/2"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3420 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3421 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3422 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/2"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3410 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3411 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3412 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/2"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3430 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3431 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3432 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/2"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3440 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3441 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32316 ; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
RM3442 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/2"
- Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
- Ordering: Specify CTC and overall length
- Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605
General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.

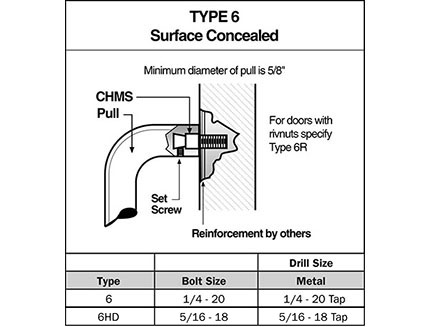

NeoMax Mounting Types
