MezzoTek Collection

MezzoTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the MezzoTek Collection are stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

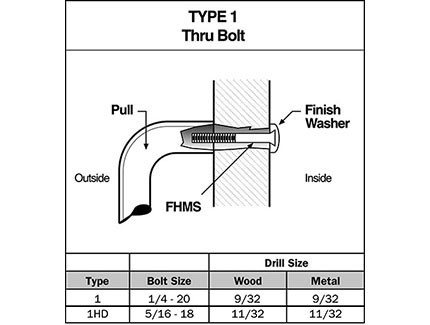

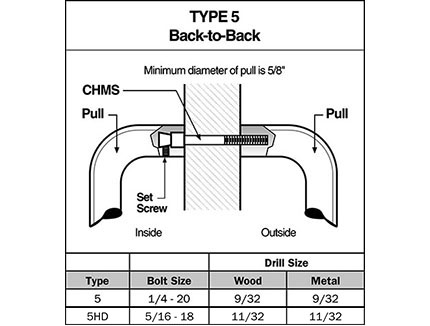

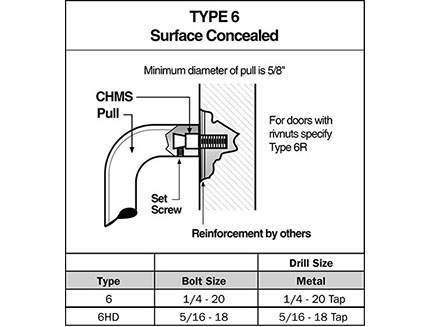

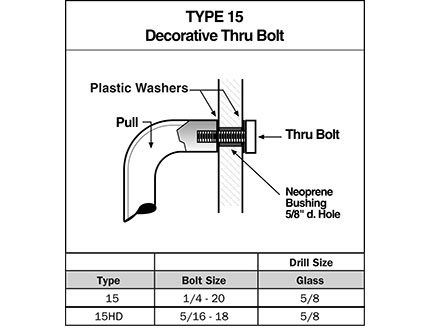

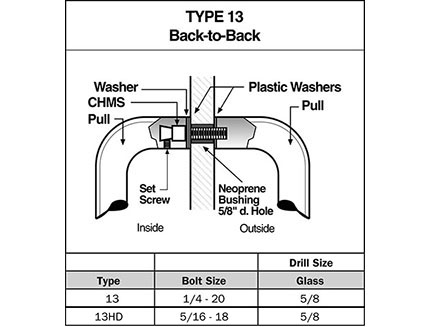

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

• Y base plates are recommended on wood or glass doors to make a stable and durable mounting.

• Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

• To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM2132-3).

Options:

• For optional mid-post, suffix the product number with “MP” (example: RM2120MP).

• Over 96" available on select finishes.

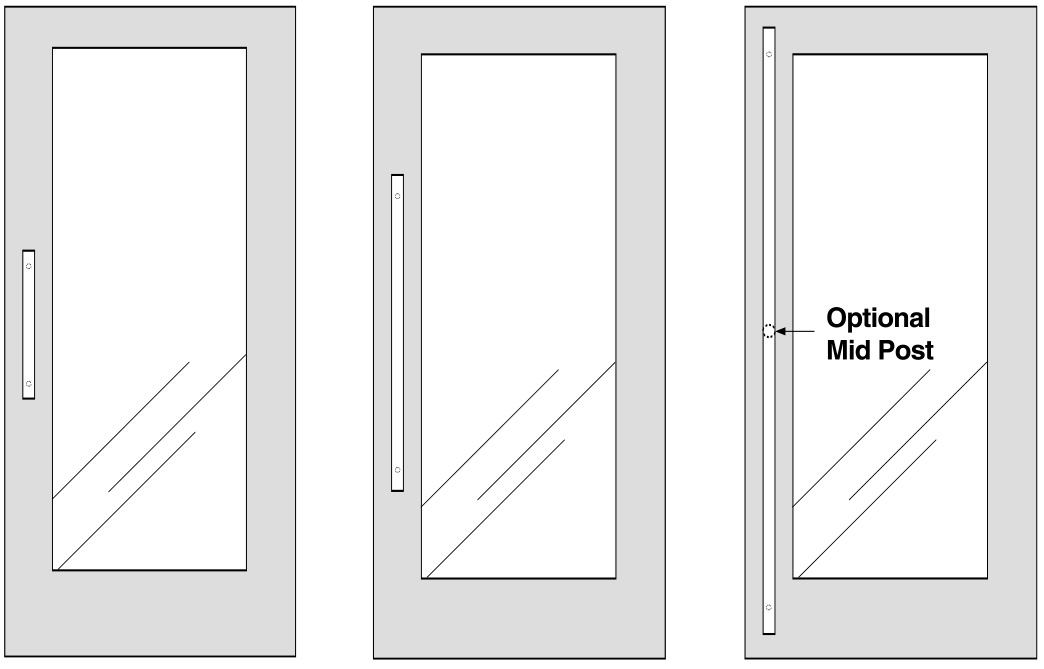

Application Suggestions

RM2110 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/4"
• Lengths: 8", 11", 16"; up to 96" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D316; US32D / BHMA 630; US32316 ; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2120 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/2"
• Lengths: 11", 16", 20"; up to 96" CTC (center-to-center measurement between mounts)
• Projection: 3-1/4"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2130 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/4"
• Lengths: 8", 11", 16"; up to 96" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32316 ; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM2140 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/2"
• Lengths: 11", 16", 20"; up to 96" CTC (center-to-center measurement between mounts)
• Projection: 3-1/4"
• Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM2115 Specifications:

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/4"
• Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3"
• Finishes: US32D316; US32D / BHMA 630; US32316 ; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2125 Specifications:

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/2"
• Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3-1/4"
• Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2117 Specifications:

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/4"
• Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3"
• Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM2127 Specifications:

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/2"
• Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3-1/4"
• Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM2112 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/4"
• Length: Specify CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2122 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/2"
• Length: Specify CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3-1/4"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2132 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/4"
• Length: Specify CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3"
• Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2142 Specifications (HD Mounting):

• Base Metal: Stainless Steel, Brass, Bronze
• Diameter: 1-1/2"
• Length: Specify CTC (center-to-center measurement between mounts)
• Door Handing: Specify
• Projection: 3-1/4"
• Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
