MegaTek Collection

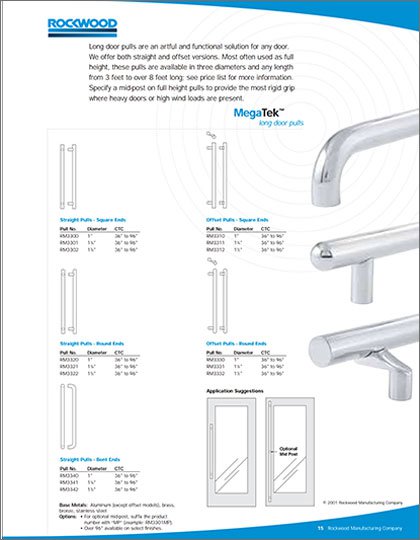

Long door pulls are an artful and functional solution for any entry door.

Rockwood offers both straight and offset versions.

Most often used as full height, these pulls are available in 3 diameters and any length.

Pulls are priced by the foot from 3 feet to over 8 feet long.

Specify a mid-post on full height pulls to provide the most rigid grip, where heavy doors or high wind loads are present.

Custom bending at large and small radius is readily available.

Designs
Specifications
Finishes

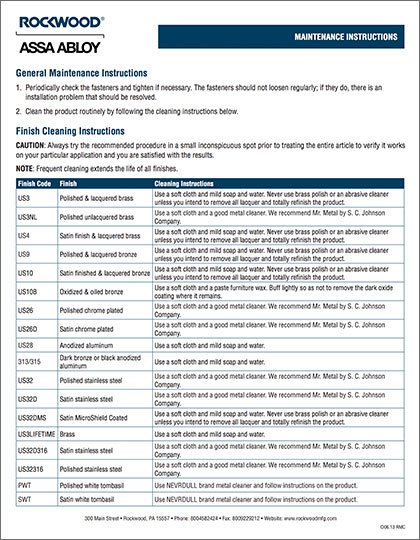

Downloads

RM3300 - straight pull, square ends

1" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3301 - straight pull, square ends

1-1/4" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3302 - straight pull, square ends

1-1/2" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3310 - offset pull, square ends

1" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3311 - offset pull, square ends

1-1/4" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3312 - offset pull, square ends

1-1/2" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3330 - offset pull, round ends

1" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3331 - offset pull, round ends

1-1/4" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3332 - offset pull, round ends

1-1/2" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3340 - straight pull, bent ends

1" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3341 - straight pull, bent ends

1-1/4" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

RM3342 - straight pull, bent ends

1-1/2" diameter

Specify 36" to 96" CTC

Over 96" on select finishes

MegaTek Collection Specifications

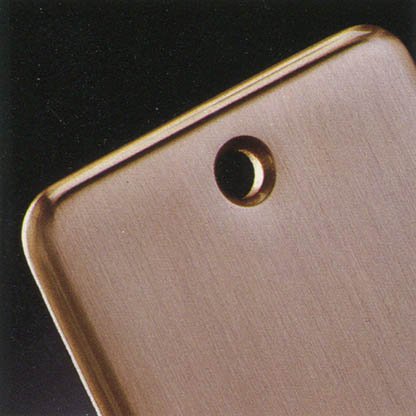

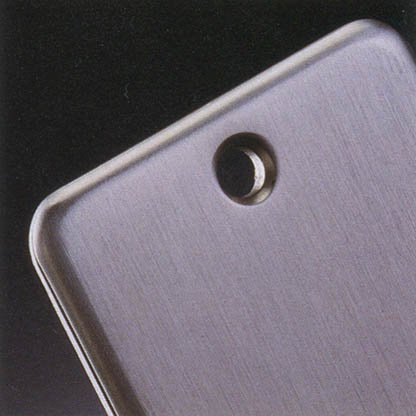

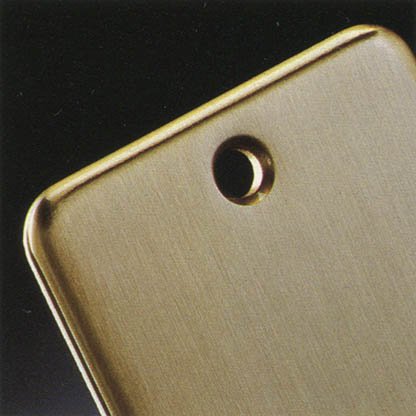

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the MegaTek Collection are aluminum (except offset models), stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

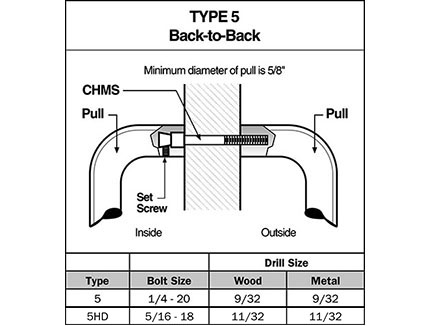

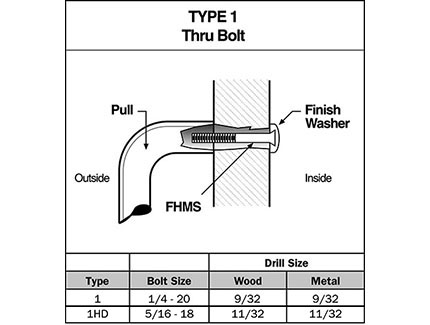

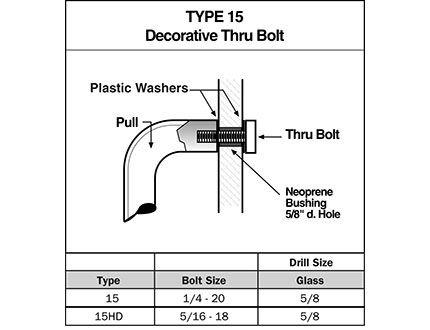

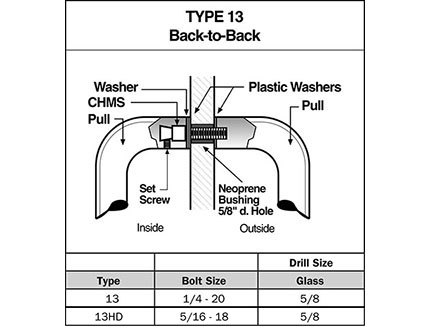

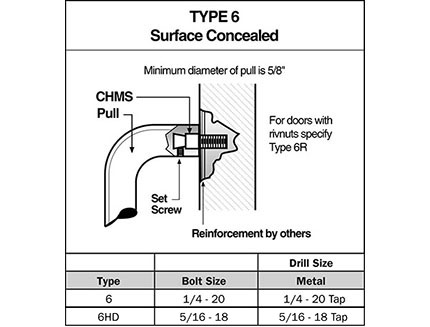

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Options:

For optional mid-post, suffix the product number with “MP” (example: RM3301MP).
Over 96" available on select finishes.

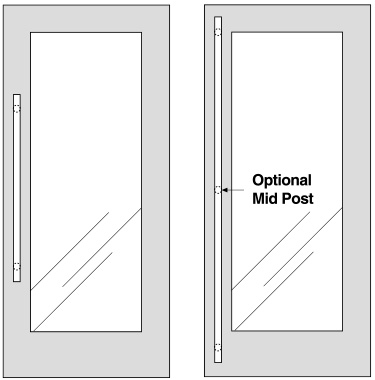

Application Suggestions

Straight Long Pull - Square Ends

RM3300 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length

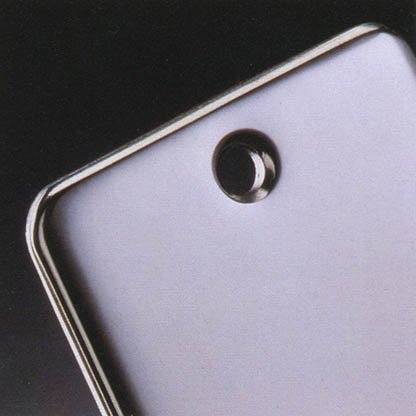

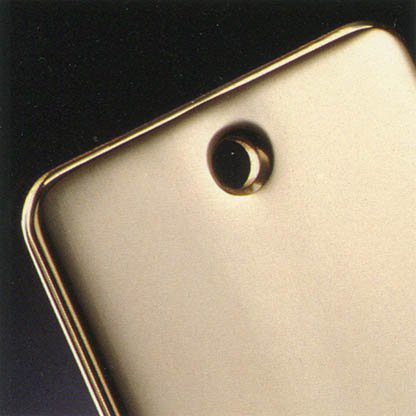

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3301 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length

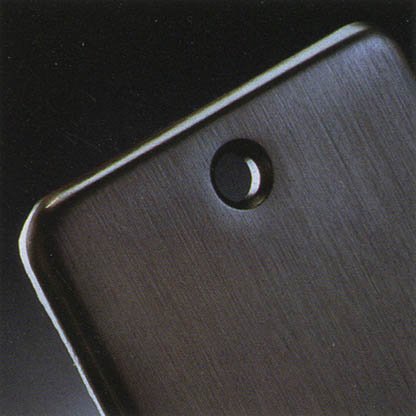

Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315/711; 313/710

RM3302 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Long Pull - Round Ends

RM3320 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3321 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3322 Specifications (HD Mounting):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Long Pull - Square Ends

RM3310 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3311 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3312 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Long Pull - Round Ends

RM3330 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3331 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3332 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Long Pull - Bent Ends

RM3340 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3341 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D316; US32D / BHMA 630; US32316 ; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3342 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 36" to 96" CTC (center-to-center measurement between mounts)
Ordering: Specify CTC and overall length
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
