LCN 4510 Series

LCN High Security Closer Specifications

High Security LCN closers feature a vandal resistant design engineered for each application, easy installation, and superior performance.

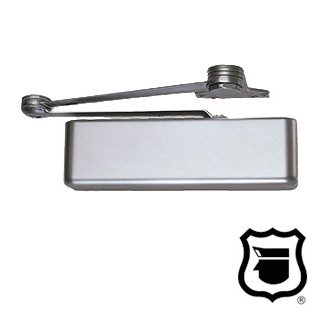

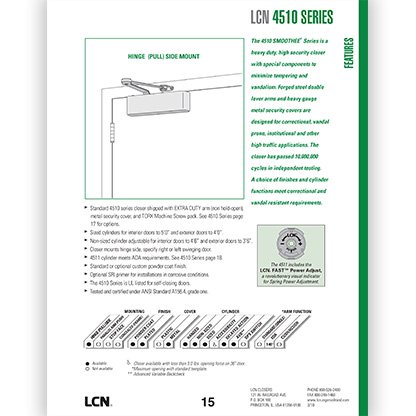

LCN 4510 Series

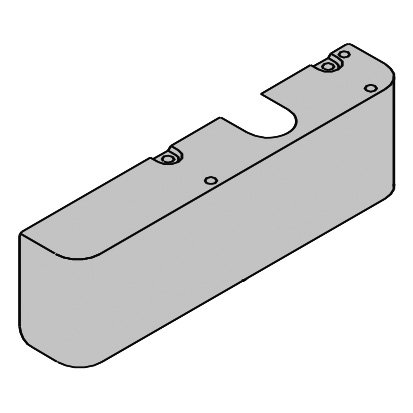

The 4510 Smoothee® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

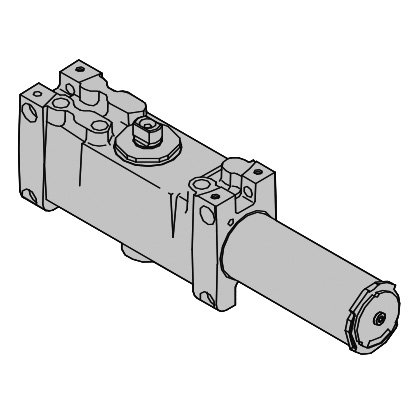

Cylinder Size

• 4510 (size 6)
• 4511 (adjustable from size 1 to 5)
• 4516 (DEL - delayed action not available)

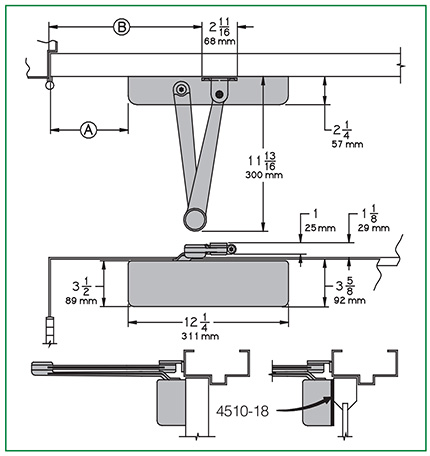

Mounting Details

HINGE (PULL) SIDE MOUNTING – MAXIMUM OPENING: Can be templated for 140°, A = 4-3/16” (106 mm)  B = 9-7/8” (251 mm).

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended where a door cannot swing 140°.
• Reveal should not exceed 1/8” (3 mm).
• Top Rail less than 3-1/2” (89 mm), requires PLATE 4510-18.
• Plate requires 2" (51mm) minimum top rail.
• Head frame less than 1” (25 mm), consult Penner.
• Clearance of 2-1/4” (57 mm) behind door required for installation.
• Arm Clearance above door 1-1/8" (29 mm) required.
• Delay Action Add suffix “DEL” to selected cylinder.
• Not available with 4516 cylinder.
• Delays closing from maximum opening to approximately 70°.
• Delay time adjustable up to approximately 1 minute.
• Advanced Variable Backcheck cylinder starts backcheck at approximately 45° instead of the normal 75°. Add suffix “AVB” to selected cylinder.

Arms

• Extra Duty Arm, 4510-3077EDA:  Non-handed arm, features solid forged steel main arm and forearm for potentially abusive installations. Double slab arm/pinion attachment for maximum strength.

• Standard Security Track Arm, 4510T-3077T:  Handed arm features solid forged steel, large cross section arm. Special threaded attachment of track roller for potentially abusive installations. Double slab arm/pinion attachment for maximum strength. Can only be used with high security track roller, 4510T-3034. Roller is included with arm when 4510T-3077T is ordered separately.

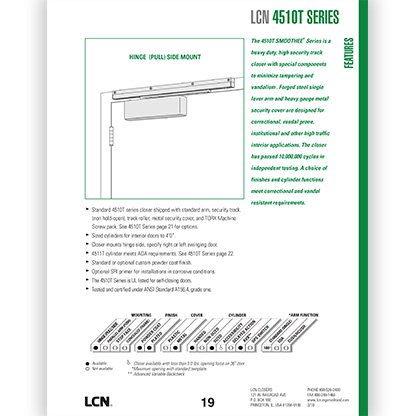

LCN 4510T Series

The 4510T Smoothee® Series is a heavy duty, high security track closer with special components to minimize tampering and vandalism . Forged steel single lever arm and heavy gauge metal security cover are designed for correctional, vandal prone, institutional and other high traffic interior applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

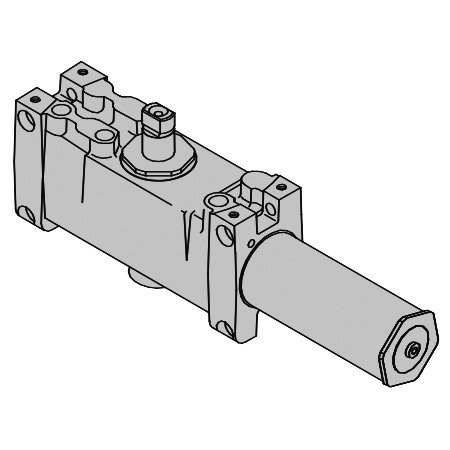

Cylinder Size

• 4510T (size 1, 3, or 4)
• 4511T (ADA - size 1, 3, or 4))
• 4513T (size 1, 3, or 4)
• 4514T (size 1, 3, or 4)

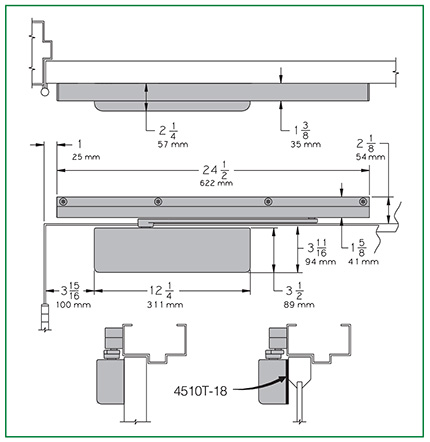

Mounting Details

HINGE (PULL) SIDE MOUNTING – MAXIMUM OPENING: Templating allows 180°. Consult Penner if door will be held open at 180°.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended where a door cannot swing 180°.
• Reveal should not exceed 1/8” (3 mm).
• Top Rail less than 3-3/4” (95 mm), requires PLATE 4510T-18.
• Plate requires 2” (51 mm) minimum top rail.
• Head Frame minimum 2-1/8” (54 mm).
• Clearance of 2-1/4” (57 mm) behind door required for installation.
• Advanced Variable Backcheck cylinder starts backcheck at approximately 45° instead of the normal 75°. Add suffix “AVB” to selected cylinder (eg. 4513T AVB) .
