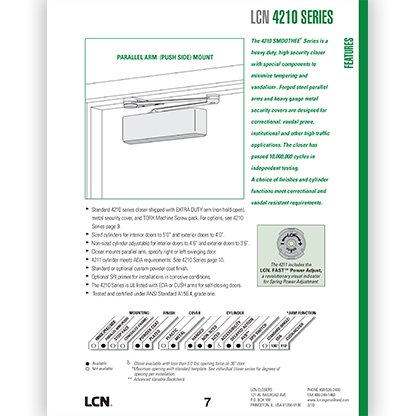

                LCN 4210 Series

                The 4210 Smoothee® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism.

                Forged steel parallel arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications.

                The closer has passed 10 million cycles in independent testing. Options include regular or Cush arm, high security track closer, or door position switch.

                A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

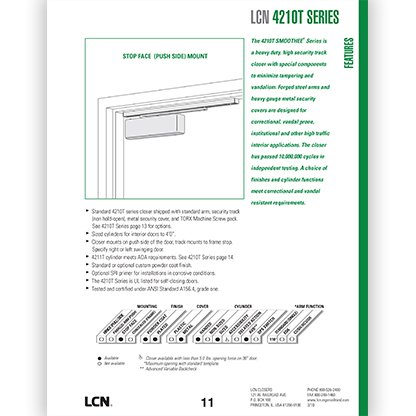

                4210T Smoothee® Series: heavy duty, high security track closer features forged steel arm.

                • Designs
                • Specifications
                • Options
                • Finishes
                • Downloads

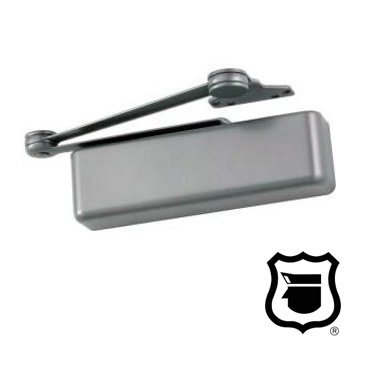

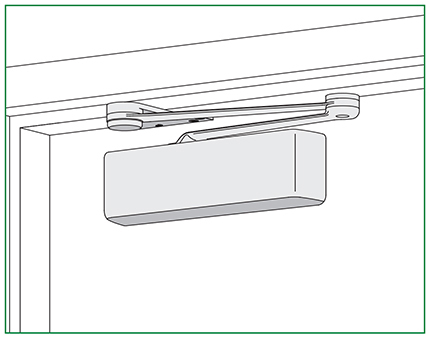

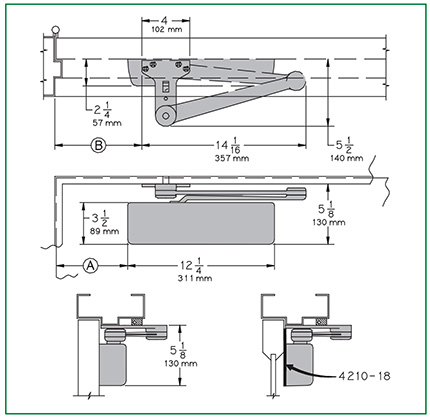

                4210 - parallel arm mount





                Close

                4210 - parallel arm mount

                Push side

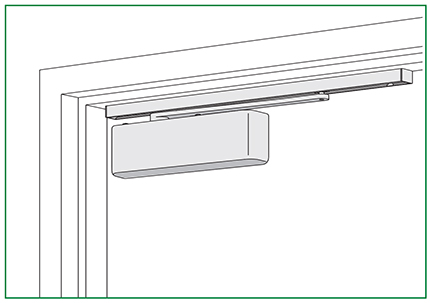

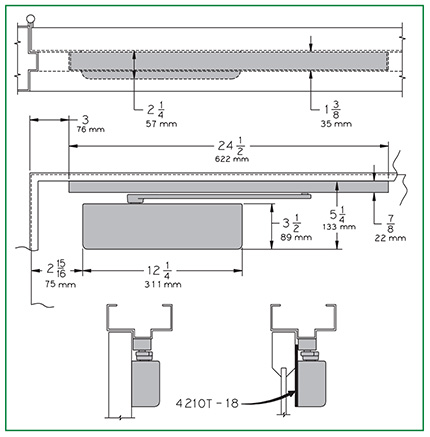

                4210T - track arm mount





                Close

                4210T - track arm mount

                Push side

                4210-18CUSH - plate





                Close

                4210-18CUSH - plate

                Push side mount, where top rail is less than 5-1/8” (measured from stop)

                2" minimum top rail required

                4210-18 - plate





                Close

                4210-18 - plate

                Push side mount, where top rail is less than 5-1/8” (measured from stop)

                2" minimum top rail required

                4210-3049CNS - HCush arm





                Close

                4210-3049CNS - HCush arm

                Handed, hold-open function with handle

                Max. strength double slab arm/pinion

                Not available with 4216 cylinder

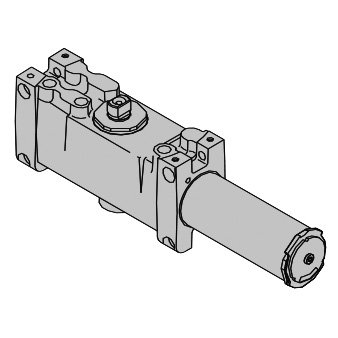

                4210-3071 - cylinder





                Close

                4210-3071 - cylinder

                Standard, handed, cast iron

                4210-3077CNS - Cush arm





                Close

                4210-3077CNS - Cush arm

                Handed, solid forged steel parallel arm

                Max. strength double slab arm/pinion

                4210-3077EDA - extra duty arm





                Close

                4210-3077EDA - extra duty arm

                Non-handed, solid forged steel parallel arm

                Max. strength double slab arm/pinion

                4210-30 - Cush shoe support





                Close

                4210-30 - Cush shoe support

                Anchorage for 5th screw with Cush arms

                Reveal less than 3-1/16"

                4210-419 - flush panel adapter





                Close

                4210-419 - flush panel adapter

                Horizontal mounting surface for EDA or Cush shoe

                Single rabetted or flush frame

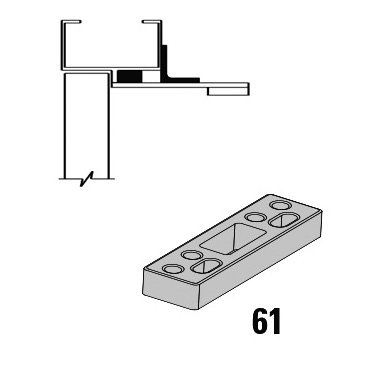

                4210-61 - blade stop spacer





                Close

                4210-61 - blade stop spacer

                Lowers parallel arm shoe to clear 1/2”

                4210-72MC - security cover





                Close

                4210-72MC - security cover

                Standard, handed heavy gauge metal

                4-pt mounting for extra security

                ALUM - Aluminum





                Close

                ALUM - Aluminum

                BHMA 689

                Powder coated finish

                BLK - Black





                Close

                BLK - Black

                BHMA 693

                Powder coated finish

                BRASS - Brass





                Close

                BRASS - Brass

                BHMA 696

                Powder coated finish

                DKBRZ - Dark Bronze





                Close

                DKBRZ - Dark Bronze

                BHMA 695

                Powder coated finish

                LTBRZ - Light Bronze





                Close

                LTBRZ - Light Bronze

                BHMA 691

                Powder coated finish

                STAT - Statuary Bronze





                Close

                STAT - Statuary Bronze

                BHMA 690

                Powder coated finish

                TAN - Tan





                Close

                TAN - Tan

                BHMA 692

                Powder coated finish

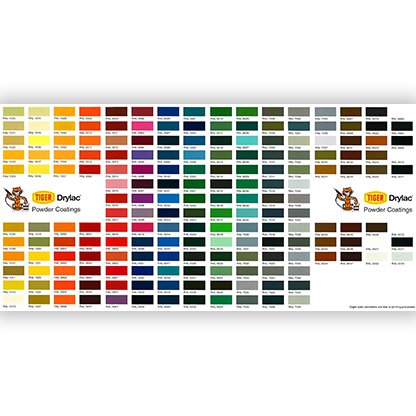

                LCN Custom Colours





                Close

                LCN Custom Colours

                Nominal additional cost

                RAL Colour Chart #1000-9018
