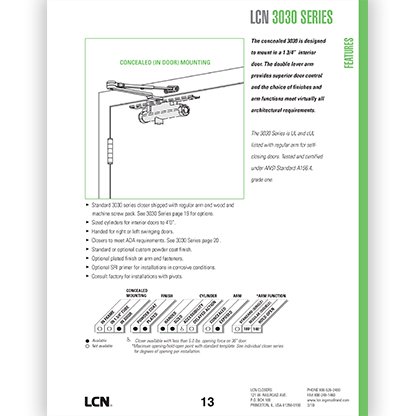

LCN 3030 Series

The concealed 3030 Series is designed to mount in a 1-3/4” interior door.

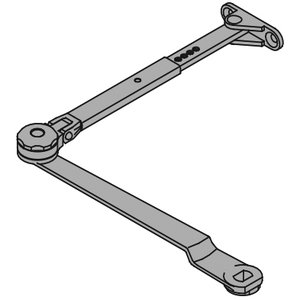

The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.

(UL and cUL listed with regular arm for self-closing doors; tested and certified under ANSI Standard A156.4, grade one.)

Specifications

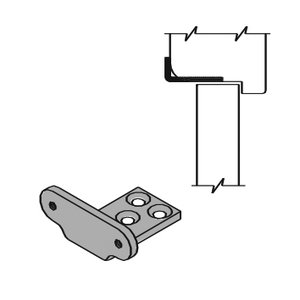

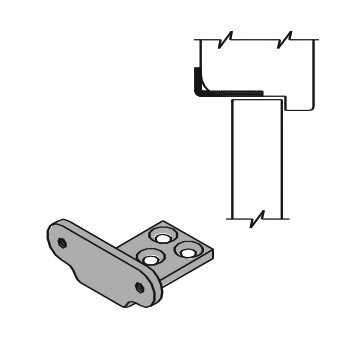

Options
Finishes
Downloads

Specifications

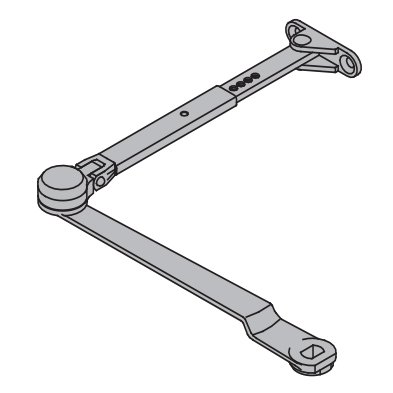

Standard 3030 series closer shipped with regular arm and wood and machine screw pack
Sized cylinders for interior doors to 4’0”
Handed for right or left swinging doors
Closers to meet ADA requirements
Standard or optional custom powder coat finish
Optional plated finish on arm and fasteners
Optional SRI primer for installations in corrosive conditions
Consult Penner for installations with pivots

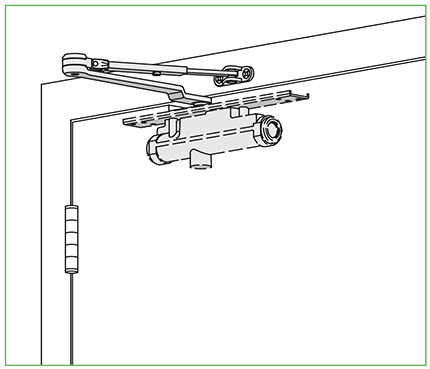

CONCEALED MOUNTING: For interior doors. Single acting cylinder in top rail of door. Exposed arm on hinge side of door.

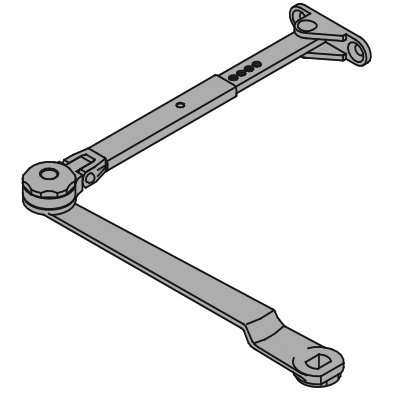

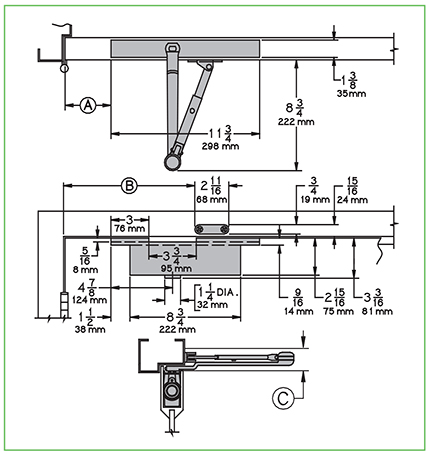

MAXIMUM OPENING: Can be templated for 110°: A = 3-5/8” (92 mm); B = 10-1/4” (260 mm). 130°: A = 2-5/8” (67 mm); B = 9-1/4” (235 mm). 180°: A = 1-5/8” (41 mm); B = 8-1/4” (210 mm), trim permitting. Hold-open points up to maximum opening or 140°, whichever is less, with hold-open arm. Arm clearance above door, C = 1-1/4” (32 mm) minimum.

Butt Hinges should not exceed 5” (127 mm) in width.
Auxiliary Stop is recommended at hold-open point or where a door cannot swing 180°.
Top Rail minimum 4” (102 mm) required.
Door Thickness 1-3/4” (44 mm) minimum. Please consult the door manufacturer to assure that the door integrity and warranty is maintained after installing the 3030 Series door closer in a 1-3/4” thick wood door.

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

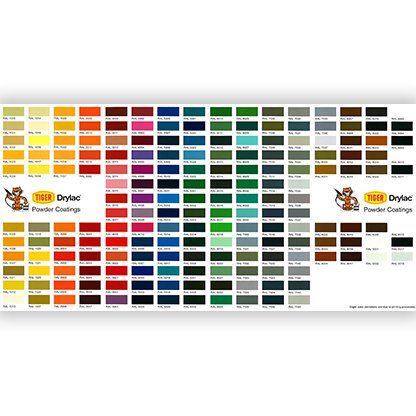

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
