COR Bar Series

IVES Architectural Hardware

COR Bar Series Coordinators are designed for use on pairs of doors when one door needs to close before the other.

IVES has produced a full line of quality building hardware for over 120 years, with emphasis placed on customer service, application flexibility, and value.

The IVES extensive hardware line also includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops and more.

Specifications
Devices
Options
Finishes
Downloads

IVES Bar Coordinators and Filler Bars

COR Series Bar Coodinators

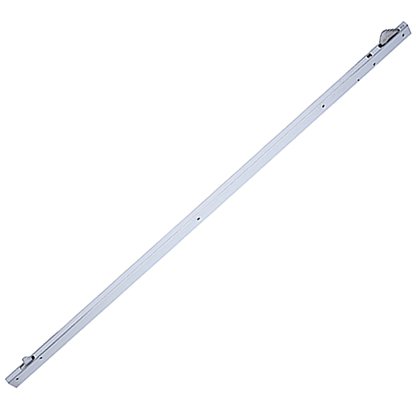

The COR Series Coordinators are designed for use on pairs of doors when one door needs to close before the other.

All COR units function easily. The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.
All COR units may not function correctly with swing-clear hinges.

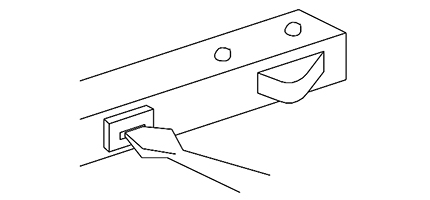

All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure.
All COR units are compatible with Flush Bolts.
The COR Series is available in five sizes for variable door opening widths.
The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines.
COR Series Coordinator Channels and FL fillers are made of aluminum.
Optional Filler Bars: FL20 - 20", FL32 - 32" and FL44 - 44", available to maintain architecturally clean lines.
Optional Mounting Brackets available: MB1, MB2, MB1F, MB2F, MB3F, MB1V, MB2V, and MB3V for other stop applied hardware.

For Openings Where Doors Are Unequal Size

The coordinator length should equal the active door width, plus approximately half the inactive door width.

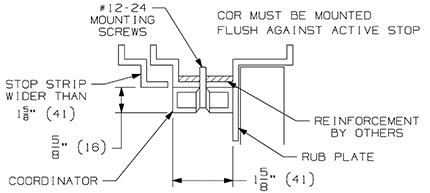

The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops.

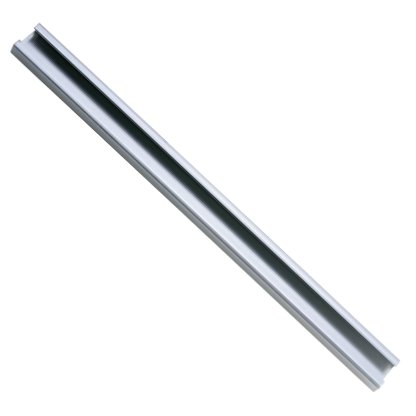

FL Series Filler Bars

The FL Filler Bars are available in three sizes for variable frame openings.

FL Filler Bars are made of aluminum.
FL Filler Bars are field sized to frame opening.

Mounting Brackets

MB1 and MB2 Mounting Brackets

Allows stop mounted hardware to be properly installed without damaging the COR coordinator, such as a parallel arm closer or a non-fire-rated surface vertical rod strike.
Stop mounted hardware will need to be lowered to compensate for the height of the coordinator and mounting bracket.
MB mounting brackets are made of aluminum.

MB1F, MB2F and MB3F; MB1V, MB2V and MB3V Fire Rated Mounting Brackets

Allows for fire-rated stop mounted hardware to be properly installed without damaging the COR Coordinators, such as fire-rated surface vertical rod exit device strikes.
Latch will need to be lowered to compensate for the height of the coordinator and mounting bracket.
MB-V are designed for Von Duprin 8827-F soffit latch.
Mounting brackets are made of steel.
