Classic Collection

Create a unique, elegant pull by combining any of the grip styles with one of the finial styles.

Grips are available in 3/4" diameter with 6" length center to center (CTC), and 1" diameter with 10" CTC, with appropriately sized finials in all designs.

Standard lengths are shown, but custom lengths are readily available – up to 36" CTC.

Add base plates for an extra decorative feature.

These traditional styles incorporate commercial quality mounting systems that will endure heavy traffic.

Designs
Specifications
Options
Finishes

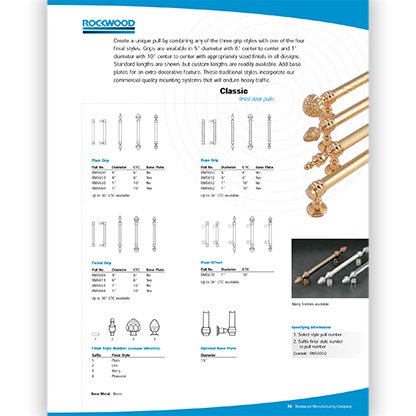

Downloads

RM5652 - rope grip

1" diameter

10", specify up to 36" CTC

2-11/16" projection

Base plate: NO

RM5654 - fluted grip

1" diameter

10", specify up to 36" CTC

2-11/16" projection

Base plate: NO

RM5660 - plain grip

1" diameter

10", specify up to 36" CTC

3-1/16" projection

Base plate: YES

RM5662 - rope grip

1" diameter

10", specify up to 36" CTC

3-1/16" projection

Base plate: YES

RM5664 - fluted grip

1" diameter

10", specify up to 36" CTC

3-1/16" projection

Base plate: YES

RM5670 - offset grip

1" diameter only

10", specify up to 36" CTC

2-1/2" projection

RM6510 - plain grip

3/4" diameter

6", specify up to 36" CTC

2-13/16" projection

Base plate: YES

RM6560 - plain grip

1" diameter

10", specify up to 36" CTC

2-11/16" projection

Base plate: NO

Classic Collection Specifications

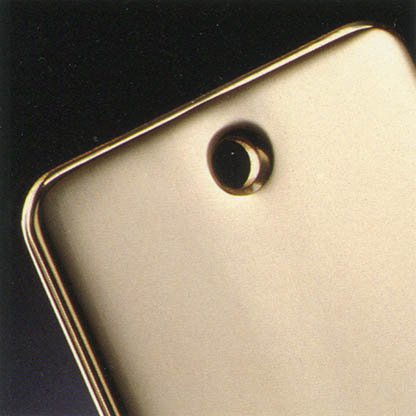

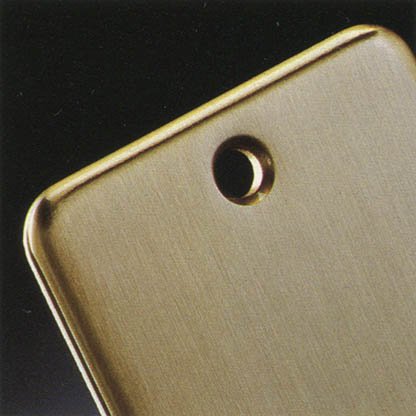

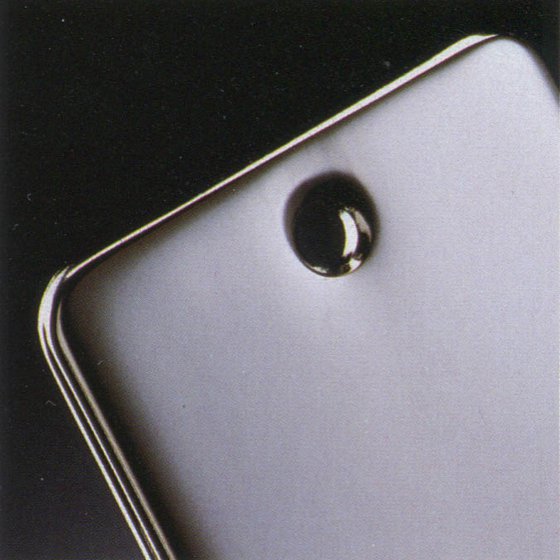

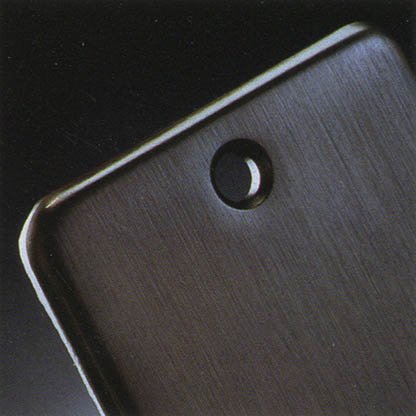

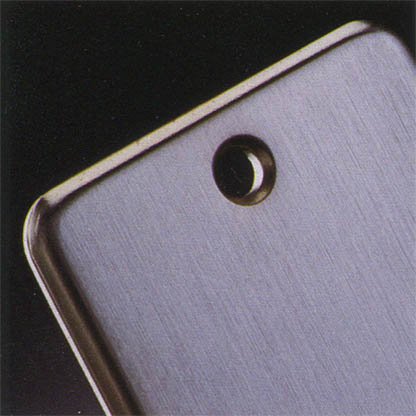

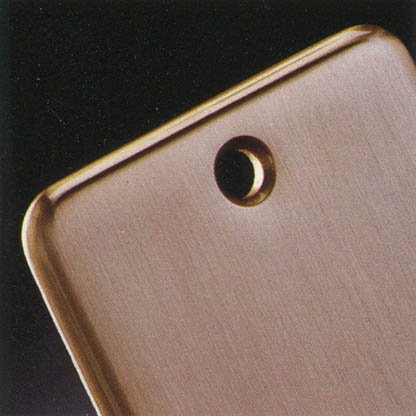

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal for the Classic Collection is brass.

Rockwood Door Pulls – Mounting Types

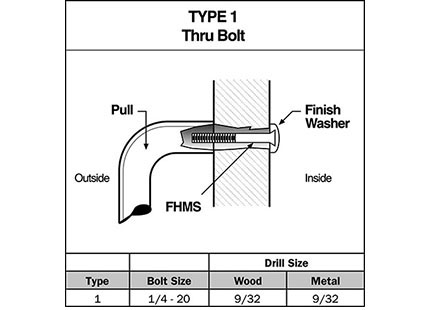

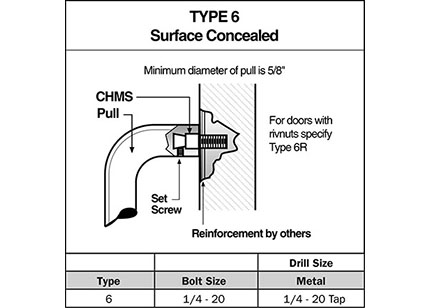

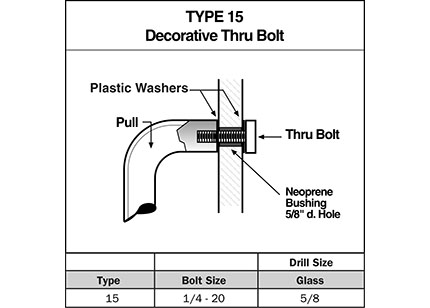

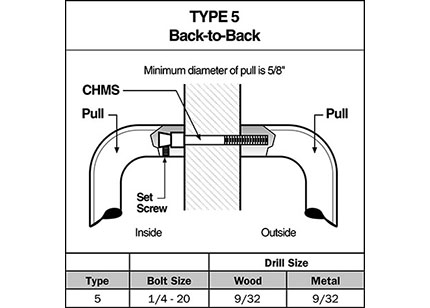

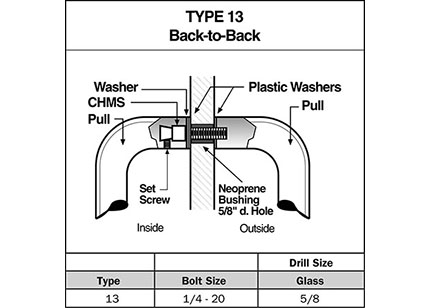

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Ordering:

Select style pull number
Suffix finial style number to pull number
1 = Plain, 2 = Urn, 3 = Berry, 4 = Pinecone
(example: RM5660-2)

Straight Pull - Plain Grip

RM5600 Specifications:

Base Metal: Brass
Diameter: 3/4"
Lengths: 6", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-7/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: No

RM5610 Specifications:

Base Metal: Brass
Diameter: 3/4"
Lengths: 6", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-13/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: Yes

RM5650 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-11/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: No

RM5660 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: Yes

Offset Pull - Plain Grip

RM5670 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone

Straight Pull - Rope Grip

RM5602 Specifications:

Base Metal: Brass
Diameter: 3/4"
Lengths: 6", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-7/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: No

RM5612 Specifications:

Base Metal: Brass
Diameter: 3/4"
Lengths: 6", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-13/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: Yes

RM5652 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-11/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: No

RM5662 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: Yes

Straight Pull - Fluted Grip

RM5604 Specifications:

Base Metal: Brass
Diameter: 3/4"
Lengths: 6", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-7/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: No

RM5614 Specifications:

Base Metal: Brass
Diameter: 3/4"
Lengths: 6", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-13/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: Yes

RM5654 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-11/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: No

RM5664 Specifications:

Base Metal: Brass
Diameter: 1"
Lengths: 10", specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/16"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
Finials: Plain, Urn, Berry, or Pinecone
Base Plate: Yes

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
