Shower/Tub Accessories - Technical Data

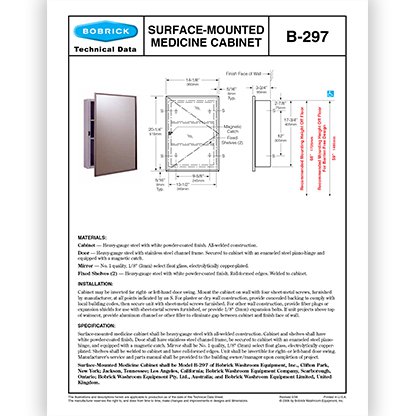

B-297 SURFACE MOUNTED MEDICINE CABINET

• All-steel cabinet and two fixed shelves with baked white enamel finish
• Mirror: No. 1 quality, 1⁄8" (3mm) glass electrolytically copper plated
• Door has enameled steel piano hinge and magnetic catch
• Door is 14-1⁄8" W, 20-1⁄4" H (360 x 515mm)
• Unit: 3-3⁄4" (95mm) deep
• Av. Mtg. Ht.: 69" (1755mm) to top of unit; Barrier-Free, 60" (1525mm)

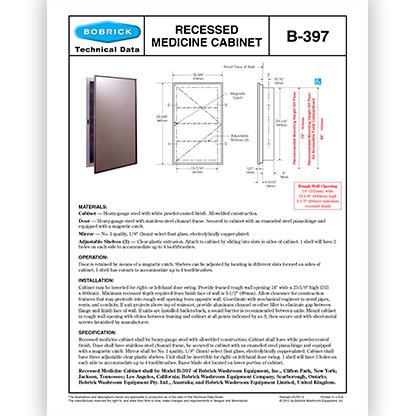

B-397 RECESSED MEDICINE CABINET

• All-steel cabinet with baked white enamel finish
• Three adjustable plastic shelves
• Mirror: No. 1 quality, 1⁄4" (6mm) glass electrolytically copper plated
• Door has enameled steel piano hinge and magnetic catch
• Door is 15-1⁄2" W, 25-7⁄8" H (405 x 655mm)
• Rough Wall Opening: 14" W, 23-5⁄8" H, 3-1⁄2" min. depth (355 x 600 x 90mm)
• Av. Mtg. Ht.: 73" (1855mm) to top of unit; Barrier-Free, 65-1⁄2" (1665mm)

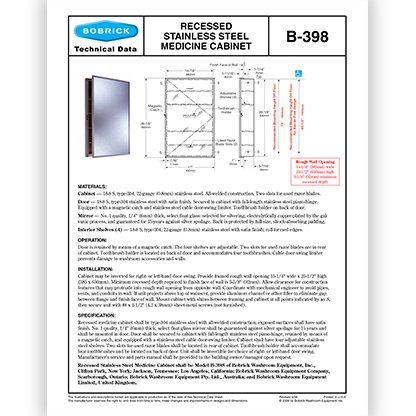

B-398 RECESSED MEDICINE CABINET

• Type 304 stainless steel, satin finish
• Mirror: No. 1 quality, 1⁄4" (6mm) glass electrolytically copper plated; 15-year guarantee against silver spoilage
• Door has full-length stainless steel piano hinge, magnetic catch and cable doorstop
• Four adjustable stainless steel shelves
• Cabinet may be inverted for right- or left-hand door swing
• Rough Wall Opening: 15-1⁄4" W, 25-1⁄2" H, 3-5⁄8" min. depth (385 x 650 x 90mm)
• Av. Mtg. Ht.: 74" (1880mm) to top of unit; Barrier-Free, 66-1⁄2" (1690mm)

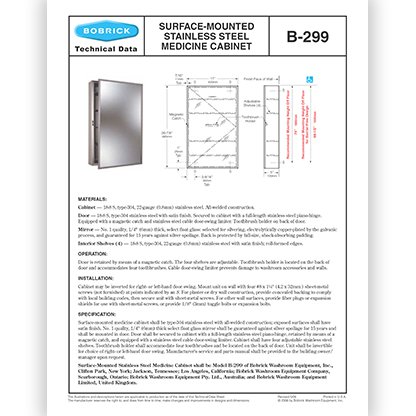

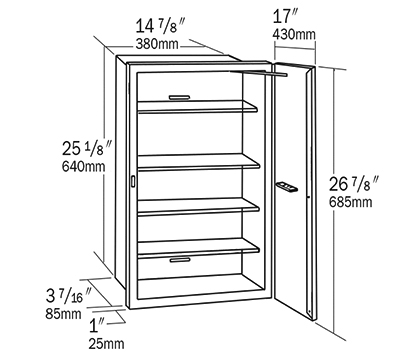

• B-299: Surface Mounted Medicine Cabinet Similar to B-398; Unit: 17" W, 26-7⁄8" H, 5" D (430 x 685 x 130mm)

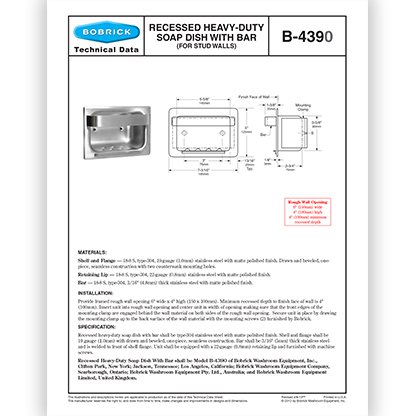

B-4390 RECESSED HEAVY DUTY SOAP DISH WITH BAR

• Type 304 stainless steel, matte polished finish
• Mounting clamp for stud walls
• Dimensions: 7-3⁄16" W, 5" H (185 x 125mm)
• Rough Wall Opening: 6" W, 4" H, 4" min. depth (150 x 100 x 100mm)
• Barrier-Free Mtg. Ht.: 38–48" (965–1220mm) above the finish floor on same wall as shower head

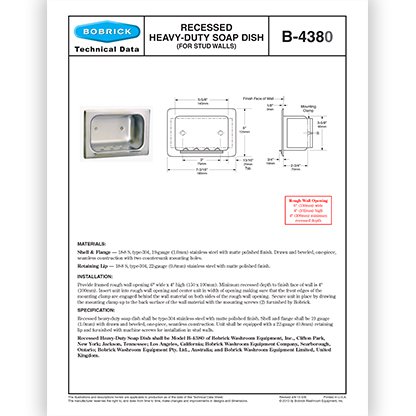

• B-4380: Similar to B-4390, but without bar

CAUTION NOTE: L-shaped Folding Shower Seats: B-517, B-518, B-5181 L-shaped folding shower seats, when properly installed and maintained, have sufficient strength to support a single user up to a maximum static load of 360 lbs (163 kg). In the interests of safety and the protection of end users, these seats should not be used to support weights exceeding 360 lbs (163 kg) . Failure to abide by this warning may result in seats malfunctioning, potentially causing minor to moderate injury. TOTAL WEIGHT ON SEAT MUST NOT EXCEED 360 LBS (163 KG).

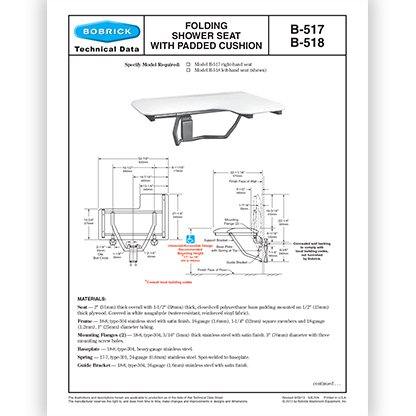

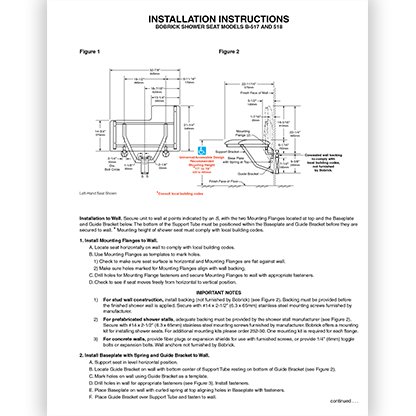

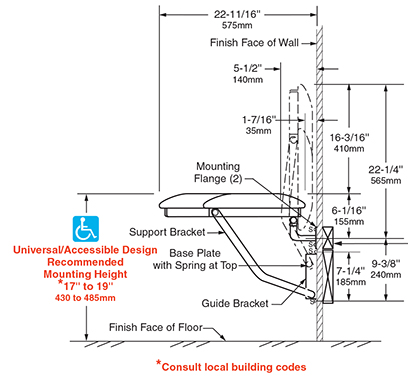

B-518 FOLDING LEFT-HAND SHOWER SEAT

• Complies with ADA Barrier-Free Accessibility Guidelines
• Foam-padded, white, water-resistant Naugahyde seat 1-1⁄2" (38mm) thick, with enclosed 1⁄2" (13mm) plywood base
• Frame and mounting brackets are type 304 stainless steel and feature self-locking mechanism
• Supports up to 360 lbs (163 kg) when properly installed
• Seat: 32-7⁄8" (835mm) wide, projects 22-11⁄16" (575mm) from wall
• Universal/Barrier-Free Mtg. Ht.: 17–19" (430–485mm) from top of seat to floor; left-hand seat
• B-517: Similar to B-518, but with right-hand seat

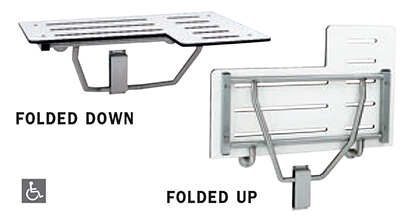

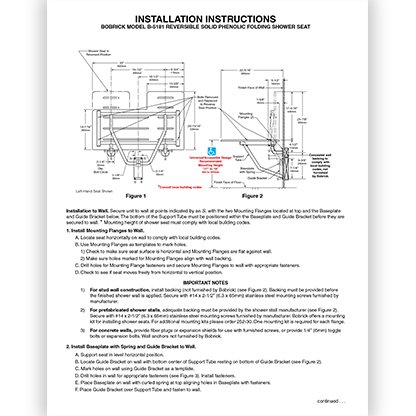

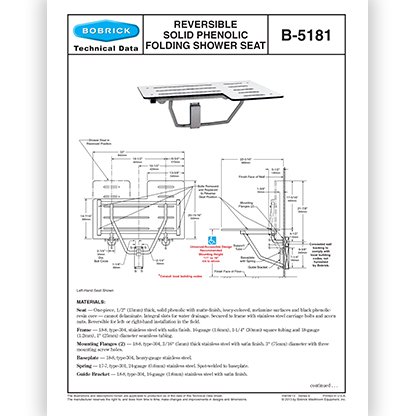

B-5181 REVERSIBLE FOLDING SHOWER SEAT

• Complies with ADA Barrier-Free Accessibility Guidelines
• Seat is constructed of durable, water-resistant, ivory-colored 1⁄2" (13mm) thick solid phenolic
• Reversible for left- or right-hand field installation
• Frame and mounting brackets are type 304 stainless steel with self-locking mechanism
• Supports up to 360 lbs (163 kg) when properly installed
• Seat 33" (840mm) wide, projects 22-5⁄16" (565mm) from wall
• Universal/Barrier-Free Mtg. Ht.:17–19" (430–485mm) from top of seat to floor

CAUTION NOTE: Rectangular Folding Shower Seat: B-5191 – Rectangular folding shower seat, when properly installed and maintained, has sufficient strength to support a single user up to a maximum static load of 450 lbs (204 kg). In the interests of safety and the protection of end users, this seat should not be used to support weights exceeding 450 lbs (204 kg). Failure to abide by this warning may result in seat malfunctioning, potentially causing minor to moderate injury. TOTAL WEIGHT ON SEAT MUST NOT EXCEED 450 LBS (204 KG).

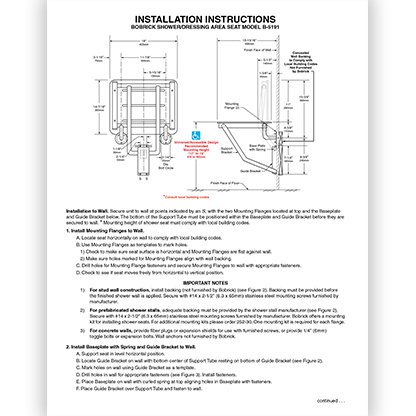

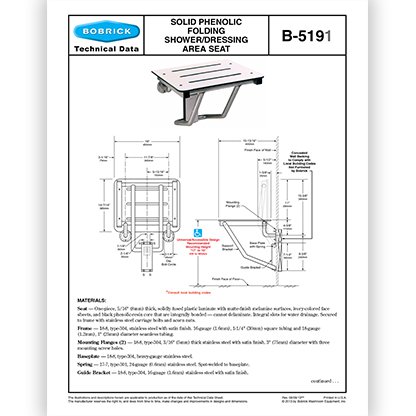

B-5191 COMPACT FOLDING SHOWER / DRESSING AREA SEAT

• Seat is constructed of durable, water-resistant, ivory coloured, 5⁄16" (8mm) thick solid phenolic
• Frame and mounting bracket are type 304 stainless steel and feature self-locking mechanism
• Supports up to 450 lbs (204 kg) when properly installed
• Seat: 18" (455mm) wide, projects 15-13⁄16" (400mm) from wall
• Universal/Barrier-Free Mtg. Ht.: 17–19" (430–485mm) from top of seat to floor
