NeoTek Collection

NeoTek post mounted door pulls and push bars meld the durable and enticing
"GripZone" finish with a contemporary
post mounted style.

Both straight and offset pulls are available
in 3 diameters.

1-inch diameter is made from solid rod. Larger diameters are made from
tubular material.

Custom lengths are readily available.

Designs
Specifications
Options
Finishes
Downloads

LP3401 - GripZone locking pull

1-1/4" diameter post

For 3/8" to 1" thick glass doors, or 1-3/4" to 2-1/2" thick aluminum, hollow metal or wood doors

Key operates from outside

RM3202 - push bar, square ends

1" diameter

Specify CTC

2-3/4" projection

RM3205 - straight push-pull, square ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3206 - push bar, round ends

1" diameter

Specify CTC

2-3/4" projection

RM3207 - straight push-pull, round ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3212 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM3215 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3216 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM3217 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3222 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3225 - straight push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3226 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3227 - straight push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3235 - offset push-pull, square ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3237 - offset push-pull, round ends

1" diameter

Specify push/pull CTC

2-3/4" projection

RM3245 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3247 - offset push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3255 - offset push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3257 - offset push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

NeoTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the NeoTek Collection are stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

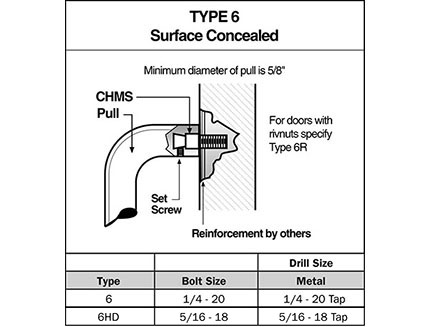

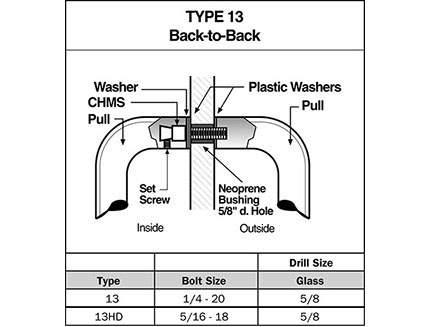

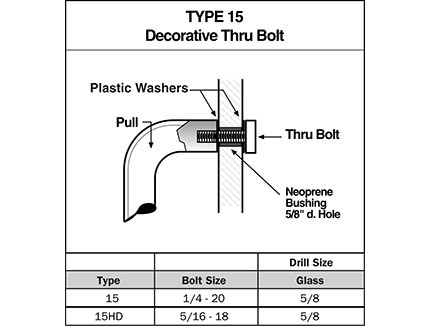

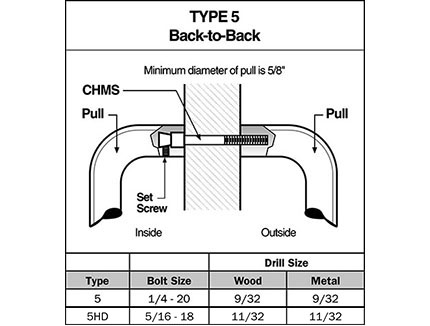

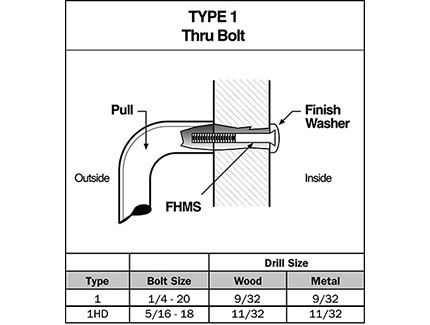

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Post location on push bars can be located 1/8" from end for narrow and medium stile doors, and 1" from end for flush and wide stile doors.
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3202-3).

Straight Pulls - Square Ends

RM3200 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

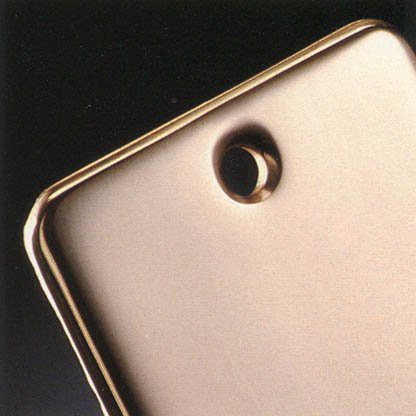

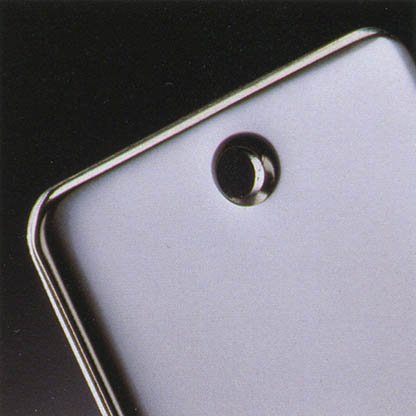

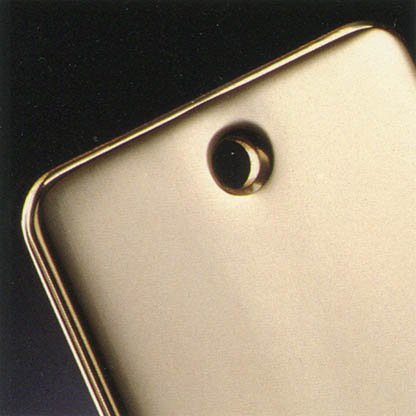

Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3210 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3220 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Straight Pulls - Round Ends

RM3204 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3214 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3224 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Pulls - Square Ends

RM3230 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3240 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3250 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Pulls - Round Ends

RM3234 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3244 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3254 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Straight Push/Pull Sets - Square Ends

RM3205 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3215 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3225 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Straight Push/Pull Sets - Round Ends

RM3207 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3217 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US9 / BHMA 611; US3 / BHMA 605

RM3227 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Push/Pull Sets - Square Ends

RM3235 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3245 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3255 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Push/Pull Sets - Round Ends

RM3237 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3247 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3257 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Push Bars - Square Ends

RM3202 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3212 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3222 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Push Bars - Round Ends

RM3206 Specifications:

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3216 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3226 Specifications (HD Mounting):

Base Metals: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
