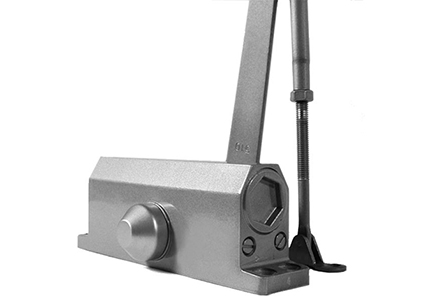

Dorex 300 Series
The 300 Series Closer is perfect for low traffic suite entry doors. This dependable unit's compact body design is ideal for use in light commercial, multi-family and residential applications.
Three sizes accommodate interior and exterior doors, for widths ranging from 32" to 48". It is unobtrusive and does not compromise performance for size.
- Designs
- Specifications
- Options
- Finishes
- Downloads
Dorex 300 Series
Dorex 300 Series
Three sizes accommodate interior and exterior doors, for widths ranging from 32" to 48". It is unobtrusive and does not compromise performance for size.
- Non handed
- Fixed power sizes 2, 3 and 4
- Universal retrofit hole spacing
- Power adjustable arm bracket
- Maximum 180° opening angle
- Precision cast aluminum alloy housing
- High quality non-gumming and non-freezing hydraulic fluid
- Rack and pinion mechanism
- Non critical thermostatic values
- Tri-pack for regular, parallel arm, and top jamb installation
- Separate adjustable sweep and latching speed valves
- Metallic aluminum finish
- cUL and UL listed
- 5 year limited warranty
Dorex 300 Series Door Closer Specifications
Sized closers for interior and exterior doors shall be 300 series rack and pinion type with cast aluminum alloy shell.
Closer shall be non-handed, surface mounted by 3/4” hole spacing
and shall project no more than 3” from the door surface.Closer shall have two non-critical thermostatic valves to separately control sweep and latch speeds and provide constant closing speeds under extreme temperatures.
Closer shall contain non-gumming and non-freezing hydraulic fluid. Brackets shall be supplied to permit regular, top jamb or parallel
arm installation and standard arm bracket shall allow 15% power adjustment.Closer shall be supplied with all necessary mounting fastners.

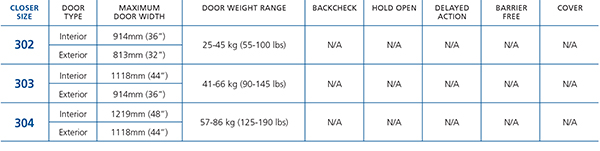

Selection Guide

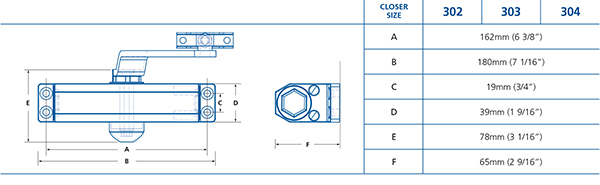

Size Chart

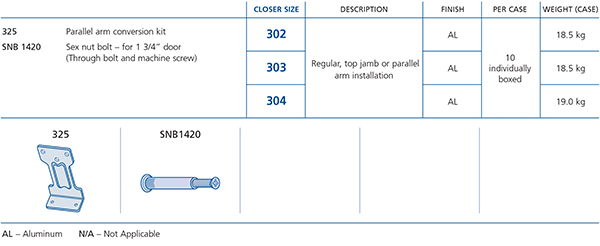

Parts & Accessories
For complete specifications, see Downloads tab.

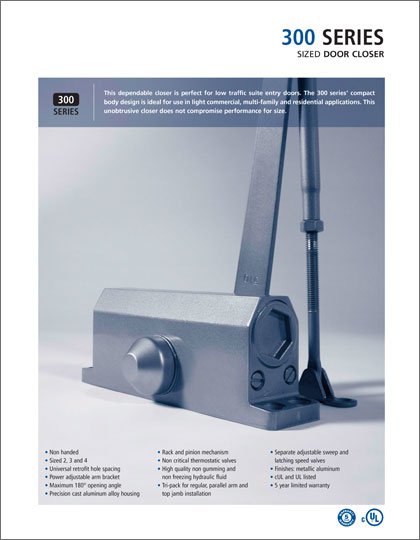

300 Series Door Closer
Fixed Power Door Closer • For Light Traffic Applications
