CenTrex Collection

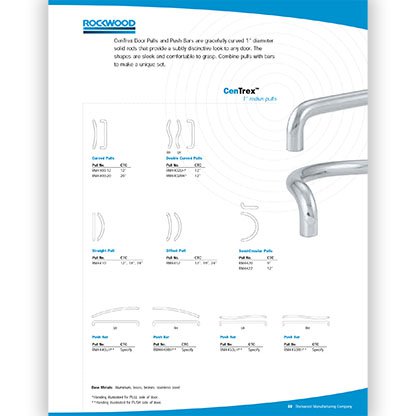

CenTrex Radius Collection

1" diameter CenTrex Radius Door Pulls and Push Bars are gracefully curved solid rods that provide a subtle, distinctive look to any door.

The shapes are sleek and comfortable to grasp. Combine pulls with bars to create
a unique set.

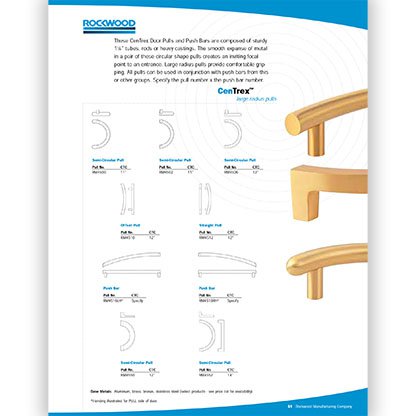

CenTrex Large Radius Collection

1-1/4" diameter CenTrex Large Radius Door Pulls and Push Bars are composed of sturdy tubes, solid rods or heavy castings.

The smooth expanse of metal in a pair of these circular shape pulls creates an inviting focal point to an entrance.

Large radius pulls produce comfortable gripping.

All pulls can be used in conjunction with push bars from this or other groups; specify the pull number x the push bar number.

Designs
Specifications
Finishes
Downloads

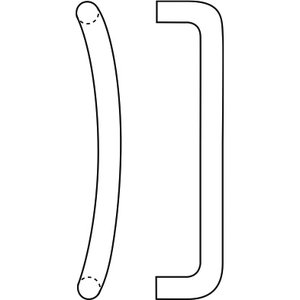

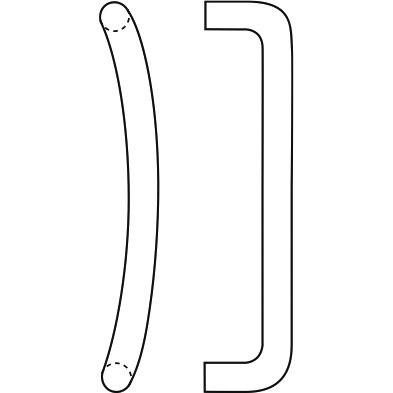

RM4400 - curved pull

1" diameter

12", 20" CTC

2-3/4" projection

RM4402 - double curved pull

1" diameter

12" CTC

3" projection

Specify LH or RH

RM4410 - straight radius pull

1" diameter

12", 18", 24" CTC

3" projection

RM4412 - offset radius pull

1" diameter

12", 18", 24" CTC

2-1/2" projection

RM4420 - semi-circular pull

1" diameter

9" CTC

3" projection

RM4440 - radius push bar

1" diameter

Specify CTC

2-1/2" projection

Specify LH or RH

RM4450 - compound radius push bar

1" diameter

Specify CTC

2-1/2" projection

Specify LH or RH

RM4500 - semi-circular, round ends

1-1/4" diameter

11" CTC

3" projection

RM4502 - semi-circular pull, square ends

1-1/4" diameter

11" CTC

3" projection

RM4506 - semi-circular pull, square ends

1-1/4" diameter

12" CTC

3" projection

RM4510 - offset pull, square ends

1-1/4" diameter

12" CTC

3" projection

RM4512 - straight pull, square ends

1-1/4" diameter

12" CTC

3-1/8" projection

RM4516 - radius push bar, square ends

1-1/4" diameter

Specify CTC

2-3/4" projection

Specify LH or RH

RM4550 - semi-circular pull, square ends

1-1/4" diameter

12" CTC

2-1/2" projection

RM4552 - semi-circular pull, square ends

1-1/4" diameter

14" CTC

2-1/2" projection

CenTrex Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the CenTrex Collection are aluminum, stainless steel, brass or bronze.

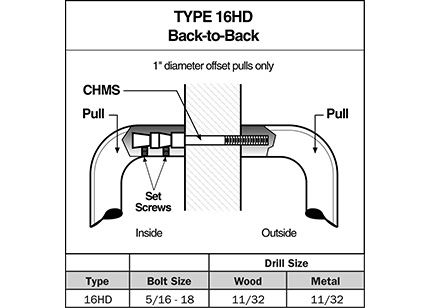

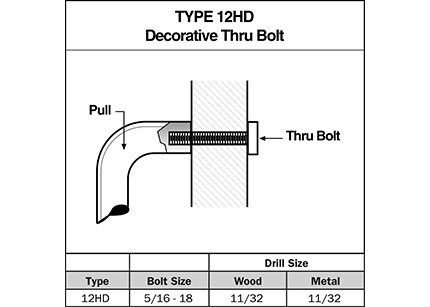

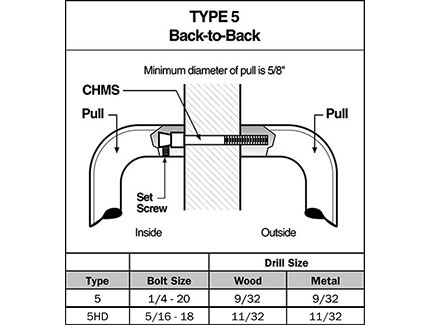

Rockwood Door Pulls – Mounting Types

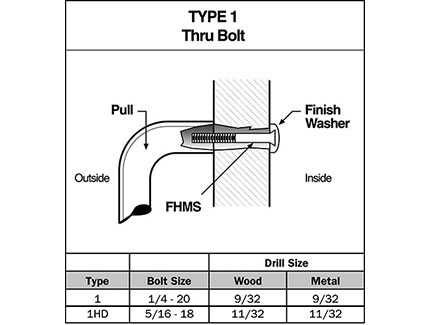

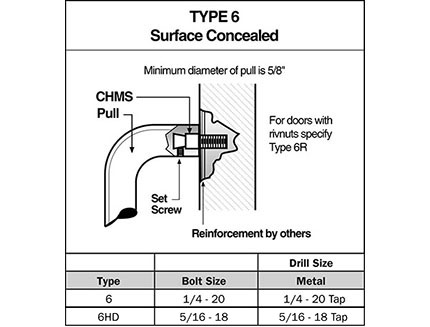

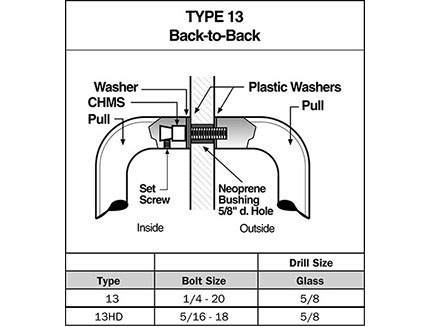

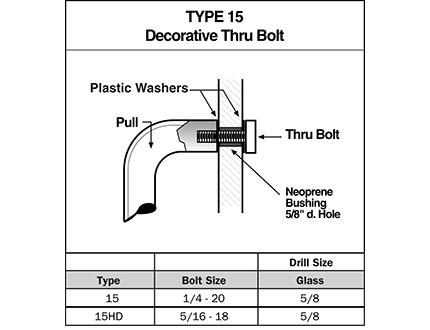

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.

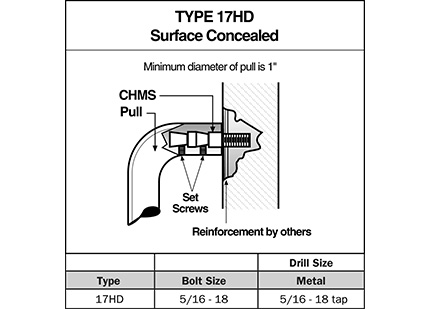

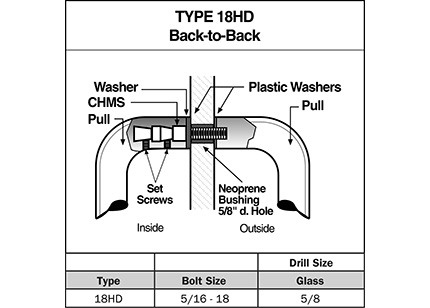

Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Straight Pull

RM4410 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 12", 18", 24" CTC (center-to-center measurement between mounts)
Projection: 3"

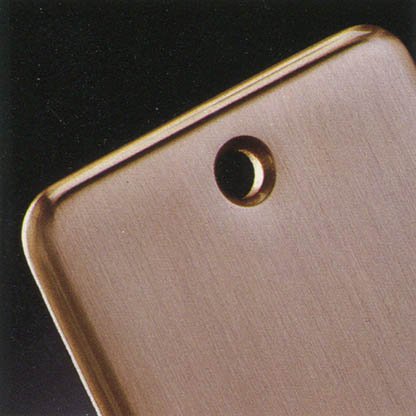

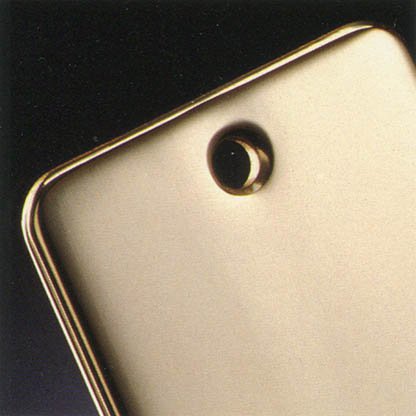

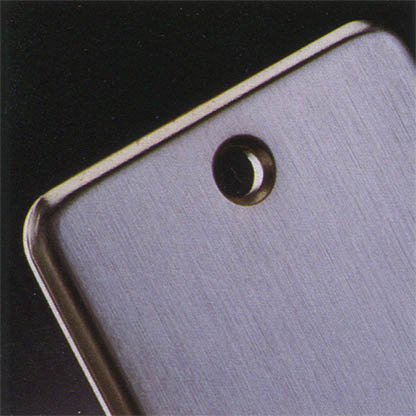

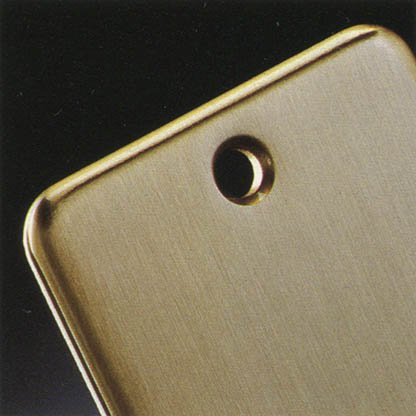

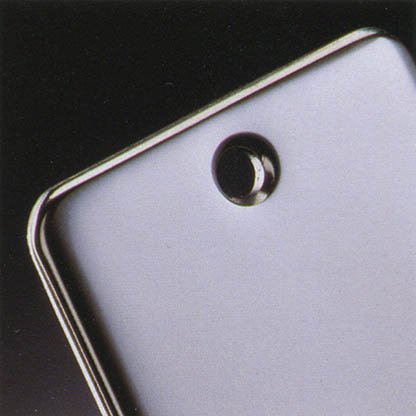

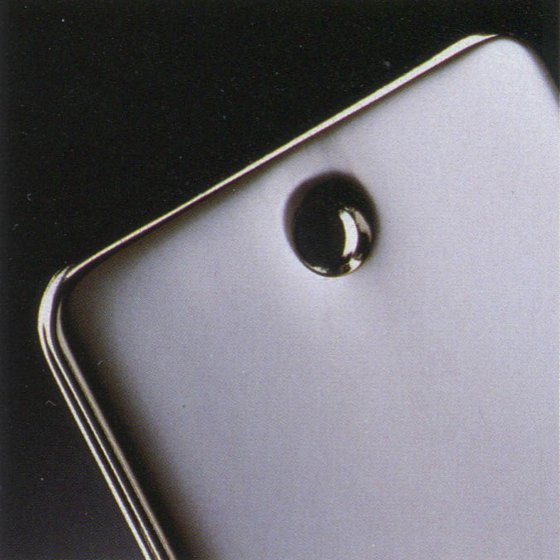

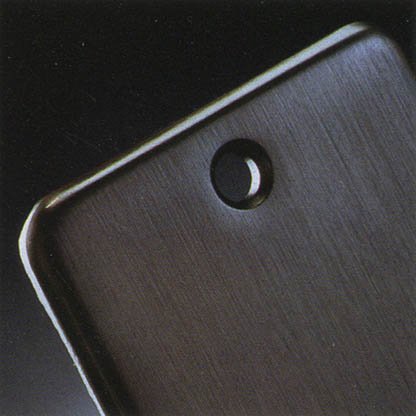

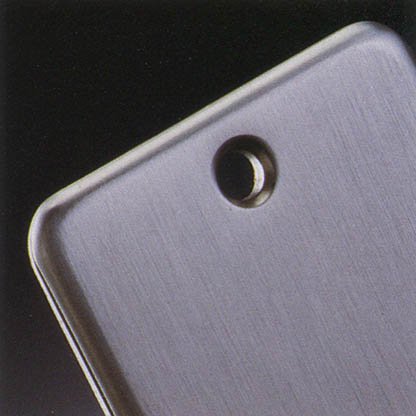

Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Offset Pull

RM4412 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 12", 18", 24" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Curved Pull

RM4400 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze

Diameter: 1"
Lengths: 12", 20" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Double Curved Pull

RM4402 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710
Specify: Left hand or right hand (LH or RH suffix)

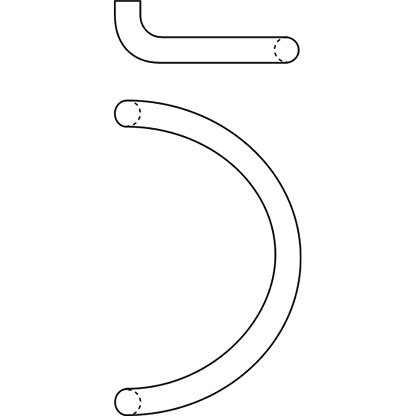

Semi-Circular Pull

RM4420, RM4422 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 9", 12" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Arched Push Bar

RM4440 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710
Specify: Left hand or right hand (LH or RH suffix)

S-Curve Push Bar

RM4450 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710
Specify: Left hand or right hand (LH or RH suffix)

Semi-Circular Large Radius Pulls

RM4500 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 11" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

RM4502 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 11" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

RM4506 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

RM4550 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

RM4552 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 14" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Straight Large Radius Pull

RM4512 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/8"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Offset Large Radius Pull

RM4510 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710

Large Radius Push Bar

RM4516 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711;
313 / BHMA 710
Specify: Left hand or right hand (LH or RH suffix)

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
