Waste Receptacles

Frost Product Specifications

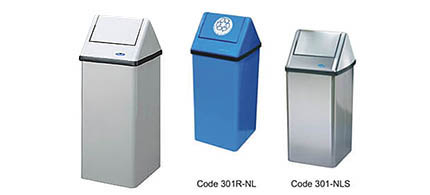

Free Standing Waste Receptacle

• Code 300-NL: Large free standing receptacle 42" high, (109cm), white finish;  Code 301-NL: Medium free standing receptacle 34-3/4" high, (88cm), white finish;  Code 302-NL: Small free standing receptacle
  26-3/4" high, (68cm), white finish;  Code 301-NLS: Medium free standing receptacle 33-1/4" high, (84.5cm), stainless steel finish;  Code 301R-NL: Medium free standing recycling receptacle 34-3/4” high, (88cm), recycling blue finish.
• Specifications: The Frost free standing series of waste containers can be used in almost any application. The medium and small units also
  fit under most countertops. The all metal construction is ideally suited for fire protection and rugged use.
• Features: Rounded soft edge design. All welded construction of
  22 gauge cold rolled steel. Optional light weight 26 gauge galvanized steel liner provides extra fire protection. All units come with standard bag holder apparatus. Finished in hybrid epoxy polyester powder coat paint and black vinyl trim. Recessed feet elevate the unit to provide a neat appearance with minimal maintenance. Packaged in corrugated cartons.
• Capacity / Shipping Weight: 300-NL: 105 litres (28 US, 23 imp. gal.), shipping weight: 27 lbs. (14 kg), recommended bag size: 35" x 50";  301-NL: 80 litres (21 US, 17.5 imp. gal.), shipping weight: 23 lbs.
  (12 kg), recommended bag size: 26" x 36";  302-NL: 54 litres (14 US, 12 imp. gal.), shipping weight: 19 lbs. (10 kg), recommended bag size: 26" x 36",
• Optional Liners: 300-500: For code 300, 80 litres (21 US, 17.5 imp. gal.). Shipping weight: 13 lbs. (5.8 kg). Dimensions: 31" (78.7) x 12-1/2" (31.7) x 12-1/2" (31.7).  301-500: For code 301, 64 litres (16 US, 14 imp. gal.). Shipping weight: 10 lbs. (4.5 kg). Dimensions: 25" (63.5) x 12-1/2" (31.7) x 12-1/2" (31.7).  302-500: For code 302, 41 litres (11 US, 9 imp. gal.). Shipping weight: 6 lbs. (2.7 kg). Dimensions: 16" (40.6) x 12-1/2" (31.7) x 12-1/2" (31.7).
• Barrier Free Access: All units meet barrier free access guidelines.

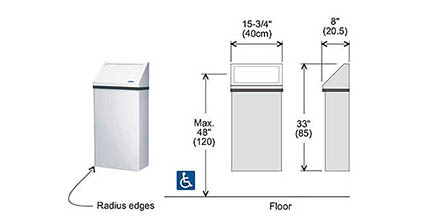

Wall Mounted Waste Receptacle

• Code 303 NL: White epoxy finish;  Code 303: White epoxy finish, with galvanized liner;  Code 303-3 NL: Stainless steel type 304 no. 4 brushed finish;  Code 303-3: Stainless steel type 304 no. 4 brushed finish with liner.
• Specifications: The 303 wall mounted waste receptacle is designed to conserve floor space in medium to light duty areas. All steel construction offers maximum fire protection with no openings on sides or bottom of unit. Tight sealing head and spring loaded door promote oxygen starvation. When used with optional galvanized liner there is added insulative fire protection. Comes with standard bag holder apparatus.
• Capacity/Shipping Weight: 11 gal. (50 litres), shipping weight: 20 lbs. ( 9 kg.). Recommended bag size: 26" x 36"
• Installation: For barrier free mounting insure that centre of inlet door does not exceed 48" (120 cm) above floor level.

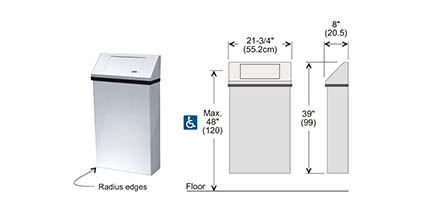

Jumbo Wall Mounted Waste Receptacle

• Code 304NL: Jumbo, white epoxy finish;  Code 304NLS: Jumbo, stainless steel.
• Specifications: The 304 wall mounted waste receptacle is designed to conserve floor space in medium to heavy duty areas. All steel construction offers maximum fire protection with no openings on sides or bottom of unit. Tight sealing head and spring loaded door promote oxygen starvation. Comes with standard bag holder apparatus.
• Capacity/Shipping Weight: 17 gal. (77 litres), shipping weight: 27 lbs. ( 12.2 kg.).
• Installation: For barrier free mounting insure that center of inlet door does not exceed 48" (120 cm) above floor level.

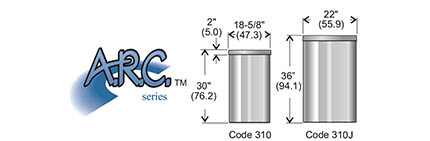

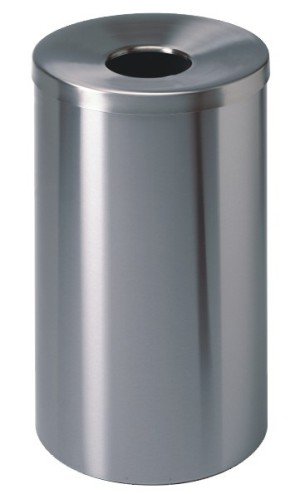

Architectural Waste Receptacles

• Code 310S: Stainless steel, type 430 no.4 finish;  Code 310W: White finish body with stainless steel top;  Code 310B: Black finish body with stainless steel top;  Code 310J: Jumbo sized unit, stainless steel type 430 no.4 finish;  Code 310-500: Optional plastic liner.
• Specifications: The Code 310 stainless steel free standing waste receptacles are ideal for high traffic areas requiring the quality and durability of an all stainless unit without the commitment of wall mounting. The 310 offers clean geometric design lines with radiused corners, ideal for lobbies and reception areas.
• Features: 310S – All stainless steel 18 ga type 304 construction, no 4 brushed finish. One piece roll formed 22 gauge stainless steel body (20 ga. body on 310J).
• Capacities: Code 310: 27.5 gal.,32 US, (125 litres), 310J: 45 gal., 55 US (206 litres). Optional plastic liner for code 310 only: 19 gal. (86 litres).
• Shipping weight: Code 310: 31 lbs. (13.7 kg.);  Code 310J: 43 lbs. (19.5 kg.).

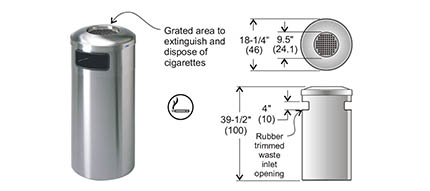

Free Standing Waste Receptacle with Ash Urn

• Code 311SA: Stainless steel waste receptacle with ash urn.
• Specifications: Heavy duty all stainless unit is ideal for designated smoking areas.
• Materials: 18 gauge stainless steel type 304 domed top. All stainless ash urn with baffle opening. Body is one piece rolled formed all welded stainless steel construction (22 gauge type 430 no. 4 finish). Bag holder apparatus. Non removable top.
• Capacity: 27.5 gal. (125 litres).
• Shipping weight: 44 lbs. (20 kg)

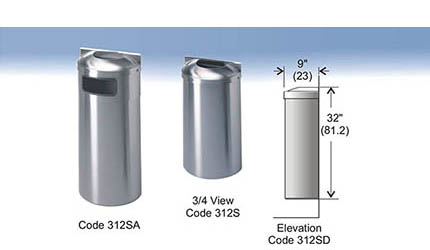

Wall Mounted Waste Receptacle

• Code 312S: Wall mounted open top stainless steel waste receptacle;  Code 312SA: Wall mounted receptacle with ash urn.
• Specifications: Heavy duty all stainless unit is ideal for pedestrian common areas.
• Materials: 18 gauge stainless steel type 304 domed top. Body is one piece rolled formed all welded stainless steel construction (22 gauge type 430 no. 4 finish). Bag holder apparatus. Non removable top.
• Capacity: 27.5 gal. (125 litres). Code 312D: 13 gal. (60 litres).
• Shipping weight: 37 lbs. (16.7 kg.).

All ARC series codes (Codes 310-313) are also available in powder coated black and white finishes. To specify colours replace the standard "S" (which stands for stainless) and add the following abbreviations on each code –
B: Black, W: White. example: 311B = Code 311 in black finish. All painted units come with stainless steel top.

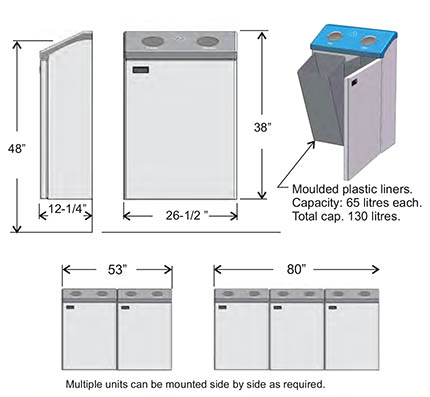

Wall Mounted Modular 2-Stream Recycling Unit

• Code 315: Modular Recycling Station, Indoor/outdoor, blue and grey two tone finish. Includes two roto-moulded plastic liners and category labels in French and English;  Code 315S: Modular Recycling Station, stainless steel finish;  Code 315-100: Back to back mounting kit;  Code 315-500: Additional plastic liner;  Code 315-501: English and French label pack.
• Site location: Wall mounted fixed design eliminates the possibility of blocking exits in the event of an emergency.
• Features: Flexible modular component design to accommodate specific separation requirements. Ergonomic front loading door reduces risk of back injury. Inclined top discourages use as a table or chair. All exterior components are fabricated metal for maximum fire protection. Two leakproof roto-moulded polyethylene liners. Optional metal liners available on special order (Code 315-500G). Full length piano hinge on door. Magnetic latch on door. Assists commercial and institutional organizations with source separation programs.
• Labels Included: Glass, Plastic, Cans, Trash, Cans/Plastic, Glass/Plastic, White Paper Only, Glass/Cans/Plastic, Paper, Trash/Organic and Organic labels in both English and French.
• Capacity: Each liner has a 67 litre capacity, 134 litres in total
  (29 imp. gal. In total).
• Shipping Weight: 50 lbs. (23 kg.).

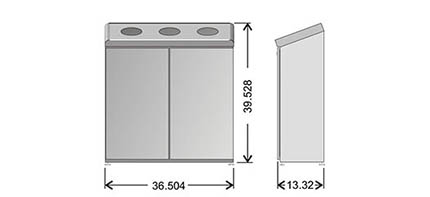

Floor Standing 3-Stream Recycling Unit, Indoor/Outdoor

• Code 316: 3 Stream Recycling Station, blue and grey two tone finish;  Code 316S: 3 Stream Recycling Station, all stainless steel finish;  Code 316-505H: Modular hood, blue polyester powder coat finish;  Code 316-505HS: Modular Hood, stainless steel finish;  Code 315-500: Additional plastic liner;  Code 315-501: English and French label pack.
• Site location: Floor mounted 3 stream design can be used indoors
  or outdoors.
• Features: Three streams accommodates specific separation requirements. Ergonomic front loading doors reduces risk of back injury. Inclined top discourages use as a table or chair. All exterior components are fabricated metal for maximum fire protection. Three leak proof roto moulded polyethylene liners. Optional metal liners available on special order (Code 315-500G). Full length piano hinges on doors. Tumbler lock door with latching on lower portion of the door. Assists commercial and institutional organizations with source separation programs.
• Labels Included: Comes with Glass, Plastic, Cans, Trash, Cans/Plastic, Glass/Plastic, White Paper Only, Glass/Cans/Plastic, Paper, Trash/Organic and Organic labels in both English and French.
• Capacity: Each liner has a 67 litre capacity, 201 litres in total
  (45 imp. gal. in total).
• Shipping Weight: 70 lbs. (35 kg.).

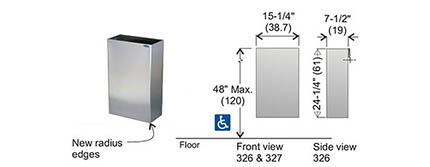

Wall Mounted Waste Receptacle

• Code 326: Regular capacity, 7-1/2" (19 cm) deep;  Code 327: Extra large capacity, 11-1/2" (29.2 cm) deep;  Code 320: Vanity mounted receptacle.
• Specifications: Waste receptacle is completely removable for convenient maintenance. Open top provides easy access. Comes with standard bag holder apparatus. Code 327 provides extra large waste capacity with its 11-1/2" (29.2 cm) depth. All welded construction of
  22 ga. no. 4 brushed finish stainless steel.
• Capacity/Shipping Weight: Code 326: 11 gal. (50 litres), shipping weight: 15 lbs. (7 kg.);  Code 327: 15 gal. (68 litres), shipping weight:
  17 lbs. (8 kg.).
• Installation: For barrier free mounting insure that top of waste receptacle does not exceed 48" (120 cm) above floor level.

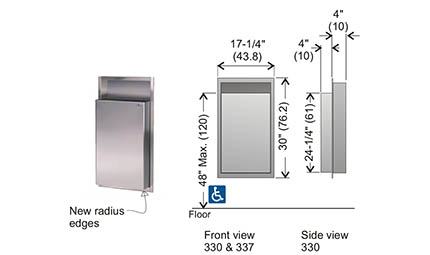

Semi Recessed Waste Receptacle

• Code 330: Regular capacity, utilizes Code 326 bin;  Code 337: Extra large capacity, utilizes Code 327 bin.
• Specifications: Semi recessed design provides large capacity receptacle with minimum space. Code 337 provides extra large waste capacity. Waste receptacle is completely removable for convenient maintenance. Comes with standard bag holder apparatus. Recessed wall body made of 22 gauge stainless steel type 304 number 4 brushed finish.
• Capacity/Shipping Weight: Code 330: 11 gal. (50 litres), shipping weight: 20 lbs. (9 kg.);  Code 337: 15 gal. (68 litres), shipping weight:
  29 lbs. (13 kg.).
• Installation: Provide wall opening 28-3/4" (73.3) H x 16" (40.6) W x 4" (10.2) D. For barrier free mounting insure that top of waste receptacle does not exceed 48" (120 cm) above floor level.

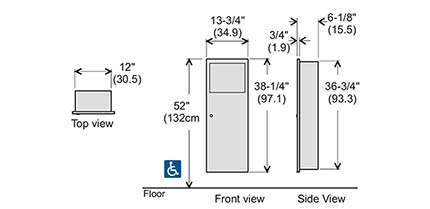

Recessed Waste Receptacle

• Code 340A: Stainless type 304 fully recessed;  Code 340B: Stainless type 304 semi recessed;  Code 340C: Stainless type 304 surface mount;  Code 340-14A: Stainless type 304 fully recessed, 4" deep;  Code 340-14C: Stainless type 304 surface mount, 4" deep.
• Specifications: All welded construction of 22 ga. stainless steel type 304 no. 4 brushed finish. Full length stainless steel piano hinge and tumbler keyed lock on door. Recessed body 20 ga. corrosion resistant galvanized steel. Counter balanced self closing waste inlet door.
• Capacity: Removable leakproof rotationally moulded liner with 22 litre capacity (5 imp. gal., 6 US).
• Installation: Provide 37-1/4" (94.6) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 340B units. Collar is secured between recessed body flange and wall. Drill mounting holes as required. For unrestricted access, height of top of unit to floor must not exceed 52" (132 cm).

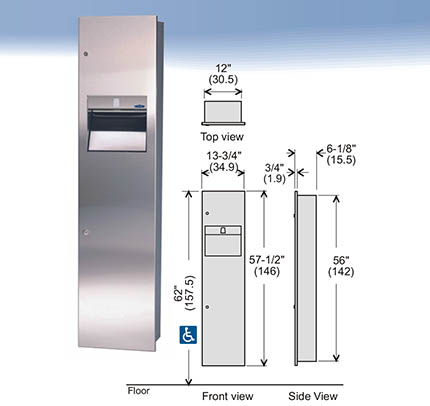

Combination Dispenser / Disposal Fixture

• Code 400A: Stainless type 304 fully recessed;  Code 400B: Stainless type 304 semi recessed;  Code 400C: Stainless type 304 surface mounted;  Code 400-14A: Stainless type 304 fully recessed 4" deep;  Code 400-14C: Stainless type 304 surface mounted 4" deep;
  Code 400PL: Solid core plastic laminate fully recessed.
• Specifications: Our largest combination fixture is ideal for high
  traffic areas.
• Features: Universal towel dispenser will accept all standard roll and single fold towels. Note: 400-14 units will dispense multifold towels only. Stainless steel (304, # 4 brushed) towel cradle. Heavy duty 18 gauge stainless steel door (304, # 4 brushed finish). Secured with two tumbler keyed locks. All doors are hinged with full length stainless steel piano hinges. Counterbalanced stainless steel waste inlet door (20 ga.) provides maximum fire protection. All welded recessed body fabricated from 20 gauge corrosion resistant galvanized steel.
• Capacity: Removable leakproof roto moulded liner with 32 litre capacity (7 gal. imp., 8.5 gal. US). Code 400-14: 18 litres (4 gallons).
• Installation: Provide 56-3/8" (143.8) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 400B units, 4" (10.2 cm) deep for 400-14A. Collar is secured between recessed body flange and wall. Drill mounting holes as required. For unrestricted access, height of top of unit to floor must not exceed 62" (157.5cm).

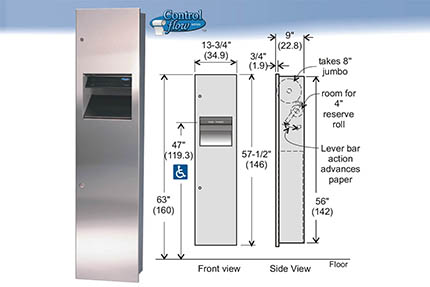

Control Roll Dispenser

• Code 400A-50: Stainless type 304 fully recessed;  Code 400B-50: Stainless type 304 semi recessed; Code 400C-50: Stainless type 304 surface mounted.
• Specifications: Additional features to Code 400: Extra deep combination fixture is ideal for high traffic areas. Universal towel dispenser will accept all standard 8" roll towels. Controlled delivery with easy push action lever, takes up to 4" diameter reserve roll to eliminate paper towel waste. Stainless steel (safety guarded) saw tooth cutting bar.
• Capacity: Removable galvanized steel liner (26 ga.) with 47 litre capacity (10.5 gallons).
• Installation: Provide 56-3/8" (148.3) high x 12-1/2" (31.7) wide x 8-1/2" (21.5) deep wall opening. Drill mounting holes as required.
  For unrestricted access, height of top of unit to floor must not exceed 63" (160), this will result in the push bar lever being 47" (119.3 cm)
  or less from floor.

Touch Free Dispenser

• Code 400A-70: Stainless type 304 fully recessed;  Code 400B-70: Stainless type 304 semi recessed;  Code 400C-70: Stainless type 304 surface mounted.
• Additional features to Code 400-50: Universal towel dispenser will accept jumbo roll towels max. 8" diameter. Large detection zone senses hand when placed in a natural position under dispenser to deliver a 12” length of towel. Towel delivery is quiet and uniform. Hands free dispenser reduces paper flow, and provides maximum hygiene. Operates with 4 “D” size alkaline batteries. 4 alkaline batteries have been independently tested and found to provide
  35,000 hand dries. AC adaptor also included.

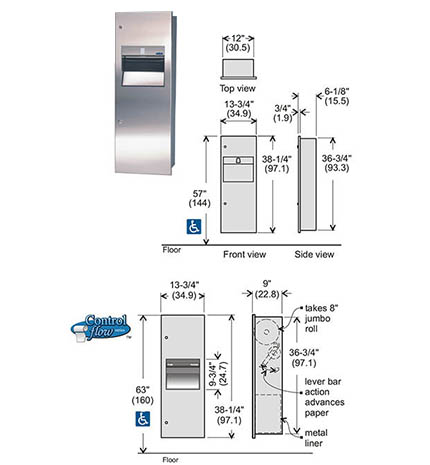

Compact Dispenser and Disposal

• Code 410A: Stainless type 304 fully recessed;  Code 410B: Stainless type 304 semi recessed;  Code 410C: Stainless type 304 surface mounted;  Code 410-14A: Stainless type 304 fully recessed 4" deep;  Code 410-14C: Stainless type 304 surface mounted 4" deep;  Code 410PL: Solid core plastic laminate fully recessed.
• Specifications: The 410 is our medium sized combination fixture, with all specifications equal to the Frost code 400 listed on previous page.
• Features: Universal towel dispenser will accept all standard roll and single fold towels. Note: 410-14 will dispense multifold towels only.
• Capacity: Removable leakproof roto moulded liner with 15 litre capacity (4 gallons). Code 410-14: galvanized welded liner, 9 litres (2 gallons).
• Installation: Provide 37-1/4" (94.6) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 410B units, 4" (10.2 cm) deep for 410-14A. Collar is secured between recessed body flange and wall. Drill mounting holes as required. For unrestricted access, height of top of unit to floor must not exceed 57" (144.7cm).

• Code 410-50A: Control Roll, stainless, fully recessed;  Code 410-50B: Control Roll, stainless, semi recessed;  Code 410-50C: Control Roll, stainless, surface mount.
• Specifications: Extra deep combination fixture is ideal for high traffic areas. Universal towel dispenser will accept all standard 8" wide roll towels. Controlled delivery with easy push action lever. Removable galvanized steel liner (26 ga.) with 18 litre capacity (4 gallons). Provide 37-1/4" (94.6) high x 12-1/2" (31.7) wide x 8-1/2" (21.5) deep wall opening. Drill mounting holes as required.

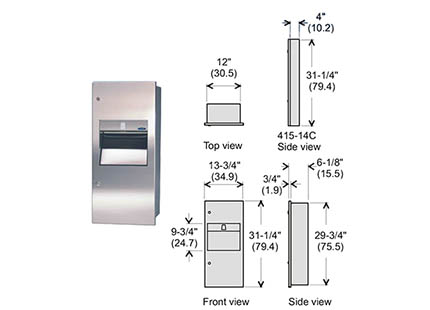

Mini Dispenser and Disposal

• Code 415A: Stainless type 304, fully recessed;  Code 415B: Stainless type 304, semi recessed;  Code 415C: Stainless type 304, surface mounted;  Code 415-14A: Stainless type 304, fully recessed 4” deep;  Code 415-14C: Stainless type 304, surface mounted 4” deep;  Code 415PL: Solid core plastic laminate, fully recessed.
• Specifications: The 415 is our smallest combination fixture, all specifications equal to the Frost code 410 listed at top of this page. Code 415-14 dispenses multifold only.
• Capacity: Removable roto moulded plastic liner, 8.5 litre capacity (1.9 gallons). Code 415-14: 4.25 litres (.9 gallons, galvanized steel liner).
• Installation: Provide 30-1/4" (76.8) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall opening, 3" (7.6 cm) deep for 415B units, 4" (10.2 cm) deep for 415-14A units. Collar is secured between recessed body flange and wall. Drill mounting holes as required.

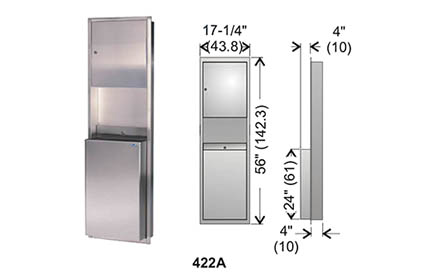

Combination Dispenser and Disposal

• Code 422A: Recessed, stainless steel, type 304;  Code 422C: Surface mounted, stainless steel, type 304;  Code 427: Comes with large capacity waste container.
• Specifications: Semi recessed combination dispenser/waste receptacle can be mounted into any wall configuration requiring a minimum of 4" depth.
• Features: Locking cabinet door hinged with full length stainless piano hinge.
• Designed to dispense 500 multifold towels. All welded construction with locking removable waste bin. Semi recessed design provides large capacity receptacle with minimum space. Code 427 provides extra large waste capacity. Comes with standard bag holder apparatus. Recessed wall body and waste container are 22 gauge stainless steel type 304 no. 4 finish.
• Capacity: Code 422A, 442C: 11 gal. (50 litres), Code 427: 15 gal. (68 litres).
• Installation: Provide wall opening 54-1/2" (138.9)h x 16" (40.6)w x 4" (10.2)d.

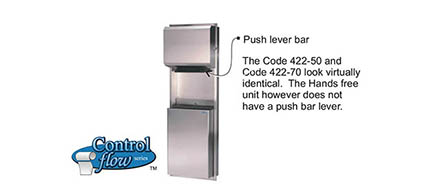

Combination Control Roll Dispenser and Disposal

• Code 422A-50: Stainless steel type 304, Recessed 4”;  Code 422C-50: Stainless steel type 304, Surface Mounted;  Code 427-50: Stainless steel type 304, Recessed 4” (comes with large waste receptacle).
• Specifications: The 422-50 has the same material specifications as the code 422 unit listed above.
• Control Roll: Control dispenser reduces paper waste. Designed to dispense jumbo roll towels max. 8" diameter (4" reserve roll).

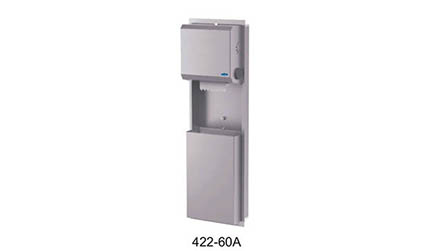

Auto Cut, Combination Dispenser and Disposal

• Code 422-60A: Stainless steel type 304, Recessed 4”;  Code 422-60C: Stainless steel type 304, Surface Mounted;  Code 427-60A: Stainless steel type 304, Recessed 4” with large waste receptacle.;  Code 427-60C: Stainless steel type 304, Surface Mounted with large waste receptacle.
• Specifications: The 422-50 has the same material specifications as the code 422 unit listed above.
• Auto Cut Dispensing: When pulling on the exposed length of towel the dispenser will automatically cut an 11” (27cm) length of towel, a 3” length of towel is left to grab for next dispensing action.

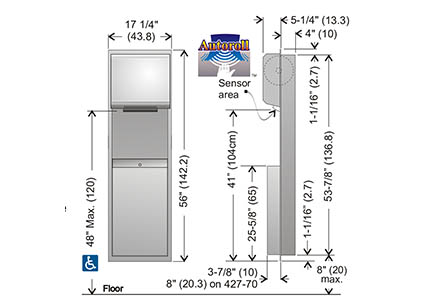

Hands Free Combination Dispenser and Disposal

• Code 422A-70: Stainless steel type 304, Recessed 4”;  Code 422C-70: Stainless steel type 304, Surface Mounted;  Code 427-70: Stainless steel type 304, Recessed 4” (comes with large waste receptacle).
• Specifications: The 422-70 has the same material specifications as the code 422 unit listed at the top of this page.
• Touch Free: Large detection zone senses hand when placed in a natural position under dispenser to deliver a 12” length of towel. Towel delivery is quiet and uniform. Hands free dispenser reduces paper flow, and provides maximum hygiene. Operates with 4 “D” size alkaline batteries. Four alkaline batteries have been independently tested and found to provide 35,000 hand dries. Comes with AC adaptor. Designed to dispense jumbo roll towels max. 8" diameter.
• Installation: See notes on code 422 installation listed above.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

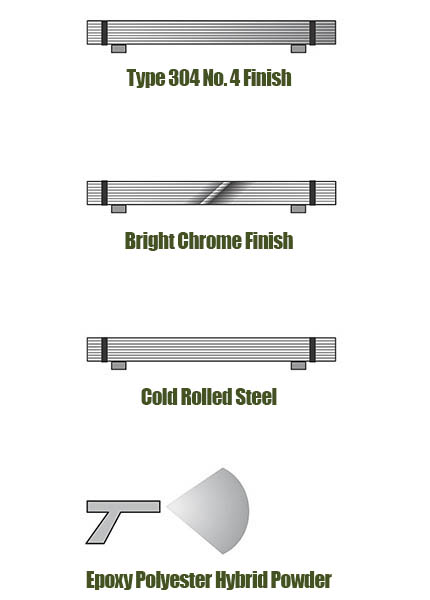

Frost Materials and Finishes

Type 304 No. 4 Finish:  Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish:  These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel:  Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder:  After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee:  Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
