Dispensers Toilet Tissue

Frost Product Specifications

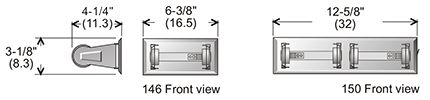

Roll Toilet Tissue Dispensers

• Code 146: Single Roll, polished chrome finish;  Code 150: Double Roll, polished chrome finish.
• Specifications: Ideal for areas requiring a heavy duty economical dispenser.
• Features: Tension springs restrict paper consumption to prevent free wheeling of roll. Unit has concealed self locking device to prevent product pilferage. All welded construction of 18 ga. steel. Pivot arms hinged on hardened steel rivets. All surfaces finished in polished chrome.
• Shipping Weight: Code 146: 1 lbs. (.45kg); Code 150: 2 lbs. (.9 kg).
• Installation: For unrestricted access, bottom of unit to floor should not exceed 44" (111.7). Mounting screws provided.

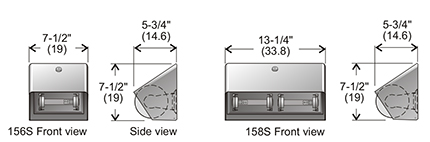

Dispensers with Hood

• Code 156S: Single Roll, stainless no. 4 brushed finish;  Code 158S: Double Roll, stainless no. 4 brushed finish.
• Specifications: The hooded tissue dispensers offer an attractive means of preventing product pilferage and restricting paper consumption.
• Features: Roll tissue dispensers are standard Frost codes 146 (single) and 150 (double) as shown above. Sloped hood has tumbler keyed lock to prevent pilferage. All welded construction of 22 ga. stainless steel. Pivoting front hinged on hardened steel rivets.
• Shipping Weight: Code 156S: 2 lb. (.9 kg);  Code 158S: 3 lbs., (1.3 kg).
• Installation: For unrestricted access, bottom of dispenser to floor should not exceed 44" (111.7). Mounting screws provided.

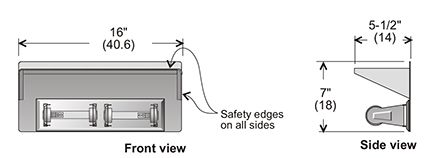

Dispensers with Shelf

• Code 158-10: Dispenser with shelf, stainless steel no.4 brushed finish.
• Site Location: Ideal for areas where excess toilet tissue rolls can be stored with the dispenser.
• Materials: Shelf and back formed from 22 gauge stainless steel no. 4 brushed finish. Complete with double roll toilet tissue dispenser.
• Shipping Weight: Code 158-10: 5 lbs., (2.25 kg);  Code 158S: 5-1/2 lbs., (2.5 kg).
• Installation: For unrestricted access, bottom of dispenser to floor should not exceed 44" (111.7). Mounting screws provided.

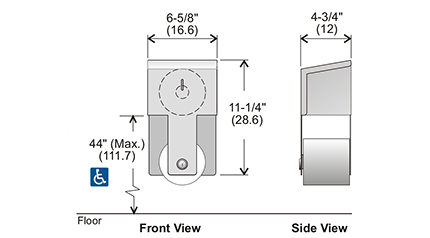

Roll Toilet Tissue Dispenser

• Code 159: Vertical double roll, white epoxy finish.
• Site Location: Ideal for areas requiring a heavy duty economical dispenser. Semi-concealed top promotes the use of one roll at a time.
• Features: Dispenses all standard toilet tissue rolls including 4.2" x 4.5", 500 sheet rolls. Comes with keyed tumbler lock to prevent pilferage and vandalism. Front loading for easy service and maintenance. Tissue rolls are not removable without keyed access. Welded construction of both 18 ga. (front) and 20 ga. (back) cold rolled steel. Body secured to back with full length piano hinge.
• Capacity / Shipping Weight: Two roll capacity, 3 lbs., (1.35 kg).
• Installation: For unrestricted access, bottom of top roll to floor should not exceed 44" (111.7). Mounting screws provided.

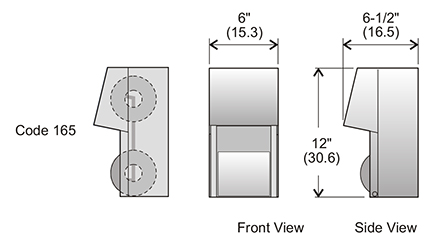

Reserve Roll Toilet Tissue Dispenser

• Code 165: Surface mount, 304 ss no. 4 finish;  Code 165R: Recessed, 304 ss no. 4 finish;  Code 165DP: Two compartment mounting, 304 SS no.4 finish.
• Features: The code 165 successive access dispenser will only dispense its reserve second roll after the first roll is empty. This insures that the custodian is replacing empty rolls only and not having to deal with two half empty rolls during maintenance rounds. Dispenses all standard toilet tissue rolls. Comes with keyed tumbler lock to reduce pilferage and vandalism. Front loading for easy service and maintenance. Rollers are non removable without keyed access. All stainless steel unit, welded construction of both 18 and 20 ga. SS.
• Capacity / Shipping Weight: Two roll capacity, 5-1/2 lbs., (2.4 kg).
• Installation: For unrestricted access, bottom of unit to floor does not exceed 44" (111.7). Mounting screws provided.

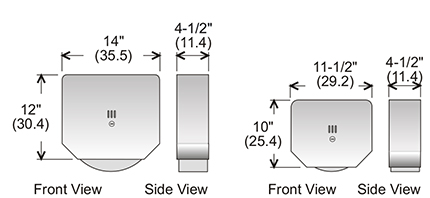

Jumbo Toilet Tissue Dispenser

• Code 166: White epoxy finish, 10" roll maximum with 2-1/4" to 3" spindle diameter;  Code 166S: Stainless steel finish;  Code 168: White epoxy finish, 13" roll maximum with 2-1/4" to 3" spindle diameter;  Code 168S: Stainless steel finish.
• Specifications: Wall mounted single roll dispenser offers durability in an attractive all metal keyed lock package. Welded all steel construction offers maximum fire protection.
• Shipping Weight: Code 166: 3 lbs. (1.4 kg);  Code 168: 4 lbs., (2 kg).
• Installation: For unrestricted access, bottom of unit to floor should not exceed 44" (112). Mounting screws provided.

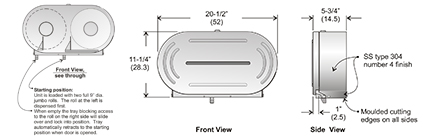

Twin Jumbo Toilet Tissue Dispenser

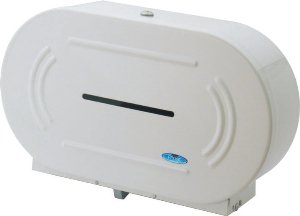

• Code 169: Twin Jumbo Toilet Tissue Dispenser, stainless steel, 304 number 4 finish;  Code 170: Twin Jumbo Toilet Tissue Dispenser, white epoxy finish.
• Specifications: Ideal for high traffic areas requiring the durability of an all metal exterior.
• Dispensing: Holds two 9” (230mm) jumbo toilet tissue rolls. Moulded spindles can accommodate 2-1/4” or 3” (57 or 76mm) diameter cores. Spring loaded access tray will lock into position only when first roll on left side is depleted. When door is opened, access tray will return to original position. The custodian can then place the stub roll on the left side (default open position) and a full 9” roll in the blocked right side of the unit.
• Materials: Door is drawn 18 ga. ss type 304 with brushed finish. Large viewing slot reveals tissue. Equipped with tumbler lock.
• Installation: Recommended mounting height: Insure the top of unit does not exceed 31” (785) from height of floor.

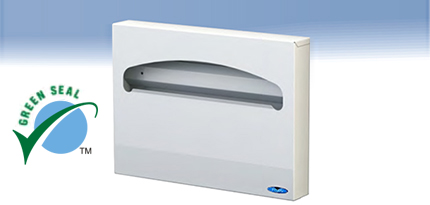

Toilet Seat Cover Dispenser

• Code 199W: White epoxy finish;  Code 199S: Stainless steel;   Code 199-2500: Rest Assured half fold seat covers, green seal. packed 2,500/case (10 sleeves of 250).
• Specifications: Economical toilet seat cover dispenser comes in two finishes to suit both institutional and commercial applications.
• Dispensing: Will accept all standard half fold toilet seat covers.
• Features: One piece formed body of 22 gauge steel.
• Shipping Weight: 3 lb. (1.5 kg).
• Installation: Position unit such that dispenser opening is a maximum of 48" (122cm) from floor. Secure to wall using screws and mounting holes provided.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
