Toilet Seat Cover Dispensers

Every quality establishment open to the public should make a great impression on guests with a tidy, well-equipped restroom.

Wall mounted toilet seat cover dispensers allow for the optional use of toilet seat covers.

Styles range from basic functional plastic to contemporary chrome finishes.

Designs
Specifications
Downloads

B-221 - ClassicSeries® surface mount

Holds 250 seat covers; refill from bottom

Allow 5" minimum clearance

Unit: 15-3⁄4" W x 11" H x 2" D

B-301 - ClassicSeries® recessed

Holds 500 seat covers

Rough opening: 15-5⁄8" W x 11" H; 2-5⁄8" min. depth

B-3013 - TrimLineSeries™ recessed

90° door return, conceals flange

Hold 500 seat covers

Rough opening: 15-5⁄8" W x 11-1⁄4" H; 2-3⁄4" min. depth

B-4221 - ConturaSeries® surface mount

Holds 250 seat covers; refill from bottom

Allow 5" minimum clearance

Unit: 15-3⁄4" W x 11-1⁄4" H x 2-1⁄16" D

B-5221 - MatrixSeries™ surface mount

Durable ABS grey plastic

Holds 250 seat covers; refill from bottom

Allow 5" minimum clearance

Unit: 16-1⁄8" W x 11-1⁄2" H x 2-1⁄2" D

Toilet Seat Cover Dispensers - Technical Data

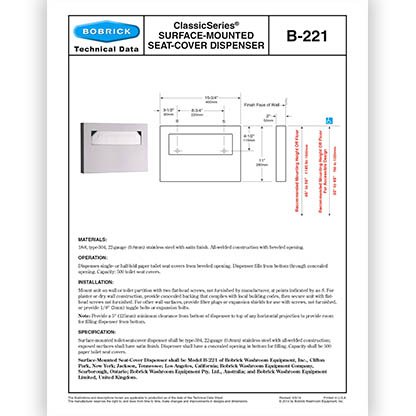

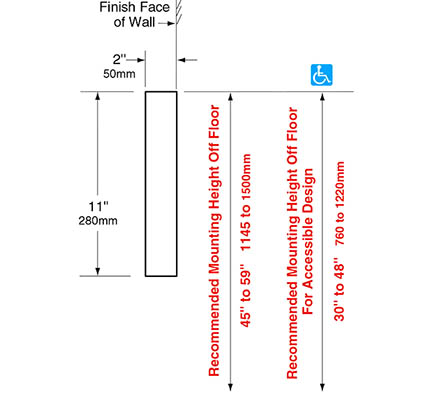

B-221 ClassicSeries® SURFACE MOUNTED SEAT COVER DISPENSER

Satin finish stainless steel
Dispenses 250 single- or half-fold toilet seat covers
Fills from bottom
Dimensions: 15-3⁄4" W x 11" H x 2" D (400 x 280 x 50mm)
Av. Mtg. Ht.: 45–59" (1145–1500mm) to top of unit, Barrier-Free, 30–48" (760–1220mm)
Allow 5" (125mm) minimum clearance from bottom of dispenser to top of any horizontal projection for filling dispenser from below unit

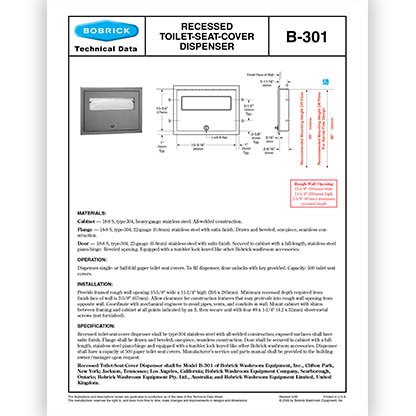

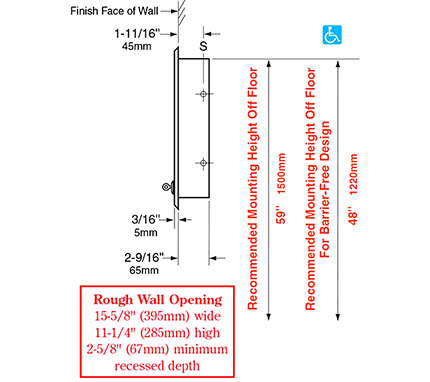

B-301 ClassicSeries® RECESSED SEAT COVER DISPENSER

Satin finish stainless steel
Seamless beveled flange
Dispenses 500 toilet seat covers
Rough Wall Opening: 15-5⁄8" W x 11" H x 2-5⁄8" min. depth (395 x 285 x 67mm)
Av. Mtg. Ht.: 60" (1525mm) to top of unit; Barrier-Free, 49" (1245mm)

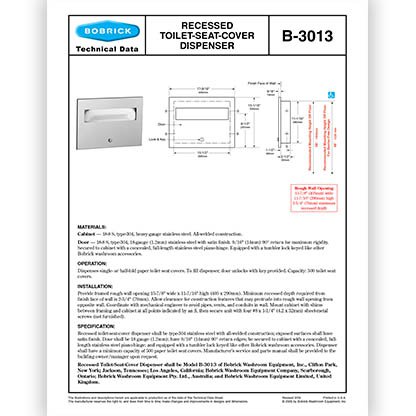

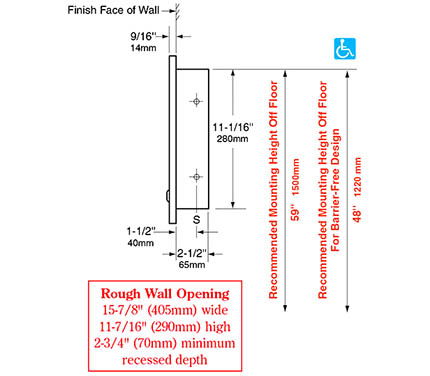

B-3013 TrimLineSeries™ RECESSED SEAT COVER DISPENSER

Satin finish stainless steel
Door has 90° return, conceals flange
Dispenses 500 toilet seat covers
Rough Wall Opening: 15-5⁄8" W x 11-1⁄4" H x 2-3⁄4" min. depth (395 x 285 x 70mm)
Av. Mtg. Ht.: 60" (1525mm) to top of unit; Barrier-Free, 49" (1245mm)

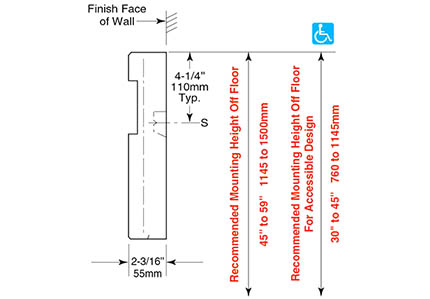

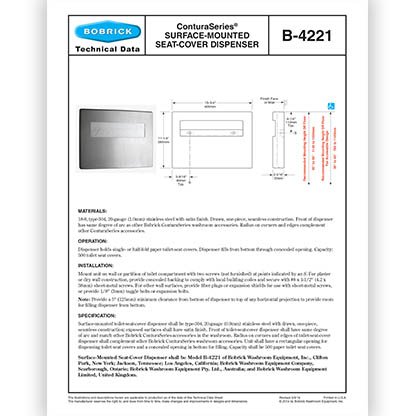

B-4221 ConturaSeries® SURFACE MOUNTED SEAT COVER DISPENSER

Satin finish stainless steel
Dispenses 250 single- or half-fold toilet seat covers
Fills from bottom
Dimensions: 15-3⁄4" W x 11-1⁄4" H x 2-1⁄16" D (400 x 285 x 55mm)
Av. Mtg. Ht.: 45–59" (1145–1500mm) to top of unit, Barrier-Free, 30–48" (760–1220mm)
Allow 5" (125mm) minimum clearance from bottom of dispenser to top of any horizontal projection for filling dispenser from below unit

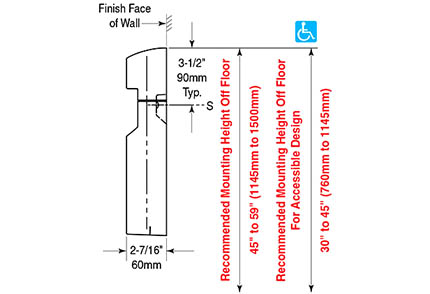

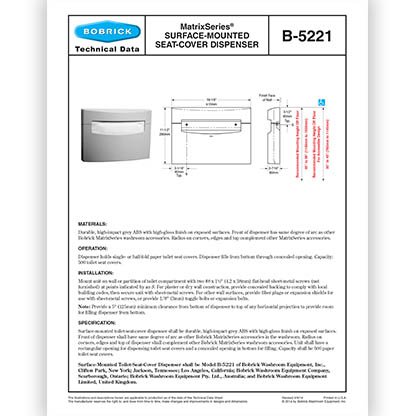

B-5221 MatrixSeries™ SURFACE MOUNTED SEAT-COVER DISPENSER

Durable ABS plastic, grey color
Dispenses 250 single- or half-fold toilet seat covers
Fills from bottom
Dimensions: 16-⁄8" W x 11-1⁄2" H x 2-1⁄2" D (410 x 290 x 65mm)
Av. Mtg. Ht.: 45–59" (1145–1500mm) to top of unit, Barrier-Free, 30–48" (760–1220mm)
Allow 5" (125mm) minimum clearance from bottom of dispenser to top of any horizontal projection for filling dispenser from below unit
Patented
