Soap Dispensers

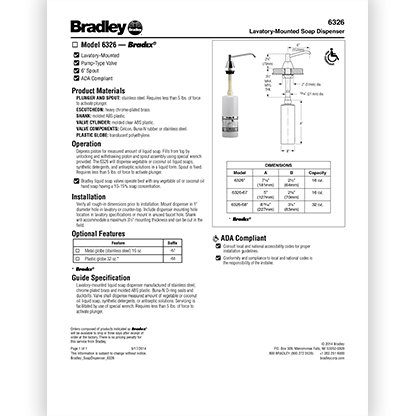

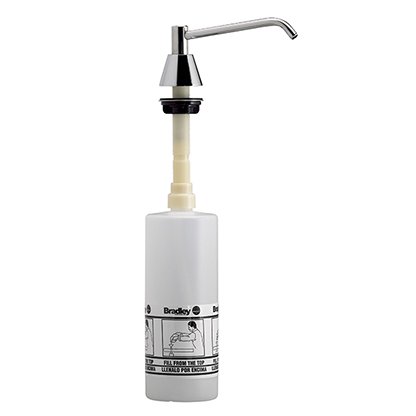

Bradley 6326 Dispenser Specifications

• Lavatory or counter mounted, featuring pump-type valve with 6-inch spout

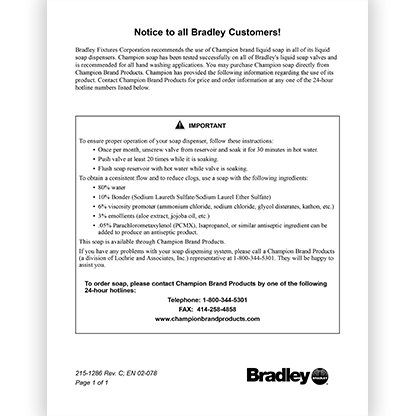

• Capacity: 16 oz. liquid soap (note: Bradley liquid soap valves operate best with any vegetable oil or coconut oil hand soap having a 10−15% soap concentration)

• Operation: Depress piston for measured amount of liquid soap. Fills from top by unlocking and withdrawing piston and spout assembly using special wrench provided. The 6326 will dispense vegetable or coconut oil liquid soaps, synthetic detergents, and antiseptic solutions in a liquid form. Spout is fixed. Requires less than 5 lbs. of force to activate plunger.

• Materials:

  • PLUNGER AND SPOUT - stainless steel; requires less than 5 lbs. of force to activate plunger

  • ESCUTCHEON - heavy chrome-plated brass

  • SHANK - moulded ABS plastic

  • VALVE CYLINDER - moulded clear ABS plastic

  • VALVE COMPONENTS - Celcon, Buna-N rubber or stainless steel

  • PLASTIC GLOBE - translucent polyethylene

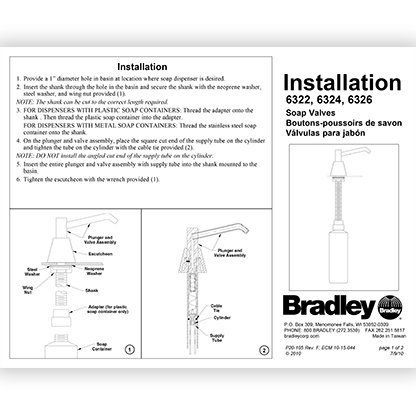

• Installation: Verify all rough-in dimensions prior to installation. Mount dispenser in 1" diameter hole in lavatory or counter-top. Include dispenser mounting hole location in lavatory specifications or mount in unused faucet hole. Shank will accommodate a maximum 3-1⁄2" mounting thickness and can be cut in the field.

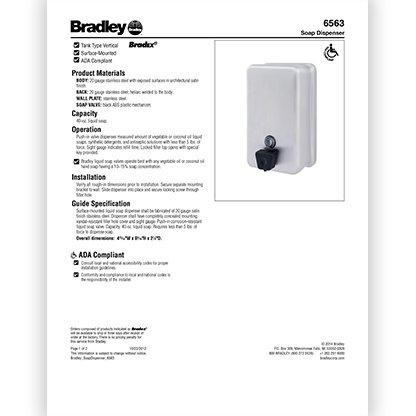

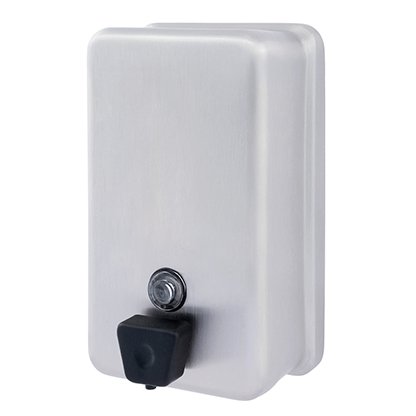

Bradley 6563 Dispenser Specifications

• Surface mounted, vertical tank with push-in valve and low indicator window

• Capacity: 40 oz. liquid soap (note: Bradley liquid soap valves operate best with any vegetable oil or coconut oil hand soap having a 10−15% soap concentration)

• Operation: Push-in valve dispenses measured amount of vegetable or coconut oil liquid soaps, synthetic detergents, and antiseptic solutions with less than 5 lbs. of force. Sight gauge indicates refill time. Locked filler top opens with special key provided.

• Materials:

  • BODY - 20 gauge stainless steel with exposed surfaces in architectural satin finish

  • BACK - 20 gauge stainless steel; heliarc welded to the body

  • WALL PLATE - stainless steel

  • SOAP VALVE - black ABS plastic mechanism

• Overall dimensions: 413⁄16"W x 83⁄16"H x 27⁄8"D

• Installation: Verify all rough-in dimensions prior to installation. Secure separate mounting bracket to wall. Slide dispenser into place and secure locking screw through filler hole.
