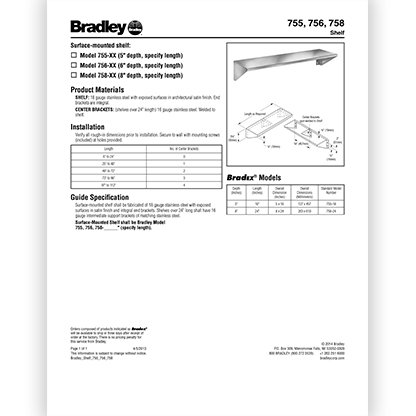

SHELF - 18 gauge stainless steel with exposed surfaces in architectural satin finish. End brackets are integral.
CENTER BRACKETS - (shelves over 24" length) 16 gauge stainless steel. Welded to shelf.
Installation: Verify all rough-in dimensions prior to installation. Secure to wall with mounting screws (included) at holes provided.

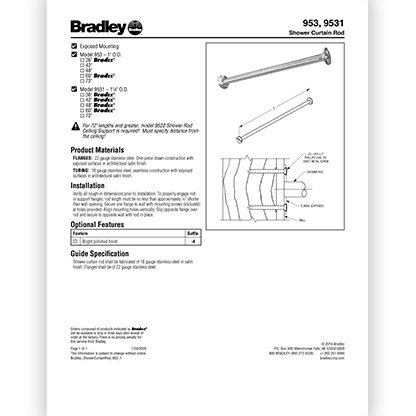

Bradley 9531 Shower Rod & Brackets Specifications
Note: For 72" lengths and greater, model 9522 Shower Rod Ceiling Support is required; must specify distance from the ceiling!
FLANGES – 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish.
TUBING: 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish.

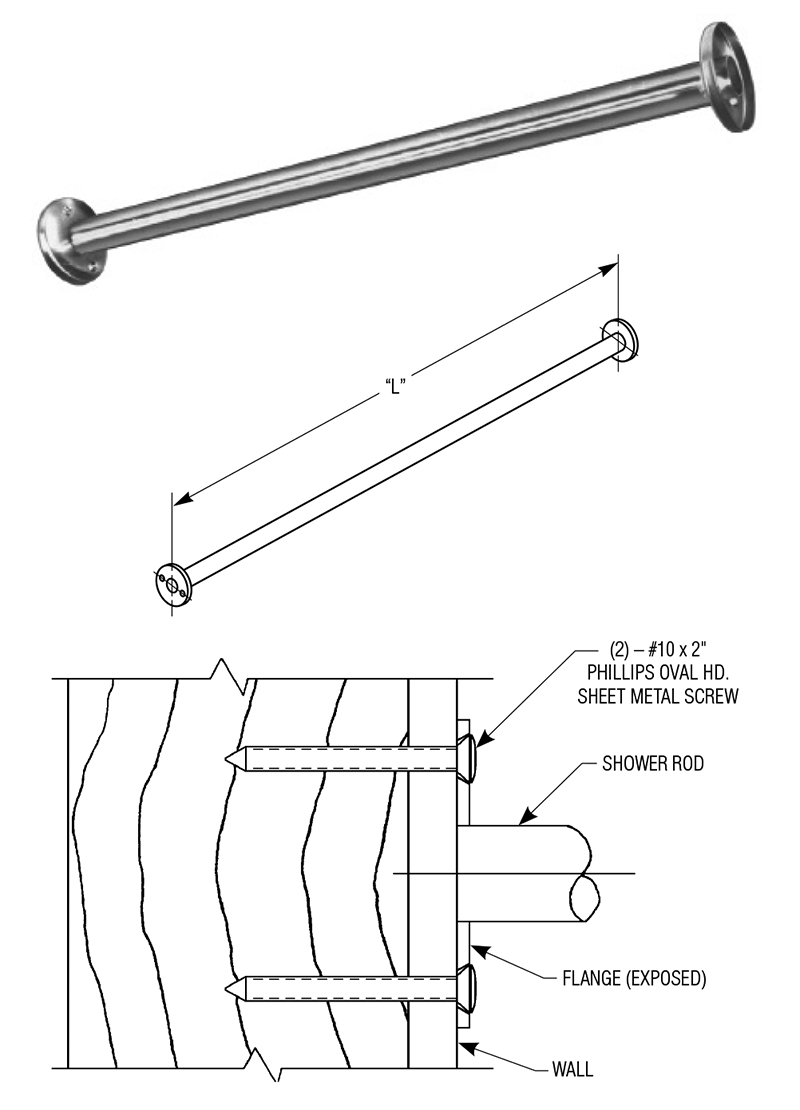

Installation: Verify all rough-in dimensions prior to installation. To properly engage rod in support flanges, rod length must be no less than approximately 1⁄4" shorter than wall opening. Secure one flange to wall with mounting screws (included) at holes provided. Align mounting holes vertically. Slip opposite flange over rod and secure to opposite wall with rod in place.

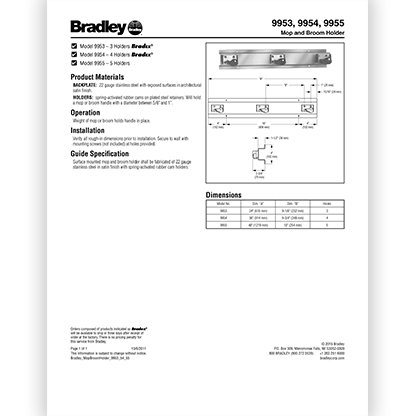

Model 9953 – 3 Holders; Model 9954 – 4 Holders; Model 9955 – 5 Holders
Stocking Size: 4" height x 24" width
BACKPLATE - 22 gauge stainless steel with exposed surfaces in architectural satin finish.
HOLDERS - spring-activated rubber cams on plated steel retainers. Will hold a mop or broom handle with a diameter between 5/8" and 1".
￼￼￼￼￼￼￼￼￼Operation: Weight of mop or broom holds handle in place.
Installation: Verify all rough-in dimensions prior to installation. Secure to wall with mounting screws (not included) at holes provided.

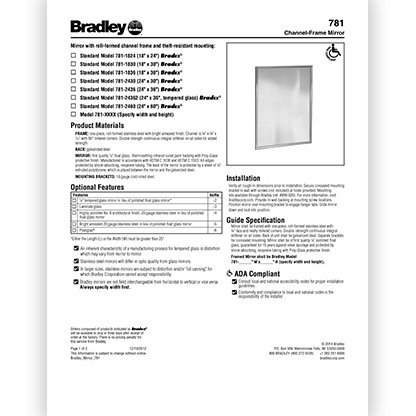

Bradley 781 Channel Framed Mirror Specifications
Roll-formed channel frame and theft-resistant mounting:
781-1824 (18" x 24"); 781-1830 (18" x 30"); 781-1836 (18" x 36"); 781-2430 (24" x 30"); 781-2436 (24" x 36"); 781-24362 (24" x 36", tempered glass); 781-2460 (24" x 60"); 781-XXXX (Specify width and height)
Stocking Sizes: 18" width x 30" height, or 24" width x 36" height
FRAME: one-piece, roll-formed stainless steel with bright annealed finish. Channel is 3⁄4" x 3⁄4" x 7⁄16" with 90° mitered corners. Double strength continuous integral stiffener on all sides for added strength.
BACK: galvanized steel.
MIRROR: first quality 1⁄4" float glass, thermosetting infrared cured paint backing with Poly-Glaze protective finish. Manufactured in accordance with ASTM C 1036 and ASTM C 1503. All edges protected by shock-absorbing, neoprene tubing. The back of the mirror is protected by a sheet of 1⁄4" extruded polystyrene, which is placed between the mirror and the galvanized steel.
MOUNTING BRACKETS: 18 gauge cold rolled steel.
-2: 1⁄4" tempered glass mirror in lieu of polished float glass mirror (Note: either the Length (L) or the Width (W) must be greater than 25")
-3: Laminate glass
-4: Highly polished No. 8 architectural finish, 20 gauge stainless steel in lieu of polished float glass mirror
-5: Bright annealed 20 gauge stainless steel in lieu of polished float glass mirror
Please note: An inherent characteristic of a manufacturing process for tempered glass is distortion which may vary from mirror to mirror. Stainless steel mirrors will differ in optic quality from glass mirrors. In larger sizes, stainless mirrors are subject to distortion and/or "oil canning" for which Bradley Corporation cannot accept responsibility. Bradley mirrors are not field interchangeable from horizontal to vertical or vice versa. Always specify width first.
Installation: Verify all rough-in dimensions prior to installation. Secure concealed mounting bracket to wall with screws (not included) at holes provided. Mounting kits available. Provide in-wall backing at mounting screw locations. Position mirror over mounting bracket to engage hanger tabs. Slide mirror down and lock into position.
