Stanley 300 Series

When your application calls for reliable quality and durability, STANLEY Commercial Hardware’s QED300 standard-duty exit device series fills the need. For light commercial applications, including wood, steel, or aluminum doors, the QED300 line offers the same quality and robust construction you expect from STANLEY, at a great value.

Designs
Specifications

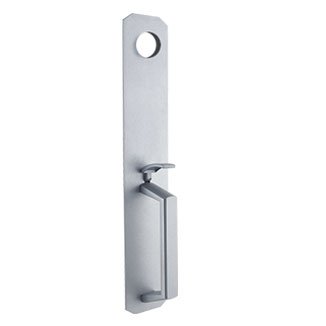

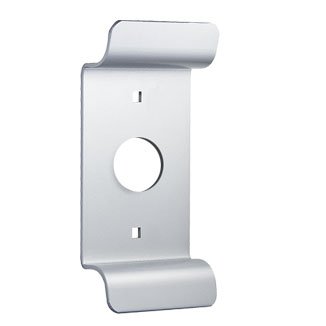

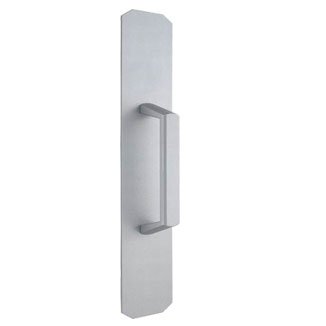

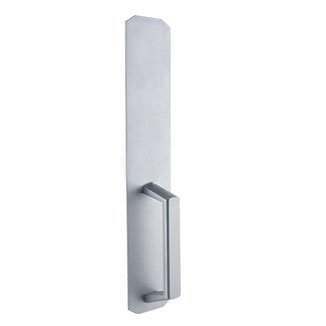

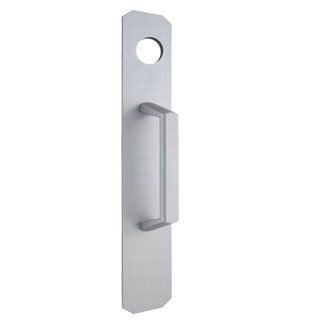

Trim
Finishes

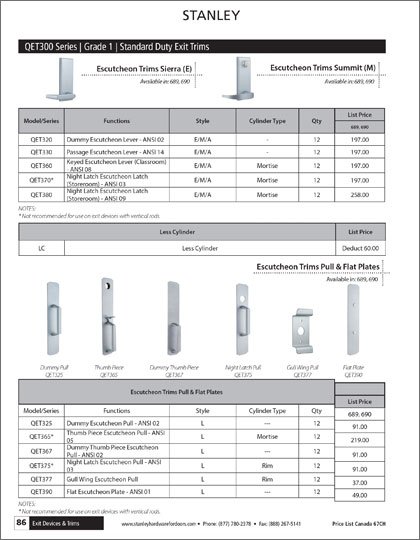

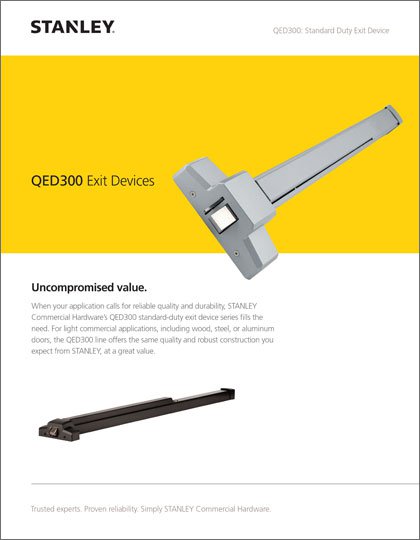

Downloads

QED300

QED300 series fits a wide variety of applications and configuration requirements—giving you the flexibility you need to select features when you order. STANLEY Commercial Hardware makes it easy to get the job done.

Stanley QED300 Exit Devices

•   More options. No matter what sort of light commercial application you work with, the QED300 series’ wide range of device types, trim selections, and enhanced security features allow the configuration you need.
•   Backed by a leading warranty. Each QED300 product comes with a lifetime mechanical warranty and a three-year warranty on finish.
•   Reliable safety. The QED300 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. The series includes a thru bolt design for enhanced security and durability.
•   Easy installation. The QED300 series comes non-handed and field reversible, and are also field sizeable to fit non-standard doors.
•   Short lead time. QED300 exit devices are available for immediate shipment.

Certifications

ANSI/BHMA A156.3 Series—Grade 1
ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
UL/cUL listed (3 hour) for “A” label door applications (8’ by 8’)

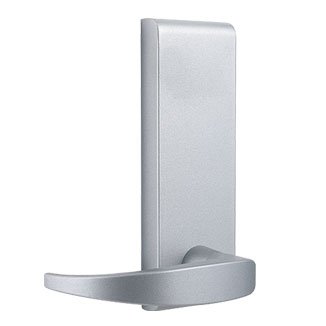

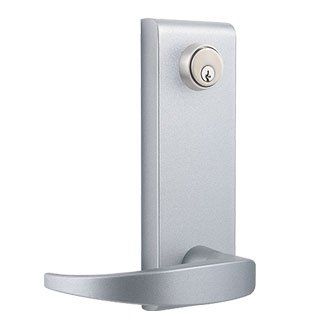

California Administrative Code Title 24 compliant for Sierra and Summit lever trims

Material and Options

Rim latch bolt: stainless steel 3/4” (19mm) throw
SVR and CVR latch bolt: 1/2” (12.7mm) throw on top latch; 3/8” (9.53mm) on bottom latch
Fasteners: wood and machine screws standard, sex bolts optional (standard
on fire-rated device)
Head cap and end cap: zinc die-cast

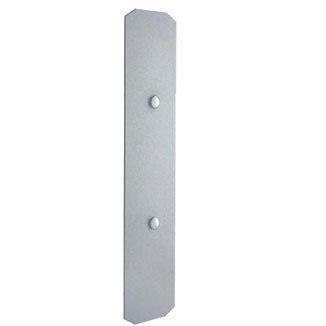

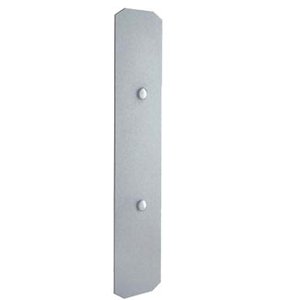

Escutcheons: dummy, passage, keyed, night latch
Dogging: hex key and cylinder dogging available
Rim strikes: stainless steel body with plated steel roller standard fire-rated stainless steel strike, with stainless steel roller standard on QED313
SVR and CVR strikes: Top and bottom standard and fire-rated strikes - unfinished

Sizing and Measurements

36” field sizeable to 32” door
48” field sizeable to 36” door
Standard door thickness: 1 3/4” (44.5mm) Can accommodate doors up to 2 3/4” thick with use of Thick Door Kit
SVR and CVR door height: 7’ standard with 84” rod; 8’ optional with 96” rod Rim stile width: 3 7/8” (98mm) minimum
SVR stile width: 3 1/2” (89mm) minimum
CVR stile width: 3 1/2” (89mm) minimum
Standard backset: 2 1/4” (57mm) to face of doorstep

Keying

Keyway options include: BF-SFIC “F”, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less Cylinder

Exit Device Functions

QED311: Rim Hex Dog
QED312: Rim Cylinder Dog
QED313: Rim Fire-rated
QED314: SVR Hex Dog
QED315: SVR Cylinder Dog
QED316: SVR Fire-rated
QED317: SVR Less Bottom Rod – Hex Dog QED318: SVR Less Bottom Rod – Cylinder Dog QED319: SVR Less Bottom Rod – Fire-rated
