Sargent 114-115 Hospital Latches

Sargent 114/115 Push-Pull Paddle Trim Specifications

• For Doors - 1-3/4" (44mm) - 2-1/4" (57mm)

• Backset - 5" (127mm) standard. For 2-3/4" (70mm) backset (specify as 24-115) and 7" (177mm) backset (specify as 26-115) available on order

• Strike - 2-3/4" (70mm) ANSI A115.2 curved lip strike # 800

• Bolt - Brass, 1/2" (13mm) throw, anti-friction nylon insert

• Hand - Specify hand when ordering (RHR, RH, LHR or LH)

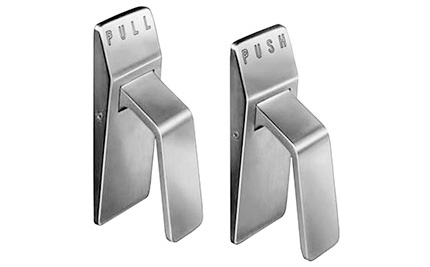

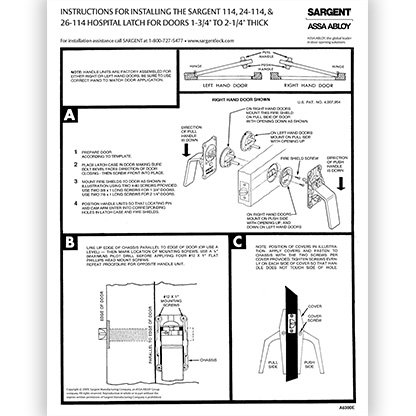

• 114- Paddles Cast; Projection from door 3-1/4" (83mm) Mounted down position ONLY

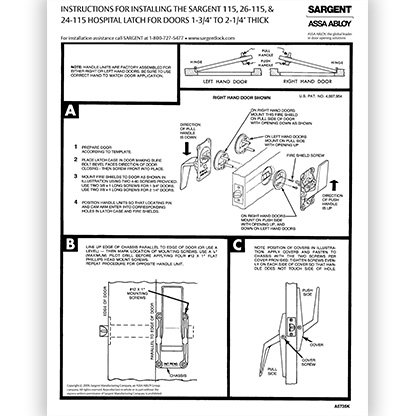

• 115- Push Paddle; 1-5/8" (41mm) x 4-1/2" (114mm); Projection from door 2-1/2" (64mm) Mounted up position ONLY

• 115- Pull Paddle Cast; 1-5/8" x 4-3/4"; Projection from door 2-15/16" Mounted down position ONLY

• Escutcheons - Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm)

• UL Listed - UL Listed for use on fire doors, UL-F804H ( See Underwriters Laboratories Building Materials List)

• Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Product Options

• 24-  2-3/4" (70mm) backset

• 26-  7" (177mm) backset

• 28-  4-7/8" (124mm) ANSI curved lip strike #808

• 36-  6-lobe Security Head Screws

• 37-  Spanner Security Head Screws

• 74-  Lead lined. Specify push or pull side

• P-  Push/Pull to be stamped on each escutcheon

• WBS-  Wrought Box Strike

• TB-  Through bolt pack, specify door thickness: 1-3/4", 2", 2-1/4"

• SG MicroShield-  Antimicrobial clear powder coat

Solutions

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

• Supresses microbes
• Long lasting
• Non-toxic
• Available on most SARGENT product lines
• Lasts for the life of the hardware
• State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

Options/Prefixes:

• 24 - 2-3/4" Backset
• 28 - Curved Lip Strike (#808)
• 36 - 6 lobe security head screws
• 37 - Spanner Head Screws
• 74 - Lead Lining or Wrapping
• P- - Push/Pull Identification on Escutcheons or Paddles
• SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
• TB - Through bolt (1-3/4" std). For others, specify TB- and door thickness.
• WBS - Wrought Box Strike
