Sanitary Napkin / Tampon Vendors

Sanitary Napkin/Tampon Vendors – Technical Data

ADA-Compliant Napkin/Tampon Vendors

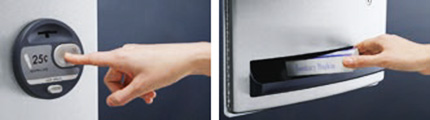

• Push button operation – less than 5 lbs. of force (no grasping, pinching or twisting of the wrist)

• Meets ADA-ABA and ICC/ANSI Accessibility Guidelines for Operation

• Recessed & semi-recessed models comply with ADA-ABA and ICC/ANSI Protruding Objects Limit of maximum 4" (100mm) protrusion into circulation path, depending on wall depth

• Easy access product tray

• Single coin slots are key to jam-resistant operation

• Accepts one or two quarters (U.S. or Canadian)

• Push button coin return cancels product selection

• Patented

• Returned coins or wrong coins (1¢, 5¢, 10¢) bypass mechanism and drop into product tray

• Empty product indicator automatically blocks coin slot

• Easy product loading, no weights

• Holds 30 tampons, 20 napkins

• Two tumbler door locks keyed like other Bobrick accessories

• Separately keyed coin box lock for management access

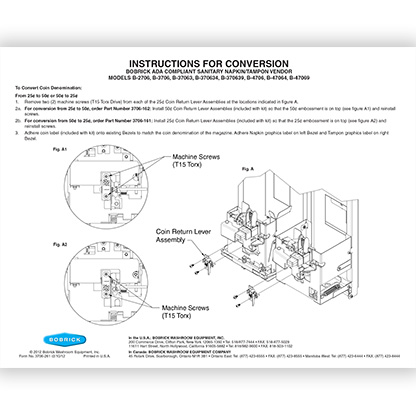

• Easy 25¢ to 50¢ field coin conversion

• Type 304 satin finish stainless steel on exposed surfaces

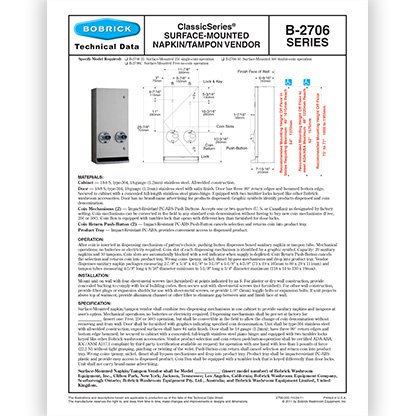

ClassicSeries® B-2706 SURFACE MOUNTED: Similar to B-3706 without adjustable flange for surface mounting.

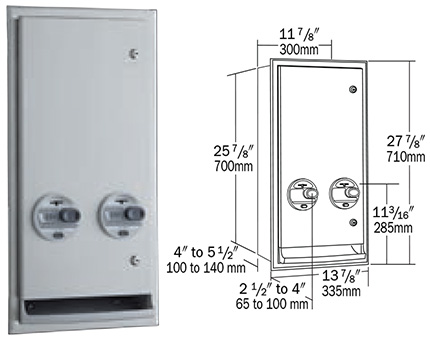

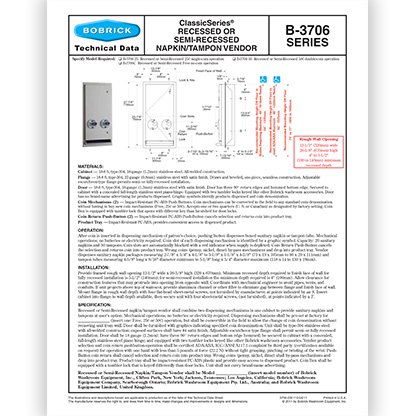

ClassicSeries® B-3706 RECESSED* OR SEMI-RECESSED: Adjustable seamless beveled flange allows fully-recessed installation in 6" (150mm) deep walls or semi-recessed installation in 4" to 6" (100 to 150mm) deep walls.

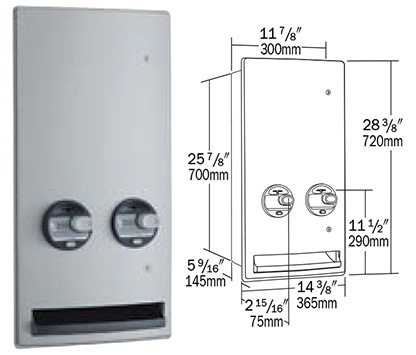

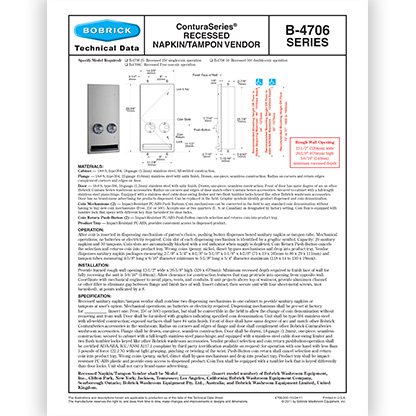

ConturaSeries® B-4706 RECESSED*: Door with 27° arc and two flush door locks; soft radius on edges and corners.

ConturaSeries® B-47064 SEMI-RECESSED: Similar to B-4706, but with stainless steel skirt for semi-recessing in 4" (100mm) deep walls.

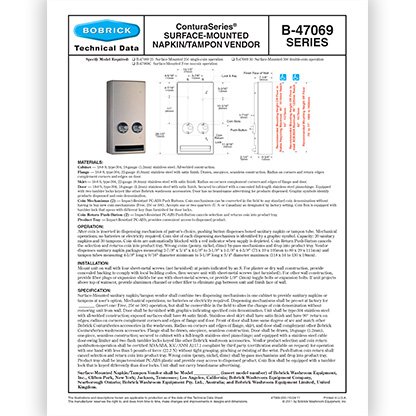

ConturaSeries® B-47069 SURFACE MOUNTED: Similar to B-4706, but with stainless steel skirt for surface mounting.

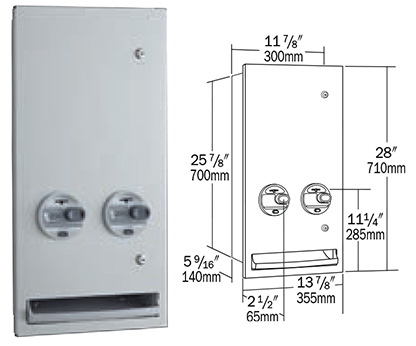

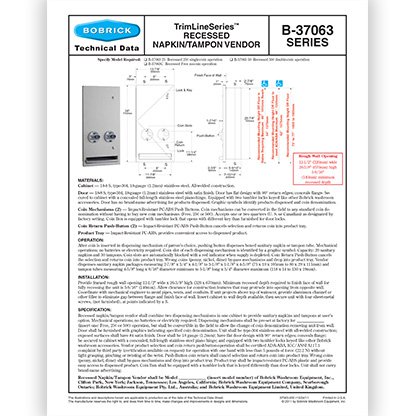

TrimLineSeries™ B-37063 RECESSED: Flat door design has 90° returns, conceals flange.

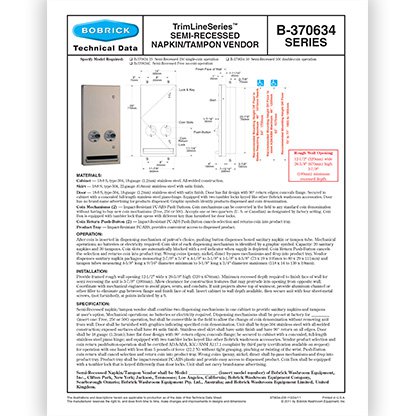

TrimLineSeries™ B-370634 SEMI-RECESSED: Similar to B-37063, but with stainless steel skirt for semi-recessing in 4" (100mm) deep walls.

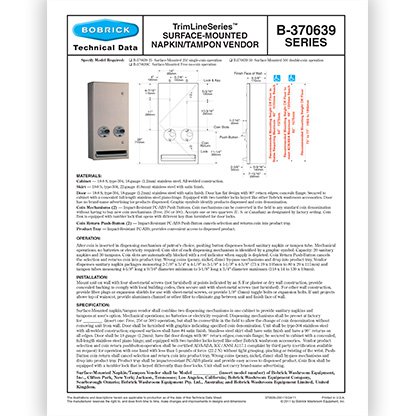

TrimLineSeries™ B-370639 SURFACE MOUNTED:  Similar to B-37063, but with stainless steel skirt for surface mounting.


Bobrick – Building Value Since 1906

Bobrick is a century-old global washroom accessory and partition company with six manufacturing divisions across the United States and Canada, and business operations that extend into 85 markets worldwide.

A leader in product innovation and manufacturing, Bobrick prides itself as a company that delivers best-in-class products and service, while fostering an environment of collaboration and continuous learning.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
