                Specialties > Access Doors & Hatches > Babcock-Davis

                Safety Products

                Babcock-Davis offers OSHA compliant fall protection safety products including safety railings, safety posts, safety nets, safety grating and safety bars.

                These products complement the roof hatch, smoke vent and floor door product lines.

                • Designs
                • Specifications
                • Downloads

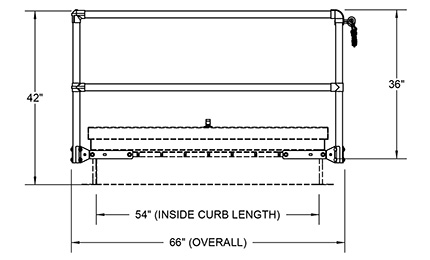

                SRCG30X54SC





                Close

                SRCG30X54SC

                Fits 30" x 54" roof hatches

                Side, chain exit

                SRCG30X54SG





                Close

                SRCG30X54SG

                Fits 30" x 54" roof hatches

                Side, gate exit

                SRCG30X96SC





                Close

                SRCG30X96SC

                Fits 30" x 96" roof hatches

                Side, chain exit

                SRCG30X96SG





                Close

                SRCG30X96SG

                Fits 30" x 96" roof hatches

                Side, gate exit

                SRCG36X30FC





                Close

                SRCG36X30FC

                Fits 36" x 30" roof hatches

                Front, chain exit

                SRCG36X30FG





                Close

                SRCG36X30FG

                Fits 36" x 30" roof hatches

                Front, gate exit

                SRCG36X36FC





                Close

                SRCG36X36FC

                Fits 36" x 36" roof hatches

                Front, chain exit

                SRCG36X36FG





                Close

                SRCG36X36FG

                Fits 36" x 36" roof hatches

                Front, gate exit

                SRCG48X48FC





                Close

                SRCG48X48FC

                Fits 48" x 48" roof hatches

                Front, chain exit

                SRCG48X48FG





                Close

                SRCG48X48FG

                Fits 48" x 48" roof hatches

                Front, gate exit

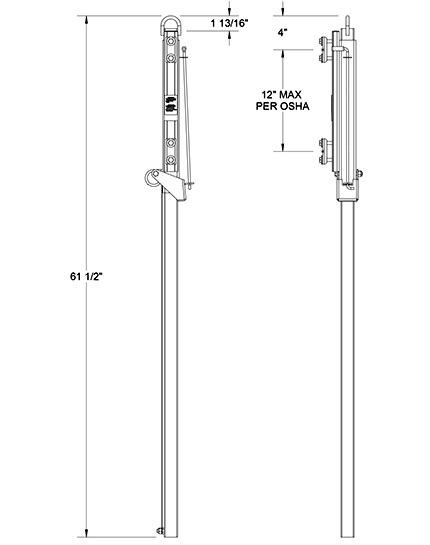

                BSP - safety post





                Close

                BSP - safety post

                Specify:
                BSPY - Steel, Powder Coat Yellow
                BSPG - Steel, Hot Dip Galvanized
                BSPA - Aluminum
                BSPS - 304 Stainless Steel

                BSN - safety net





                Close

                BSN - safety net

                Mounts beneath hatches to comply with OSHA safety standards

                Safety Product Features

                Safety Railings

                • OSHA compliant permanent fall protection for Roof Hatches, Smoke Vents, Floor Doors  (OSHA 29 CFR 1910.23 and 1926.502)
                • Sturdy, schedule 40 galvanized pipe with fittings
                • Simple, quick field assembly
                • Exact sized rails – requires no field cutting
                • Counterflash mounting with patented backing nut plate

                Safety Post Material / Finish Options

                • BSPY - Steel, Powder Coat Yellow
                • BSPG - Steel, Hot Dip Galvanized
                • BSPA - Aluminum
                • BSPS - 304 Stainless Steel

                Safety Nets

                Safety netting mounts beneath hatches to comply with OSHA safety standards.

                Babcock-Davis Safety Product Measurements

                Safety Railing

                Safety Post

                Safety Netting

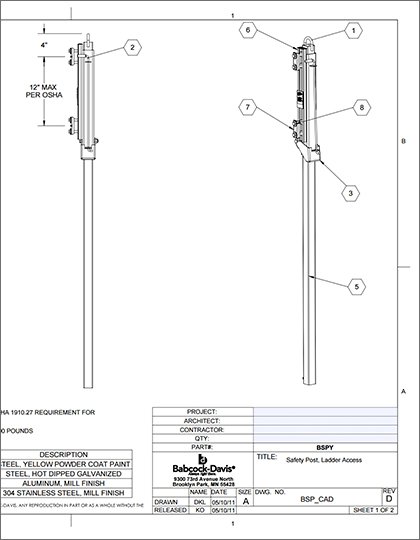

                Product Submittal

                Product Submittal

                LEED Information

                LEED Information

                Babcock-Davis Warranty

                Babcock-Davis Warranty

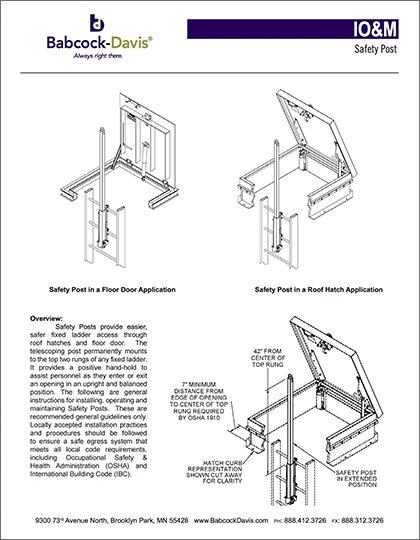

                Safety Posts

                Safety Posts
