Dispensers Paper Towel

Frost Product Specifications

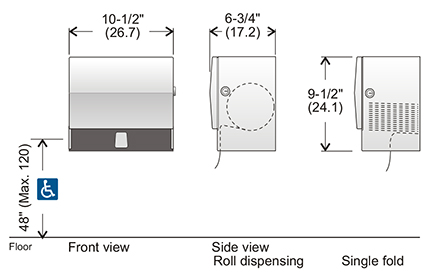

Roll and Single Fold Dispenser

• Code 101: White epoxy powder finish;  Code 101-1: White epoxy powder finish with lock;  Code 102: Polished chrome finish;  Code 102-1: Polished chrome finish with lock;  Code 103: Stainless steel type 304 No. 4 brushed finish;  Code 103-1: Stainless steel type 304 No. 4 brushed finish with lock.
• Specifications: The 101 series of dispensers are an industry standard and can be used in any room or site location.
• Features: Universal towel dispenser will accept all standard single fold and roll towels (max. 6" diameter and up to 10" wide). Available with keyed tumbler lock to reduce pilferage and vandalism. Front loading for easy service and maintenance. All welded construction of 20 and 22 gauge steel. Full length piano hinge on door. Protective saw tooth cutting area.
• Stainless Steel Features: Drawn stainless steel door. All welded stainless steel (304, No. 4 brushed) construction. All doors are hinged with full length stainless steel piano hinges. Product shipped with protective plastic coating to be removed after installation.
• Shipping Weight: 5-1/2 lbs. (2.5 kg)
• Installation: For unrestricted access, bottom of unit to floor must not exceed 44" (111.7).

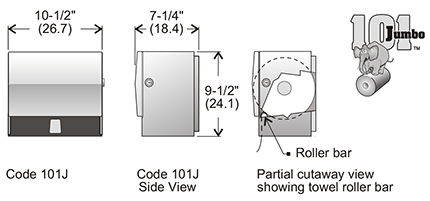

Jumbo Roll Towel Dispenser

• Code 101J: White epoxy powder finish
• Specifications: The 101J offers maximum towel capacity in a compact unit.
• Features: Universal towel dispenser will accept all standard roll towels (max. 7-1/8" diameter and up to 8" wide). This includes almost all 425 ft. jumbo rolls and the Scott 500 ft. rolls. Comes with keyed tumbler lock to reduce pilferage and vandalism. Front loading for easy service and maintenance. Jumbo roll is supported on a non removable full width roller. All welded construction of 20 and 22 gauge steel. Full length piano hinge on door. Protective edge on saw tooth cutting area.
• Shipping Weight: 5-1/2 lbs. (2.5 kg)
• Installation: For unrestricted access, bottom of unit to floor must not exceed 44" (111.7).

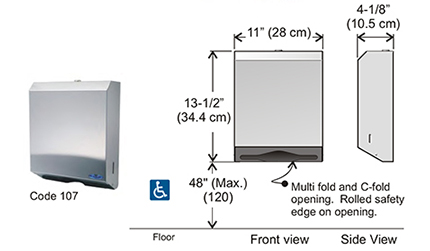

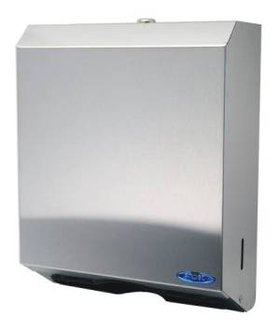

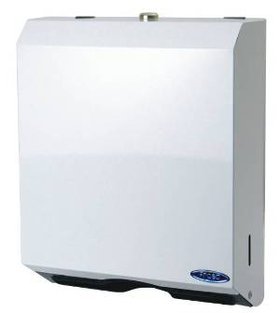

Multifold Towel Dispenser

• Code 105: White epoxy powder finish;  Code 107: Stainless steel type 304 no. 4 brushed.
• Specifications: The compact size and variety of finishes makes the 105 and 107 ideal for use in any room or site location. The unit opening will dispense multifold and "C" fold towels. Towel opening has rolled safety edge (black finish on all units). All units come with keyed tumbler lock to reduce pilferage and vandalism. Front loading for easy service and maintenance. One piece coverall door.
• Code 107: Stainless steel (304, No. 4 brushed) construction. Product shipped with protective plastic coating to be removed after installation.
• Shipping Weight: 2 kg. (4-1/2 lbs.)
• Installation: For unrestricted access, bottom of unit to floor must not exceed 48" (120).

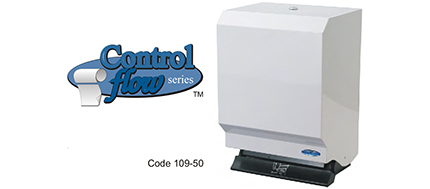

Control Roll Towel Dispenser

• Code 109-50W: White epoxy powder finish;  Code 109-50S: Stainless steel, 304 no. 4 finish;  Code 109-50P: Transparent plastic front.
• Site location: Ideal for high traffic areas. The 109-50 is designed to dispense Jumbo 8" diameter (4" reserve roll) x 8" wide roll towels.
• Dispensing: Controlled delivery is easy with push action lever. Comes with keyed tumbler lock to reduce pilferage and vandalism. Front loading for easy service and maintenance.
• Materials: Code 109-50W: All welded construction of 22 gauge crs powder coated white finish;  Code 109-50S: All welded construction
  of 22 gauge no. 4 brushed finish stainless steel.
• Shipping Weight: Code 109-50W&S: 12 lbs. (5.3 kg); Code 109-50P:
  7 lbs. (3 kg).
• Installation: For unrestricted access, bottom of unit to floor should not exceed 44" (111.7). Mounting screws provided.

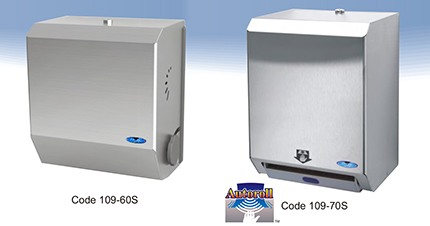

Auto Cut, Roll Towel Dispenser

• Code 109-60W: White epoxy powder finish;  Code 109-60S: Stainless steel, no. 4 finish;  Code 109-60P: Smoked polycarbonate cover.
• Site location: Ideal for high traffic areas.
• Dispensing: When pulling on the exposed length of towel the touch free dispenser will automatically cut an 11” (27cm) length, leaving a 3” length of towel to grab onto for the next dispensing action. Hands free dispenser reduces paper flow, and provides maximum hygiene. Designed to dispense jumbo roll towels max. 8" diameter. Comes with keyed tumbler lock to reduce pilferage and vandalism. Front loading for easy service and maintenance.
• Materials: Code 109-60: All welded construction.  Code 109-60S: Stainless steel, no. 4 finish.  Code 109-60P: Smoked polycarbonate cover.
• Shipping Weight: 13.5 lbs. (6 kg).  Code 109-60P: 10 lbs (4.5 kg).

Hands Free Towel Dispenser

• Code 109-70S: Stainless steel, 304 no. 4 finish;  Code 109-70P: Transparent plastic front;  Code 109-70W: White epoxy powder finish.
• Specifications: All exterior dimensions and material specifications same as 109-50.
• Features unique to Auto Roll Series: Large detection zone senses hand when placed in a natural position under dispenser to deliver a 12” length of towel. Towel delivery is quiet and uniform. Hands free dispenser reduces paper flow, and provides maximum hygiene. Operates with 4 “D” size alkaline batteries (ac adaptor also included).
  4 alkaline batteries have been independently tested and found to provide 35,000 hand dries, (Results will vary depending on paper quality and temperature). Designed to dispense jumbo roll towels maximum 8" diameter (1-1/2" to 2” cores).

Standard Roll Dispenser

• Code 126: Polished chrome finish
• Specifications: All welded construction of 18 ga. steel. Pivot arm hinges on hardened steel rivets. Tension springs restrict paper consumption. Concealed locking device prevents pilferage and vandalism. Designed for standard 11" rolls.
• Shipping Weight: 2 lbs. (.9 kg)
• Installation: For unrestricted access, bottom of unit to floor should not exceed 44" (111.7). Mounting screws provided.

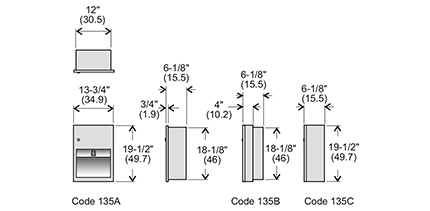

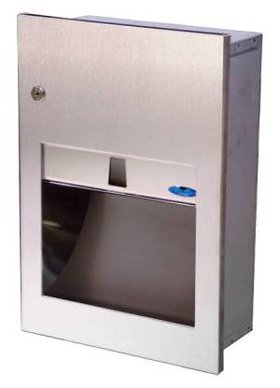

Recessed Towel Dispenser

• Code 135A: Fully recessed;  Code 135B: Semi recessed;  Code 135C: Surface mounted;  Code 135-14A: Fully recessed, 4" deep, multifold only;  Code 135-14C: Surface mounted, 4" deep, multifold only.
• Specifications: Compact fixture is well suited for multiple mountings in large high traffic areas and an ideal companion to stand alone or wall mounted waste receptacles.
• Features: Universal towel dispenser will accept all standard roll and single fold towels. Stainless steel (304, # 4 brushed) towel cradle. Heavy duty 18 gauge stainless steel door (304, # 4 brushed finish). Secured with a tumbler keyed lock. All doors are hinged with full length ss piano hinges. Recessed body of 22 ga. corrosion resistant galvanized steel.
• Shipping Weight: Code 135A: 18 lbs (8.5 kg), Code 135B: 19 lbs. (9 kg), Code 135C: 21 lbs. (10 kg)
• Installation: Code 135A: Provide 18-1/4" (46.5) high x 12-1/2" (31.8) wide x 6" (15.2) deep wall opening. Code 135B: Provide 18-1/4" (46.5) high x 12-1/2" (31.8) wide x 3" (7.6) deep wall opening. Collar is secured between recessed body flange and wall. Drill mounting holes as required. For unrestricted access, height of top of unit to floor must not exceed 57" (144.7).

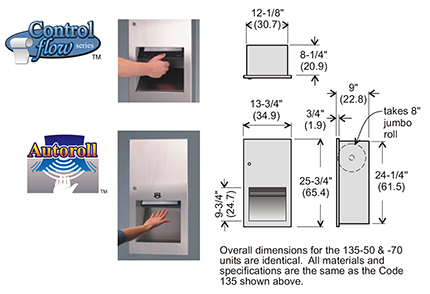

Control Roll Towel Dispenser

• Code 135-50A: Fully recessed;  Code 135-50B: Semi recessed;  Code 135-50C: Surface mounted.
• Specifications: Universal towel dispenser will accept all standard 8" wide roll towels. Controlled delivery with easy push action lever helps prevent paper towel waste.

Hands Free Towel Dispenser

• Code 135-70A:  Fully recessed;  Code 135-70B: Semi recessed;  Code 135-70C: Surface mounted.
• Specifications: Large detection zone senses hand when placed under dispenser to deliver a 12” length of towel. Towel delivery is quiet and uniform. Hands free dispenser reduces paper flow, and provides maximum hygiene. Operates with 4 “D” size alkaline batteries. Four alkaline batteries have been independently tested and found to provide 35,000 hand dries. AC adaptor also included.

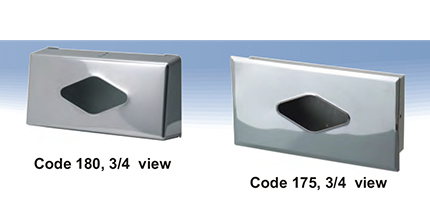

Facial Tissue Dispenser

• Code 175: Recessed, polished chrome finish;  Coe 180: Surface mount, polished chrome finish.
• Code 175 Specifications: Face plate manufactured from 20 ga. steel. Die formed safety edge on diamond shaped opening allows easy removal of facial tissue. Recessed body is die formed from 20 ga. corrosion resistant galvanized steel. Slide catches secure Code 175 face plate to recessed body.
• Code 180 Specifications: Face plate manufactured from 20 ga. steel. Die formed safety edge on diamond shaped opening allows easy removal
  of facial tissue. Front pivots open on steel rivets for easy access and loading, (front secured with "P" keyed lock).
• Shipping Weight: 2 lbs. (.9kg).

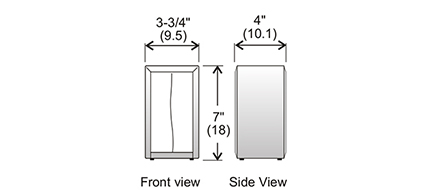

Table Napkin Dispensers

• Code 195C: Polished chrome finish;  Code 195W: White epoxy finish (special order, min. qty. 50 units);  Code 195B: Black epoxy finish (special order, min. qty. 50 units);. Other colours and finishes
  also available.
• Specifications: Economical table napkin dispenser comes in three finishes to suit both institutional and commercial applications.
• Dispensing: Will accept all standard napkins.
• Features: One piece die formed body of 22 gauge steel with slight radius on corners. Spring loaded pressure plates provide consistent dispensing of napkins. Dual sided dispensing. Rubber feet to protect countertops.
• Shipping Weight: 1 lb. (.5 kg)

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
