McKinney Full Mortise

McKinney offers the broadest range of full mortise hinges in a variety of metals, finishes, sizes, and weights to meet all load bearing and security applications.

Products include: two, three, and five knuckle styles, swing clear hinges, wide throw hinges, anchor hinges, electric hinges, institutional hinges, and pivots.

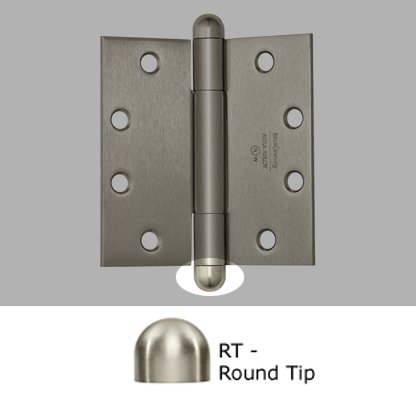

McKinney's architectural finishes and decorative hinge tips will bring the professional touch to any project.

Designs
Specifications

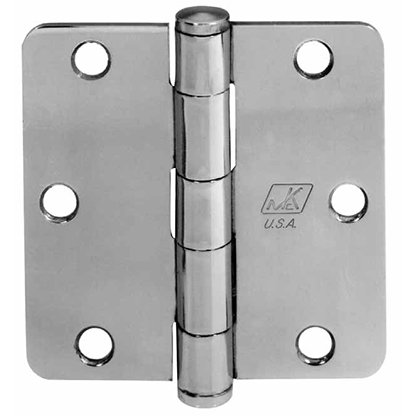

Options

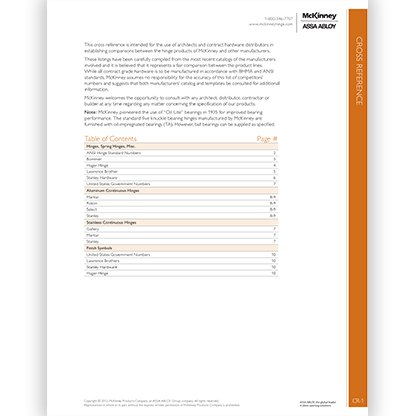

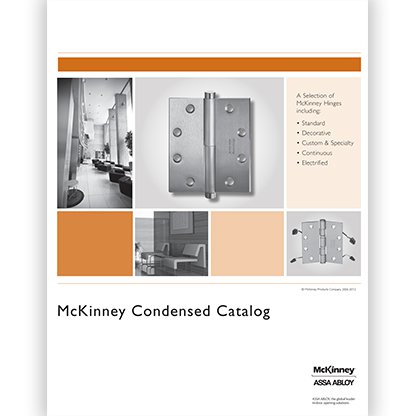

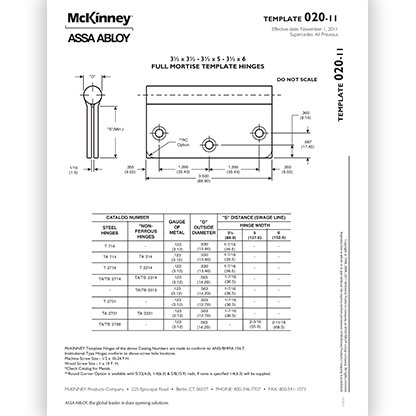

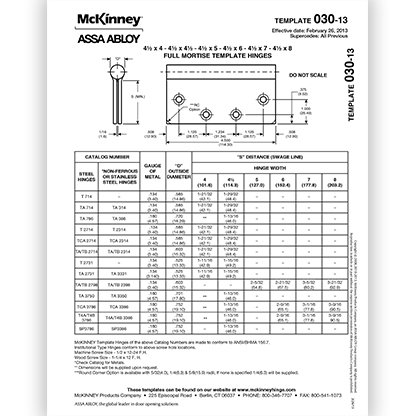

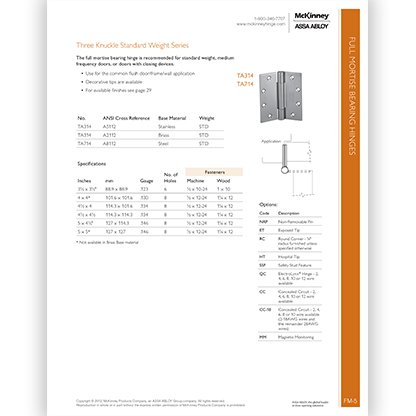

Downloads

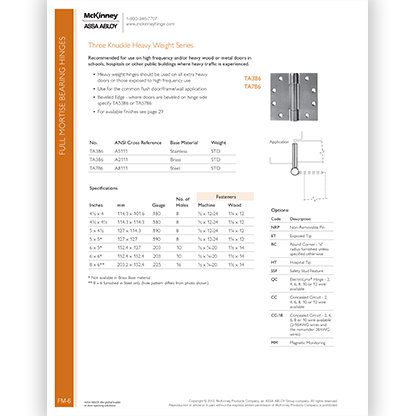

TA386/TA786 - 4.5x4

Available in 4.5x4, 4.5x4.5, 5x4.5, 5x5, 6x5, 6x6

0.180 gauge

3 knuckle, ball bearing, heavy weight

Wood and metal screws included

Specify metal, finish, options

TA314/TA714

Available in 3.5x3.5, 4x4, 4.5x4, 4.5x4.5, 5x4.5, 5x5

0.123 gauge

3 knuckle, ball bearing, std weight

Wood and metal screws included

Specify metal, finish, options

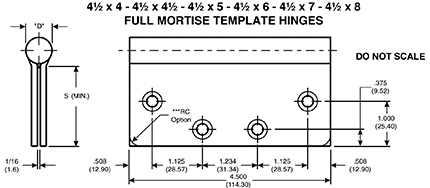

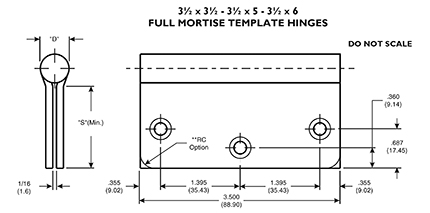

McKinney Full Mortise Bearing Hinge Specifications

Recommended Number of Hinges per Door 3/0 Wide (Wood or Metal):

Door Height: # of Hinges Per Door
Up to 60" 2
60" - 90" 3
90" - 120" 4

Note: an additional hinge is required for each additional 30".

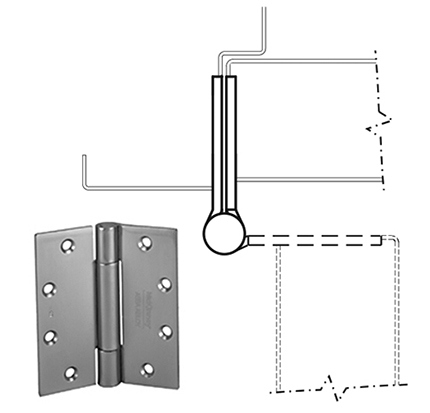

Three Knuckle Standard Weight Series

The full mortise bearing hinge is recommended for standard weight, medium frequency doors, or doors with closing devices.

TA314: ANSI A5112 stainless base, std. weight.

TA314: ANSI A2112 brass base, std. weight.

TA714: ANSI A8112 steel base, std. weight.

For common flush door / frame / wall application
Wood and metal fasteners included

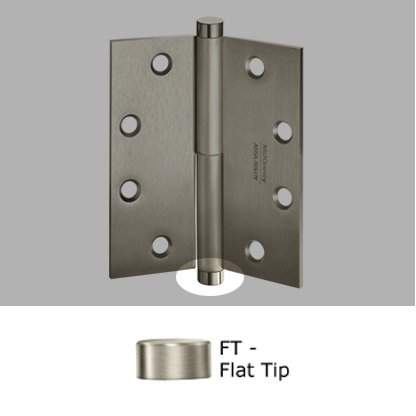

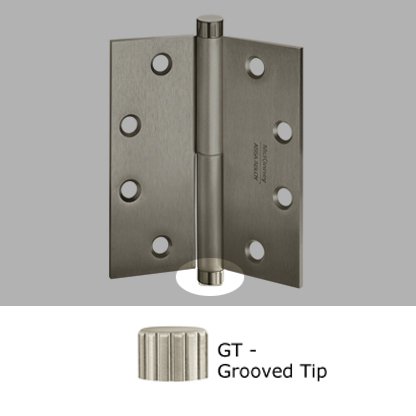

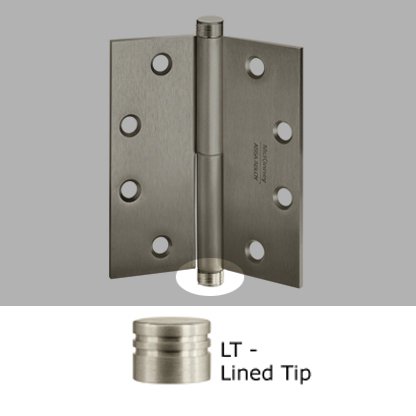

Decorative tips available

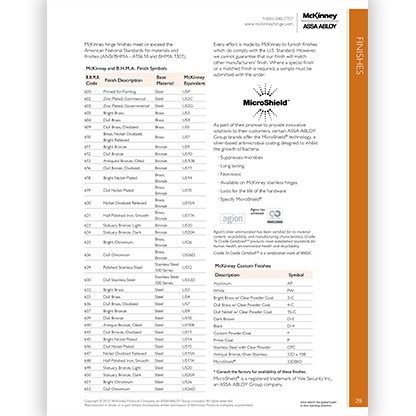

See Downloads tab for available finishes
4x4, 5x5 – not available in Brass Base material

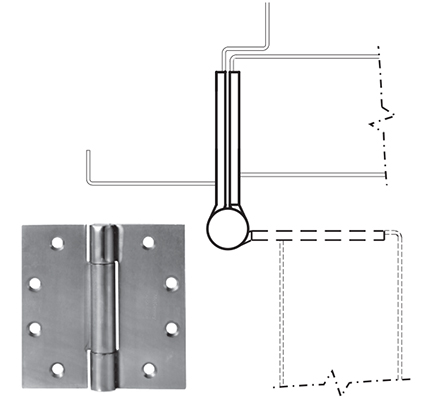

Three Knuckle Heavy Weight Series

Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals or other public buildings where heavy traffic is experienced.

TA386: ANSI A5111 stainless base, std. weight.

TA386: ANSI A2111 brass base, std. weight.

TA786: ANSI A8111 steel base, std. weight.

Heavy weight hinges should be used on all extra heavy doors or those exposed to high frequency use
Use for the common flush door / frame / wall application
Beveled Edge – where doors are beveled on hinge side, specify TA 5386 or TA 5786
5x5, 6x5, 6x6 and 8x6 – not available in Brass Base material
(8x6 furnished in Steel only)
