                LCN SEM 7800 Series

                The Sentronic® SEM 7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door. A choice of floor, recessed wall, or surface mounted wall magnets are available.

                (UL listed for smoke barrier or labeled fire doors; tested and certified under ANSI Standard A156.15.)

                • Designs
                • Specifications
                • Devices
                • Options
                • Downloads

                LCN SEM 7800 Series





                Close

                LCN SEM 7800 Series

                • Heavy duty, die cast housing

                • Floor mount or wall mount options

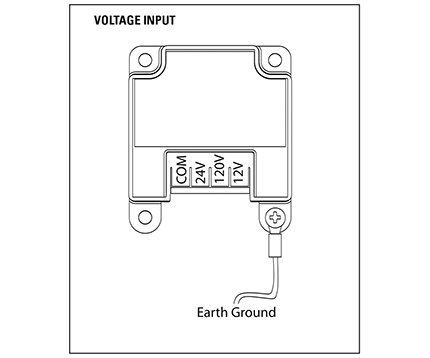

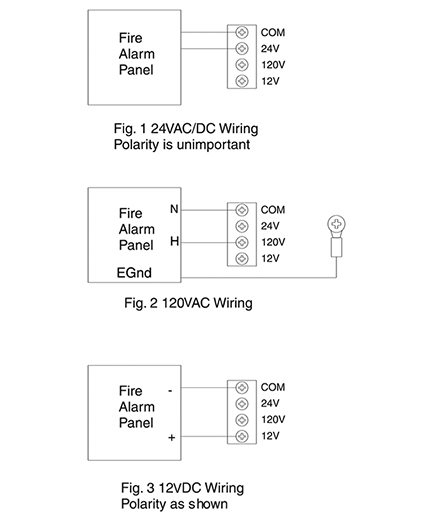

                • Tri-voltage design with 35 lbs of holding force

                • Armature extensions available

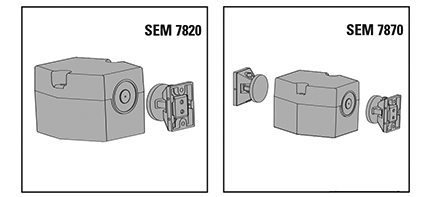

                • SEM 7820 & SEM 7870 magnets shipped with die cast housing, cover, armature(s) and WMS screw pack

                • Available in standard powder coat finishes

                • Optional custom powder coat finish available

                • UL listed for smoke barrier or labeled fire doors

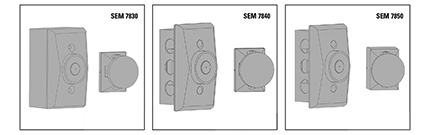

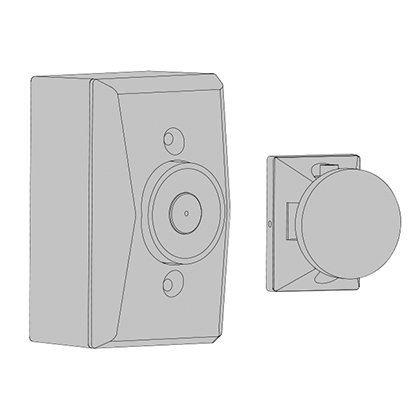

                SEM 7830





                Close

                SEM 7830

                Surface wall mounted

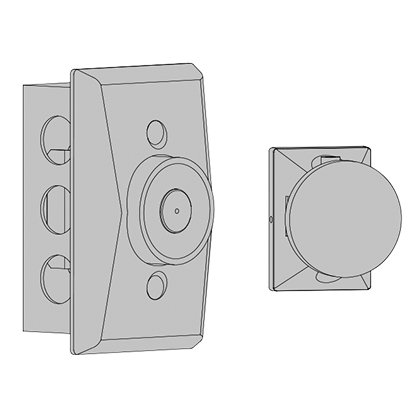

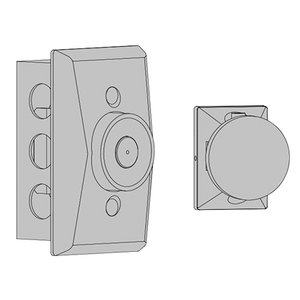

                SEM 7840





                Close

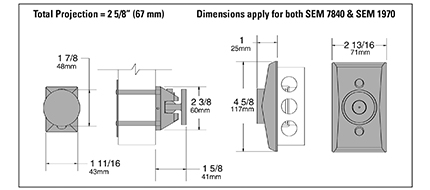

                SEM 7840

                Low profile, recessed wall mount

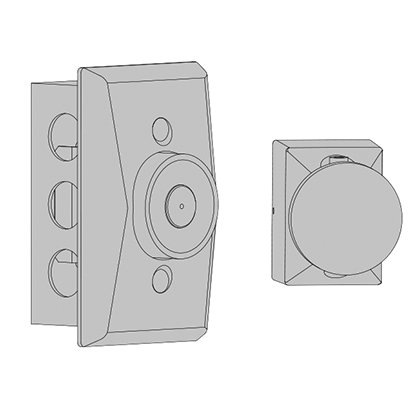

                SEM 7850





                Close

                SEM 7850

                Standard profile, recessed wall mount

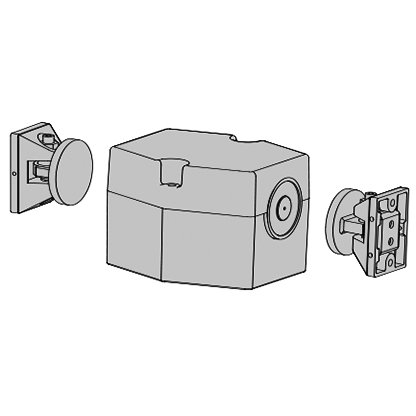

                SEM 7870





                Close

                SEM 7870

                Dual sided, floor mounted

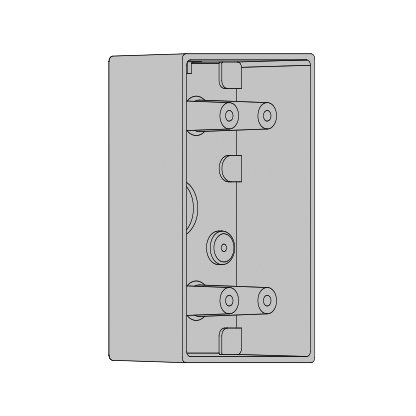

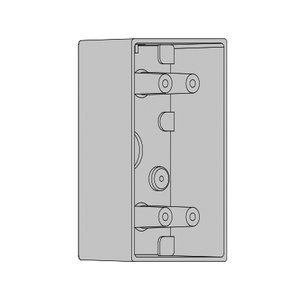

                268 - wall mount box





                Close

                268 - wall mount box

                Standard, die cast, surface mount

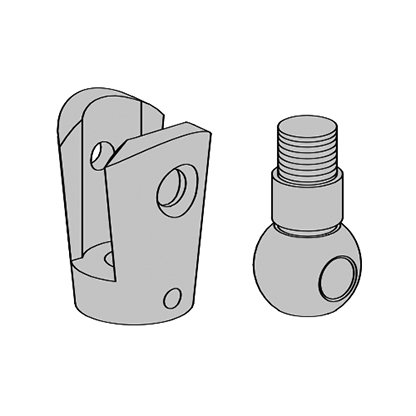

                514 - coupler kit





                Close

                514 - coupler kit

                Coupler assembly kit, per door

                Includes coupler link and ball pivot
                (serves as 1-1/2” extension)

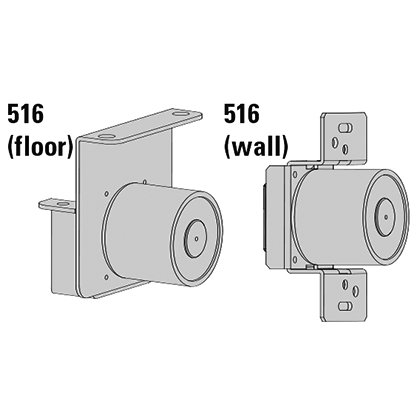

                516 - floor magnet





                Close

                516 - floor magnet

                Specify floor or wall magnet

                Standard magnet coil

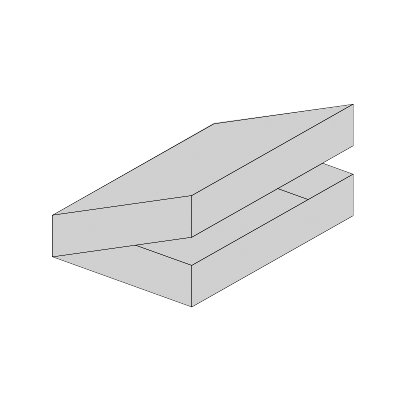

                517 - extension kit





                Close

                517 - extension kit

                Extensions kit, includes:
                - ten 1/2" ext.
                - ten 3/4" ext.
                - ten 1" ext.
                - five 2" ext.
                - 20 coupler assembly kits

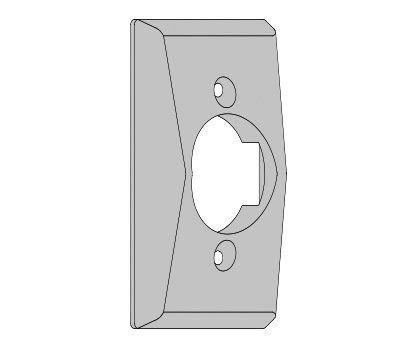

                72 - cover





                Close

                72 - cover

                Standard, die cast

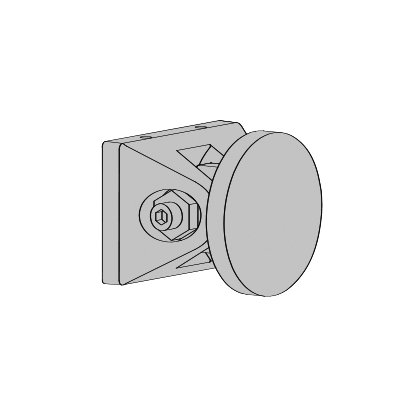

                825 - low profile armature





                Close

                825 - low profile armature

                Standard, die cast

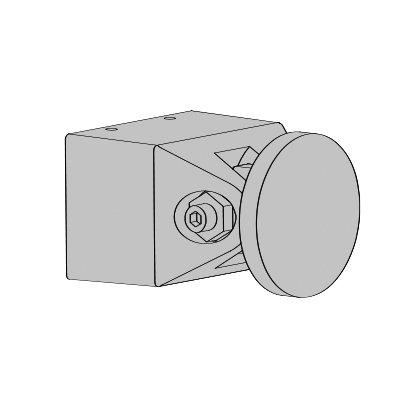

                828 - armature





                Close

                828 - armature

                Standard, die cast

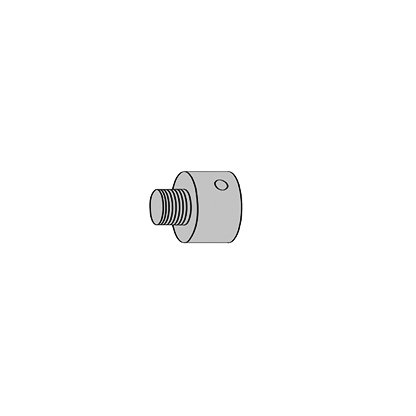

                E050 - extension





                Close

                E050 - extension

                Standard metal 1/2” extension

                E050 - extension





                Close

                E050 - extension

                Standard metal 1/2” extension

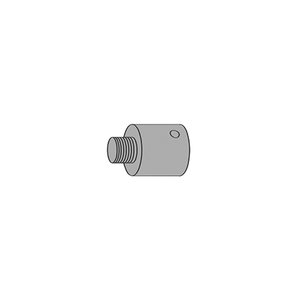

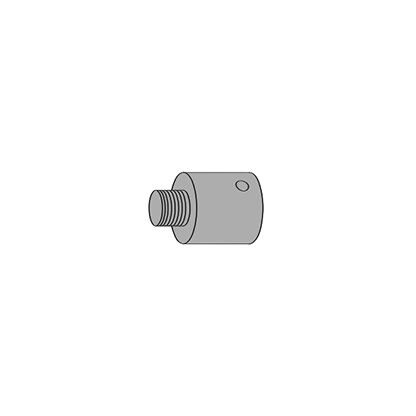

                E075 - extension





                Close

                E075 - extension

                Standard metal 3/4” extension

                E075 - extension





                Close

                E075 - extension

                Standard metal 3/4” extension

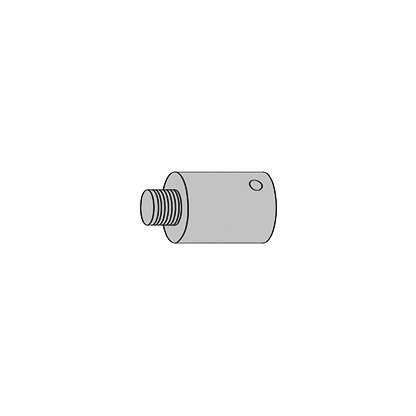

                E100 - extension





                Close

                E100 - extension

                Standard metal 1” extension

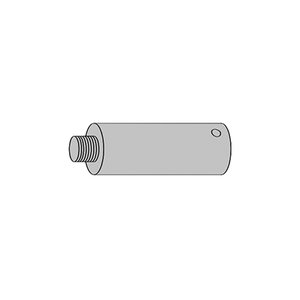

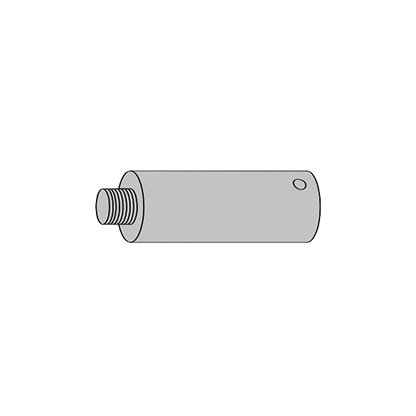

                E200 - extension





                Close

                E200 - extension

                Standard metal 2” extension

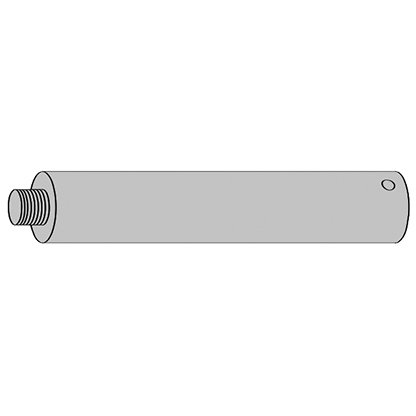

                E400 - extension





                Close

                E400 - extension

                Standard metal 4” extension
