                LCN 4010 Series

                The 4010 SMOOTHEE® is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

                • Specifications
                • Options
                • Finishes
                • Downloads

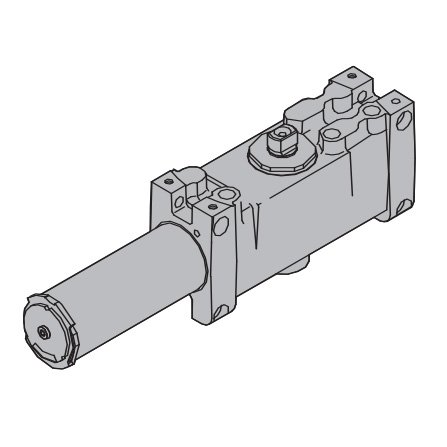

                4010-3071 cylinder





                Close

                4010-3071 cylinder

                Standard, handed cast iron cylinder assembly

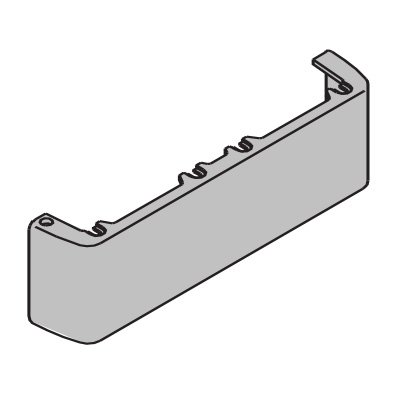

                4010-72 cover





                Close

                4010-72 cover

                Standard, non-handed plastic cover

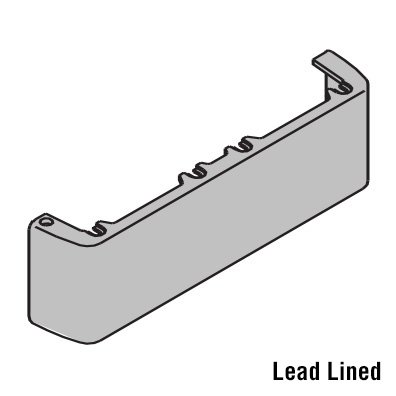

                4010-72LL cover





                Close

                4010-72LL cover

                Non-handed, lead lined plastic cover

                4010-72MC cover





                Close

                4010-72MC cover

                Handed cover

                Required for plated finishes and custom powder coat finishes

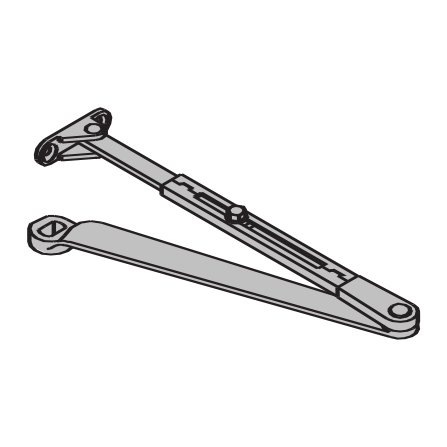

                4010-3077 arm





                Close

                4010-3077 arm

                Non-handed arm

                4010-3049 arm





                Close

                4010-3049 arm

                Handed arm with hold-open function

                Adjustable at elbow

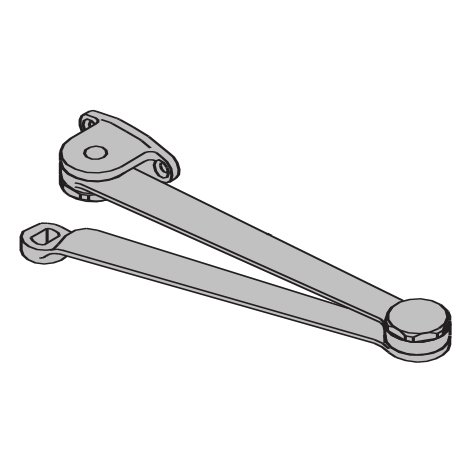

                4010-3049H180 arm





                Close

                4010-3049H180 arm

                Handed arm with hold-open function up to 180°, adjustable at shoe

                Closer must be mounted on 4010-11 corner bracket

                4010-3049FL arm





                Close

                4010-3049FL arm

                Handed arm releases hold-open function when exposed to temperatures above 165° F

                1/8” maximum reveal

                NOTE: Check local codes before specifing FL arms

                NOT A LIFE SAFETY PRODUCT!

                4010-18 plate





                Close

                4010-18 plate

                Required where top rail is less than 3-3/4”

                Requires minimum 2” top rail

                4010-11 bracket





                Close

                4010-11 bracket

                For doors where top jamb or parallel arm mounted closer cannot be used

                Allows 180° opening with regular or H180 hold-open arm

                Projects 5” from stop, 13-11/16” from frame

                Requires opposite hand closer

                4010-16 bracket





                Close

                4010-16 bracket

                For doors where top jamb or parallel arm mounted closer cannot be used

                Allows 125° opening with regular arm or 100° with hold-open or fusible link arm

                Projects 5” from stop, 12-13/16” from frame

                Requires opposite hand closer

                4010-17 bracket





                Close

                4010-17 bracket

                Allows 110° opening with regular arm

                Designed to lower closer on door for clearance of auxiliary door holders

                Projects 6-3/8” from stop, 13-11/16” from frame

                Requires opposite hand closer

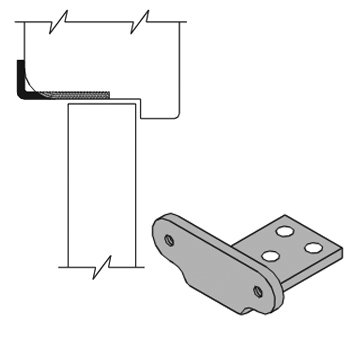

                4010-65 shoe





                Close

                4010-65 shoe

                Adapts hinge side shoe to rounded or bull nose trim

                ALUM - Aluminum





                Close

                ALUM - Aluminum

                BHMA 689

                Powder coated finish

                BLK - Black





                Close

                BLK - Black

                BHMA 693

                Powder coated finish

                BRASS - Brass





                Close

                BRASS - Brass

                BHMA 696

                Powder coated finish

                DKBRZ - dark bronze





                Close

                DKBRZ - dark bronze

                BHMA 695

                Powder coated finish

                LTBRZ - light bronze





                Close

                LTBRZ - light bronze

                BHMA 691

                Powder coated finish

                STAT - Statuary Bronze





                Close

                STAT - Statuary Bronze

                BHMA 690

                Powder coated finish

                TAN - Tan





                Close

                TAN - Tan

                BHMA 692

                Powder coated finish

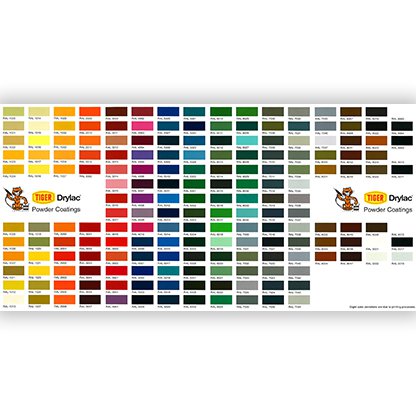

                LCN Custom Colours





                Close

                LCN Custom Colours

                Nominal additional cost

                RAL Colour Chart #1000-9018
