Lawrence 8713

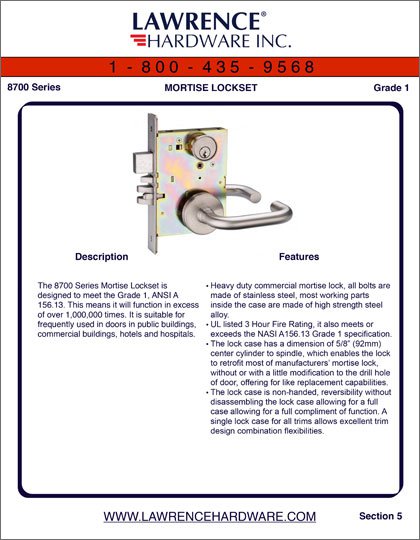

Lawrence LH8713 Mortise Lock

• Latchbolt retracted by lever on either side unless outside is locked by 20 degree rotation of thumbturn.
• Deadbolt operated by key outside or thumbturn inside.
• Throwing deadbolt automatically locks the outside lever.
• When locked, lever inside or key outside retracts deadbolt and latchbolt simultaneously.
• Auxiliary latch deadlocks latchbolt when door is closed.
• Inside lever always free.

Features

• Heavy duty commercial mortise lock, all bolts are made of stainless steel, most working parts inside the case are made of high strength steel alloy.
•  UL listed 3 Hour Fire Rating, it also meets or exceeds the NASI A156.13 Grade 1 specification.
• The lock case has a dimension of 5/8” (92mm) center cylinder to spindle, which enables the lock to retrofit most of manufacturers’ mortise lock, without or with a little modification to the drill hole of door, offering for like replacement capabilities.
• The lock case is non-handed, reversibility without disassembling the lock case allowing for a full case allowing for a full compliment of function. A single lock case for all trims allows excellent trim design combination flexibilities.

Specifications

Applications: For commercial and institutional buildings where the finest mortise locks are required

Certifications: ANSI A156.13 Series 1000, Grade 1 operational and security UL Listed for 3-Hour Fire Rating

Case Size: 4-5/16” x 6” x 1” (110mm x 152mm x 25mm)

Armor Plate: 1-1/4” x 8” x 7/32”(32mm x 203mm x 5mm) standard 1-1/2” x 8” x 7/32” (27mm x 203mm x 5mm)
optional

Backset: 2-3/4” (70mm) only

Door Preparation: Conform to ANSI A115.1

Door Range: 1-3/8” (35mm) to 2-1/2” (64mm)

Beveled Doors: Self-adjusting case

Deadbolt: 1” (25mm) Throw, Stainless Steel

Latchbolt: 3/4” (19mm) Throw, with anti-friction tongue, all Stainless Steel

Deadlocking: Bar Non-Handed, Stainless Steel

Case Handling: Field reversible without removing case

Through Bolt: Through-bolted trim self-align with lock case

Stopworks: Incorporated into thumbturn

Strikes: Curved lip non-handed Custom lip length at 1/8” (3mm) increment available

Spindles: Breakable to prevent the lock case from unlocking or being damaged

Cylinder: 6-pin cylinder standard, with two nickel silver keys, “C” keyway, others available

IC Core: IC Core mortise cylinder 6 or 7 pin available

Cam Style: All functions with cylinder use a standard butterfly style cam

Cylinder Guard: Tapper cylinder guard with tension spring to resist wrenching of cylinder

Trim Designs: Levers/Knobs forged solid brass or lower cost pressure zinc cast, attached to rose plate/escutcheon. Outside lever/knob can not be removed from outside. Return spring in trim to enhance protection against elver droop, providing a firm and positive return of lever to horizontal

Roses: 2-1/16” (62mm) Diameter, positive friction attachment

Fasteners: Concealed under the rose/escutcheon

Finish: US23D Stock. Other finished available upon request. Extended lead times apply
