Baby Changing Stations

Baby Changing Stations Specifications

OPERATION: Concealed pneumatic cylinder and hinge structure provides controlled, slow opening and closing of bed. High-density polyethylene is easy to clean and resists odors and bacterial growth. Complies with ASTM static load performance requirements when properly installed. Built-in liner dispenser holds approximately 25 sanitary liners (KB150-99).

Warning:To ensure that the unit supports the intended loads, baby changing stations must be properly installed according to the manufacturer's instructions.

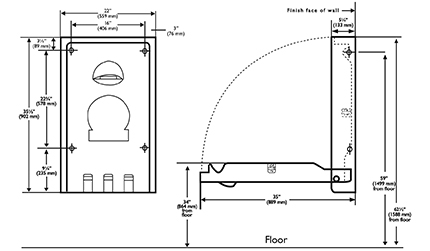

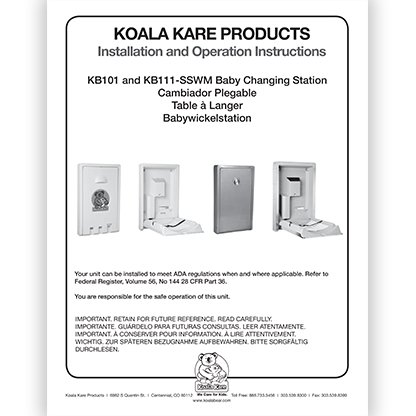

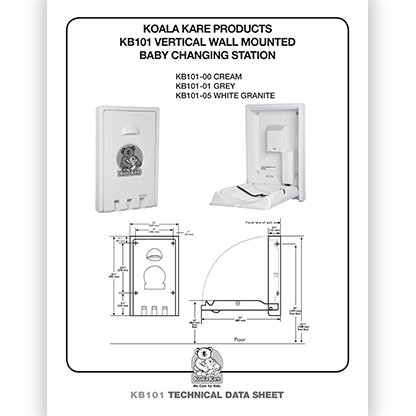

Vertical Wall Mounted (KB101-00)

Surface mounted veritcal Baby Changing Station offers a space saving solution in cramped restrooms.

FEATURES:

• Koala polyethylene surface mounted vertical baby changing station in Cream colour (00)
• Full length steel-on-steel hinges with 11 gauge steel mounting bracket, eliminating plastic wear points and providing superior child protection and durability
• Gas spring mechanism ensures smooth open and close
• Built-in liner cavity and two bag hooks
• Includes child safety straps
• Bed surface exclusively contains Microban® antimicrobial, reducing odor causing bacteria
• Constructed with 46% recycled materials; contributes to LEED certified building requirements

DIMENSIONS:

• Unit: 22” W x 35-1/2” H (559 mm x 902 mm)
• Depth (closed): 5-1/4” (133 mm)
• Extension (open): 35” (889 mm)
• Shipping Weight: 28 lbs.

MATERIALS: FDA approved blow-moulded high-density polyethylene with Microban® antimicrobial. Reinforced full-length steel-on-steel hinge mechanism, with 11 gauge steel mounting plates and mounting hardware included. Moulded-in graphics & safety messages in six languages and Braille. Contoured changing surface area is 420 sq. in (2730 sq. mm) and comes complete with nylon safety straps and two bag hooks.


Horizontal Stainless Steel Recess Mounted (KB310-SSRE)
& Horizontal Stainless Steel Wall Mounted (KB310-SSWM)

Recessed or surface mounted, stainless steel clad Baby Changing Station is the premier choice for upscale restroom facilities.

Features:

• Koala stainless steel clad recess mounted horizontal baby changing station with grey polyethylene interior
• Full length steel-on-steel hinges with 11 gauge steel mounting bracket, eliminating plastic wear points and providing superior child protection and durability
• Gas spring mechanism ensures smooth open and close
• Built-in liner cavity and two bag hooks
• Includes child safety straps
• Bed surface exclusively contains Microban® antimicrobial, reducing odor causing bacteria
• ASTM compliant; meets ADA requirements when mounted properly
• Constructed with 56% recycled materials; contributes to LEED certified building requirements

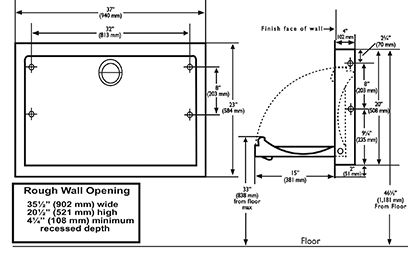

KB310-SSRE Dimensions:

• Unit: 37” W x 23” H (940 mm x 584 mm)
• Depth (closed): 1/4” (6 mm) Extension (open): 15” (381 mm)
• Rough Wall Opening: 35-1/2” W x 20-1/2” H (900 x 529 mm)
• Depth: 4-1/4” minimum (108 mm)
• Shipping Weight: 46 lbs.

KB310-SSWM Dimensions:

• Unit: 35-1/4” W x 20” H (892 mm x 508 mm)
• Depth (closed): 4” (102 mm)
• Extension (open): 19” (483 mm)
• Shipping Weight: 46 lbs

Materials: 18 gauge, type 304 satin stainless steel exterior fnish with FDA approved blow moulded high-density grey polyethylene with Microban® antimicrobial interior. Reinforced full-length steel-on-steel hinge mechanism, with 11-gauge steel mounting plates and mounting hardware included. Moulded-in graphics and safety messages in six languages. Contoured changing surface area is 442 sq. in (2851 sq. cm) and comes complete with nylon safety straps and bag hooks.

OPERATION: Concealed pneumatic cylinder and hinge structure provides controlled, slow opening and closing of bed. High-density polyethylene is easy to clean and resists odors and bacterial growth. Complies with ASTM static load performance requirements when properly installed.

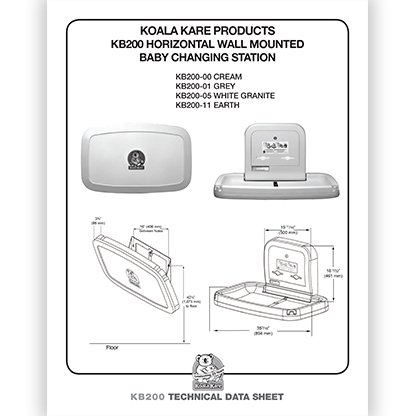

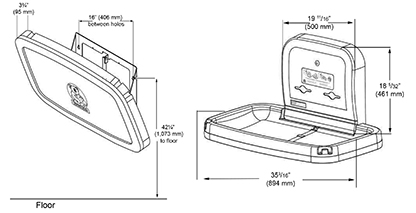

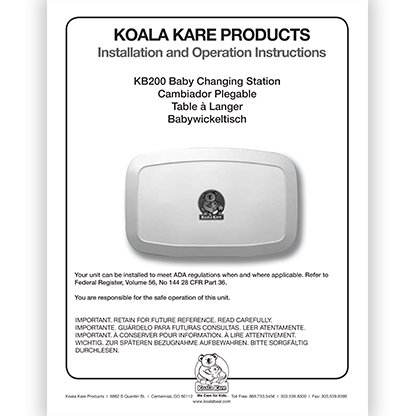

Horizontal Wall Mounted (KB200)

Horizontal wall mounted Baby Changing Station offers the highest level of safety and cleanliness available

Features:

• Constructed of polypropylene and a unibody steel chassis, this baby changing station supports 200 lbs. with minimal deflection
• Steel-on-steel hinge has greater resistance to wear and improved durability and the gas spring mechanism ensures smooth open and close of unit
• Sleek design and color palette matches modern restroom design and décor
• Dual liner cavity with lock minimizes operator refills and discourages potential vandalism
• Product includes child protection straps and bag hooks
• ASTM and EN compliant; meets ADA requirements when mounted properly
• Bed surface exclusively contains Microban® antimicrobial, reducing odor causing bacteria
• Liner dispenser features two liner cavities: each cavity holds 25 liners, for a combined total of 50 liners per unit
• Constructed with 16% recycled materials; contributes to LEED certified building requirements

Dimensions:

• Unit: 35 3/16” W x 22¼” H (893 mm x 565 mm)
• Depth (closed): 4” (102 mm)
• Extension (open): 23 3/16”(589 mm)
• Shipping Weight: 28 lbs

Materials:

FDA approved injection-molded polypropylene with Microban® antimicrobial additive embedded into the bed surface. Reinforced steel-on-steel hinge mechanism and metal mounting chassis with mounting hardware included. Labelled usage instructions and safety messages in four languages. Optional Braille label available. Contoured changing surface area is 450 sq. in (2903 sq. cm) and comes complete with nylon safety strap and bag hooks. Dual cavity liner dispenser holds approximately 50 KB150-99 bed liners.

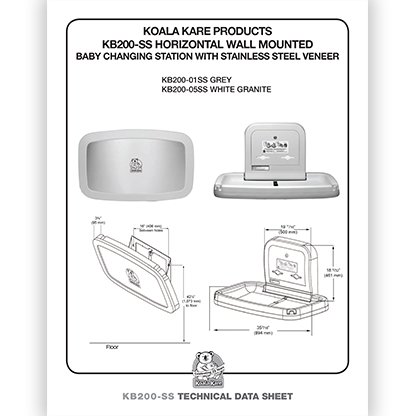

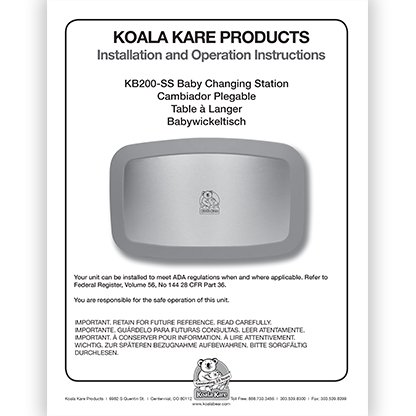

Horizontal Wall Mounted with Stainless Steel Veneer (KB200-SS)

The KB200-SS offers the highest level of safety and style for the upscale restroom facility.

Features:

• Type 304 stainless steel veneer panel integrates with other satin-finish accessories in the restroom
• Constructed of polypropylene and a unibody steel chassis, this baby changing station supports 200 lbs. with minimal deflection
• Steel-on-steel hinge has greater resistance to wear and improved durability and the gas spring mechanism ensures smooth open and close of unit
• Sleek design and color palette matches modern restroom design and décor
• Dual liner cavity with lock minimizes operator refills and discourages potential vandalism
• Product includes child protection straps and bag hooks
• ASTM and EN compliant; meets ADA requirements when mounted properly
• Bed surface exclusively contains Microban® antimicrobial, reducing odor causing bacteria
• Liner dispenser features two liner cavities: each cavity holds 25 liners, for a combined total of 50 liners per unit
• Constructed with 16% recycled materials; contributes to LEED certified building requirements

Dimensions:

• Unit: 35 3/16” W x 22¼” H (893 mm x 565 mm)
• Depth (closed): 4” (102 mm)
• Extension (open): 23 3/16”(589 mm)
• Shipping Weight: 32 lbs

Materials:

FDA approved injection-molded polypropylene with Microban® antimicrobial additive embedded into the bed surface. Type 304 brushed stainless steel finish veneer. Reinforced steel-on-steel hinge mechanism and metal mounting chassis with mounting hardware included. Labelled usage instructions and safety messages in four languages. Optional Braille label available. Contoured changing surface area is 450 sq. in (2903 sq. cm) and comes complete with nylon safety strap and bag hooks. Dual cavity liner dispenser holds approximately 50 KB150-99 bed liners.
