Hooks / Shelves / Custodial Accessories

Keep your spaces organized and free of clutter with Bobrick's custodial accessories.

Constructed of quality stainless steel in a variety of finishes, these units are sure to solve storage problems while remaining sturdy and aesthetically pleasing.

Designs
Specifications
Downloads

B-211 - HD exposed mount

1-pc cast brass, satin nickel plated

2-3/4" diam. x 3-7/16" projection

Withstands 300 lbs. downward pull

B-2116 - HD concealed mount

Theft-resistant, 1-pc cast brass, satin nickel plated

2-3/4" diam. x 3-7/16" projection

Withstands 300 lbs. downward pull

B-212 - hook/bumper

Solid cast aluminum, matte finish with rubber bumper

2" x 1-1/2" base x 3-3/4" projection

B-223 x 24 - 3 holders

Satin stainless steel with 3 spring-loaded rubber cams

24" x 5" base, 3-1⁄4" projection

Anti-slip grip for handles 7⁄8" to 1-1⁄4" diam.

B-223 x 36 - 4 holders

Satin stainless steel with 4 spring-loaded rubber cams

36" x 5" base, 3-1⁄4" projection

Anti-slip grip for handles 7⁄8" to 1-1⁄4" diam.

B-224 x 36 - 4 holders, 3 hooks, 1 rod

18 ga satin stainless steel with spring-loaded grips, rod below shelf

36" x 6" base, 8" projection

Anti-slip grip for handles 7⁄8" to 1-1⁄4" diam.

B-232 x 24 - 3 hooks

Type 304 satin stainless steel with 3 hooks

24" x 4" base, 2-1⁄4" projection

6-1/2" x 1" hooks

B-233 - clothes hook

11 ga type 304 satin stainless steel

2-1/4" high x 1-1⁄8" projection

1-1⁄4" sq. hook

B-239 x 34 - shelf, holders, hooks

18 ga satin stainless steel shelf, 3 anti-slip mop holders, 4 hooks

34" x 13" base, 8" projection

B-287 - folding shelf

Satin stainless steel spring-loaded shelf installs on partition or wall

14-1⁄2" long x 5-3⁄4" wide

Supports 100 lbs. when properly installed

B-295 x 16 - 5" shelf

18 ga type 304 satin stainless steel

16" x 5" x 3"

Front safety edges; 16 ga brackets

B-295 x 18 - 5" shelf

18 ga type 304 satin stainless steel

18" x 5" x 3"

Front safety edges; 16 ga brackets

B-295 x 24 - 5" shelf

18 ga type 304 satin stainless steel

24" x 5" x 3"

Front safety edges; 16 ga brackets

B-296 x 18 - 6" shelf

18 ga type 304 satin stainless steel

18" x 6" x 3"

Front safety edges; 16 ga brackets

B-298 x 18 - 8" shelf

18 ga type 304 satin stainless steel

18" x 8" x 3"

Front safety edges; 16 ga brackets

B-298 x 24 - 8" shelf

18 ga type 304 satin stainless steel

24" x 8" x 3"

Front safety edges; 16 ga brackets

B-670 - utility hook

Bright polished stainless steel

2" sq. flange, 1⁄2" hook, 2" projection

(B-6707: satin finish)

B-671 - single robe hook

Bright polished stainless steel

2" sq. flange, 1⁄2" hook, 2" projection

(B-6717: satin finish - regular lead time)

B-672 - double robe hook

Bright polished stainless steel

2" sq. flange, contoured 4" hook, 2-5⁄16" projection

(B-6727: satin finish)

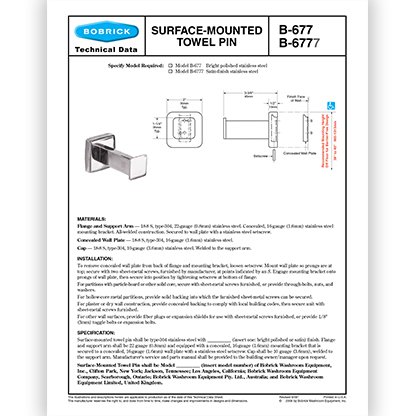

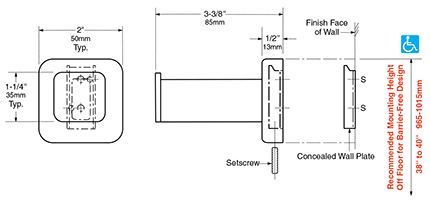

B-677 - towel pin

Bright polished stainless steel

2" sq. flange, 3-3/8" projection

(B-6777: satin finish)

B-682 - hat/coat hook

Bright polished stainless steel, concealed plate

2" sq. flange, 6-1/2" x 1" hook, 3-1/16" projection

(B-6827: satin finish)

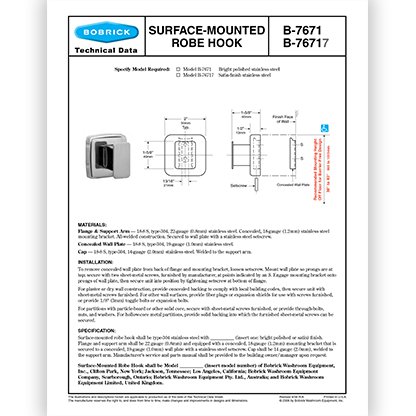

B-7671 - single robe hook

Bright polished stainless steel

2" sq. flange, 1-5/8" x 13/16" hook, 1-5/8" projection

(B-76717: satin finish)

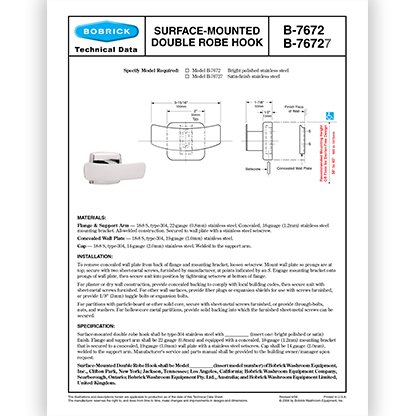

B-7672 - double robe hook

Bright polished stainless steel

2" sq. flange, contoured 3-15/16" hook, 1-7/8" projection

(B-76727: satin finish)

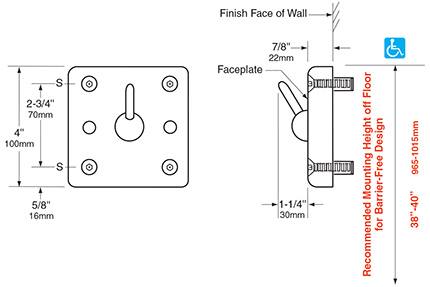

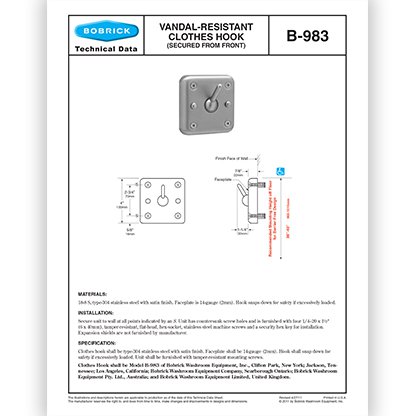

B-983 - vandal resistant hook

14 ga satin stainless steel

4" sq. back plate, 7/8" hook, 1-1/4" projection

Hook snaps down for safety if excessively loaded

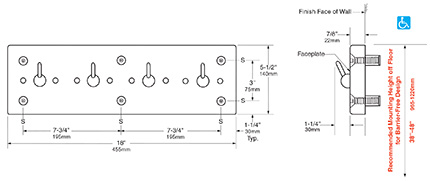

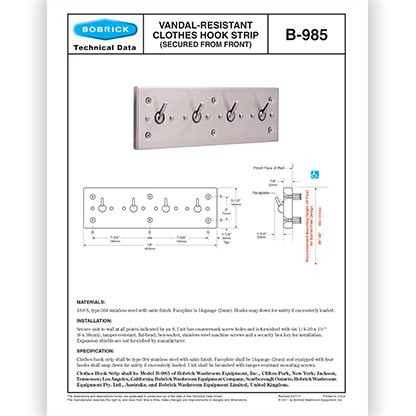

B-985 - vandal resistant strip

14 ga satin stainless steel

18" x 5-1/2" back plate, 7/8" hook, 1-1/4" projection

Hook snaps down for safety if excessively loaded

Bobrick Custodial Accessories Specifications

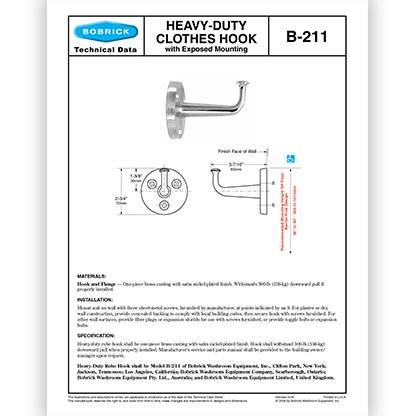

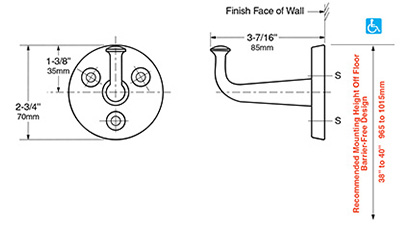

B-211 Heavy-Duty Clothes Hook with Exposed Mounting: Mounts with three exposed countersunk mounting screw holes. Hook and flange are one-piece brass casting with satin nickel-plated finish to match stainless steel. Withstands 300 lbs (136 kg) downward pull. Flange diameter: 2-3⁄4" (70mm). Unit projects 3-7⁄16" (85mm).

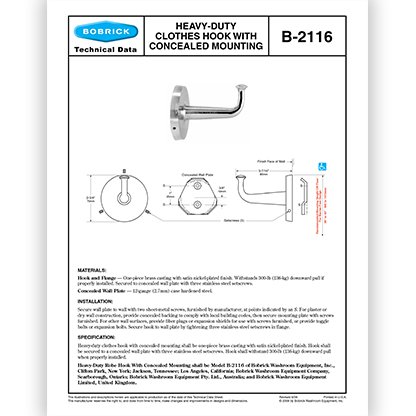

B-2116 Heavy-Duty Clothes Hook with Concealed Mounting: Locks to wall plate with three stainless steel setscrews for theft-resistant mounting. Hook and flange are one-piece brass casting with satin nickel plated finish to match stainless steel. Withstands 300 lbs (136 kg) downward pull. Flange diameter: 2-3⁄4" (70mm). Unit projects 3-7⁄16" (85mm).

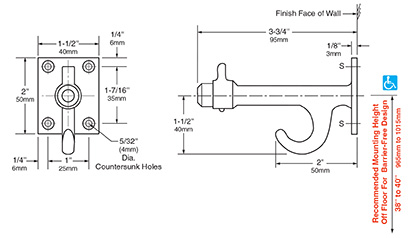

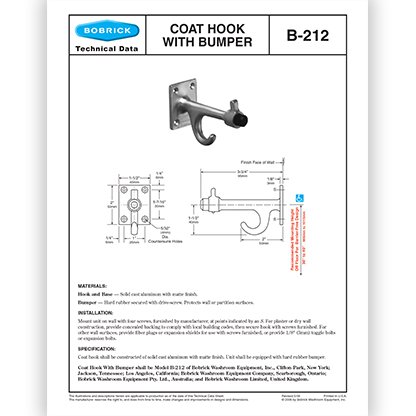

B-212 Clothes Hook with Bumper: Solid aluminum casting, matte finish. Rubber bumper protects wall or partition surfaces.

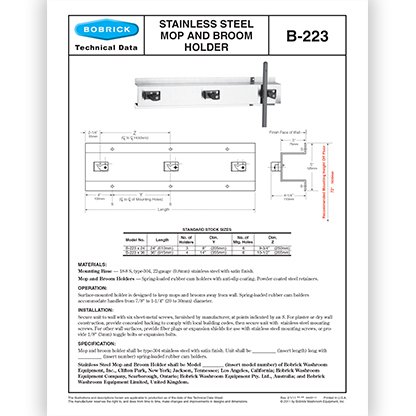

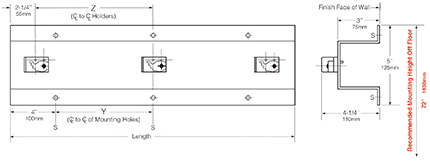

B-223 x 24 Mop and Broom 3 Holders: 24" (610mm) long. Type 304 stainless steel, satin finish. Anti-slip mop holders have spring-loaded rubber cam that grips handles 7⁄8" to 1-1⁄4" (20–30mm) diameter. Holds 3 mops, 3-1⁄4" (85mm) from wall. Height 5" (125mm).

B-223 x 36 Mop and Broom 4 Holders: 36" (915mm) long. Type 304 stainless steel, satin finish. Anti-slip mop holders have spring-loaded rubber cam that grips handles 7⁄8" to 1-1⁄4" (20–30mm) diameter. Holds 4 mops, 3-1⁄4" (85mm) from wall. Height 5" (125mm).

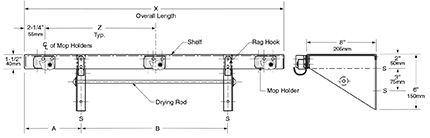

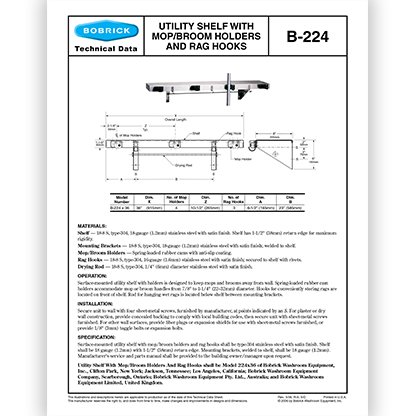

B-224 x 36 Shelf with Mop/Broom 4 Holders, 3 Rag Hooks & 1 Towel Rod: Shelf is 18 gauge (1.2mm), type 304 stainless steel, satin finish; 36" L, 6" H, 8" D (915 x 150 x 205mm). Four anti-slip mop holders have spring-loaded rubber cam that grips handles 7⁄8" to 1-1⁄4" (20–30mm) diameter. Holds mops 8" (205mm) from wall. Three stainless steel rag hooks. Rod for wet rags mounted below shelf.

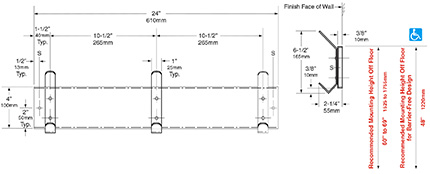

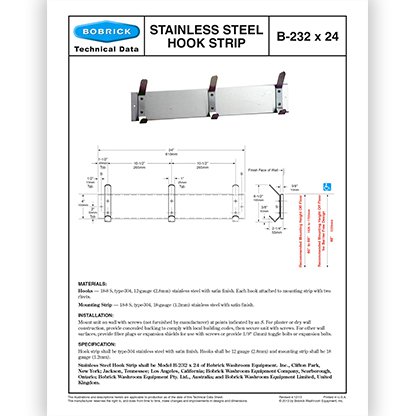

B-232 x 24 Hook Strip: Type 304 stainless steel, satin finish. Three hooks are 1" W, 6-1⁄2" H (25 x 165mm); project 2-1⁄4" (55mm) from wall. Mounting strip is 4" (100mm) high and has 1⁄4" (6mm) return.

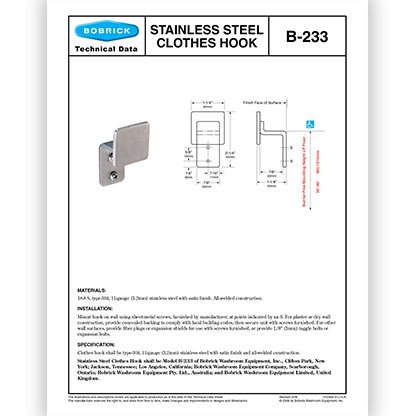

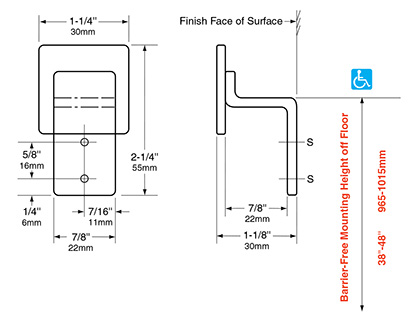

B-233 Clothes Hook: 11 gauge (3.2mm), type 304 stainless steel, satin finish. Hook is 1-1⁄4" x 1-1⁄4" (30 x 30mm) and projects 1-1⁄8" (30mm) from wall. Unit is 2-1⁄4" (55mm) high.

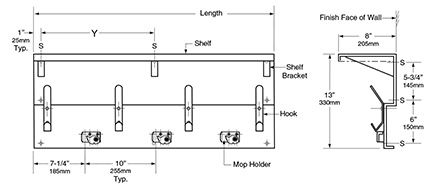

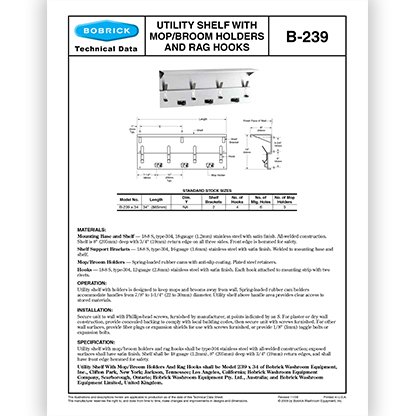

B-239 x 34 Shelf with Mop/Broom Holders & Hooks: 34" L x 13" H, three anti-slip mop holders, four hooks, satin finish stainless steel.

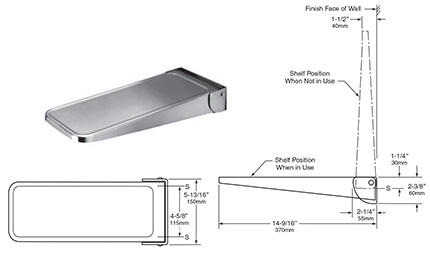

B-287 Folding Utility Shelf: Easily installed on toilet partition or wall. Type 304 stainless steel, satin finish. Pull-down shelf returns to upright position when not in use. Supports 100 lbs (45.36 kg) when properly installed. Shelf 14-1⁄2" long, 5-3⁄4" wide (370 x 145mm).

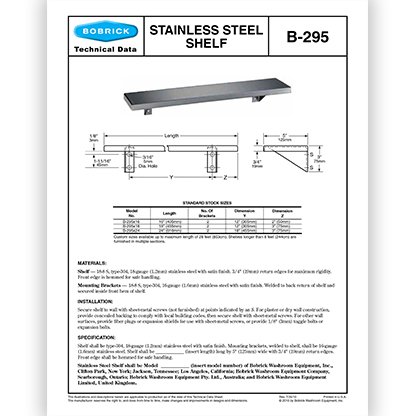

B-295 Stainless Steel Shelf: B-295 x 16, B-295 x 18, B-295 x 24 – 16", 18", or 24" long x 5" wide x 3" high. 18 gauge (1.2mm), type 304 stainless steel, satin finish. 3⁄4" (19mm) return edge; front edge is hemmed for safety. Brackets are 16 gauge (1.6mm).

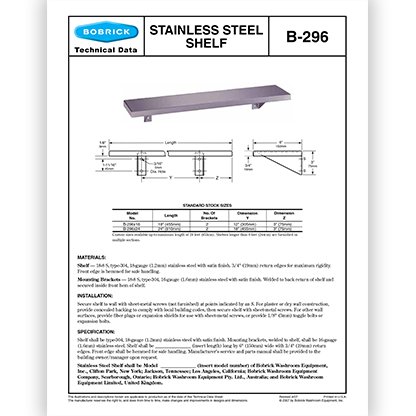

B-296 Stainless Steel Shelf: B-296 x 18, B-296 x 24 – 18" or 24" long x 6" wide x 3" high. 18 gauge (1.2mm), type 304 stainless steel, satin finish. 3⁄4" (19mm) return edge; front edge is hemmed for safety. Brackets are 16 gauge (1.6mm).

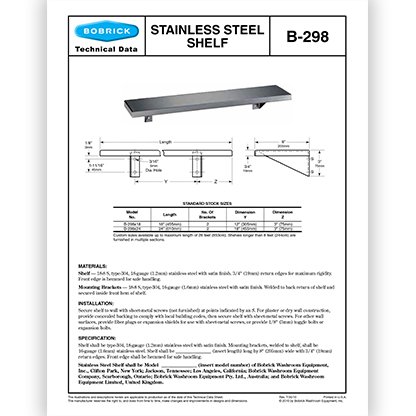

B-298 Stainless Steel Shelf: B-298 x 18, B-298 x 24 – 18" or 24" long x 8" wide, 18 gauge (1.2mm), type 304 stainless steel, satin finish. 3⁄4" (19mm) return edge; front edge is hemmed for safety. Brackets are 16 gauge (1.6mm).

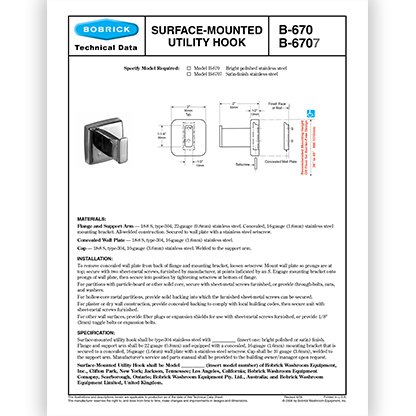

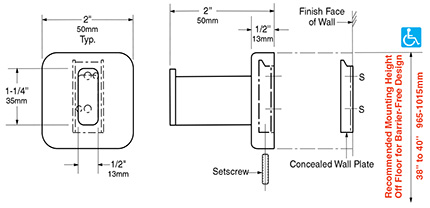

B-670 Utility Hook: Bright-polished stainless steel. For robes, shoe-shine cloth, and sanitary napkin disposal bag. Flange is 2" x 2" (50 x 50mm). Hook 1⁄2" (13mm) wide, projects 2" (50mm) from wall. B-6707: Satin finish stainless steel.

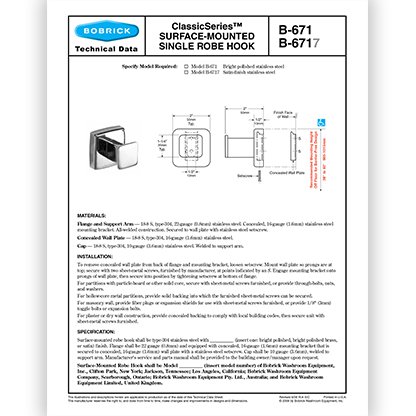

B-671 Single Robe Hook: Bright polished stainless steel. Flange is 2" x 2" (50 x 50mm). Hook is 1-1⁄4" high x 1-1⁄4" wide (30 x 30mm). Projects 2" (50mm) from wall. B-6717: Satin finish stainless steel.

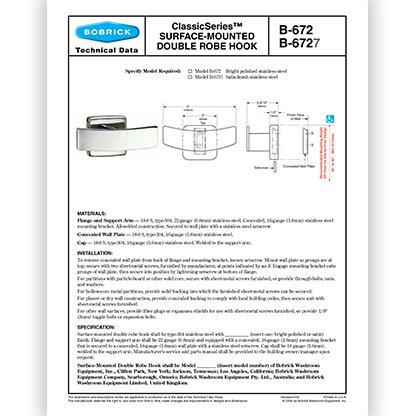

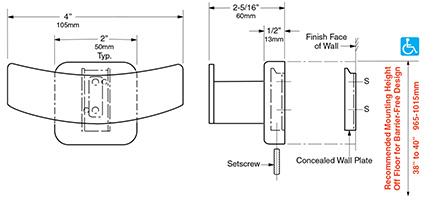

B-672 Double Robe Hook: Bright-polished stainless steel. Contoured 4" (100mm) wide bar forms hook at each end. Flange is 2" x 2" (50 x 50mm). Projects 2-5⁄16" (60mm) from wall. B-6727: Satin finish stainless steel.
