Falcon D Series

Falcon D Series Deadbolts

The D Series deadbolt from Falcon will fit on virtually any door, thanks to an adjustable backset with an innovative lock-in-place design. The Grade 2 D200 Series deadbolt can be fitted with any cylinder, enhancing lock strength on the jamb side of the door and is easier to install than any deadbolt you've ever worked with.

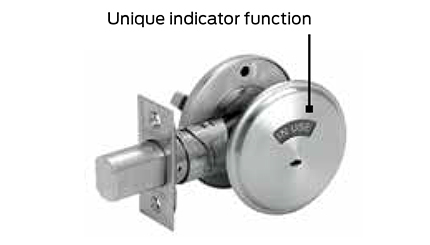

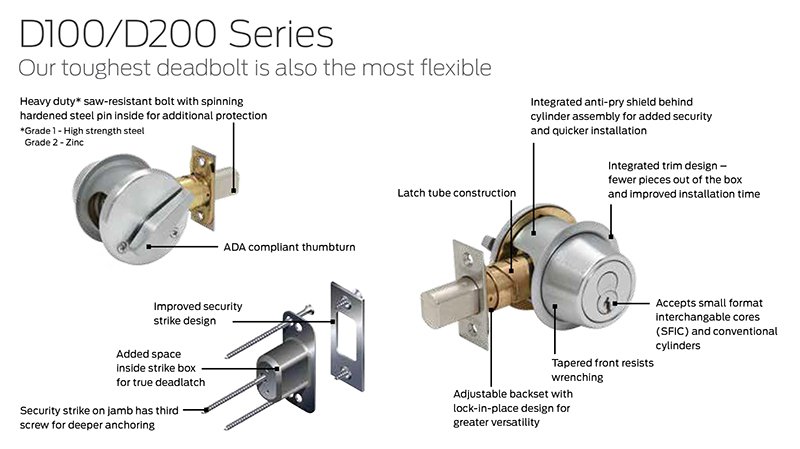

Features and Benefits

• Integrated anti-pry shield behind cylinder assembly for added security and quicker installation

• Integrated trim design – fewer pieces out of the box and improved installation time

• Tapered front resists wrenching

• Accepts small format interchangable style cores (SFIC) and conventional cylinders

• Adjustable backset with lock-in-place design for greater versatility

• Latch tube construction

• Heavy duty saw-resistant bolt with spinning hardened steel pin inside for additional protection

• ADA compliant thumbturn

Specifications

• Door Thickness: 1-3/8” to 1-7/8”. For thicker doors, available up to 2-1/4”.

• Backsets: 2-3/8” to 2-3/4” adjustable deadbolt.

• Attachment: Locks are solidly attached to the door by 1/4” heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.

• Handing: Non-handed. May be used in right hand or left hand doors swinging in or out.

• Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.

• Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.

• Exposed Trim: Wrought brass or bronze reinforced with steel insert.

• Deadbolts: Deadbolt locks are furnished with deadbolts which have a full 1” projection. Housed within the deadbolt is a freeturning, 1/4” thick, hardened steel, saw-resistant roller. Furnished standard with 2-3/8” to 2-3/4” adjustable backset and 1-1/8” x 2-1/4” faceplate. Optional 1” x 2-1/4” faceplate. Consult Options and Accessories section for other optional faceplates. D200 bolt is cast zinc.

• Strikes: 2-3/4” x 1-1/8” lipless standard. ANSI 4-7/8” x 1-1/4” lipless, 2-1/4” full lip strikes, a 2-3/4” x 1-1/8” T-strike or a security strike are available. See Options and Accessories section below.

• Screws: Furnished with wood/machine screws for use on wood or metal doors or frames.

• ANSI/BHMA Standard: A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.

Key Systems

Conventional Cylinders: Falcon's high quality conventional cylinders provide the standard level of security and functionality for Falcon locks. The exclusive use of solid brass bar stock plugs and shells, phosphor bronze springs, nickel silver keys and bottom pins, ensures long life and ease of operation. 6-pin Everest cylinders in C123 keyway with two patented keys are standard for stock. C145 is standard for new master key systems.

Interchangeable Core (IC) Cylinders (Full Size and Small Format): For use where fast rekeying by non-technical personnel is desired, conventional interchangeable cores offer a great blend of security and convenience. The special control key for the system is all you need to remove the old core and install a new one. The core itself can be rekeyed with standard Schlage pin kits. Unlike some other brands, Schlage interchangeable cores can always be integrated into existing systems with no adverse effect on the key system. IC locks are especially well-suited to chain stores and restaurants where frequent employee turnover requires immediate rekeying by store management. Use IC cylinders to save time and energy when changing labor-intensive locks on exit devices and other door hardware.

Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinders. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.

Key Systems: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.

Options/Accessories

Padlocks

• A pin tumbler padlock manufactured from solid bar stock brass, with chrome-plated, case-hardened steel shackle. The entire cylinder assembly is removable for easier rekeying or quick cylinder change. Note: Key is removable in locked position. Padlocks with longer shackles (2” or 6”) available when specified. 1” shackle is standard.
• Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinder. Furnished with two (2) nickel silver keys standard.
• Keyways: “G” keyway standard on standard cylinders. Interchangeable core (SFIC) padlocks, branded Schlage, are also available. See pricebook for details.

Latches: H Series Deadbolts - 1" Projection, Standard

• Standard deadbolts for H Series locks are non-UL listed. Available in 2-3/8” or 2-3/4” backsets.
• Unless otherwise specified, Falcon furnishes 2-1/4” x 1” x square-corner faceplate on 2-3/8” backset deadbolts and 2-1/4” x 1-1/8” x square corner on 2-3/4” backset deadbolts.

*Optional UL deadbolt available, except on drive-in deadbolts.

Strikes

• 030020-000 ANSI Strike
• 010018-001 Lipless Strike
• 030290-000 T-Strike or Security
• 005075-000 T-Strike, Square Corner
• 005051-000 Full Lip, Square Corner
• 005051-001 Full Lip, 1/4 Radius Corner

Dust Boxes: B500-622 Metal dustbox reinforcer for 10-094 strike.

Mounted Samples: Individual mounted lock samples are available in auxiliary locks. Mounted locks are fully operative, thus demonstrating their individual features. Light and portable, they may be easily carried for on-site demonstrations.

945 Standard Cylinder Cam Lock: Cam lock for cabinet doors up to 3/4” thick. Large cam measures 1 1/2” center-to-end. Provided with two cam drivers to allow for rigid cam or lazy cam operation. Lock is field-reversible for right hand or left hand doors.

LAZY ACTION OPERATION:
1. Key rotates cam 90˚.
2. Set screw limits cam rotation to 90˚.
3. Key removable in locked or unlocked position.

C945 SFIC (Less Core) Cam Lock
Cylinders: Furnished with solid brass plug and housing drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Available with 6- or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
Keyways: “G” keyways standard on standard cylinders. “A” keyway standard on I/C core cylinders.

RIGID DRIVER OPERATION:
1. Key rotates cam 360˚.
2. Set screw limits cam rotation if required.
3. Key removable in locked position only.
