Medium Duty CF-115
Crowderframe C-Series Bifold
& Pivot Door Systems
CF-115 Folding Door Hardware Kit for 2 Bi-folding Doors (Medium Duty):
This series of folding door hardware is for medium weight bi-fold doors that are in constant use. CF-115 pivot hanger has four ball bearing wheels with nylon tires. Maximum door height equals floor to header, less 3". Minimum door height equals floor to header, less 4". Hinges by others.
- Designs

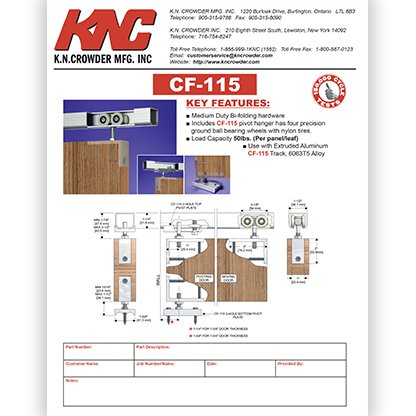

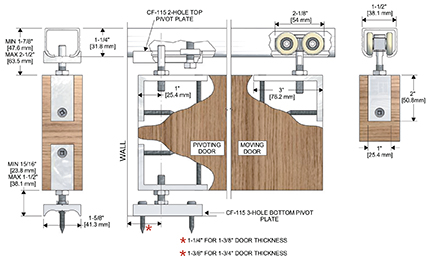

- Specifications
- Options

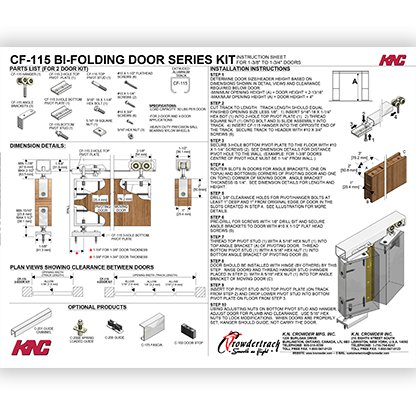

- Downloads
CF-115
Close
CF-115
Bi-folding pivot for medium loads
1-3/8" door thickness
4 wheels per pivot hanger
50 lbs. load capacity per panel
1-3/8" door thickness
4 wheels per pivot hanger
50 lbs. load capacity per panel
Crowder Bifold & Pivot Track Systems

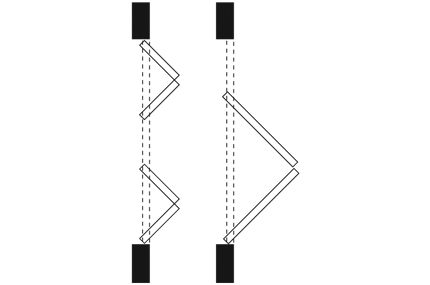

Bifold Door Configuration Options

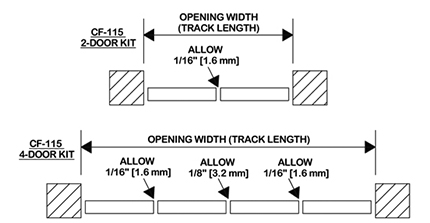

Clearance Between Doors

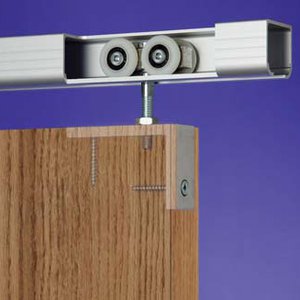

CF-115 Pivot 4-Wheel Hanger
(Medium Duty)
