Corrosion Resistant Fiberglass Doors

CORROSION RESISTANT FIBERGLASS DOORS

Pharmaceutical Manufacturing  • Food Processing  • Water and Wastewater Treatment  • Chemical Manufacturing  • Oil Refineries  • Pulp and Paper Mills

• Fiberglass and rotationally molded doors for durability and long lasting performance
• Interior or exterior applications
• Prefinished in factory, including hardware prep and CNC machined to fit frame
• Easy to clean with soap and water, or stringent cleaners
• Sanitary, seamless construction prevents panel failure
• Up to 90 minute fire rating available (gypsum core)

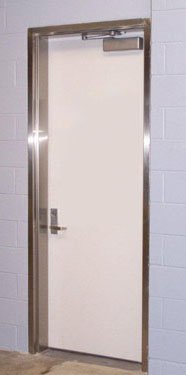

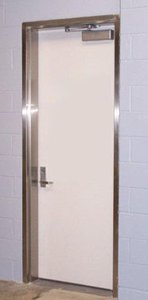

• Storm rated and extra heavy duty coated doors available
• Variety of colours and finishes
• Frame, hardware, window options
• Optional louvers, transoms, astragals, bottom sweeps, weatherstripping

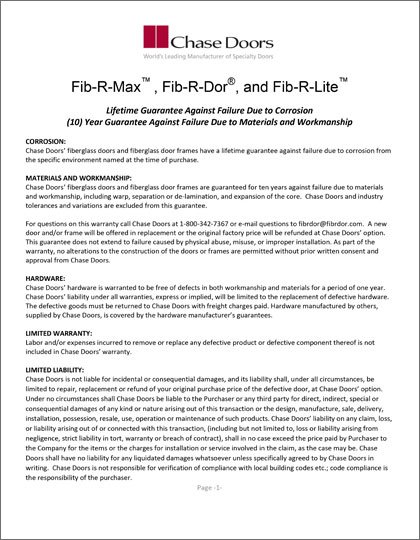

• Lifetime warranty

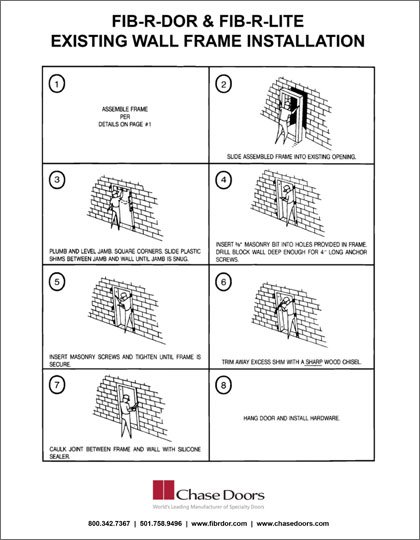

• Easy to install on site

Fib-R-Dor® and Durulite CR1400® Specifications

Fib-R-Dor fiberglass doors and Durulite CR1400 corrosion resistant doors are designed for use in heavy corrosive environments including pharmaceutical manufacturing, food processing, water / wastewater treatment, chemical manufacturing and cleanroom applications where standard doors are not acceptable. Fib-R-Dor fiberglass doors and CR1400 corrosion resistant doors can also be used as an alternative to stainless steel doors and hollow metal doors in schools, institutions and government facilities, saving thousands of dollars in replacement and maintenance costs.

Fib-R-Dor and Durulite CR1400 doors are designed for use in extremely corrosive environments. Fib-R-Dor and CR1400 door systems utilize premium materials, hardware and accessories, ensuring an attractive, dependable door that will stand up in the worst atmospheric conditions. Neither Fib-R-Dor nor Durulite CR1400 doors will ever need to be painted as the color is molded into the door and both can be cleaned easily with soap and water or washed down with stringent cleaners.

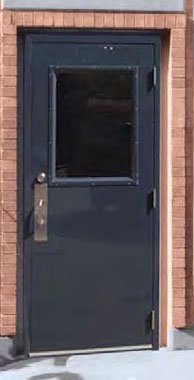

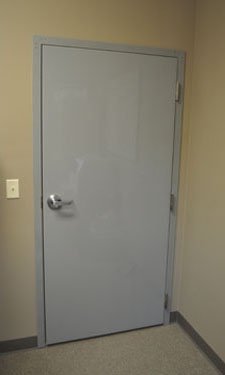

Fib-R-Dor Fiberglass Door Systems

Fib-R-Dor utilizes a combination of unique manufacturing techniques and fiberglass technology to create a panel that is beautiful, cleanable and durable. Fib-R-Dor doors and frames are FDA and cGMP compliant, and are designed for use in facilities that require regular cleaning with harsh chemicals. Fib-R-Dor door systems are designed for use on interior and exterior applications, and can be equipped with virtually any hardware configuration required. Fib-R-Dor door systems are available with up to 90 minute fire labels, meet the stringent requirements of the Florida Building Code (FBC), ASTM standard for Blast Loading and GSA test for Dynamic Overpressure Loadings in accordance with the Unified Facilities Criteria (UFC)-DoD Minimum Antiterrorism Standards for Buildings, and has far surpassed the ANSI One Million Cycle Test at 3.4 million and counting.

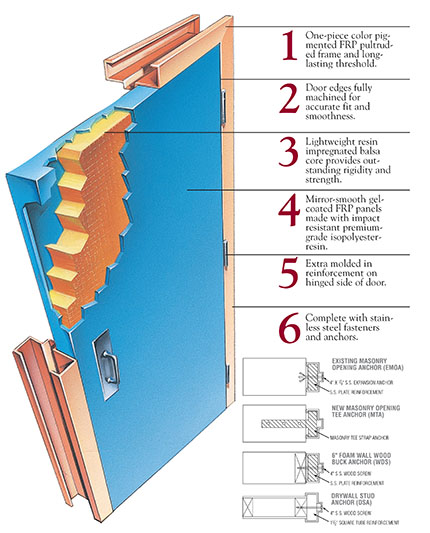

• Door Surface – The entire exterior of the door panel is molded fiberglass with a permanent bond to the core material. The mirror smooth gel-coat finish is so beautiful that no one would ever know the punishment it can withstand from harsh corrosive elements such as chemicals, cleaning agents, repeated washdowns, saltwater and even severe weather.
• Door Core – Fib-R-Dor is available with a variety of cores including polypropylene honeycomb, end grain balsa, urethane foam and gypsum for fire rated doors.
• Door Edge – Multiple layers of pigmented resin are chemically welded to the face sheets, creating a monolithic one-piece exterior. Standard nominal thickness is 3/8”. This design combined with steel reinforcement plates buried beneath the fiberglass at hinge locations easily supports the weight of the door. Door edges are CNC machined for an accurate fit and smoothness.
• Frame – A variety of frame options are available.

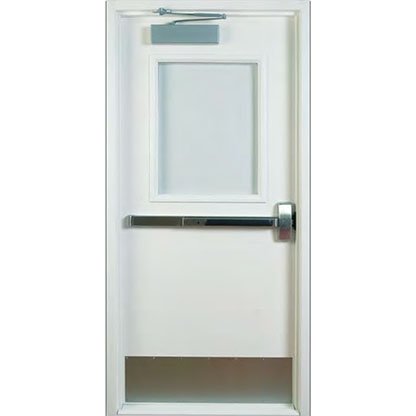

• Options – A variety of options including door frames, vision panels, locksets, door closer, panic bar, pull handle, push plates, kickplates and floor sill allow the door to be customized to meet the needs of each application.

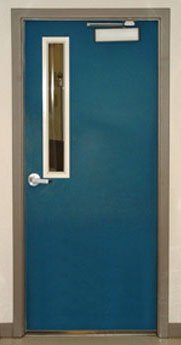

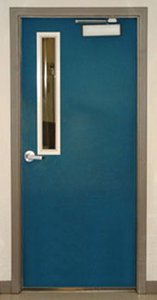

Durulite CR1400 Corrosion Resistant Door Systems

In high abuse interior applications, consider the Durulite CR1400 corrosion resistant door system. The CR1400 is impervious to acids, petroleum products, animal fats and cleaning solvents, and will take a punch like no other door system. The door panel is constructed using rotational molding technology, creating a one-piece outer skin of high density, cross-linked polyethylene. The interior core is ultra high density urethane foam. This combination results in a panel that will absorb impact and perform well in the most difficult conditions.

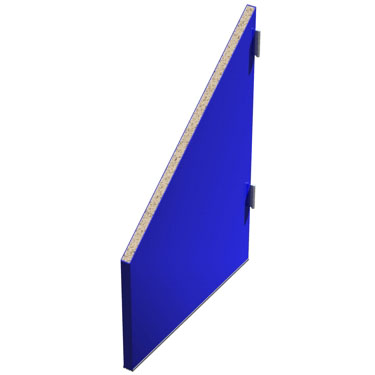

• Door Panel – Constructed with a 1/8” thick outer skin of cross-linked polyethylene with an ultra high density, NON-CFC urethane foamed-in-place core. The panel can retain its properties from -40°F to 150°F continuous service and 170°F intermittent service with temperature differences of up to 40°F. The overall thickness of the panel is 1-3/4”, yet weighs only 3.66 pounds per square foot, making it lightweight and easy to open.
• Gasketing – All doors come standard with a replaceable bottom sweep, and are available with a drop down seal. Full perimeter gasketing is also available.
• Insulation – The CR1400 has excellent insulation qualities with an EcoMate foamed-in-place NONCFC urethane core. Ecomate insulation is designed to be environmentally friendly; it was awarded VOC (Volatile Organic Compound or SMOG) Exempt Status by the EPA.
• Door Bottom – Capped with a powder coated aluminum extrusion and comes with a replaceable bottom weatherstripping.
• Options – A variety of options including door frames, vision panels, locksets, door closer, panic bar, pull handle, push plates, kickplates and floor sill allow the door to be customized to meet the needs of each application.

Corrosion Resistant Slab and Frame Systems

SINGLE DOOR FIRE RATED LABEL REQUIREMENTS:

• Door panels not to exceed 4'0" x 8'0".
• Doors must have a U.L. rated latch, i.e. lock set or passage set with 1/2" throw minimum or fire exit hardware.
• Doors must have a U.L. rated closer.
• Lites must be mounted in U.L. rated metallic frames.
• Maximum rating of 90 minutes.

DOUBLE DOOR FIRE RATED LABEL REQUIREMENTS:

• Door panels not to exceed 8'0" x 8'0".
• Doors must have a U.L. rated latch, i.e. lock set or passage set with 3/4" throw minimum, active leaf or fire exit hardware.
• Doors have flush bolts or surface bolts.
• Doors available with or without astragal.
• Lites must be mounted in U.L. rated metallic frames.
• Maximum rating of 60 minutes.

See Downloads tab for additional technical specifications.

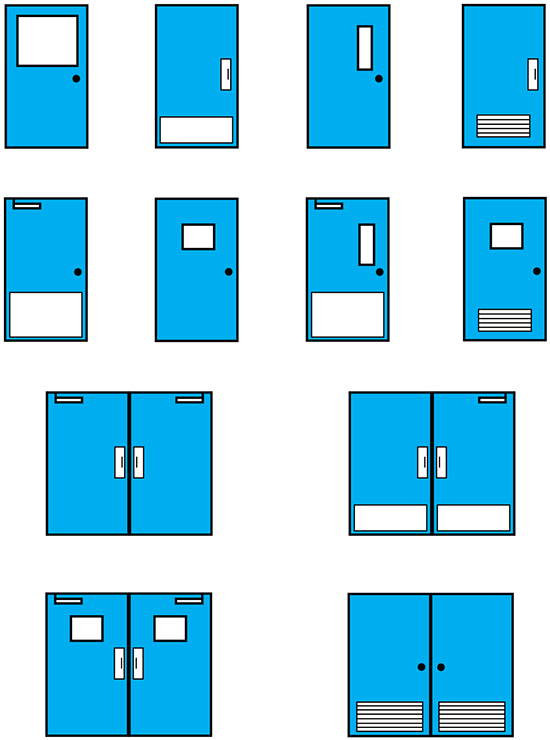

Fib-R-Dor Door System Configurations

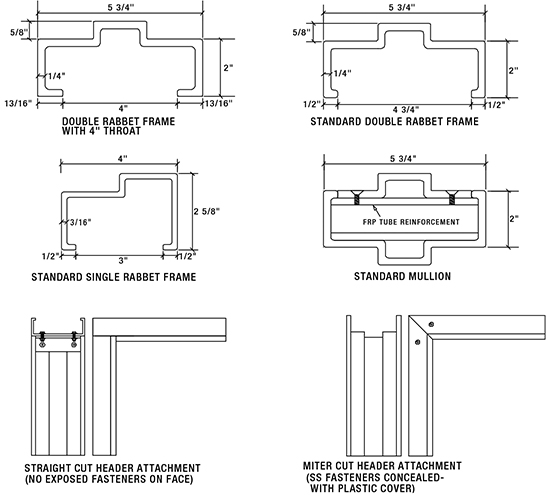

Fib-R-Dor Metal Frame Configurations

Markets Served

■ Aquariums
■ Beverage Companies
■ Chemical Plants
■ Electronic Manufacturers
■ Equipment Shelters and Portable Buildings
■ Food and Meat Processing
■ Hospitals
■ Locker Rooms and Swimming Pool Areas
■ Marine Installations
■ Military Bases
■ Mining Installations
■ Offshore Facilities
■ Petroleum Plants
■ Pharmaceutical Facilities
■ Power Plants
■ Pulp and Paper Plants
■ Rest Rooms and Shower Facilities
■ Sanitary and Clean Rooms
■ Universities and Schools
■ Waste and Water Treatment Plants
