Access Doors & Panels
Babcock-Davis' Access Doors and Panels are manufactured to solve a myriad of access needs.
Custom sizing, materials, and custom colors are available for your specific project.
- Designs
- Specifications

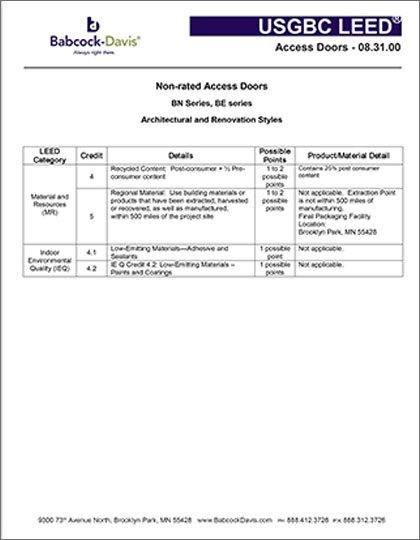

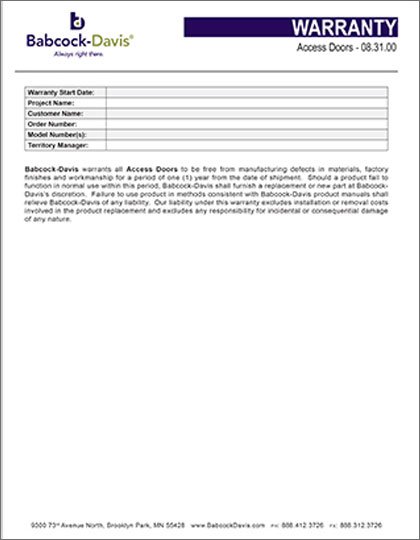

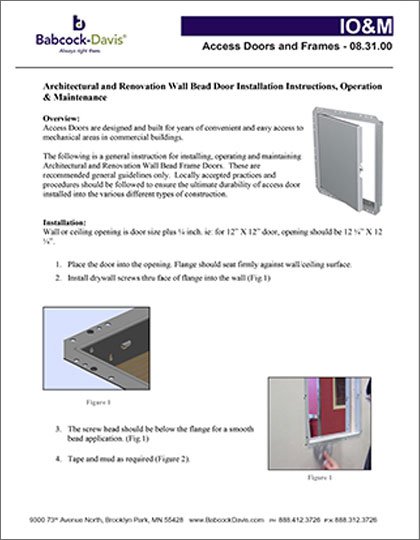

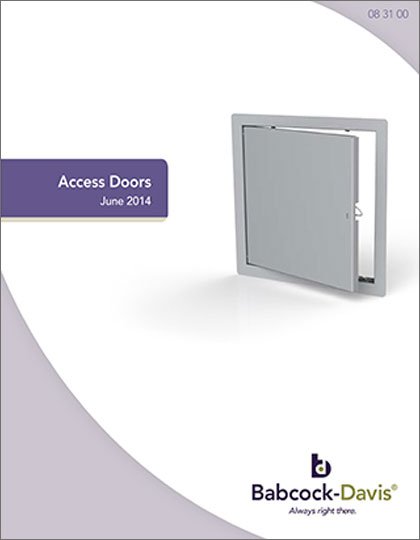

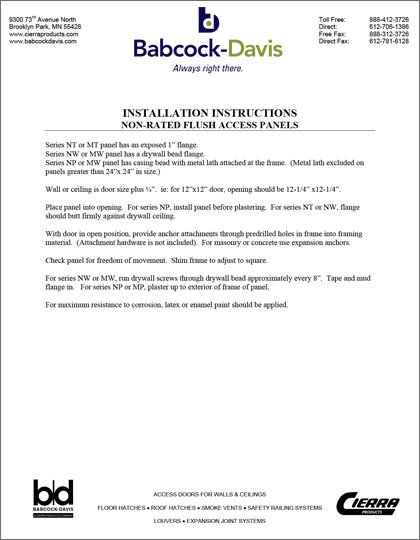

- Downloads
BNTC1212 - architectural
Close
BNTC1212 - architectural
Architectural flush panel
14 & 16 gauge cold rolled steel
Grey powder coat; galvanized option
12" x 12" model; 1/2" pan depth
Flange, latch & misc. options
14 & 16 gauge cold rolled steel
Grey powder coat; galvanized option
12" x 12" model; 1/2" pan depth
Flange, latch & misc. options
BETC1212 - renovation
Close
BETC1212 - renovation
Renovation flush panel
20 gauge cold rolled steel
Grey powder coat; galvanized option
12" x 12" model; 1/2" pan depth
Flange, latch & misc. options
20 gauge cold rolled steel
Grey powder coat; galvanized option
12" x 12" model; 1/2" pan depth
Flange, latch & misc. options
BPTL1212S - stainless steel
Close
BPTL1212S - stainless steel
Stainless steel flush panel
16 gauge T304 stainless steel
#4 satin polish finish
12" x 12" model; 1/2" pan depth
Latch & gasketing options
16 gauge T304 stainless steel
#4 satin polish finish
12" x 12" model; 1/2" pan depth
Latch & gasketing options
BRWC1212 - recessed
Close
BRWC1212 - recessed
Recessed flush panel
16 gauge cold rolled steel
Grey powder coat; galvanized option
12" x 12" model; 5/8" pan depth
Flange, latch & misc. options
16 gauge cold rolled steel
Grey powder coat; galvanized option
12" x 12" model; 5/8" pan depth
Flange, latch & misc. options
BITK1212 - insulated
Close
BITK1212 - insulated
Insulated, fire rated flush panel
16 & 20 gauge cold rolled steel
Grey powder coat; galvanized option
2" thick fire rated mineral fiber (UL:90 min, W-H:180 min)
Flange, latch & misc. options
16 & 20 gauge cold rolled steel
Grey powder coat; galvanized option
2" thick fire rated mineral fiber (UL:90 min, W-H:180 min)
Flange, latch & misc. options
BUTK1212 - uninsulated
Close
BUTK1212 - uninsulated
Uninsulated, fire rated flush panel
14 & 16 gauge cold rolled steel
Grey powder coat; galvanized option
UL fire rating: 90 min
Flange, latch & misc. options
14 & 16 gauge cold rolled steel
Grey powder coat; galvanized option
UL fire rating: 90 min
Flange, latch & misc. options
BMTM1818 - medium security
Close
BMTM1818 - medium security
Medium security flush panel
12 gauge cold rolled steel
Grey powder coat; galvanized option
18" x 18" model
Flange, latch & misc. options
12 gauge cold rolled steel
Grey powder coat; galvanized option
18" x 18" model
Flange, latch & misc. options
BHSD2424 - high security
Close
BHSD2424 - high security
High security flush panel
10 gauge cold rolled steel
Grey powder coat; galvanized option
24" x 24" model; 2" frame
Latch & misc. options
10 gauge cold rolled steel
Grey powder coat; galvanized option
24" x 24" model; 2" frame
Latch & misc. options
BTSD3636 - top security
Close
BTSD3636 - top security
Top security flush panel
7 gauge hot rolled steel
Grey powder coat; galvanized option
36" x 36" model; 1-1/4" pan depth
Latch & misc. options
7 gauge hot rolled steel
Grey powder coat; galvanized option
36" x 36" model; 1-1/4" pan depth
Latch & misc. options
BSTK1212 - fire rated security
Close
BSTK1212 - fire rated security
Insulated, fire rated security flush panel
14 & 16 gauge cold rolled steel
Grey powder coat; galvanized option
2" thick fire rated mineral fiber (UL:90 min)
Flange, latch & misc. options
14 & 16 gauge cold rolled steel
Grey powder coat; galvanized option
2" thick fire rated mineral fiber (UL:90 min)
Flange, latch & misc. options
BXTM1212 - exterior
Close
BXTM1212 - exterior
Exterior flush panel with mortise cylinder
24 gauge galvanneal steel
Paint grip & mill finish
12" x 12" model; 2-1/4" insulation (R11)
Latch & misc. options
24 gauge galvanneal steel
Paint grip & mill finish
12" x 12" model; 2-1/4" insulation (R11)
Latch & misc. options
Exterior Flush Access Door Features
Interior Flush Access Door Features
