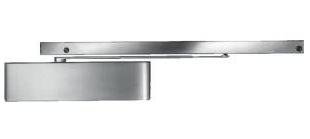

LCN 4040SE Series

The 4040SE SENTRONIC® is a heavy duty, non-handed, non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The 4040SE and SEL Series is UL listed for smoke barrier or labeled fire doors; cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.15; conforms to life safety code NFPA 101.

Designs
Specifications
Options
Finishes
Downloads

LCN 4040SE Series

• Commercial Application

• Non-Handed

• Adjustable Strength 1 to 4

• Track Single Lever Arm

• Closing Speed, Latching Speed and Backcheck Regulating Controls

• Cast Iron Body with Forged Steel Main Arm and 1-pc Forged Steel Piston

• Regular Push or Pull Side Mounting

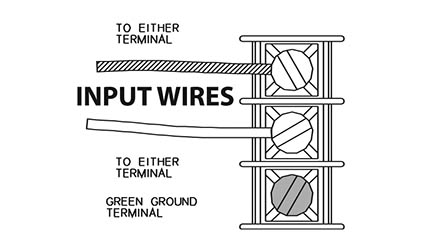

• Input Voltage: 24v AC or DC

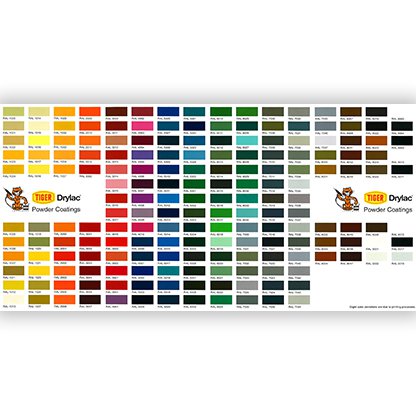

• Available in 7 standard powder coat finishes to blend with door and frame, plus a wide selection of optional custom finishes

• Warranty: 10 Years Mechanical, 2 Years Electronic

LCN 4040SE Specifications

Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify); SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
Non-sized cylinders for interior doors to 4'0".
Hold-open force is adjustable.
Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
Closer mounts on either push or pull side of the door.
Non-handed for mounting on either right or left hand door.
Concealed or surface wiring.
Interfaces with alarm systems. Consult Penner for full details.
Standard or optional custom powder coated finishes on cover and arm; optional plated finishes.
Door Type: Timber or Metal
Door Size: Internal Door 711mm - 1219mm
Applications: Regular – Pull Side Mount; Stop Face – Push Side Mount.
Adjustment Controls: Closing Speed; Latching Speed; Backcheck Strength: 1-4 Adjustable.
Options: Drop Plate; Adaptor Plate.
Warranty: 10 Years Mechanical components; 2 years Electrical components.

Performance Features

Universal, fully reversible, nonhanded door closer.
Closer cylinder constructed of high strength cast iron for
increased durability.
Tested to 10,000,000 cycles.
Fully adjustable 1-4 strength.
Shipped set to size 3.
Closer mounts on either pull or push side of the door.
Independent adjustment valves for adjusting backcheck, closing
and latching speeds.
Adjustable hold-open force.
24V DC input.
Concealed or surface wiring options.
Momentary on/off switch board assembly for testing door release,
as well as providing over-voltage protection. The switch board is
field replaceable.
Interfaces with fire alarm system.
Functions as a full rack and pinion closer when hold-open is not engaged or the current is interrupted.
Closers mounted according to LCN instructions require minimal periodic adjustments. Monthly, quarterly, and annual visual inspections are recommended.

Regulating Controls

The LCN 4040SE has independent regulators to control:

Closing Speed: Adjustment to increase or decrease the speed at which
the door closes. This allows the appropriate momentum to close the door
in a safe and secure manner. Closing speed adjustment operates from the maximum opening to 15°.

Latching Speed: The latching speed allows the door to close quietly and firmly. It can be adjusted to increase or decrease the speed at which the door finally closes. This assists the final stage of the closing cycle to help overcome stubborn latchbolts or air pressure conditions. The latching speed adjustment operates from 15° to closing.

Backcheck: Adjustable hydraulic backcheck provides a cushioning effect when the door is forcibly thrown open to prevent damage to the closer, door and frame. The backcheck adjustment allows the level of resistance
in the latter stage of opening to be set at the level required. Backcheck is effective from 75°. Backcheck is a requirement for all fire rated closers.

Hold-Open: Suitable for fire or smoke barrier doors where the door may need to be left in a hold-open position in normal operating conditions. The hold-open function will release and automatically close the doors under fire conditions. The hold-open function can be set to hold-open at 3° increments between 85° and 110°.

Momentary On/Off Switch: This allows testing of the door release, and has been designed for this purpose only. Where the closer is to be open and shut on a regular basis, we recommend that an external control switch is mounted adjacent to the door to switch off the hold-open function as to allow the door to shut when required.

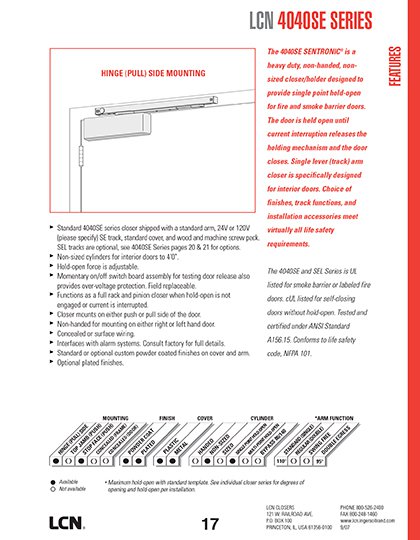

Mounting Details

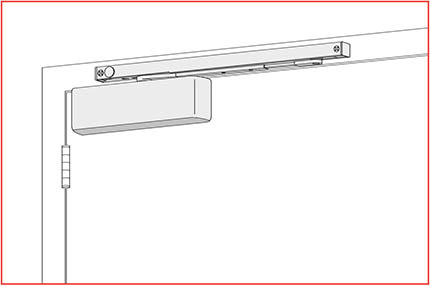

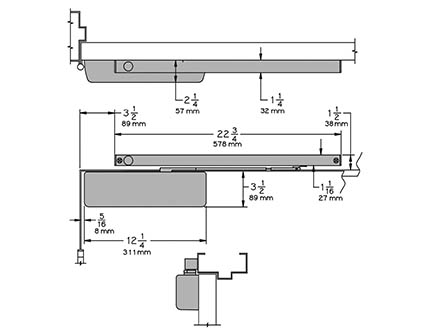

Hinge (Pull Side) Mounting:Maximum opening templating allows 110°: Hold-open points between 85° and 110° in approximately 3° increments. Pull side mounting on a double egress frame requires a handed double egress arm. Maximum hold-open to 95°: 2-11/16” (67 mm) maximum reveal on pull side. SEL track provides hold-open points between 90° and 120°‚ in approximately 3° increments. SE, SEL ELECTRICAL OPTIONS: These track assemblies require a single power circuit for the holding solenoid. SE or SEL holding solenoid is either 24V or 120V input, please specify. An optional 4040SE-3210 TRANSFORMER reduces 120V AC line voltage to 24V AC. Circuitry accepts either AC or DC input.

Butt Hinges should not exceed 5" (127 mm) in width.
Swing Clear Hinges consult factory.
Auxiliary Stop is recommended at hold-open point.
Reveal should not exceed 1/8" (3 mm) for standard arm. Should not exceed 2-11/16" (68 mm) for double egress arm.
Top Rail minimum 3-1/2" (89 mm).
Installation with PLATE, 4040SE-18 requires SPECIAL TEMPLATE and 1-3/4" (44 mm) minimum top rail.
Head Frame requires 2" (51 mm) minimum.
Flush Ceiling with 2" (51 mm) head frame does not require special templating.
Door Width 2'4" (711 mm) minimum for single door with SE.
4'8" (1422 mm) minimum for paired doors with SE.
Clearance of 2-3/8" (60 mm) behind door required for 90° installation.

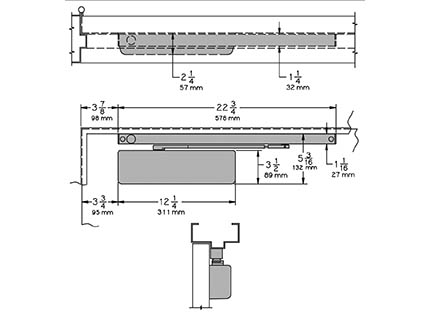

Stop Face (Push Side) Mounting: Information applies to 4040 SE closers unless otherwise specified. Maximum opening templating allows 110°: Hold-open points between 85° and 110° in approximately 3° increments. SEL track provides hold-open points between 90° and 120°‚ in approximately 3° increments. SE, SEL ELECTRICAL OPTIONS: These track assemblies require a single power circuit for the holding solenoid. SE or SEL holding solenoid is either 24V or 120V input, please specify. An optional 4040SE-3210 TRANSFORMER reduces 120V AC line voltage to 24V AC. Circuitry accepts either AC or DC input.

Butt Hinges should not exceed 5" (127 mm) in width.
Auxiliary Stop is recommended at hold-open point.
Top Rail minimum 5-3/4" (146 mm).
Installation with PLATE, 4040SE-18PA requires SPECIAL TEMPLATE and 2" (51 mm) minimum top rail.
Stop Width 1-1/4" (32 mm) minimum.
Door Width 2'4" (711 mm) minimum for single door with SE.
4'8" (1422 mm) minimum for paired doors with SE.

Closer Selection Chart

Select closer based on width of door:

Strength	Exterior Door	Interior Door
3	N/A	711mm – 965mm
4	N/A	965mm – 1219mm

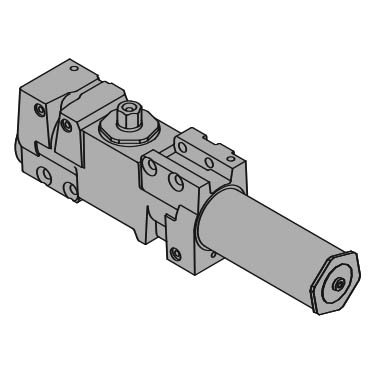

4040SE-3071 cylinder

Standard, non-handed cast iron cylinder assembly

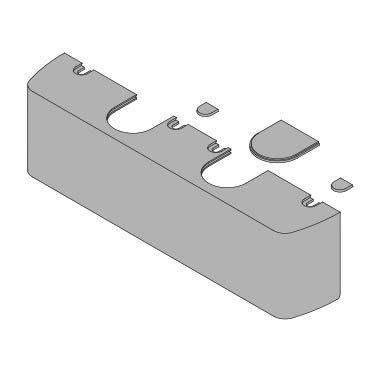

4040SE-72 cover

Standard, non-handed plastic cover

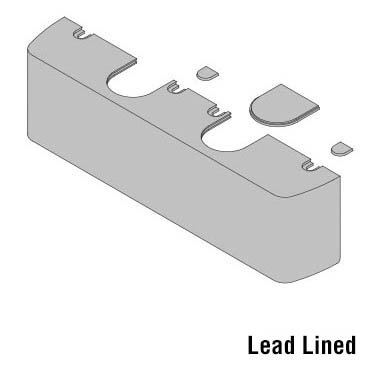

4040SE-72LL cover

Lead lined, non-handed cover

4040SE-72MC cover

Handed metal cover

Required for plated finishes and custom powder coat finishes

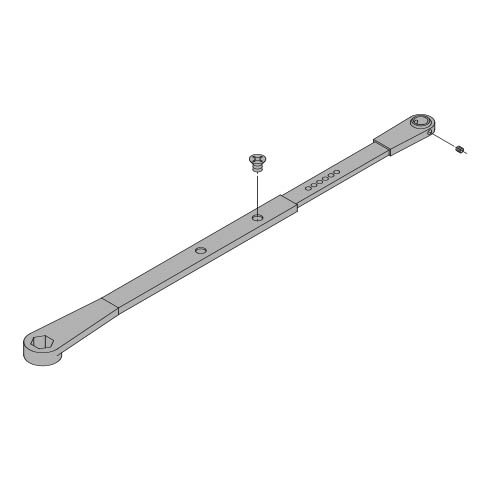

4040SE-3077T arm

Non-handed standard arm, adjustable to select hold-open point

4040SE-3077DE arm

Handed, double egress arm for pull side installations on double egress doors and frames

Not required for push side mounting on double egress frames

4040SE-3038 track

Standard non-handed track for SE closers

Mounts on either head frame or stop

Specify: 24V or 120V AC/DC input for holding solenoid

Includes test switch assembly with fuse

4040SEL-3038 track

Long non-handed track mounts on either head frame or stop

Specify: 24V or 120V AC/DC input standard for holding solenoid

Includes test switch assembly with fuse
