High Definition

Masonite Steel doors feature high-definition decorative panel profiles that closely replicate the appearance of a high-end wood door with the ultimate in security.

Masonite® HD Steel doors have a baked-on primer for a more durable finish.

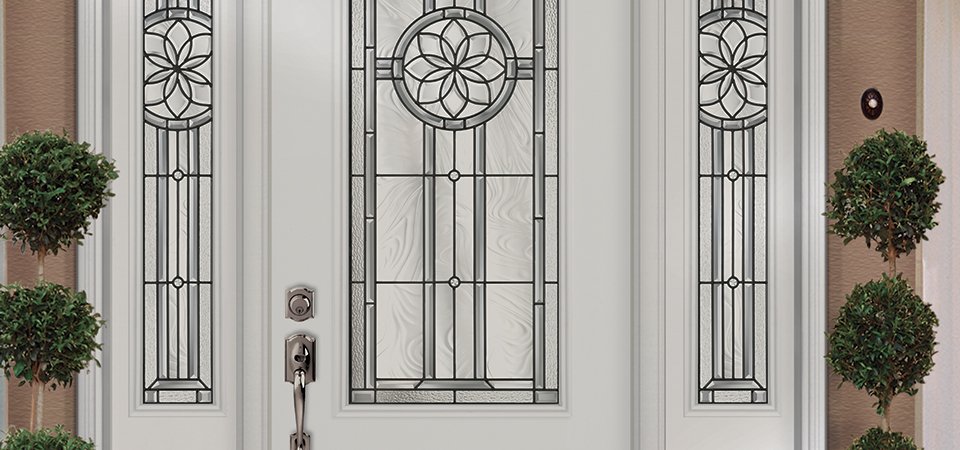

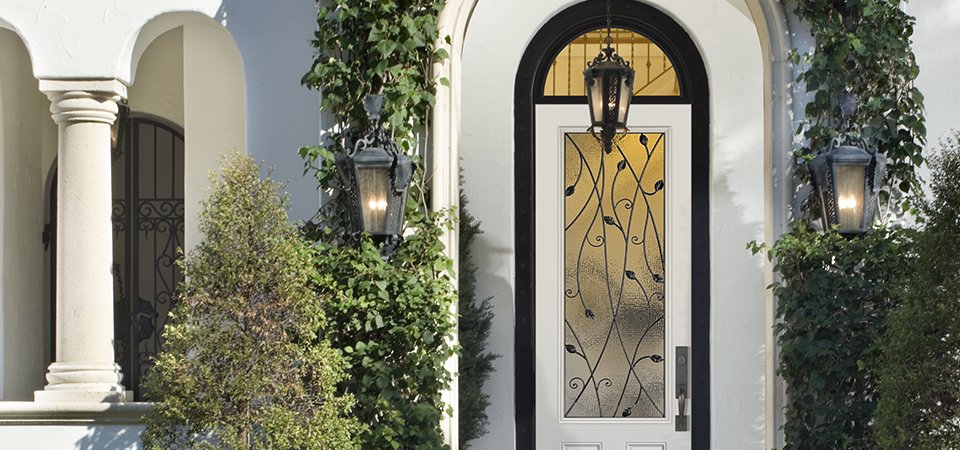

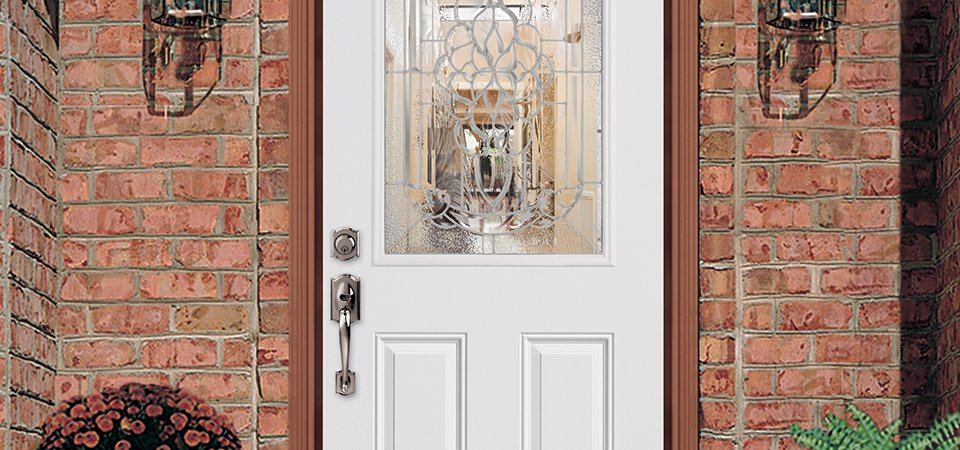

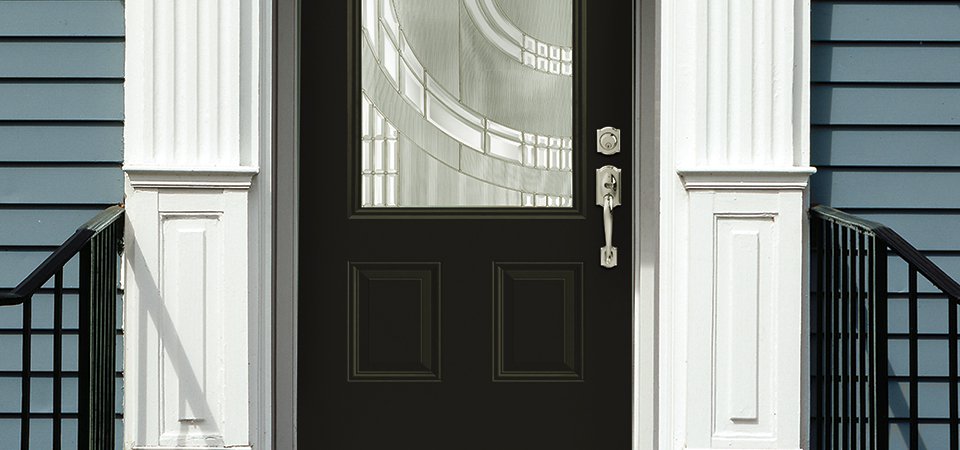

They truly make a statement with the addition of Masonite’s glass inserts for a grand entrance.

Designs
Specifications

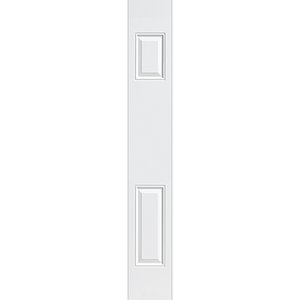

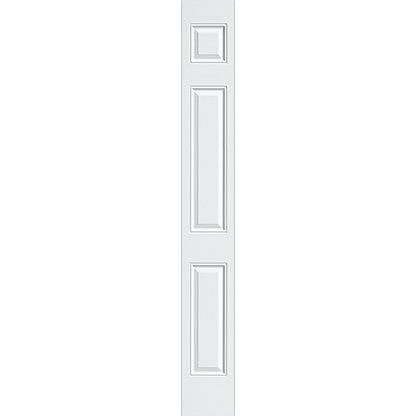

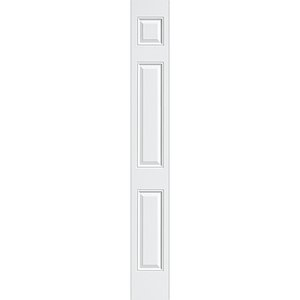

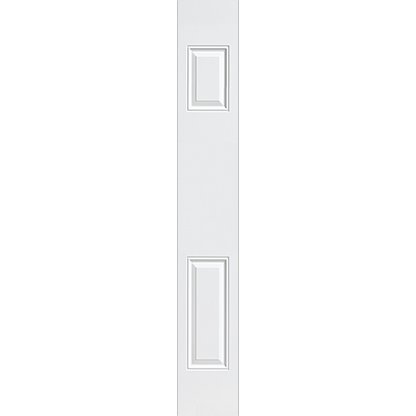

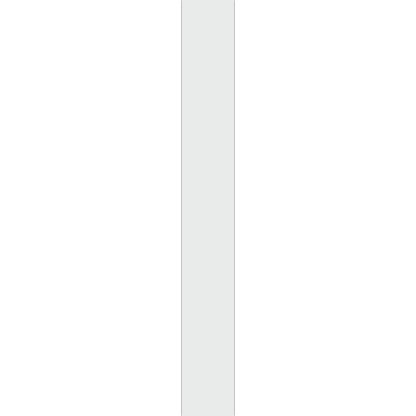

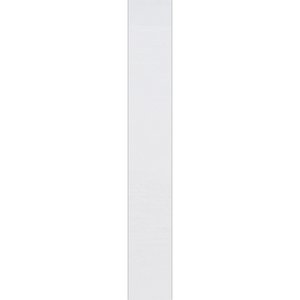

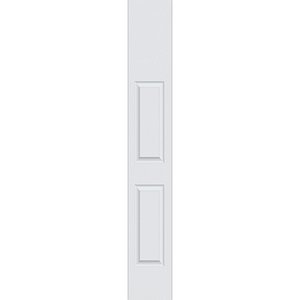

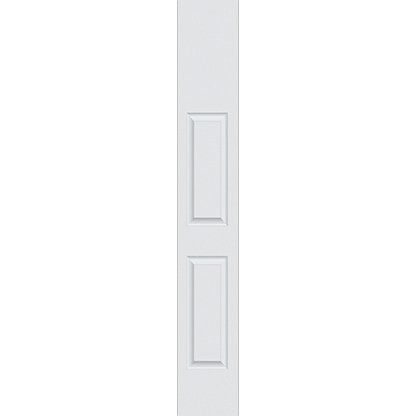

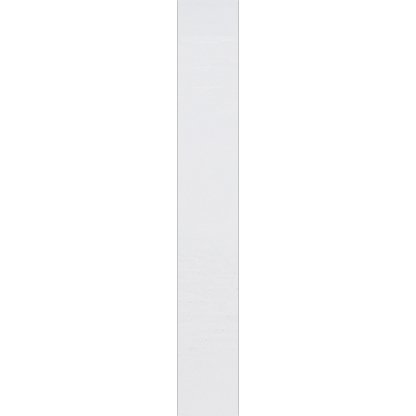

Sidelites
Downloads

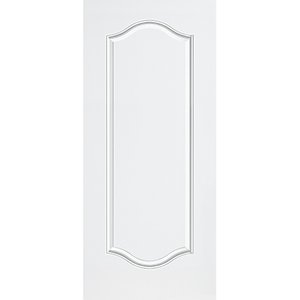

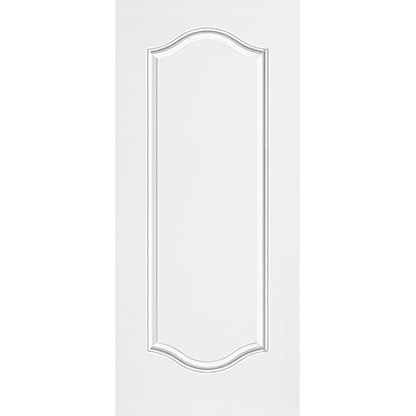

6'8" - MHD-1

Arched 1 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

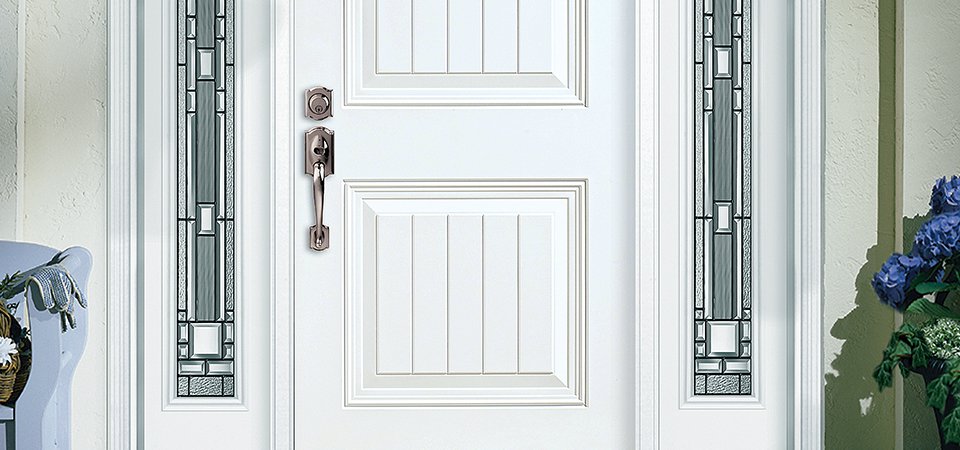

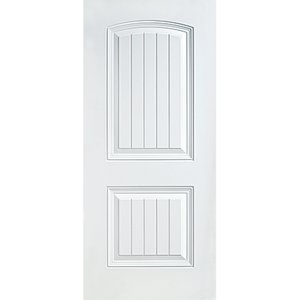

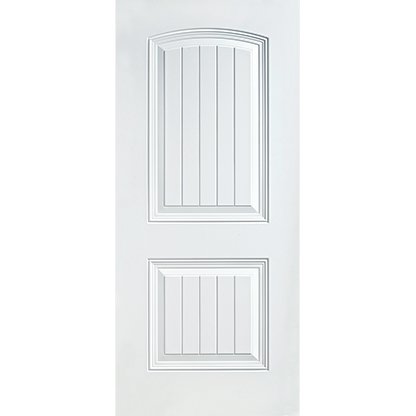

6'8" - MHD-2P

Camber top 2 panel plank

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

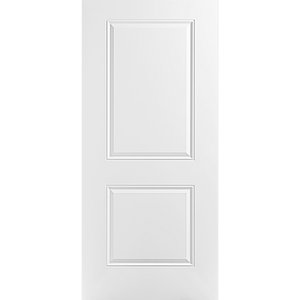

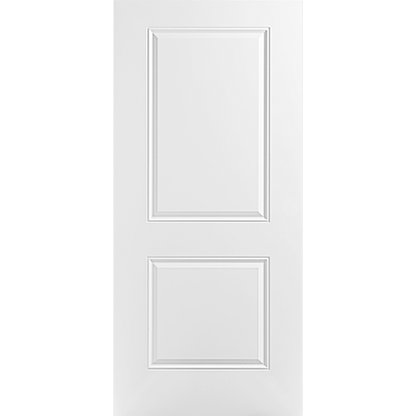

6'8" - MHD-2ST

Square top 2 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

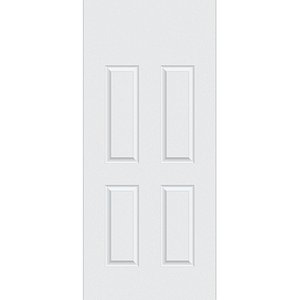

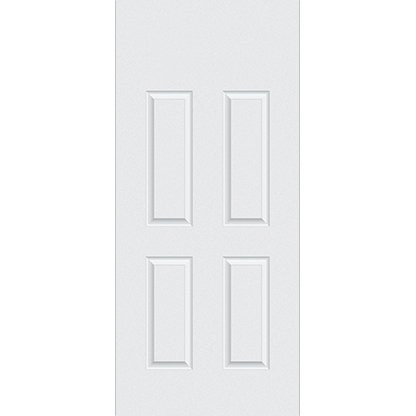

6'8" - MHD-4BT

4 panel blank top

Specify wood-edge
or steel-edge

Widths: 2/6, 2/8, 2/10, 3/0

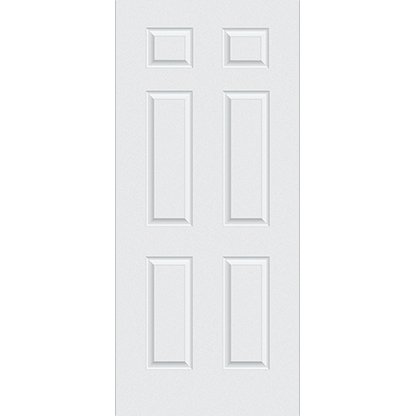

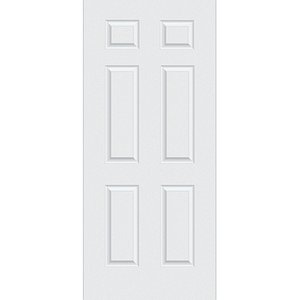

6'8" - MHD-6

6 panel

Specify wood-edge
or steel-edge

Widths: 2/6, 2/8, 2/10, 3/0

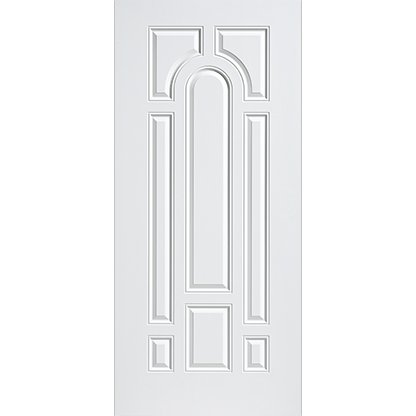

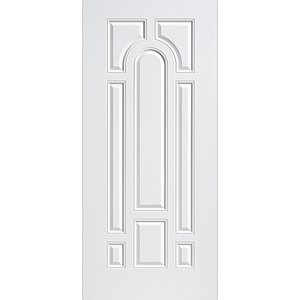

6'8" - MHD-8

8 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

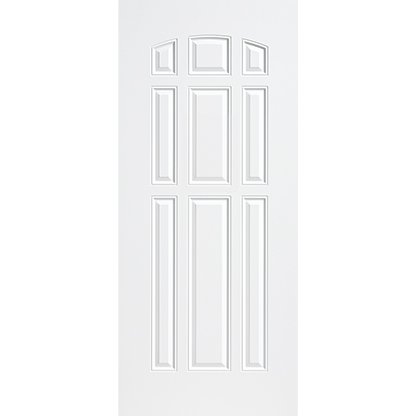

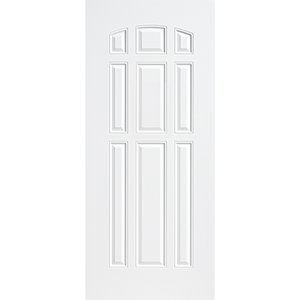

6'8" - MHD-9

9 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

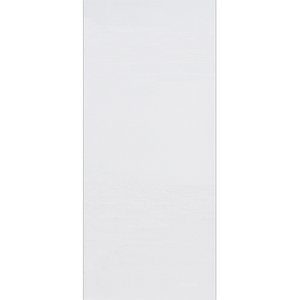

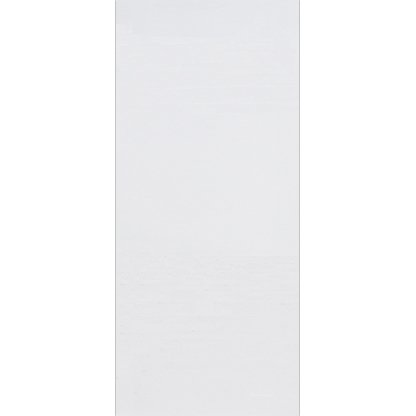

6'8" - MHD-X

Flush

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

6'8" - SHD-2

Hollister ST 2 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

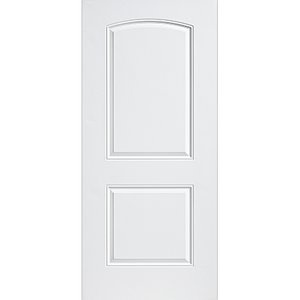

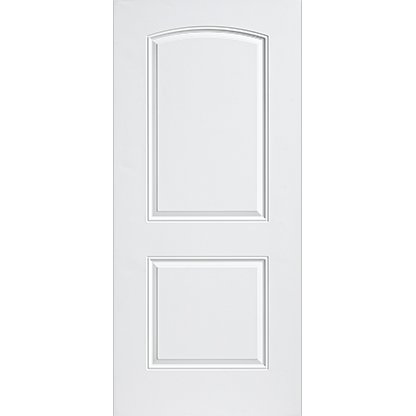

6'8" - SHD-2R

Camber top 2 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

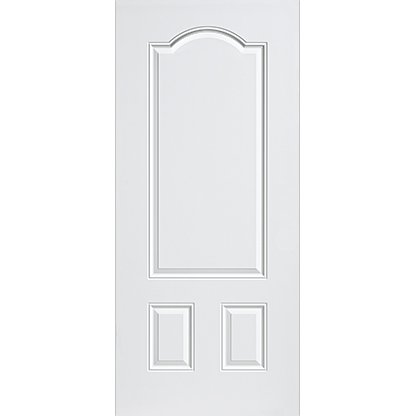

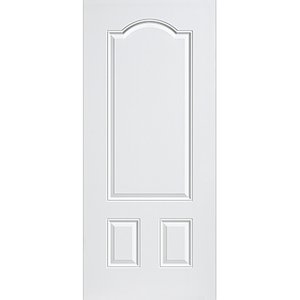

6'8" - SHD-3

Arch top 3 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

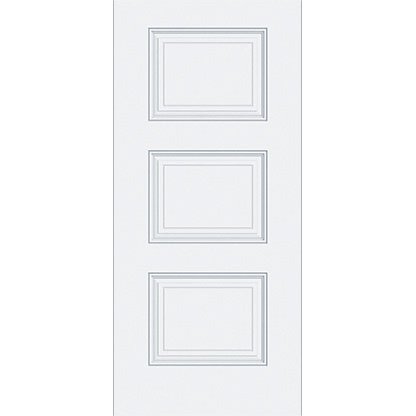

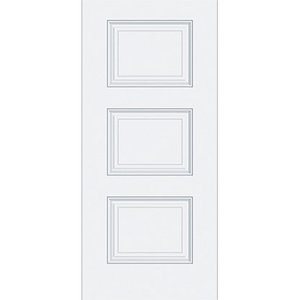

6'8" - SHD-3E

3 panel equal

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

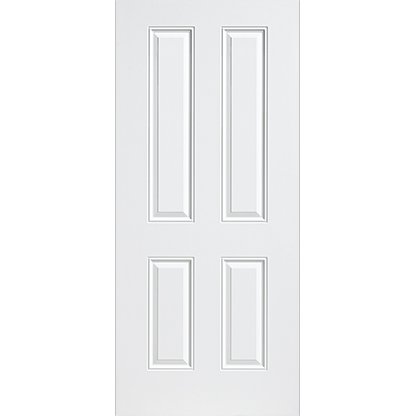

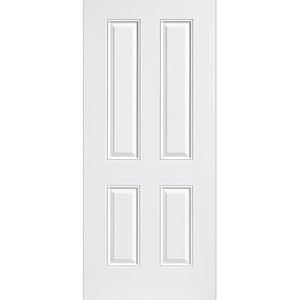

6'8" - SHD-4NE

New England 4 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

7'0" - MHD-4BT

4 panel blank top

Specify wood-edge
or steel-edge

Widths: 2/6, 2/8, 2/10, 3/0

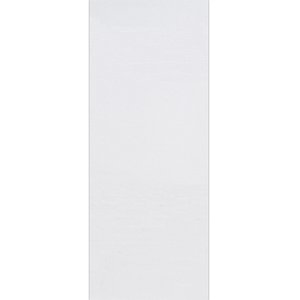

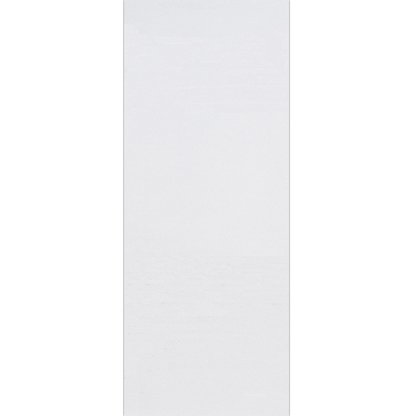

7'0" - MHD-X

Flush

Specify wood-edge
or steel-edge

Widths: 2/0, 2/6, 2/8, 2/10, 3/0

7'0" - SHD-2

Hollister ST 2 panel

Specify wood-edge
or steel-edge

Width: 3/0 only

7'0" - SHD-3E

3 panel equal

Specify wood-edge
or steel-edge

Width: 3/0 only

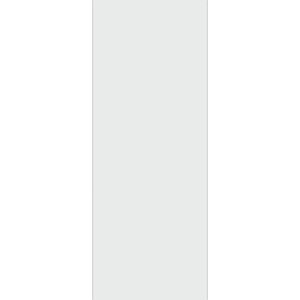

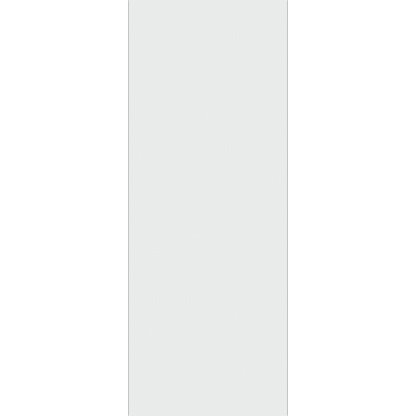

8'0" - MDH-X

Flush

Specify wood-edge
or steel-edge

Widths:
2/0, 2/6, 2/8, 2/10, 3/0

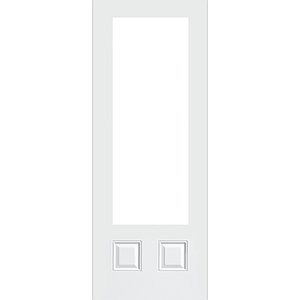

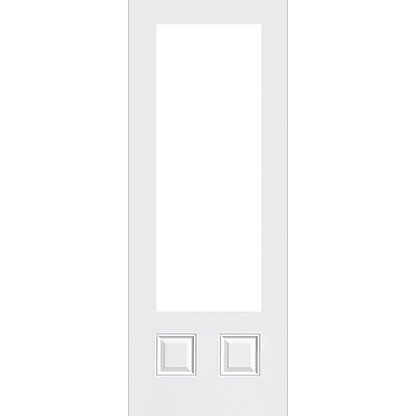

8'0" - MHD-2

2 panel with 23x65 cutout

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

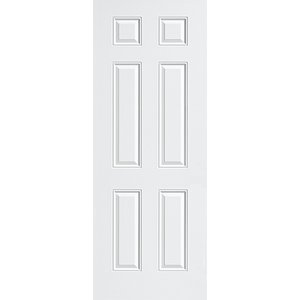

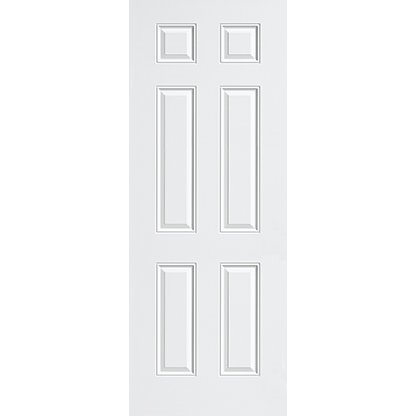

8'0" - SHD-6

6 panel

Specify wood-edge
or steel-edge

Widths: 2/8, 2/10, 3/0

High Definition Steel Characteristics

Durable, secure and long lasting
Resists rotting, splitting and cracking
Insulates better than wood*
Smooth primer fnish is easy to paint

*Based on insulating characteristics of polyurethane foam core compared to wood.

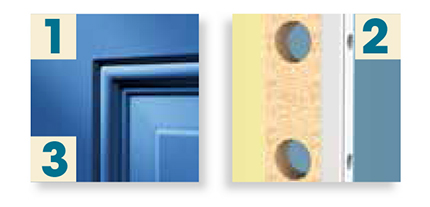

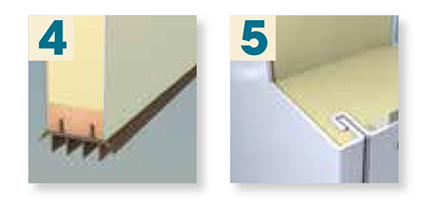

Standard Features for both Steel-Edge & Wood-Edge

High-Definition Panel Profile: Creates excellent shadow lines and distinct panel designs.
Internal Blocking: Lock area is reinforced to provide solid mounting surface.
Factory Finish: Masonite® HD features a baked-on primer for a more durable finish.
Rot-Resistant Bottom Rail: High-performance composite material is utilized on all bottom rails.

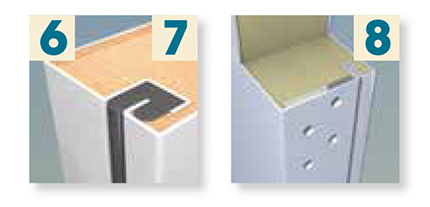

Steel-Edge Specific Features:

Interlocking Steel-Edge has six 90° steel bends in each edge to ensure stability and resist warping
Square-Edge Design for wood door appearance
Vinyl Extrusion locks facings together to provide an insulated thermal barrier
Steel Reinforcements for flush mounted hinges to help prevent hinge sag
90-minute fire label available (opaque doors only)
Masonite® HD limited 15 year warranty

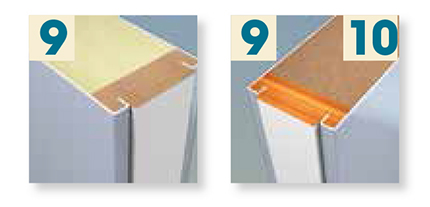

Wood-Edge Specific Features:

Engineered Construction with fnger-jointed hinge stile and laminated lumber lock stile
Interlocking Design with grooved stiles add strength and structural rigidity; steel facings wrap over stiles with a “J” bend
20-minute fire label available (opaque doors only)

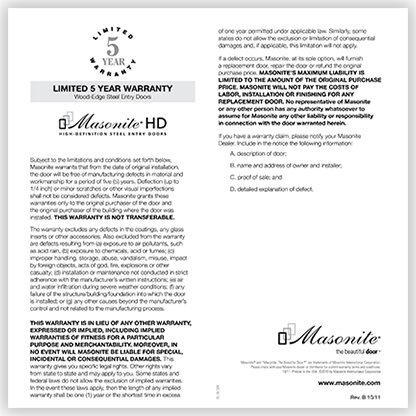

Masonite® HD limited 5 year warranty

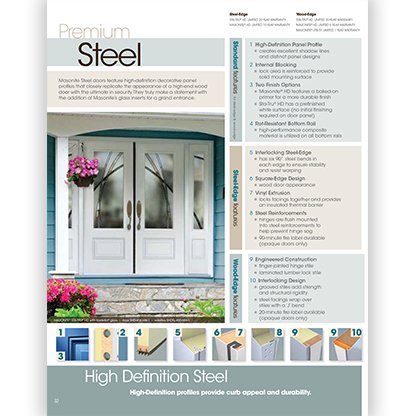

See Downloads tab for additional information.
