                Series 98-99

                Von Duprin push pad exit devices are available in two external surface styles, designated 98 Series and 99 Series.

                The two styles are mechanically and dimensionally identical and provide a wide selection of appearance options.

                The Quiet One®, furnished on all 98/99™ series exit devices, is a fluid dampener that decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations.

                Von Duprin's Quiet Electrified Latch (QEL) exit device is ideal for hospital nurseries and patient rooms, libraries, museums and theaters that require electrified hardware to operate at whisper-quiet levels.

                All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

                The XP98/99 Rim Exit Device offers increased security with a new latch bolt concept that is easily upgradable on existing 98/99 models.

                • Specifications
                • Devices
                • Trim
                • Options
                • Finishes
                • Downloads

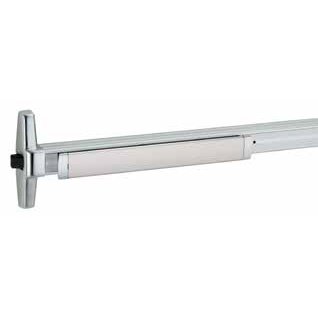

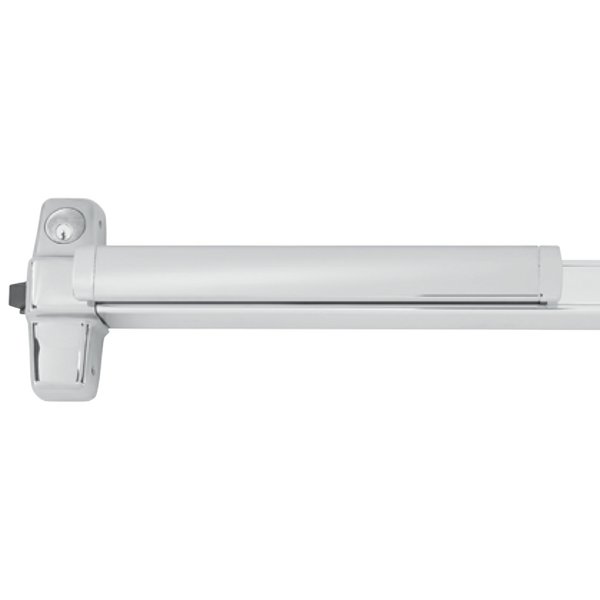

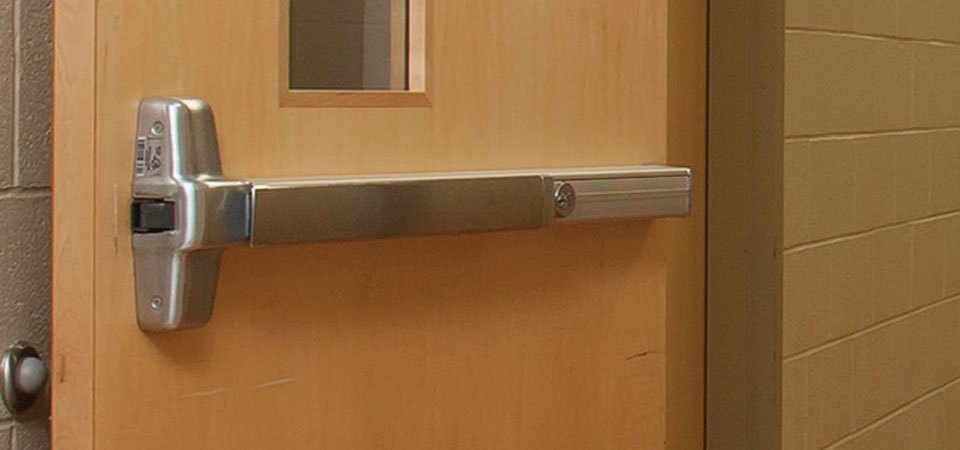

                98/99 rim





                Close

                98/99 rim

                For all types of single and double doors with mullion

                Non-handed

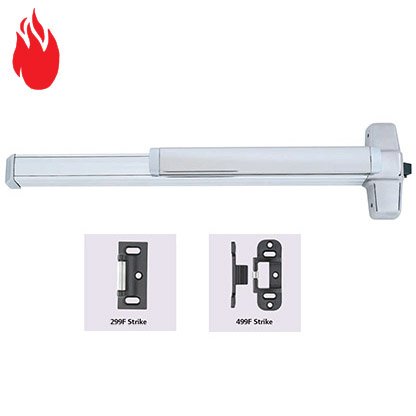

                98-F/99-F - rim fire exit





                Close

                98-F/99-F - rim fire exit

                For all types of single doors up to 4' x 10', or 8' x 10' double doors with 9954 or 9854 mullion

                Non-handed; UL listed

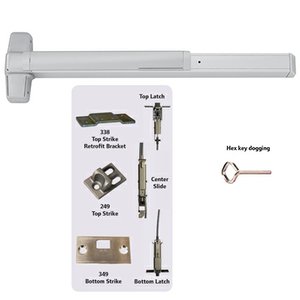

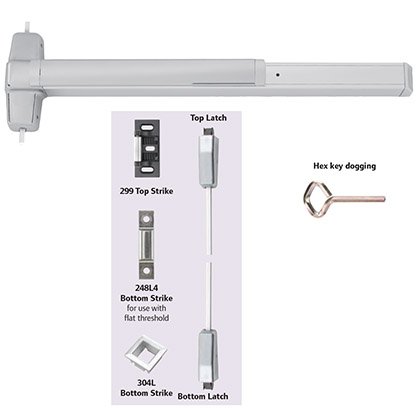

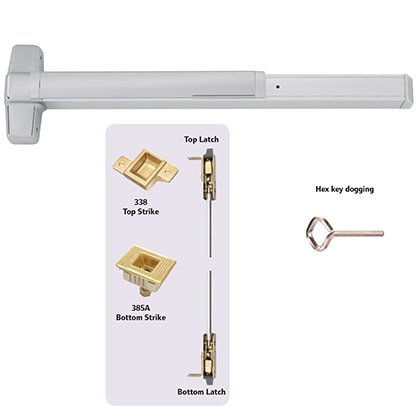

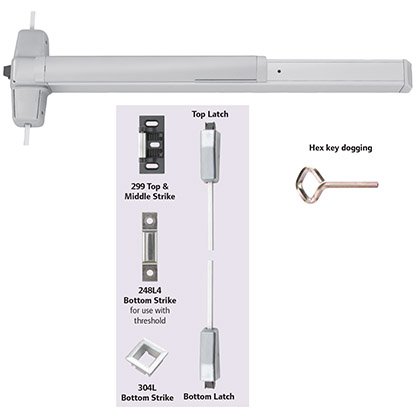

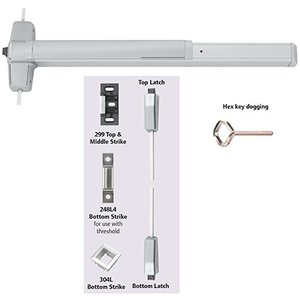

                9827/9927 - surface mount vertical rod





                Close

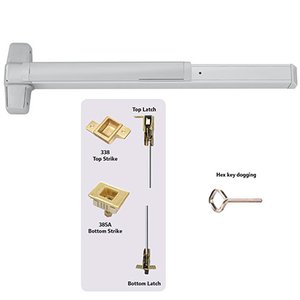

                9827/9927 - surface mount vertical rod

                For all types of single or double doors

                Non handed; UL listed

                Covers 86 or 161 cutouts

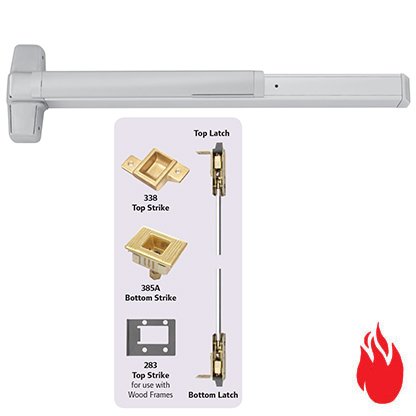

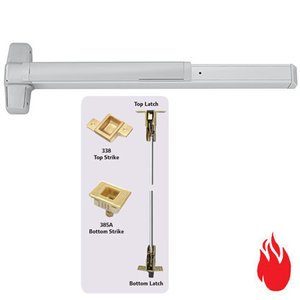

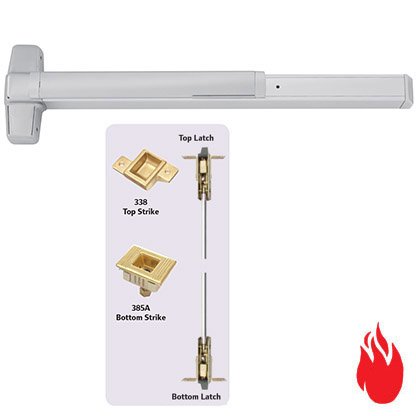

                9827-F/9927-F - fire surface mount vertical rod





                Close

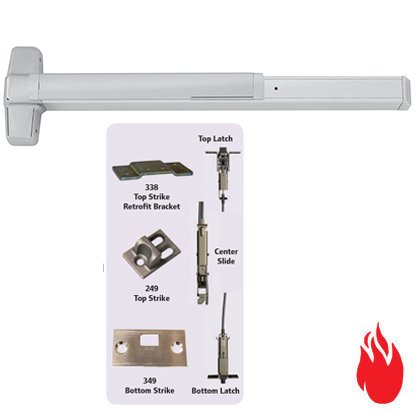

                9827-F/9927-F - fire surface mount vertical rod

                For pairs of doors up to 8' x 10'

                Non-handed; UL listed

                Optional rod and latch guards to protect bottom from damage

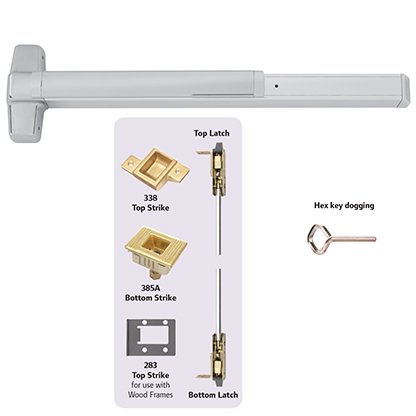

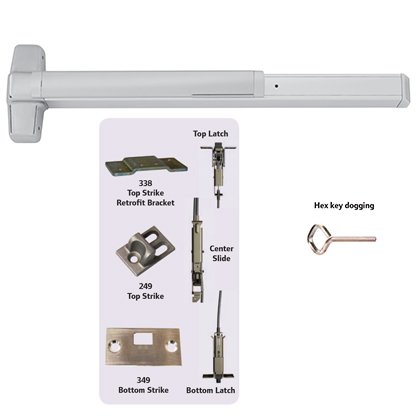

                9847/9947 - concealed vertical rod





                Close

                9847/9947 - concealed vertical rod

                For use on single or double metal doors

                Non-handed; UL listed

                9847-F/9947-F - fire concealed vertical rod





                Close

                9847-F/9947-F - fire concealed vertical rod

                For use on pairs of doors up to 8' x 10'

                Non-handed; UL listed

                9847WDC/9947WDC - concealed vertical cable





                Close

                9847WDC/9947WDC - concealed vertical cable

                For use on single or double wood doors

                Non-handed; UL listed

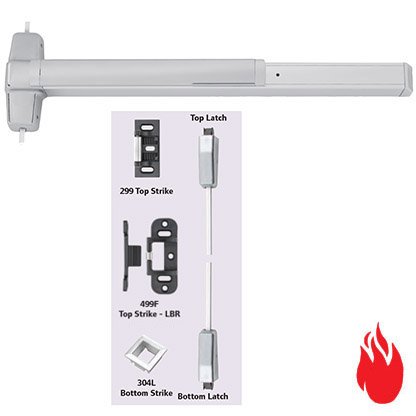

                9847WDC-F/9947WDC-F - fire concealed vertical cable





                Close

                9847WDC-F/9947WDC-F - fire concealed vertical cable

                For use on pairs of doors, up to 8' x 9' 3" double wood doors

                Non-handed; UL listed

                9848/9948 - concealed vertical rod





                Close

                9848/9948 - concealed vertical rod

                For use on single or double metal doors

                Non-handed; UL listed

                Covers 86 or 161 cutouts

                9848-F/9948-F - fire concealed vertical rod





                Close

                9848-F/9948-F - fire concealed vertical rod

                For use on pairs of doors up to 8' x 10'

                Non-handed; UL listed

                9849/9949 - concealed vertical cable





                Close

                9849/9949 - concealed vertical cable

                For use on single or metal doors

                Non-handed; UL listed

                9849-F/9949-F - fire concealed vertical cable





                Close

                9849-F/9949-F - fire concealed vertical cable

                For use on pairs of doors up to 8' x 10'

                Non-handed; UL listed

                9849WDC/9949WDC - concealed vertical cable





                Close

                9849WDC/9949WDC - concealed vertical cable

                For use on single or double wood doors

                Non-handed; UL listed

                9849WDC-F/9949WDC-F - fire concealed vertical cable





                Close

                9849WDC-F/9949WDC-F - fire concealed vertical cable

                For use on pairs of doors, up to 8' x 9' 3" double wood doors

                Non-handed; UL listed

                9857/9957 - 3-point latching





                Close

                9857/9957 - 3-point latching

                For all types of single or double doors

                Non-handed; UL listed

                Covers 86 or 161 cutouts

                Optional rod and latch guards to protect bottom from damage

                9857-F/9957-F - fire 3-point latching





                Close

                9857-F/9957-F - fire 3-point latching

                For all types of single doors up to 4' x 8', or up to 8' x 8' double doors with 9954 or 9854 mullion

                Non-handed; UL listed

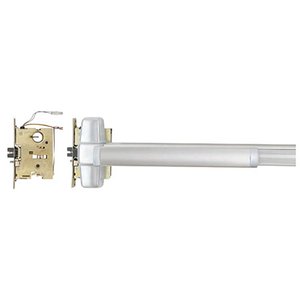

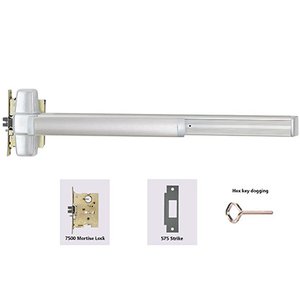

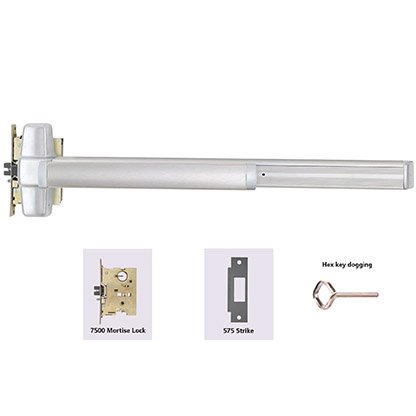

                9875/9975 - mortise lock





                Close

                9875/9975 - mortise lock

                For all types of single or double doors

                Non-handed; covers 86 cutout, fits door stiles as narrow as 4-3/4"

                Field reversible, anti-friction latch bolt

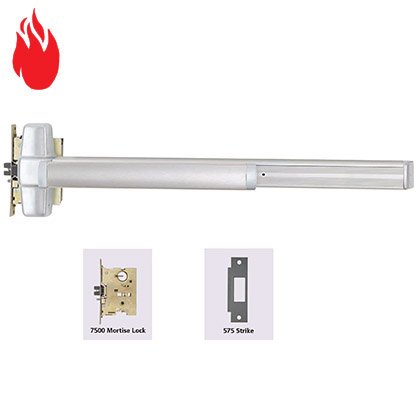

                9875-F/9975-F - fire mortise lock





                Close

                9875-F/9975-F - fire mortise lock

                For all types of single doors up to 4' x 10', or 8' x 10' double doors

                Non-handed; UL listed

                Fits door stiles as narrow as 4-3/4"

                Field reversible, anti-friction latch bolt

                110NL-WD





                Close

                110NL-WD

                Key retracts latchbolt

                Optional pull required

                374T / 376T - thumbturn





                Close

                374T / 376T - thumbturn

                Standard: key locks and unlocks

                Optional: key unlocks, re-locks when key removed

                Use 1-1/4" mortise cylinder with straight cam

                Use with pull trim (990DT)

                374T-BE / 376T-BE - thumbturn





                Close

                374T-BE / 376T-BE - thumbturn

                Blank escutcheon, always operable (no cylinder)

                Use with pull trim (990DT)

                696DT - dummy trim





                Close

                696DT - dummy trim

                Pull when dogged

                (Not recomended for fire device)

                696NL - night latch





                Close

                696NL - night latch

                Key retracts latchbolt

                696TP-BE - thumbpiece blank escutcheon





                Close

                696TP-BE - thumbpiece blank escutcheon

                Always operable (no cylinder)

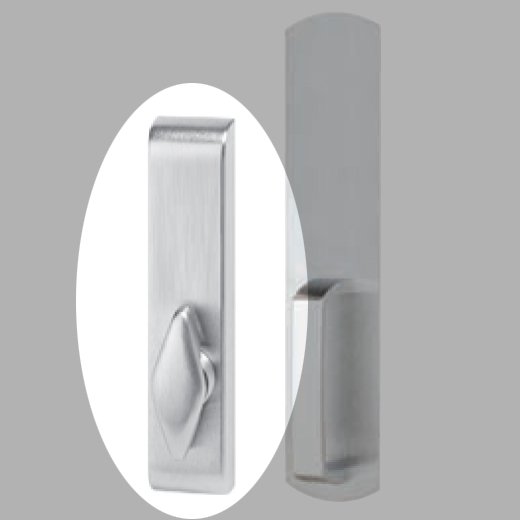

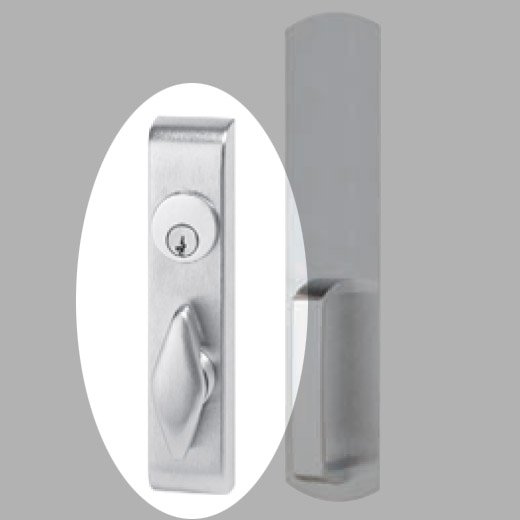

                696TP - thumbpiece





                Close

                696TP - thumbpiece

                Key locks and unlocks

                697DT - dummy trim





                Close

                697DT - dummy trim

                Pull when dogged

                (Not recomended for fire device)

                697NL - night latch





                Close

                697NL - night latch

                Key retracts latchbolt

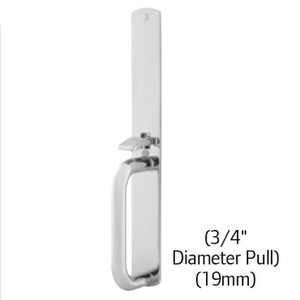

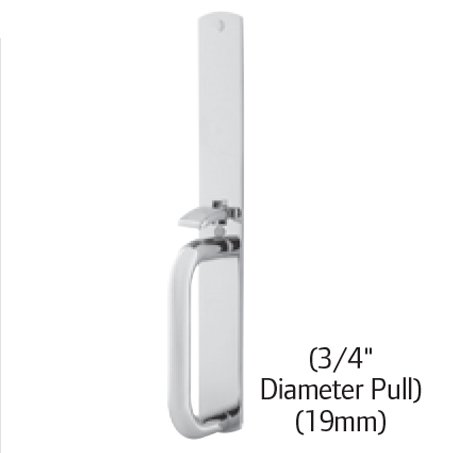

                697TP-BE - thumbpiece blank escutcheon





                Close

                697TP-BE - thumbpiece blank escutcheon

                Always operable (no cylinder)

                (3/4" diameter pull)

                697TP - thumbpiece





                Close

                697TP - thumbpiece

                Key locks and unlocks

                (3/4" diameter pull)

                990DT - dummy trim





                Close

                990DT - dummy trim

                Pull when dogged

                990NL-R/V - night latch





                Close

                990NL-R/V - night latch

                Key retracts latchbolt

                996L-BE-R/V - blank escutcheon





                Close

                996L-BE-R/V - blank escutcheon

                Always operable (no cylinder)

                Electrified lever operation available

                996L - breakaway lever





                Close

                996L - breakaway lever

                Standard: key locks and unlocks

                Optional: key unlocks, re-locks when key removed

                Use 1-1/4" mortise cylinder with straight cam

                Use with pull trim

                996L-DT - dummy trim





                Close

                996L-DT - dummy trim

                Pull when dogged

                996L-NL-R/V - night latch





                Close

                996L-NL-R/V - night latch

                Key retracts latchbolt

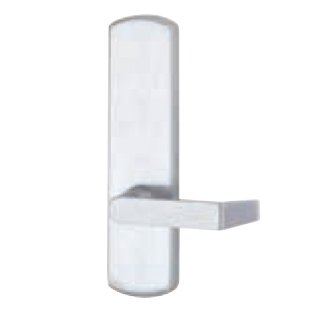

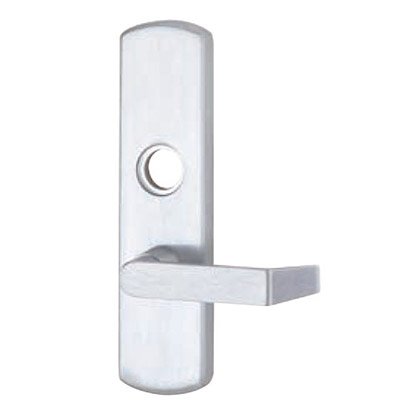

                996L-R/V - lever





                Close

                996L-R/V - lever

                Key locks & unlocks

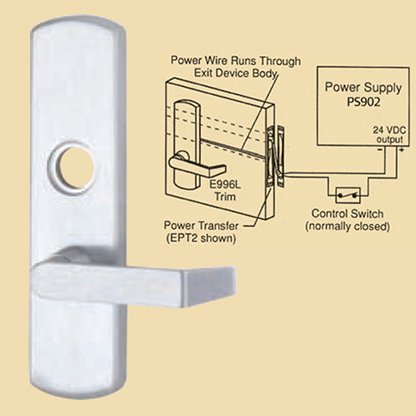

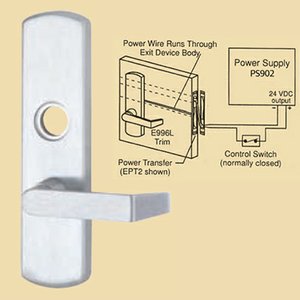

                E996L - electrified breakaway lever





                Close

                E996L - electrified breakaway lever

                Remote locking and unlocking

                Fail safe or fail secure

                Nightlatch cylinder or blank escutcheon

                HL6 - hospital latch





                Close

                HL6 - hospital latch

                Glynn-Johnson push/pull paddle trim

                Standard architectural finishes; fully ADA compliant

                Use with Von Duprin 98/9975 mortise lock exit device

                IVES VR910 & VR914





                Close

                IVES VR910 & VR914

                Vandal resistant trim

                11 ga stainless steel

                Built-in lock protector; cylinder collar

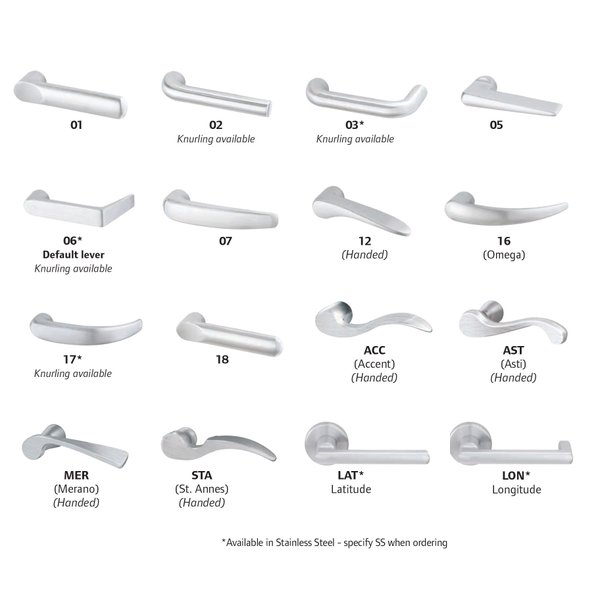

                Mounting hardware included

                16 lever styles





                Close

                16 lever styles

                Available in all device finishes (see catalogue page 7)

                5 styles available in stainless steel (specify SS)

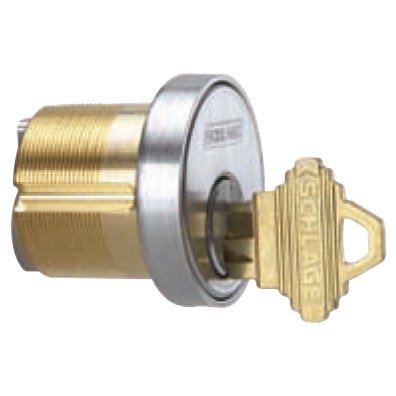

                3215 - mortise cylinder





                Close

                3215 - mortise cylinder

                Schlage “C” keyway

                Custom keying not available

                Specify finish

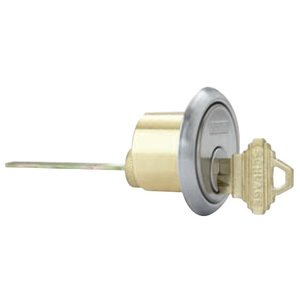

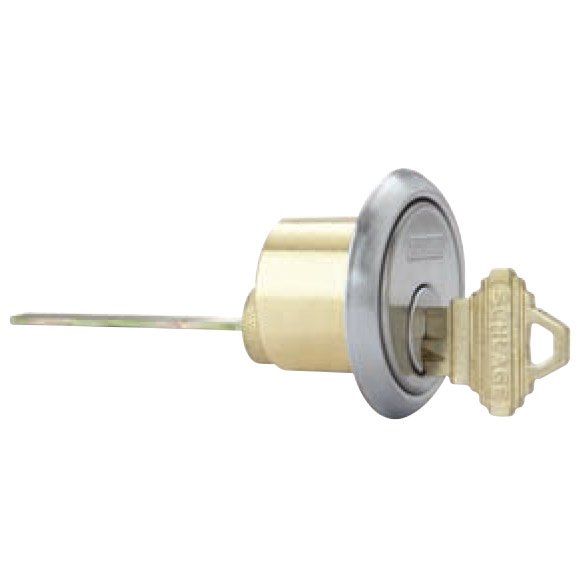

                3216 - rim cylinder





                Close

                3216 - rim cylinder

                Schlage “C” keyway

                Custom keying not available

                Specify finish

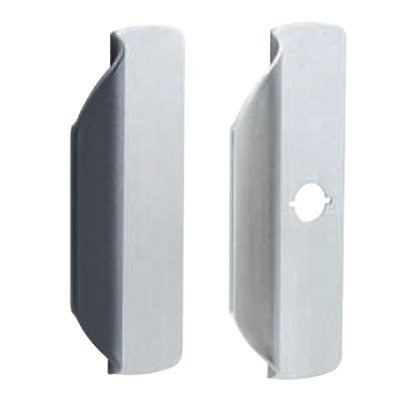

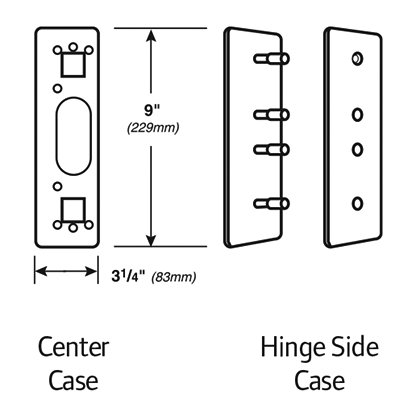

                997 - cover plate kit





                Close

                997 - cover plate kit

                Inside/outside plates for hinge stile cutouts

                Inside plate for lock stile; fasteners included

                Specify finish

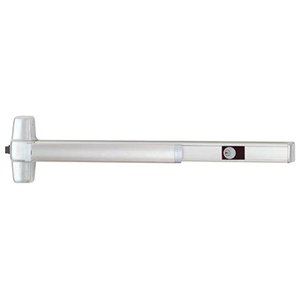

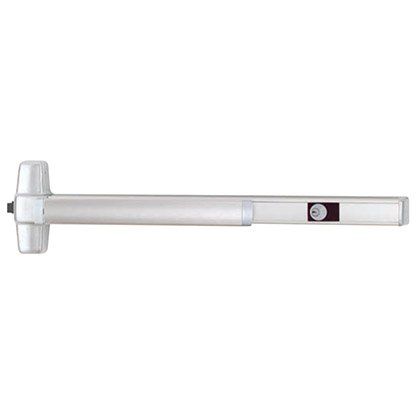

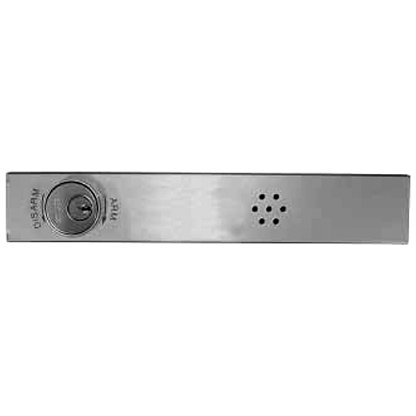

                ALK - alarm kit





                Close

                ALK - alarm kit

                Door alarm with internal horn (85DB)

                Alarm mode set by key

                Uses 9V alkaline battery

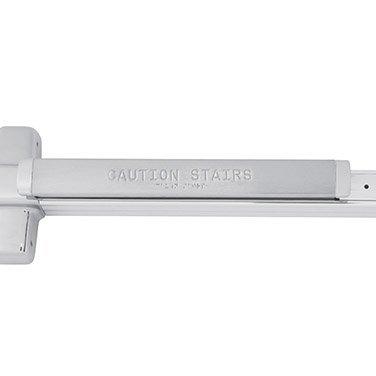

                BR - Braille embossed





                Close

                BR - Braille embossed

                "Caution Stairwell" Braille embossed on touch bar trim

                Letters 1/2" (13mm) high; Braille #2, raised height: 3/32" (2mm)

                Special order messages:
                20 characters per line

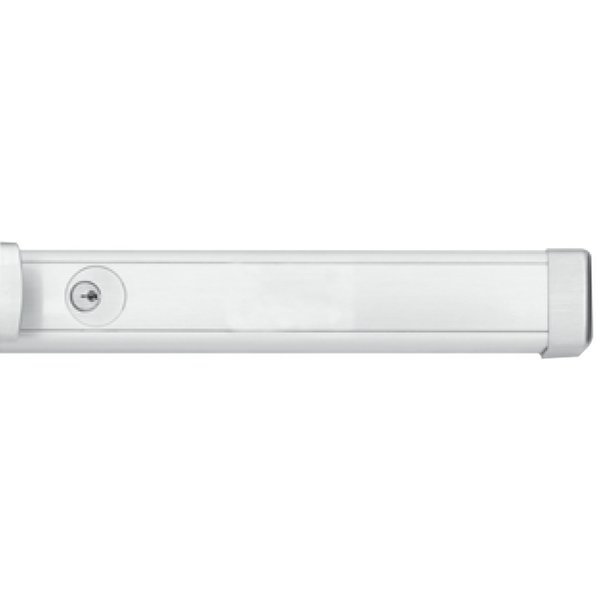

                CD - cylinder dogging





                Close

                CD - cylinder dogging

                Replaces standard hex key dogging

                Requires standard mortise cylinder with straight cam

                CDK - cylinder dogging kit





                Close

                CDK - cylinder dogging kit

                For field conversion

                Not suitable for fire exit device

                Custom logo & trim colors





                Close

                Custom logo & trim colors

                Custom logo silkscreened on touch bar trim, and color combinations available - consult Penner

                CX - Chexit®





                Close

                CX - Chexit®

                All controls, auxiliary locking, local alarm, and remote signalling

                6" x 20" decal: PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS

                Requires PS914 power supply

                Double Cylinder





                Close

                Double Cylinder

                Inside and outside key cylinders

                Lock/unlock outside trim, and retract latchbolt (Night Latch)

                Requires 2 rim type cylinders

                3 available functions

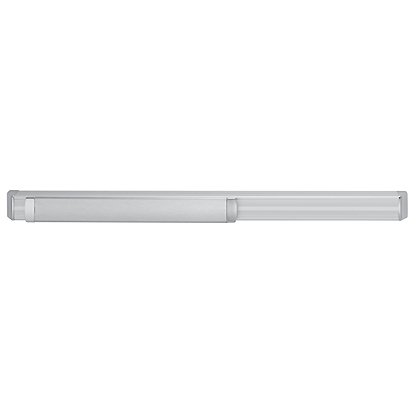

                DT - dummy pushpad





                Close

                DT - dummy pushpad

                Rigid or nonfunctioning companion unit

                Push/pull operation possible with trim

                Accommodates RX switch

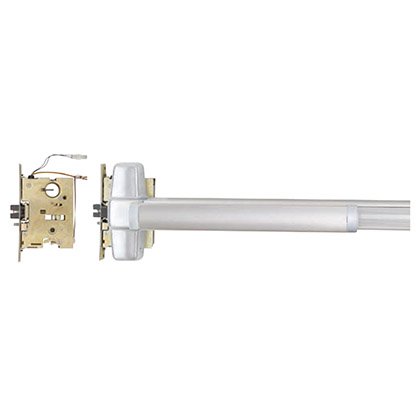

                E - electric mortise lock





                Close

                E - electric mortise lock

                SPDT signal switches monitor outside trim (locked or unlocked) and latchbolt

                Field reversible handing

                24 VDC continuous duty solenoid

                Optional fail safe or fail secure

                EL - electric latch retraction





                Close

                EL - electric latch retraction

                Remote operation via control station operator

                Continuous-duty 24 VDC solenoid

                UL approved for Class II circuit application

                EMB - "PUSH" embossed





                Close

                EMB - "PUSH" embossed

                "PUSH" lettering embossed
                on touch bar trim

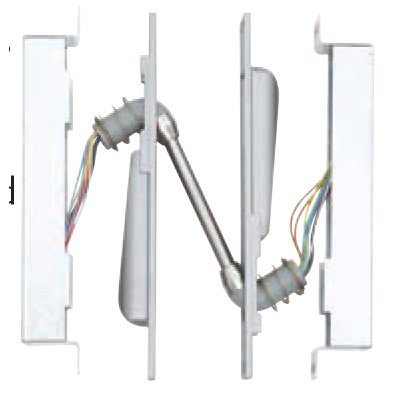

                EPT / PNT - power transfer





                Close

                EPT / PNT - power transfer

                EPT-2 (two 18 gauge wires)

                EPT-10 (ten 24 gauge wires)

                PNT-1 (pneumatic latch)
                - UL listed

                Extended latch guard





                Close

                Extended latch guard

                GBK - glass bead kit





                Close

                GBK - glass bead kit

                1/4" (6mm) shim set

                Vertical rod: 1/8" (3mm)
                shim set

                Latch guard





                Close

                Latch guard

                LBR - less bottom rod





                Close

                LBR - less bottom rod

                Panic/Fire Rated spring loaded auxiliary latchbolt

                UL listed up to 3 hours

                Fits door stiles as narrow as 3-5/8"

                LX - latch bolt monitoring





                Close

                LX - latch bolt monitoring

                Internal signalling switch

                Available in low current (LC)

                PBKN - knurled





                Close

                PBKN - knurled

                Knurled touch bar trim - provide warning to persons with impaired vision

                PL - pullman latch





                Close

                PL - pullman latch

                Extended latch for electric strike

                Not suitable for fire exit device

                PN - pneumatic controlled





                Close

                PN - pneumatic controlled

                Functions with existing pneumatic system

                Ideal for non-electrified hazardous areas

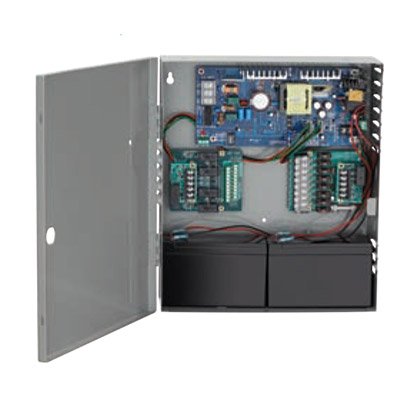

                PS902/914 - power supply





                Close

                PS902/914 - power supply

                Works with many brands of electrified devices

                12 VDC and 24 VDC output

                Universal 120-240 VAC input

                7 option boards

                QEL - quiet electric latch retraction





                Close

                QEL - quiet electric latch retraction

                Quiet operation with electric drive motor

                Remote operation via control station operator

                UL approved for Class II circuit application

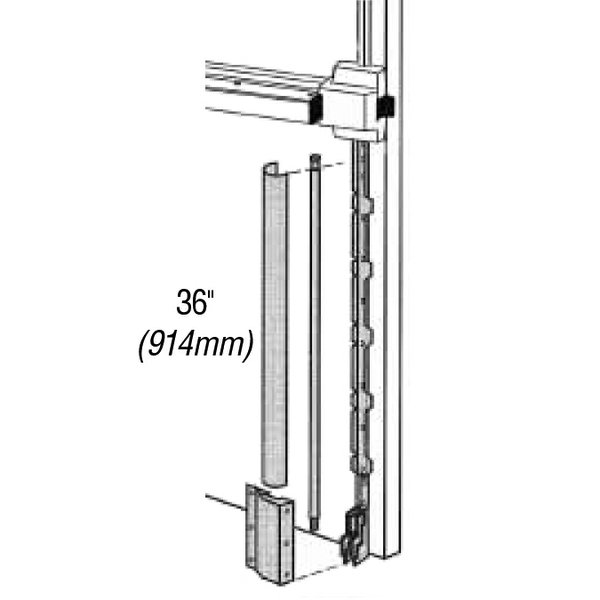

                RG-27 - vertical rod/guard





                Close

                RG-27 - vertical rod/guard

                Protects bottom rods from impact damage

                Stainless steel construction, US32D finish

                Covers latches up to
                1-1/4"W x 10"H x 1-7/8"

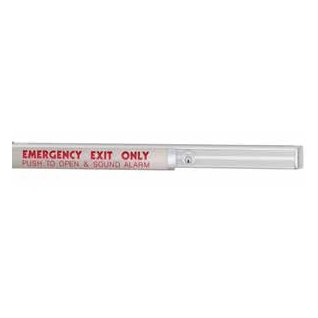

                RSS - "EMERGENCY" silkscreened





                Close

                RSS - "EMERGENCY" silkscreened

                “EMERGENCY EXIT ONLY – PUSH TO OPEN AND SOUND ALARM” - red silkscreened lettering on touch bar trim (satin stainless steel only)

                SD - special center case dogging





                Close

                SD - special center case dogging

                Mechanical push/pull operation

                Specify handing

                Use with Chexit, EL, QEL, ALK

                SG - safety glow





                Close

                SG - safety glow

                Self-illuminating touchpad

                SS - signal switch





                Close

                SS - signal switch

                Monitors pushpad and
                latch bolt

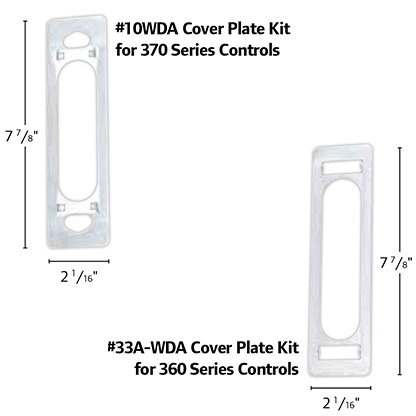

                WDA - cover plate kit





                Close

                WDA - cover plate kit

                For wood doors, to cover up control door prep and protect wood

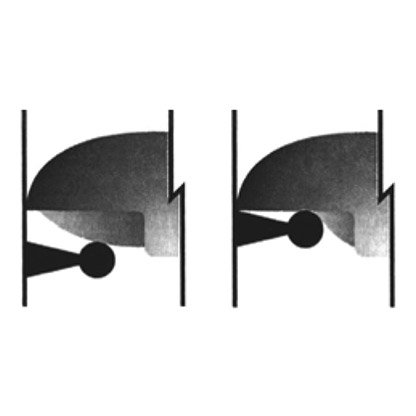

                XP - extra performance





                Close

                XP - extra performance

                Static load force resistance exceeds 2,000 lbs.

                2-pc latchbolt forms 90° latch-to-strike contact, changing shape when subjected to external forces

                BHMA 605





                Close

                BHMA 605

                Bright Brass

                BHMA 606





                Close

                BHMA 606

                Satin Brass

                BHMA 611





                Close

                BHMA 611

                Bright Bronze

                BHMA 612





                Close

                BHMA 612

                Satin Bronze

                BHMA 613





                Close

                BHMA 613

                Dark Oxidized Satin Bronze, Oil Rubbed

                BHMA 619





                Close

                BHMA 619

                Satin Nickel

                BHMA 622





                Close

                BHMA 622

                Black

                BHMA 625





                Close

                BHMA 625

                Bright Chromium Plated

                BHMA 626





                Close

                BHMA 626

                Satin Chromium Plated

                BHMA 626-AM





                Close

                BHMA 626-AM

                Antimicrobial Satin Chrome

                BHMA 628





                Close

                BHMA 628

                Anodized Aluminum

                BHMA 630





                Close

                BHMA 630

                Satin Stainless Steel

                BHMA 630-AM





                Close

                BHMA 630-AM

                Antimicrobial Satin Stainless Steel

                BHMA 710





                Close

                BHMA 710

                Duranodic Dark Bronze
