              Series 94-95 INPACT

              Von Duprin invented the first exit device in 1908. Since that time, there have been many imitators, but no other true innovator.

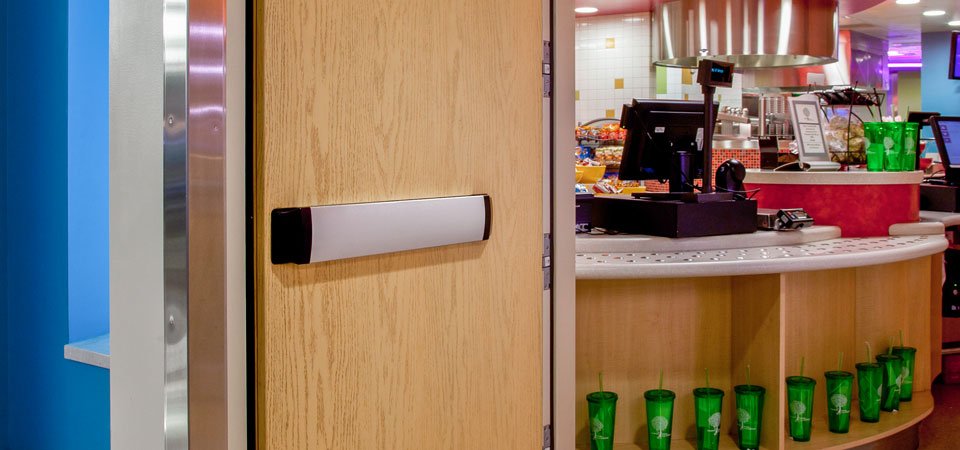

              The unique, streamlined Von Duprin INPACT recessed exit device is a perfect example of how creative thinking and great engineering can turn a safety necessity into a stylishly understated fixture.

              INPACT is fully integrated within a door
              and combines a clean, tasteful appearance with Von Duprin’s unrivaled standards
              of durability and performance.

              The design is compatible with hollow metal doors, including doors manufactured by Steelcraft®, part of the IR Security & Safety product line.

              Available in a variety of finishes, INPACT
              is UL® approved to meet the strictest building codes.

              • Specifications
              • Devices
              • Trim
              • Options
              • Finishes
              • Downloads

              9447 smooth - concealed vertical rod





              Close

              9447 smooth - concealed vertical rod

              For single and double doors

              Non-handed

              5/8" (16mm) throw latchbolt

              9447-F smooth - fire concealed vertical rod





              Close

              9447-F smooth - fire concealed vertical rod

              For single and double doors

              Non-handed

              5/8" (16mm) throw latchbolt

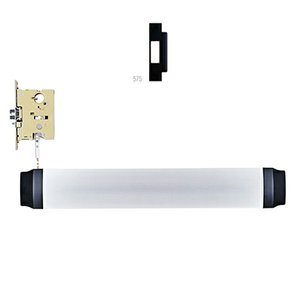

              9475 smooth - mortise lock





              Close

              9475 smooth - mortise lock

              For single and double doors

              Non-handed

              3/4" anti-friction latchbolt

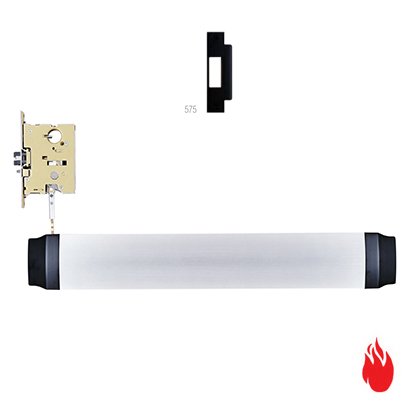

              9475-F smooth - fire mortise lock





              Close

              9475-F smooth - fire mortise lock

              For single and double doors

              Non-handed

              3/4" anti-friction latchbolt

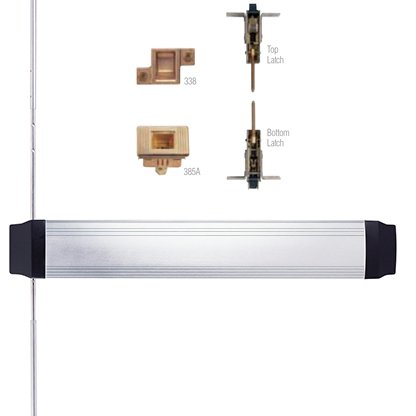

              9547 grooved - concealed vertical rod





              Close

              9547 grooved - concealed vertical rod

              For single and double doors

              Non-handed

              5/8" (16mm) throw latchbolt

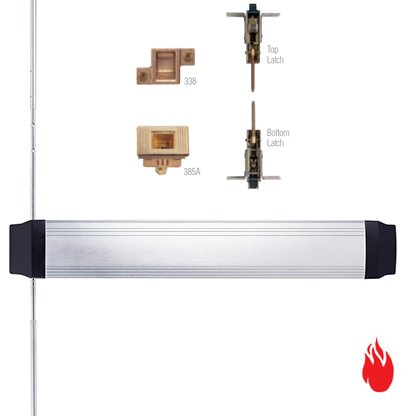

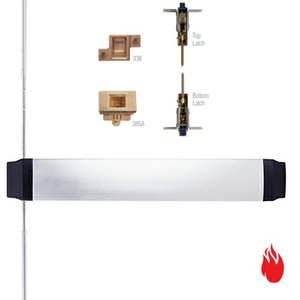

              9547-F grooved - fire concealed vertical rod





              Close

              9547-F grooved - fire concealed vertical rod

              For single and double doors

              Non-handed

              5/8" (16mm) throw latchbolt

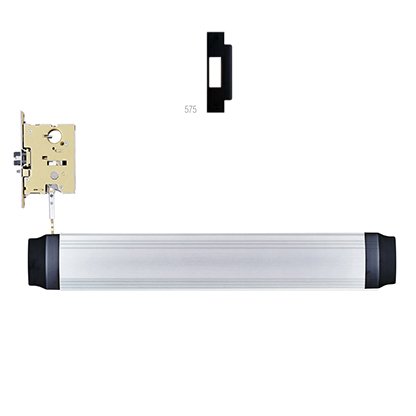

              9575 grooved - mortise lock





              Close

              9575 grooved - mortise lock

              For single and double doors

              Non-handed

              3/4" anti-friction latchbolt

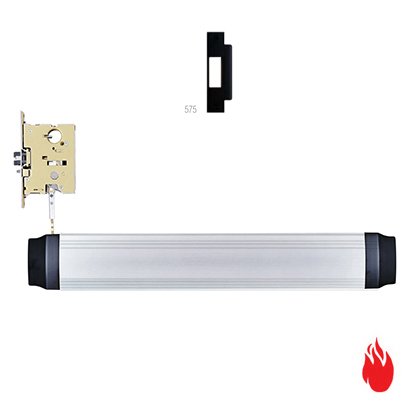

              9575-F grooved - fire mortise lock





              Close

              9575-F grooved - fire mortise lock

              For single and double doors

              Non-handed

              3/4" anti-friction latchbolt

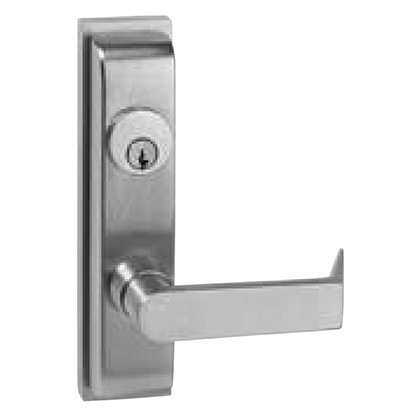

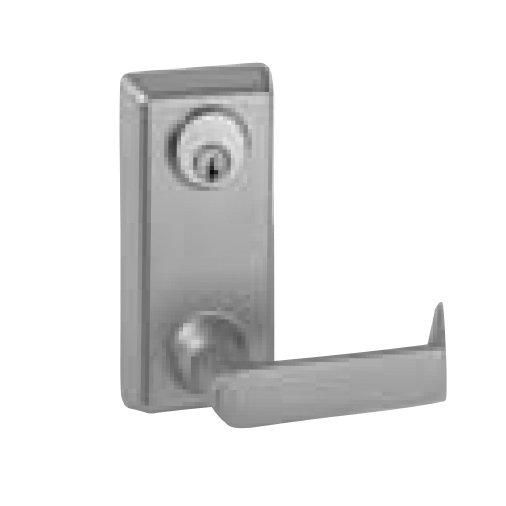

              LP373L - standard lever





              Close

              LP373L - standard lever

              Forged brass 1-3/8" (35mm) depth escutcheon

              #06 lever standard; 4 optional styles available

              Blank escutcheon available

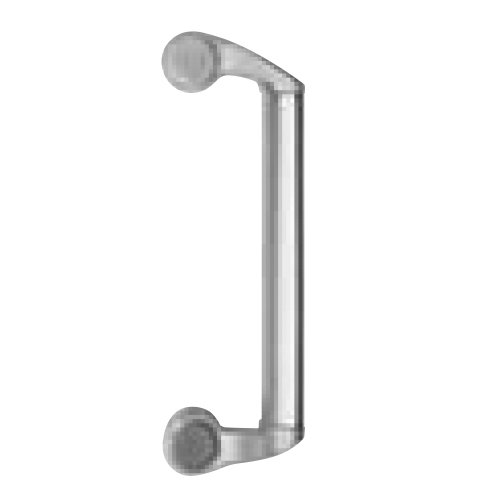

              550DT - dummy pull





              Close

              550DT - dummy pull

              Heavy aluminum forged brackets

              10" (254mm) stainless steel pullbar

              376T - thumbturn





              Close

              376T - thumbturn

              Forged brass 7/8" (22mm) escutcheon

              Use with 550DT dummy pull

              Only available with concealed rod devices

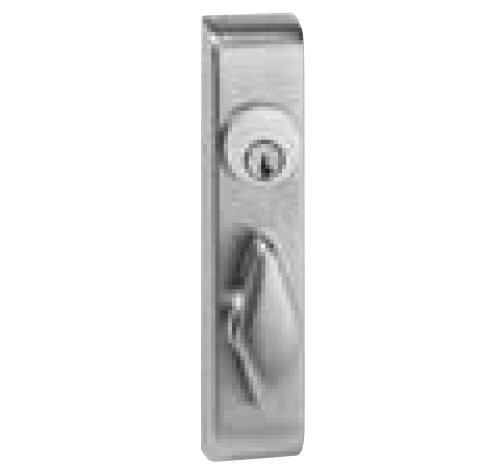

              LP230L - lever





              Close

              LP230L - lever

              Cast aluminum 3/4" (19mm) depth escutcheon

              #06 lever standard; #03 lever optional

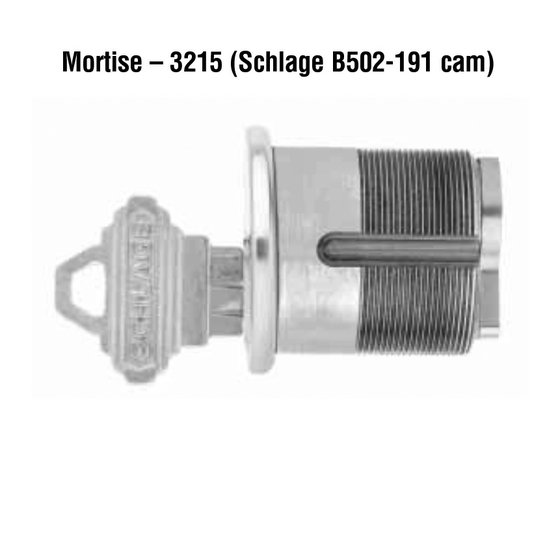

              3215 - mortise cylinder





              Close

              3215 - mortise cylinder

              Schlage “C” keyway

              Custom keying not available

              Specify finish

              5 lever styles





              Close

              5 lever styles

              Available in all device finishes (see catalogue page 9)

              EL - electric latch retraction





              Close

              EL - electric latch retraction

              Remote operation via control station operator

              Continuous-duty 24 VDC solenoid

              UL approved for Class II circuit application

              LBR - less bottom rod





              Close

              LBR - less bottom rod

              For concealed vertical rod device; interior doors only

              Spring-loaded auxiliary bolt in lower door edge

              LX - latchbolt monitor





              Close

              LX - latchbolt monitor

              Electronic switch for door opening signal

              Connect to security alarm console

              RX - request to exit





              Close

              RX - request to exit

              313 - duranodic dark bronze





              Close

              313 - duranodic dark bronze

              (BHMA 710)

              US10 - satin bronze





              Close

              US10 - satin bronze

              (BHMA 612)

              US26D - satin chrome





              Close

              US26D - satin chrome

              (BHMA 626)

              US26 - polished chrome





              Close

              US26 - polished chrome

              (BHMA 625)

              US28 - anodized aluminum





              Close

              US28 - anodized aluminum

              (BHMA 628)

              US3 - bright brass





              Close

              US3 - bright brass

              (BHMA 605)

              US4 - satin brass





              Close

              US4 - satin brass

              (BHMA 606)
