              Series 88

              Exit devices are a critical part of a door opening or access system and will provide safe and reliable service when properly applied and maintained.

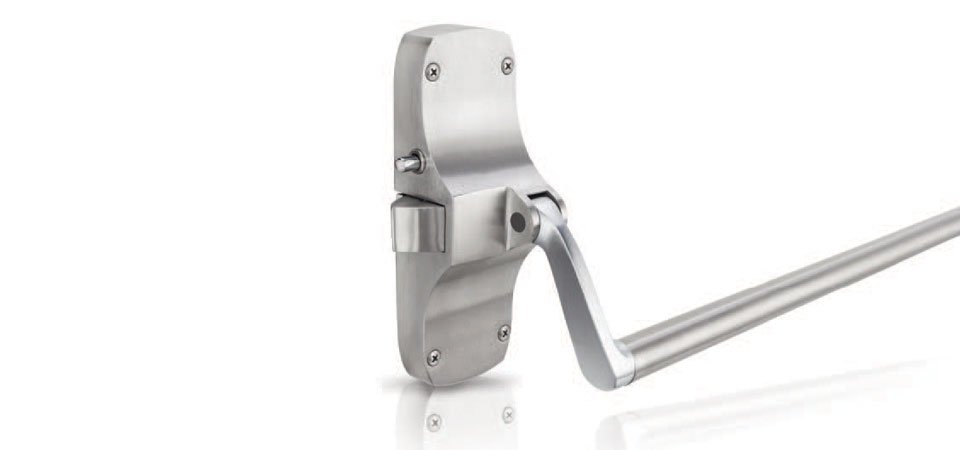

              Series 88 crossbar is designed for use with
              all glass door applications. Available in
              both wide and narrow stile, it is ideal for environments that demand a traditional looking device with the durability to withstand rugged applications.

              Von Duprin Division designs and manufactures high quality and reliable
              exit devices.

              All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware,
              and are tested in accordance to ANSI A156.3, 1994, Grade 1.

              • Specifications
              • Devices
              • Options
              • Finishes
              • Downloads

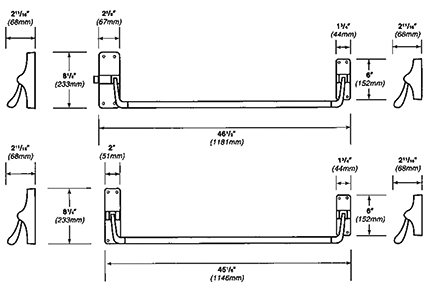

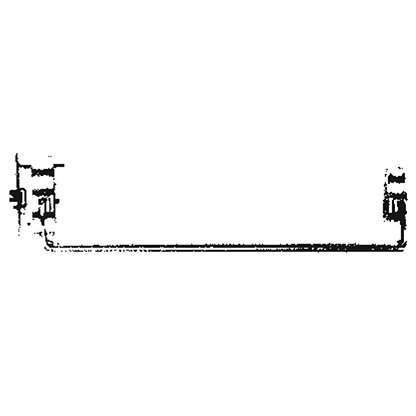

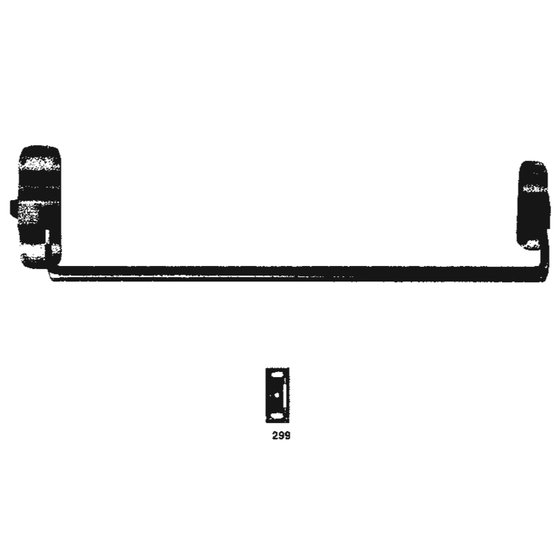

              88 - rim crossbar





              Close

              88 - rim crossbar

              For all types of single and double doors with mullion

              3/4" (19mm) throw latch bolt

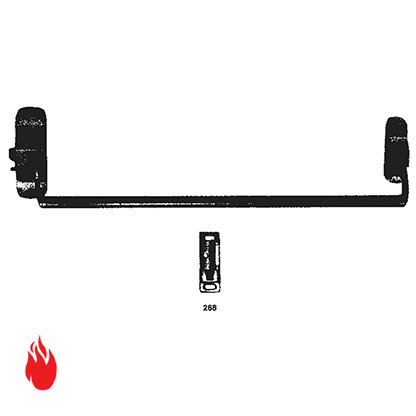

              88-F - fire rim crossbar





              Close

              88-F - fire rim crossbar

              For all types of 4' x 8' single and 8' x 8' double doors with 9954 mullion

              3/4" (19mm) throw latch bolt

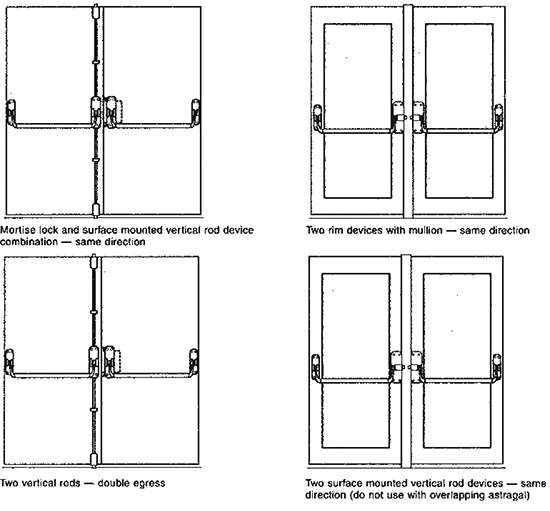

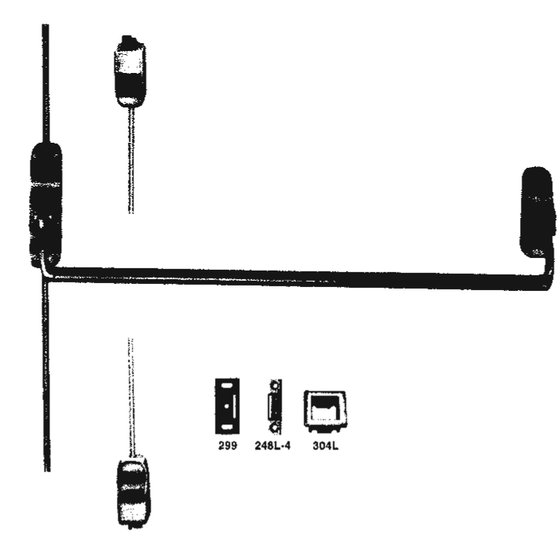

              8827 - surface mount vertical rod





              Close

              8827 - surface mount vertical rod

              For all types of single and double doors

              Fits stiles as narrow as 3-1/2" (90mm)

              5/8" (16mm) throw latch bolt

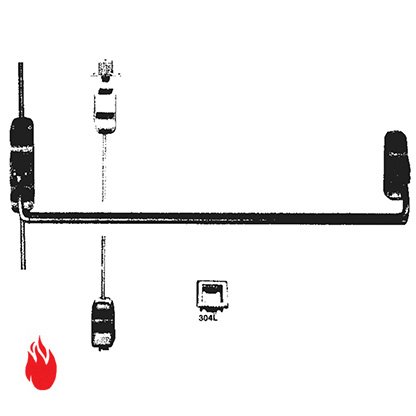

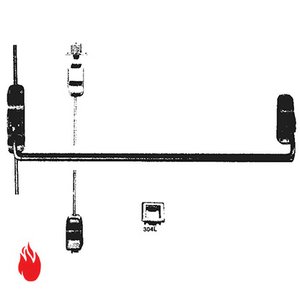

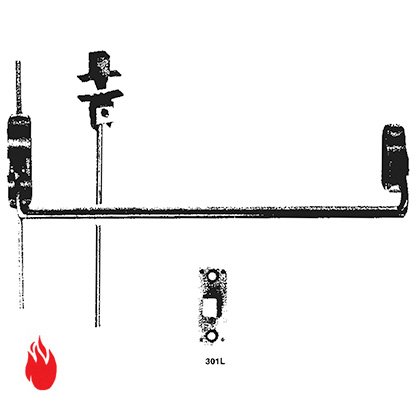

              8827-F - fire surface mount vertical rod





              Close

              8827-F - fire surface mount vertical rod

              For all types of 8' x 8' double doors

              Fits stiles as narrow as 3-3/4" (95mm)

              5/8" (16mm) throw latch bolt

              8847-F - fire concealed vertical rod





              Close

              8847-F - fire concealed vertical rod

              For use on 8' x 8' double metal doors

              Fits stiles as narrow as 4-3/4" (121mm)

              5/8" (16mm) throw latch bolt

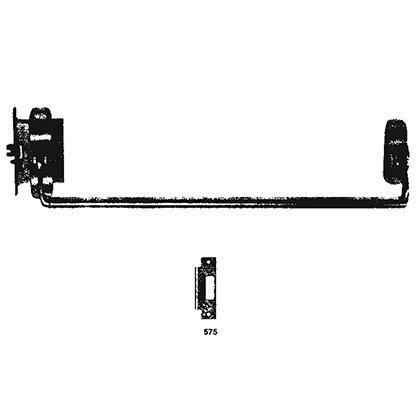

              8875 - mortise lock





              Close

              8875 - mortise lock

              For all types of single and double doors

              Fits stiles as narrow as 4-3/4" (121mm)

              3/4" (19mm) anti-friction latch bolt

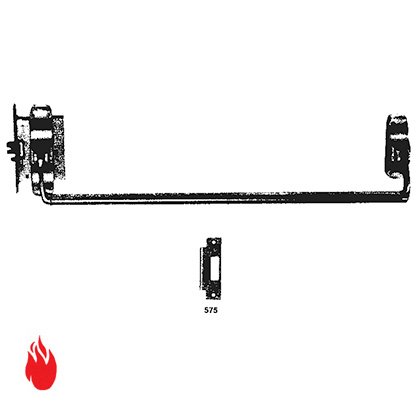

              8875-F - fire mortise lock





              Close

              8875-F - fire mortise lock

              For all types of 4' x 10' single or 8' x 8' double doors

              Fits stiles as narrow as 4-3/4" (121mm)

              3/4" (19mm) anti-friction latch bolt

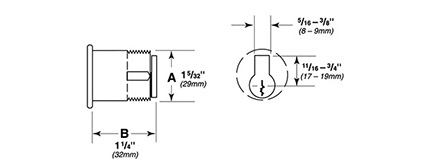

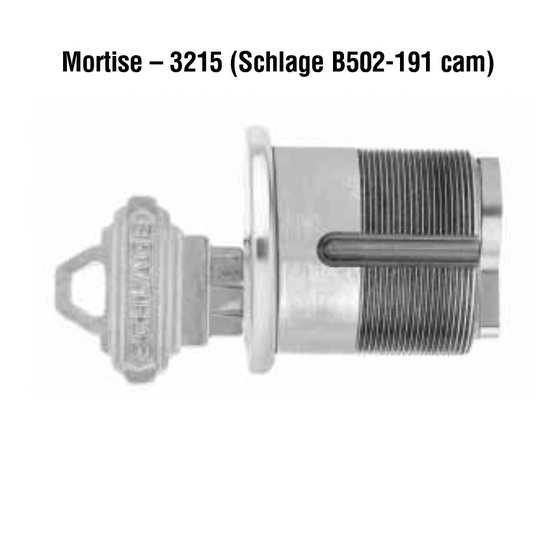

              3215 - mortise cylinder





              Close

              3215 - mortise cylinder

              Schlage “C” keyway

              Custom keying not available

              Specify finish

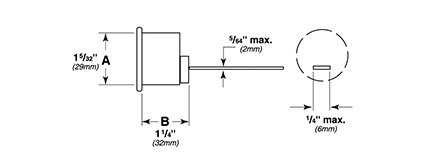

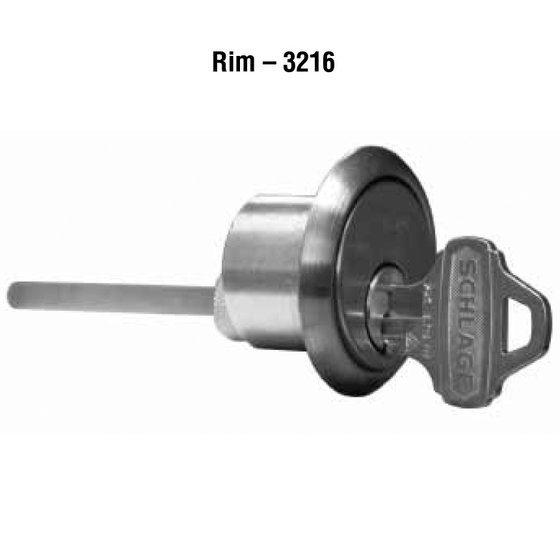

              3216 - rim cylinder





              Close

              3216 - rim cylinder

              Schlage “C” keyway

              Custom keying not available

              Specify finish

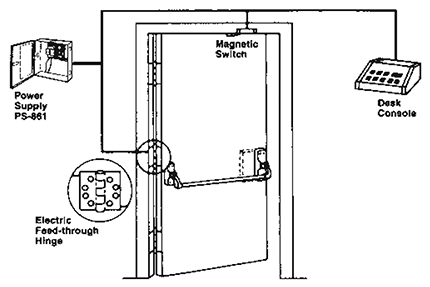

              E88 - electric rim





              Close

              E88 - electric rim

              Provides remote unlocking capabilities

              SPDT signal switch monitors outside trim

              Specify fail-safe (FS) for stairwell doors

              E8875 - electric mortise lock





              Close

              E8875 - electric mortise lock

              Controls locking of outside trim via remote switching, access control or automatic fire alarm systems

              Specify fail-safe (FS) or fail-safe secure (FSE)

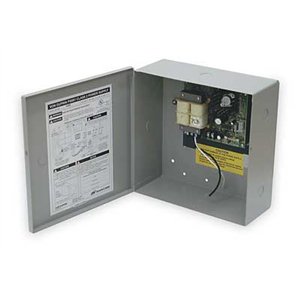

              PS861 - power supply





              Close

              PS861 - power supply

              Electric locking/monitoring on single or double doors

              12 VDC and 24 VDC output

              Universal 120-240 VAC input

              Optional keylock cover or sealed battery pack

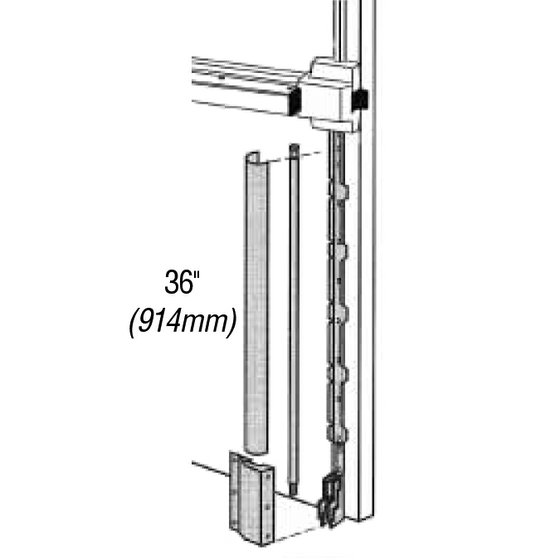

              RG-27 - vertical rod/guard





              Close

              RG-27 - vertical rod/guard

              Protects bottom rods from impact damage

              Stainless steel construction, US32D finish

              Covers latches up to
              1-1/4"W x 10"H x 1-7/8"

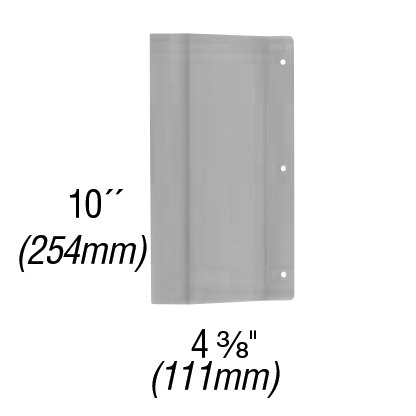

              Latch guard





              Close

              Latch guard

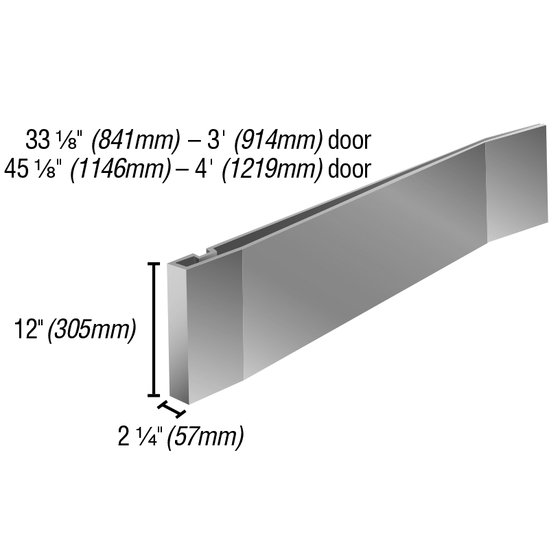

              Extended latch guard





              Close

              Extended latch guard

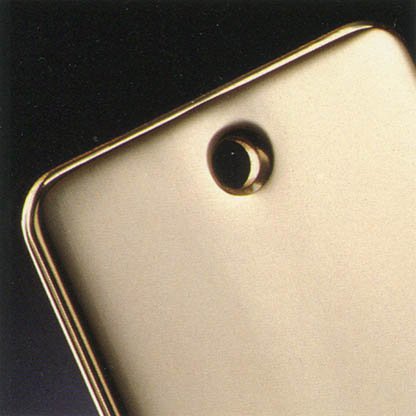

              BHMA 605





              Close

              BHMA 605

              Bright Brass

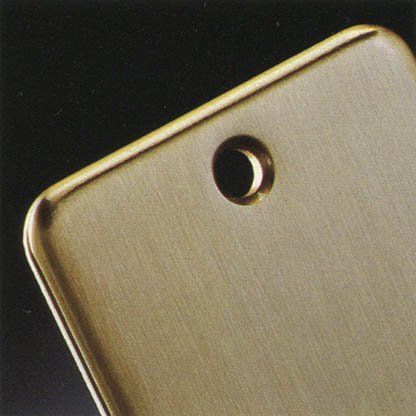

              BHMA 606





              Close

              BHMA 606

              Satin Brass

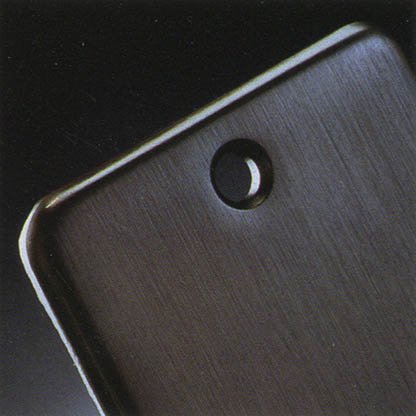

              BHMA 613





              Close

              BHMA 613

              Dark Oxidized Satin Bronze, Oil Rubbed

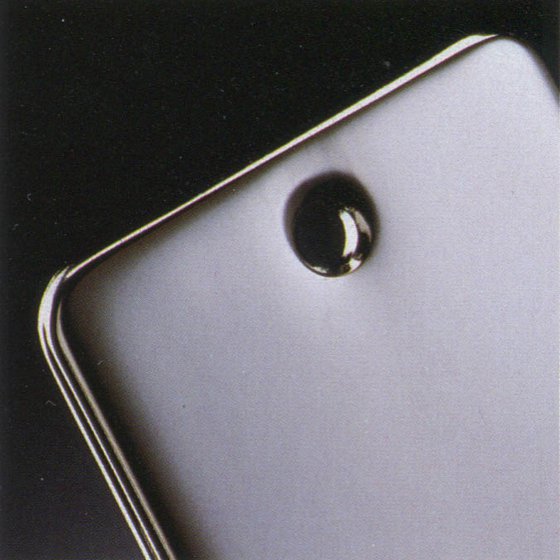

              BHMA 625





              Close

              BHMA 625

              Bright Chromium Plated

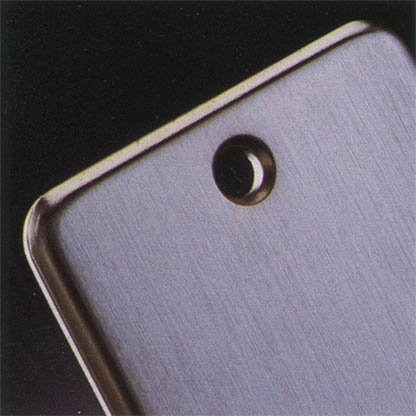

              BHMA 626





              Close

              BHMA 626

              Satin Chromium Plated
