              Series 33A/35A

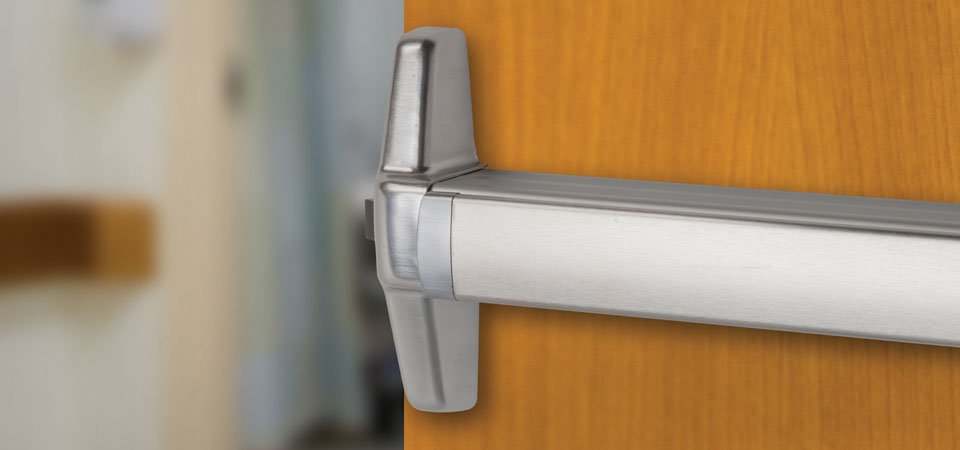

              Touch bar exit devices are mounted on the egress side of the door. They can be mounted for rim, mortise, surface vertical, or concealed vertical applications. Touch bar exit devices feature an enclosed mechanism case with a push bar area to allow egress.

              Exit devices are a critical part of a door opening or access system and will provide safe and reliable service when properly applied and maintained.

              Von Duprin designs and manufactures exit devices in accordance to ISO 9001 Quality Management System and meets or exceeds accepted U.S. domestic and International standards.

              Series 33A/35A pushpad exit devices are available in two external surface styles:
              33A - smooth mechanism case, and 35A - grooved mechanism case.

              The two styles are mechanically and dimensionally identical and provide a
              wide selection of appearance options.


              • Specifications
              • Devices
              • Trim
              • Options
              • Finishes
              • Downloads

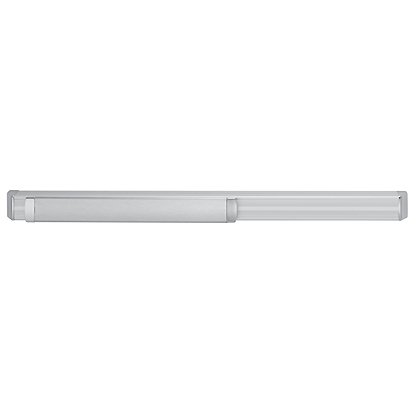

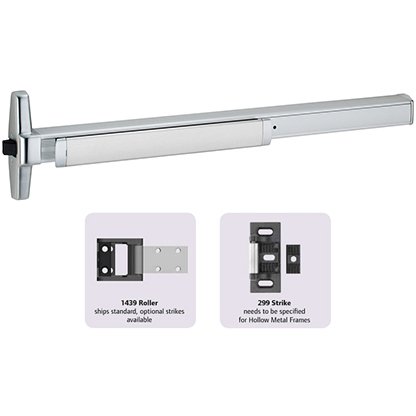

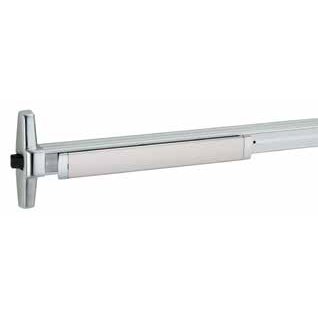

              33A/35A Rim - touch bar





              Close

              33A/35A Rim - touch bar

              For all types of single and double doors with mullion

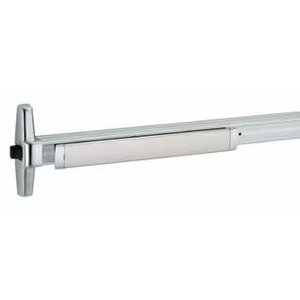

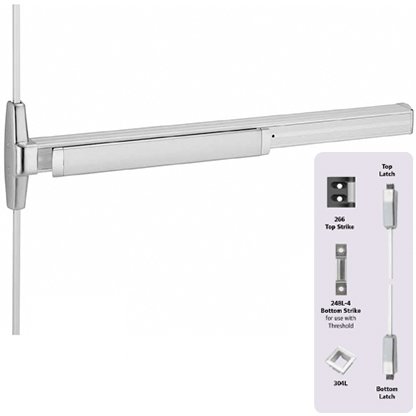

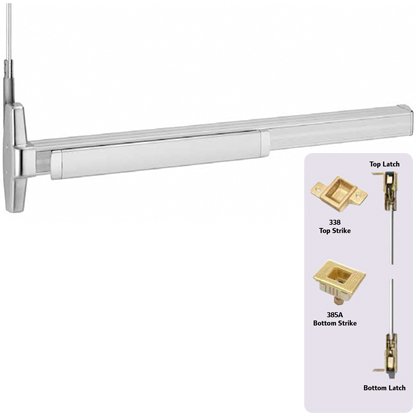

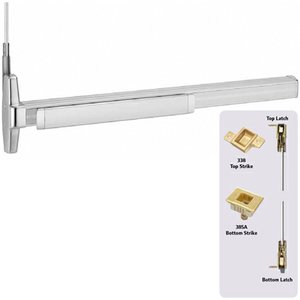

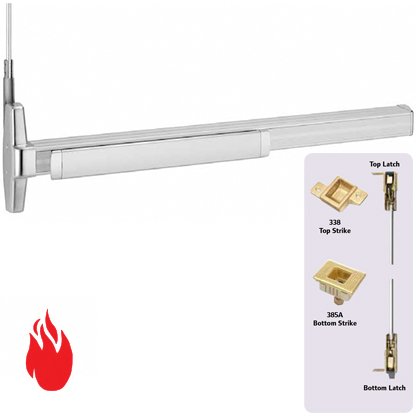

              3327A/3527A - vertical rod





              Close

              3327A/3527A - vertical rod

              Surface mounted panic exit device

              For all types of single and double doors

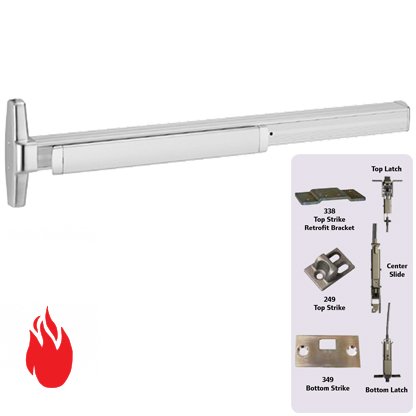

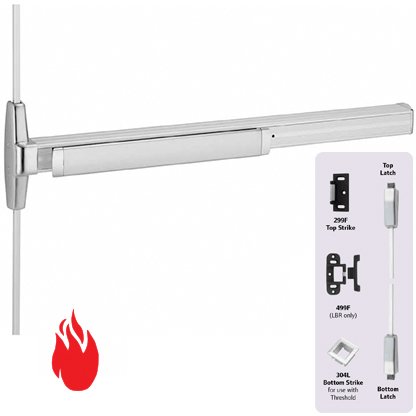

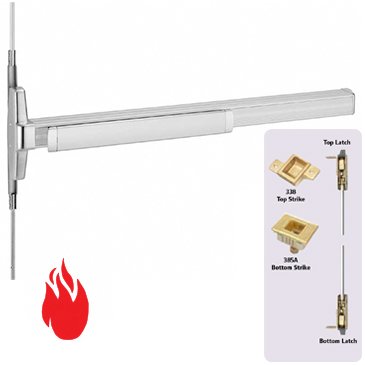

              3327A-F/3527A-F - vertical rod fire rated





              Close

              3327A-F/3527A-F - vertical rod fire rated

              Surface mounted fire exit device

              For all types of double doors up to 8’ x 10’

              3347A/3547A - concealed vertical rod





              Close

              3347A/3547A - concealed vertical rod

              For all types of single and double doors

              3347A-F/3547A-F - concealed vertical rod fire rated





              Close

              3347A-F/3547A-F - concealed vertical rod fire rated

              Surface mounted fire exit device

              For all types of double doors up to 8’ x 10’

              3348A/3548A - concealed vertical rod





              Close

              3348A/3548A - concealed vertical rod

              For all types of single and double doors

              3348A-F/3548A-F - concealed vertical rod fire rated





              Close

              3348A-F/3548A-F - concealed vertical rod fire rated

              For all types of double doors up to 8’ x 10’

              3349A/3549A - concealed vertical cable





              Close

              3349A/3549A - concealed vertical cable

              For all types of single and double doors

              3349A-F/3549A-F - concealed vertical cable fire rated





              Close

              3349A-F/3549A-F - concealed vertical cable fire rated

              For all types of double doors up to 8' x 10'

              386DT - dummy trim





              Close

              386DT - dummy trim

              Pull when dogged

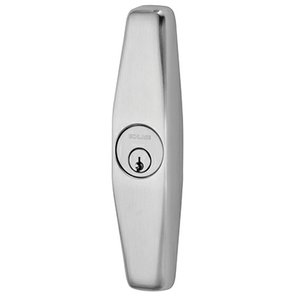

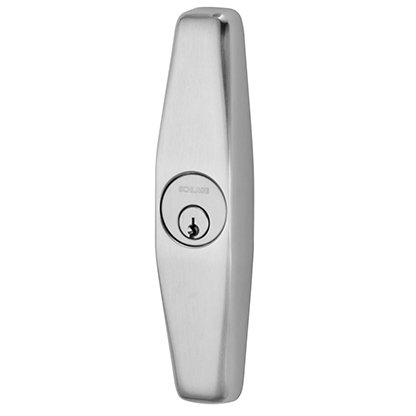

              386NL - night latch





              Close

              386NL - night latch

              Key retracts latchbolt

              388 - night latch, no pull





              Close

              388 - night latch, no pull

              Key retracts latchbolt

              Optional pull required

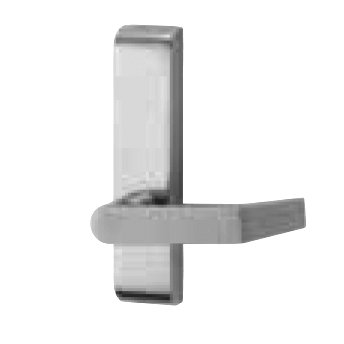

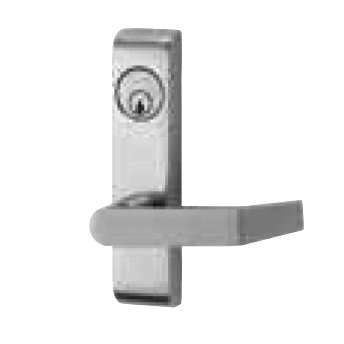

              360L - lever





              Close

              360L - lever

              Key locks and unlocks

              Handed / reversible

              Specify lever style (catalogue page 26)

              360L-BE - lever blank escutcheon





              Close

              360L-BE - lever blank escutcheon

              Always operable (no cylinder)

              Handed / reversible

              Specify lever style (catalogue page 26)

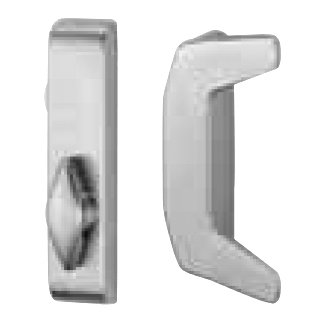

              360T - thumbturn





              Close

              360T - thumbturn

              Key locks and unlocks

              360T-BE - thumbturn blank escutcheon





              Close

              360T-BE - thumbturn blank escutcheon

              Always operable (no cylinder)

              374T x 386 - thumbturn





              Close

              374T x 386 - thumbturn

              Key locks and unlocks

              374T-BE x 386 - thumbturn blank escutcheon





              Close

              374T-BE x 386 - thumbturn blank escutcheon

              Always operable (no cylinder)

              360L-DT - lever blank escutcheon





              Close

              360L-DT - lever blank escutcheon

              Pull when dogged

              Handed / reversible

              360T-BE x 550 DT - thumbturn, blank





              Close

              360T-BE x 550 DT - thumbturn, blank

              Always operable (no cylinder)

              360T-BE x 8190 - thumbturn, blank





              Close

              360T-BE x 8190 - thumbturn, blank

              Always operable (no cylinder)

              360T x 550DT





              Close

              360T x 550DT

              Key locks and unlocks

              360T x IVES 8190 - thumbturn





              Close

              360T x IVES 8190 - thumbturn

              Key locks and unlocks

              374T/376T x 8190 - thumbturn





              Close

              374T/376T x 8190 - thumbturn

              Key locks and unlocks

              374T-BE/376T-BE x 8190 - thumbturn, blank





              Close

              374T-BE/376T-BE x 8190 - thumbturn, blank

              Always operable (no cylinder)

              388 x 550DT - night latch





              Close

              388 x 550DT - night latch

              Key retracts latchbolt

              388 x IVES 8190 - night latch





              Close

              388 x IVES 8190 - night latch

              Key retracts latchbolt

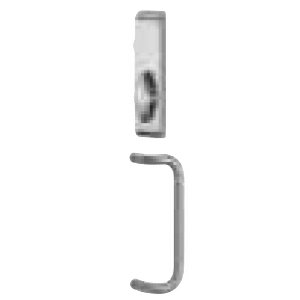

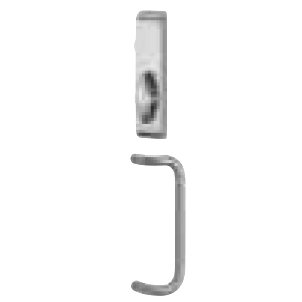

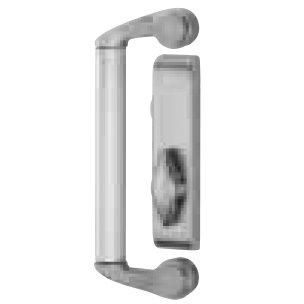

              392-6 - offset pull





              Close

              392-6 - offset pull

              Tubular design

              6-1/4" CTC

              2-1/4" projection

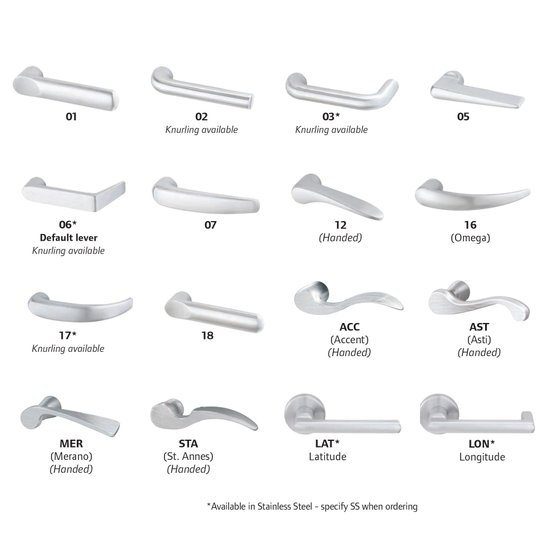

              16 lever styles





              Close

              16 lever styles

              Available in all device finishes (see catalogue page 26)

              5 styles available in stainless steel (specify SS)

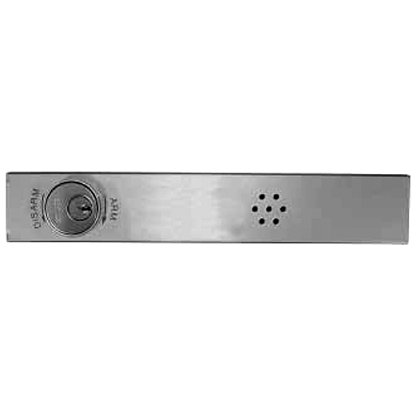

              ALK - alarm kit





              Close

              ALK - alarm kit

              Door alarm with internal horn (85DB)

              Alarm mode set by key

              Uses 9V alkaline battery

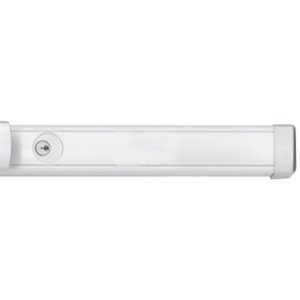

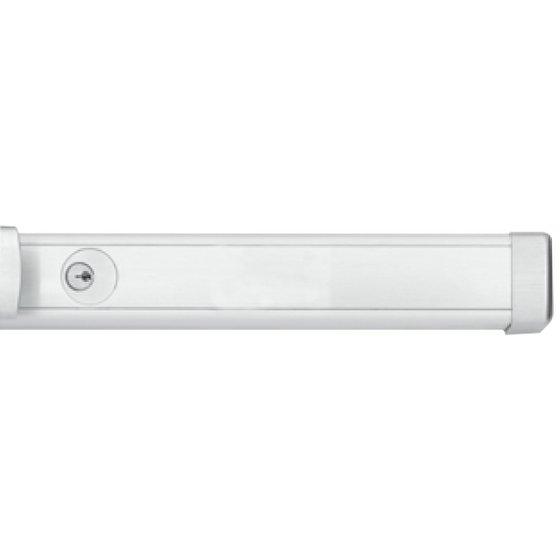

              CD - cylinder dogging





              Close

              CD - cylinder dogging

              Replaces standard hex key dogging

              Requires standard mortise cylinder with straight cam

              CDK - cylinder dogging kit





              Close

              CDK - cylinder dogging kit

              For field conversion

              Not suitable for fire exit device

              DT - dummy pushpad





              Close

              DT - dummy pushpad

              Rigid or nonfunctioning companion unit

              Push/pull operation possible with trim

              Accommodates RX switch

              EL - electric latch retraction





              Close

              EL - electric latch retraction

              Remote operation via control station operator

              Continuous-duty 24 VDC solenoid

              UL approved for Class II circuit application

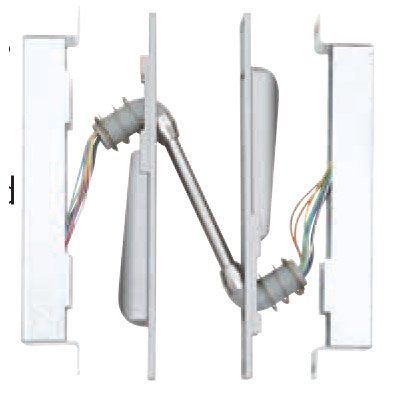

              EPT / PNT - power transfer





              Close

              EPT / PNT - power transfer

              EPT-2 (two 18 gauge wires)

              EPT-10 (ten 24 gauge wires)

              PNT-1 (pneumatic latch)
              - UL listed

              Extended latch guard





              Close

              Extended latch guard

              GBK - glass bead kit





              Close

              GBK - glass bead kit

              1/4" (6mm) shim set

              Vertical rod: 1/8" (3mm)
              shim set

              Latch guard





              Close

              Latch guard

              LD - less dogging





              Close

              LD - less dogging

              Remove dogging option

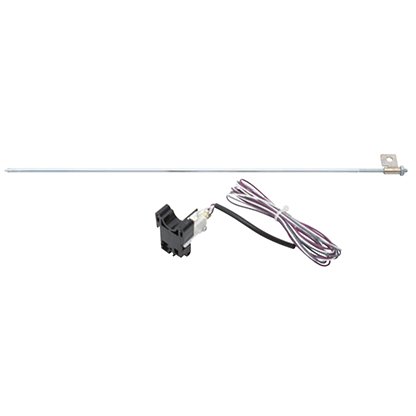

              LX - latch bolt monitoring





              Close

              LX - latch bolt monitoring

              Internal signalling switch

              Available in low current (LC)

              PL - pullman latch





              Close

              PL - pullman latch

              Extended latch for electric strike

              Not suitable for fire exit device

              PN - pneumatic controlled





              Close

              PN - pneumatic controlled

              Functions with existing pneumatic system

              Ideal for non-electrified hazardous areas

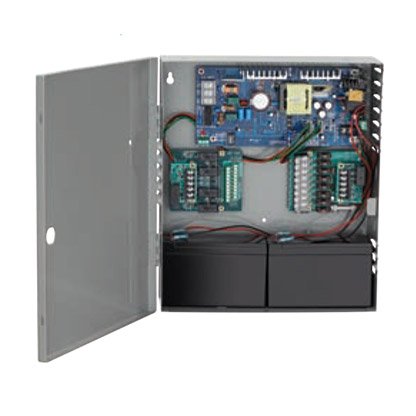

              PS902/914 - power supply





              Close

              PS902/914 - power supply

              Works with many brands of electrified devices

              12 VDC and 24 VDC output

              Universal 120-240 VAC input

              7 option boards

              QEL - quiet electric latch retraction





              Close

              QEL - quiet electric latch retraction

              Quiet operation with electric drive motor

              Remote operation via control station operator

              UL approved for Class II circuit application

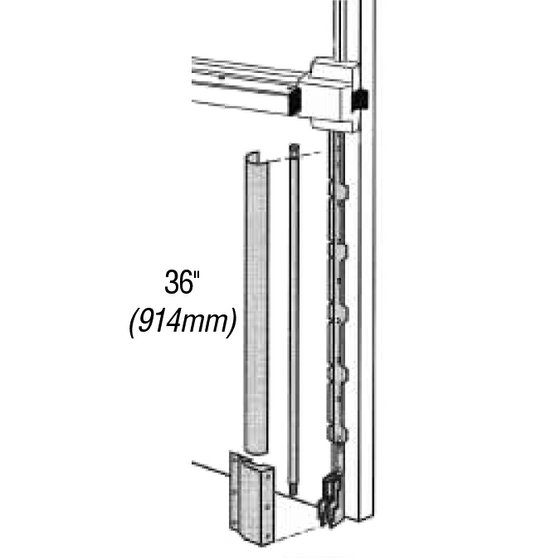

              RG-27 - vertical rod/guard





              Close

              RG-27 - vertical rod/guard

              Protects bottom rods from impact damage

              Stainless steel construction, US32D finish

              Covers latches up to
              1-1/4"W x 10"H x 1-7/8"

              RX - request to exit switch





              Close

              RX - request to exit switch

              Internal signalling switch

              Available in low current (LC)

              SG - safety glow





              Close

              SG - safety glow

              Self-illuminating touchpad

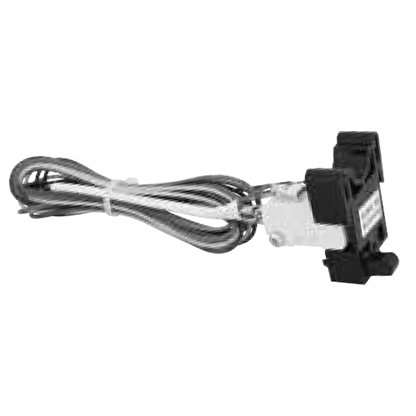

              SS - signal switch





              Close

              SS - signal switch

              Monitors pushpad and
              latch bolt

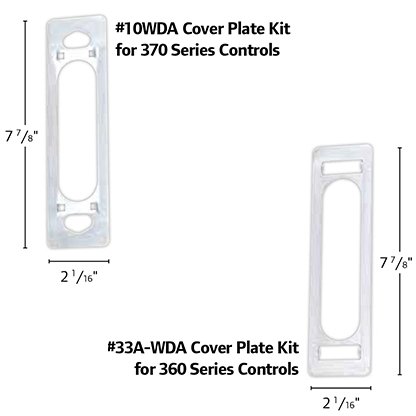

              WDA - cover plate kit





              Close

              WDA - cover plate kit

              For wood doors, to cover up control door prep and protect wood

              Aged Bronze





              Close

              Aged Bronze

              Aged Bronze, No Relief
              or Relieved Aged Bronze

              BHMA 605





              Close

              BHMA 605

              Bright Brass

              BHMA 606





              Close

              BHMA 606

              Satin Brass

              BHMA 611





              Close

              BHMA 611

              Bright Bronze

              BHMA 612





              Close

              BHMA 612

              Satin Bronze

              BHMA 613





              Close

              BHMA 613

              Dark Oxidized Satin Bronze, Oil Rubbed

              BHMA 619





              Close

              BHMA 619

              Satin Nickel

              BHMA 622





              Close

              BHMA 622

              Black

              BHMA 625





              Close

              BHMA 625

              Bright Chromium Plated

              BHMA 626





              Close

              BHMA 626

              Satin Chromium Plated

              BHMA 626-AM





              Close

              BHMA 626-AM

              Antimicrobial Satin Chrome

              BHMA 628





              Close

              BHMA 628

              Anodized Aluminum

              BHMA 630-AM





              Close

              BHMA 630-AM

              Antimicrobial Satin Stainless Steel

              BHMA 710





              Close

              BHMA 710

              Duranodic Dark Bronze
