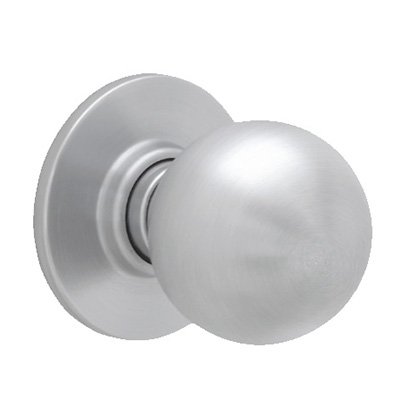

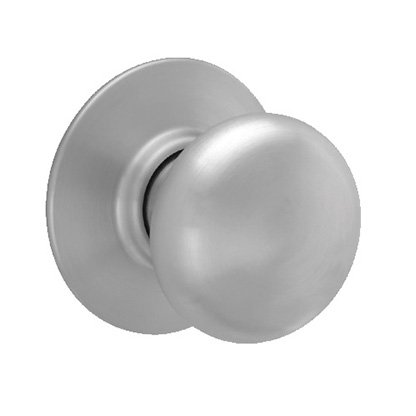

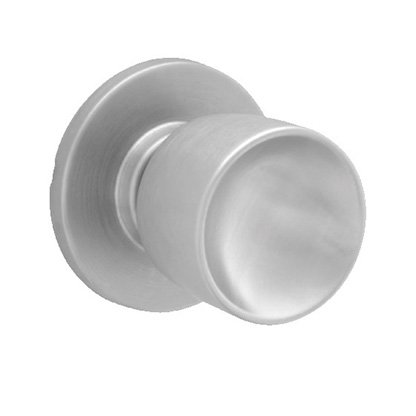

Schlage A-Series

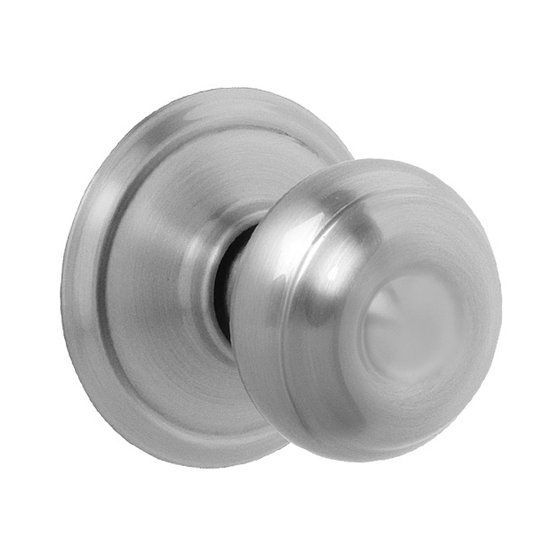

Schlage A-Series Cylindrical Locks Specifications

A-Series – Features and Benefits:

• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8” to 1-7/8” (35 mm to 48 mm) thick.

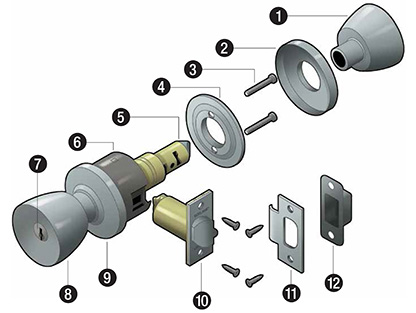

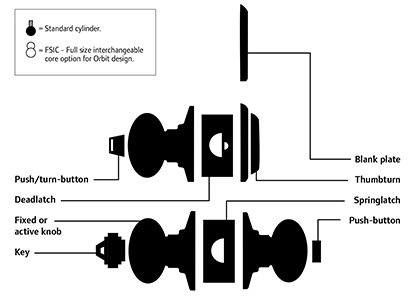

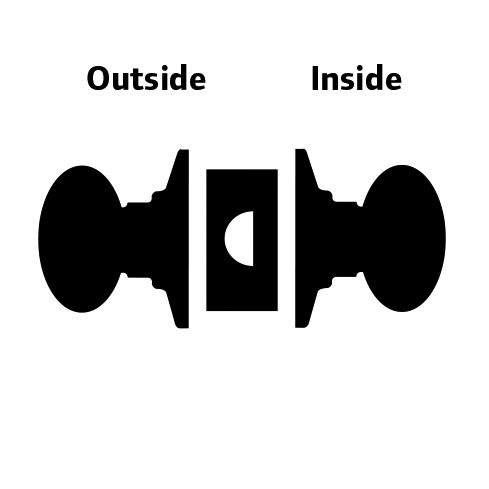

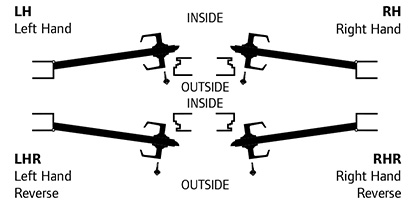

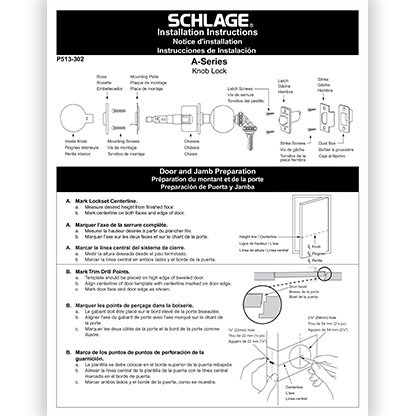

Door Handing: Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the "Door Handing" sidebar graphic, to correctly determine the hand of the door.

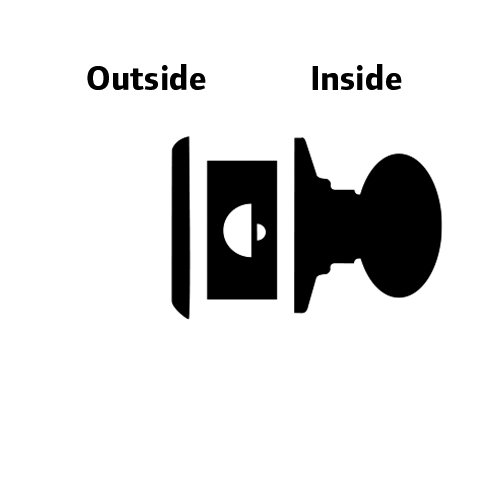

Handing: Keyed functions are reversible. Non-keyed functions are not handed.

Door Thickness: 1-3/8” to 1-7/8” (35 mm to 48 mm) standard. 2” (51 mm) to 2-1/2” (64 mm) optional extended inside.

Backset: 2-3/8”(60 mm) standard. 2-3/4” (70 mm), 3 3/4”(95 mm) and 5” (127 mm) optional.

Front: Steel. 1-1/8” x 2-1/4” square corner, beveled, for 2-3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face.

Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.

Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.

Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.

Strike: T-strike 1-1/8” x 2-3/4” (29 mm x 70 mm) x 1-1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.

Cylinder & Keys:Commercial – 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.Residential – 6-pin C keyway, keyed 5-pin.

Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.

Warranty: Commercial – 3-year limited.

Primus XP Access Control and High Security Cylinders

Primus XP access control and high security cylinders are available to add patented key control and varying degrees of geographical exclusivity to most Schlage 6-pin key systems, whether Everest 29™ or Classic keyways. In addition to a conventional pin tumbler mechanism, Primus cylinders incorporate a patented finger pin and sidebar design providing a “dual-locking” cylinder that is virtually pick-proof. Resistance to drilling and other physical attack is optional by specifying 20-500 Series UL437 Listed cylinders.

Classic Primus XP cylinders are recommended for upgrading existing Classic key systems. Due to its extended patent life, the newly designed Everest 29 Primus XP is recommended for new key systems and for upgrading existing Everest key systems. Specify keyway to differentiate between Everest 29 and Classic. Example: C or CP (Classic) vs. S123 (Everest 29).

Latches

A-Series latches are adjustable for flat or beveled edge doors. Latches and strikes are furnished in brass, bronze, or chrome finishes compatible with lock trim.

Latch Front Adapter: A501-878

Used wide door preparations. Furnished in black plastic. Order in units of 100 each.

Long Backsets

Backsets 5” require extension links. A-Series locks with long backsets are normally furnished with 1” faceplates and 7/8” housings. Links installed in 1” latch holes require one G506-815 sleeve to join latch and link.

Door Reinforcement for Hollow Metal Doors

Reinforcing unit is required to reinforce and help prevent the collapse of hollow metal doors when locksets are tightly mounted. This kit should be used with long backsets for A-Series lock installations in hollow metal doors to prevent lateral movement of the latchbolt. Specify door thickness, 1-3/8” (35 mm) or 1-3/4” (44 mm), when ordering reinforcement kits.

Strikes

All Schlage strikes are furnished complete with screws. The 10-001 standard A-Series strike has a 1 1/8” (29 mm) lip.

Rabbeted Latch and Strike Kit

Rabbeted latch and strike kit finishes: 605, 626. This kit adapts square corner latches and strikes for 1/2” (13 mm) rabbeted door and frame preparations.

Certifications

• ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
• UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
