              Sargent 90 Series

              Sargent 90 Series features wide and narrow styles, including concealed and surface vertical rods, rim and mortise.

              • Designs
              • Specifications
              • Trim
              • Functions
              • Finishes
              • Downloads

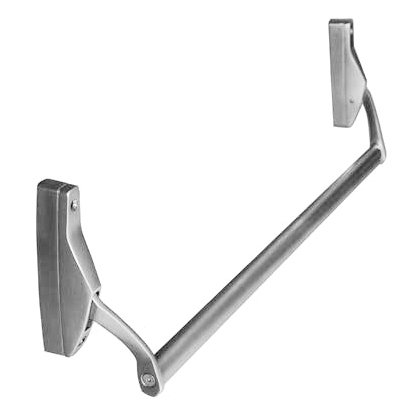

              9400 Series





              Close

              9400 Series

              The 9400 Series narrow stile exit device has the classic cross bar look and is supplied with the 9400 Night Latch Cylinder Retainer (04 function – the only function available with 9400 series).

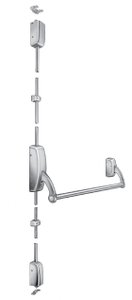

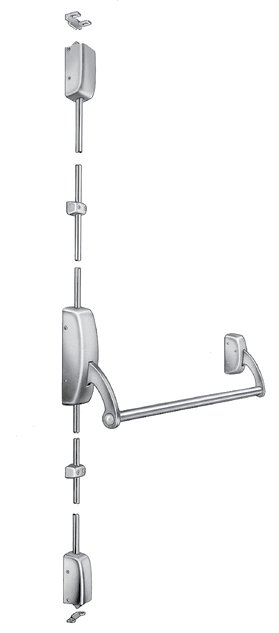

              9700 Series





              Close

              9700 Series

              Traditional looks while maintaining Life Safety/Fire code requirements for vertical rod applications, the 9700 Series exit devices are ordered with trim and shipped along with the strikes and key requirements in one carton. The cross bars are cut to the correct door width and vertical rods are made to order based on mounting position of the hardware and door height.

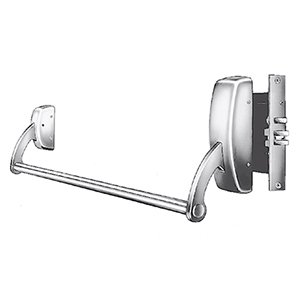

              9800 Series





              Close

              9800 Series

              For single door and pairs of doors where a narrow stile application is required.

              The 9800 series exit devices are ordered with trim and shipped along with the strikes and key requirements in one carton, and the cross bars are cut to the correct door width.

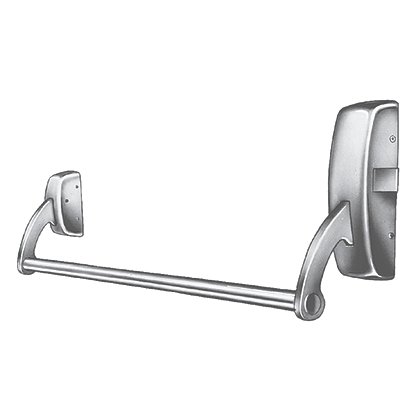

              9898 Series





              Close

              9898 Series

              The 9898 Reversible Rim Exit Device can be used with one of four functions determined by the trim, which is sold separately.

              Cross bars can easily be cut to length in the field. There are 5 available trim designs which are non-handed.

              9900 Series





              Close

              9900 Series

              The 9900 series exit devices are ordered with trim, and shipped along with the strikes and key requirements in one carton.

              The cross bars are cut to the correct door width.

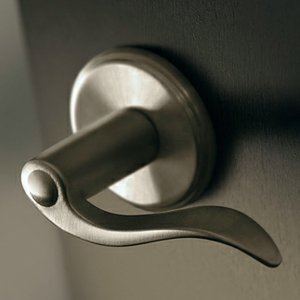

              Studio Collection - levers





              Close

              Studio Collection - levers

              Choose from Aventura, Centro, Gramercy, Notting Hill, Odeon, Rialto designs

              (Designer Hardware > Architectural Levers > Sargent)

              Coastal Series - levers





              Close

              Coastal Series - levers

              Choose from Coronado, Gulfport (Handed), Rockport (O/S Trim), Sanibel (O/S Trim), Yarmouth (O/S Trim)

              Auxiliary Control





              Close

              Auxiliary Control

              100 Series (06 or 13 function)

              A - lever





              Close

              A - lever

              (Handed)

              B - lever





              Close

              B - lever

              E - lever





              Close

              E - lever

              F - lever





              Close

              F - lever

              J - lever





              Close

              J - lever

              L - lever





              Close

              L - lever

              P - lever





              Close

              P - lever

              W - lever





              Close

              W - lever

              862 - pull





              Close

              862 - pull

              1" x 10"

              863 - pull





              Close

              863 - pull

              1" x 18"

              864 - pull





              Close

              864 - pull

              3/4" x 10"

              ET





              Close

              ET

              Specify lever

              FLL - pull





              Close

              FLL - pull

              (04 function shown)

              FLW - pull





              Close

              FLW - pull

              (10 function shown)

              MAL/MSL - pull





              Close

              MAL/MSL - pull

              (63/66 functions shown)

              PRK





              Close

              PRK

              (Not available in 32, 32D)

              PTB/PSB - pull





              Close

              PTB/PSB - pull

              (04 function shown)

              STS - pull





              Close

              STS - pull

              (04 function shown)

              04 - night latch





              Close

              04 - night latch

              Key retracts latchbolt

              #41 cylinder supplied

              06 - locked trim





              Close

              06 - locked trim

              Key unlocks trim;
              trim retracts

              Latch/Trim relocks when key is removed

              #41 cylinder supplied

              10 - no cylinder





              Close

              10 - no cylinder

              No outside operation

              (No cylinder)

              10 - no cylinder, pull only





              Close

              10 - no cylinder, pull only

              No outside operation
              (no cylinder)

              ET Control used as Pull Only

              13 - locked trim





              Close

              13 - locked trim

              Key outside unlocks/locks trim

              #41 Cylinder supplied

              15 - passage only





              Close

              15 - passage only

              Always operable (No cylinder)

              28 - passage only





              Close

              28 - passage only

              Always operable (No cylinder)

              62 - locked trim





              Close

              62 - locked trim

              Key unlocks trim; trim retracts latch

              Trim relocks when key is removed

              63 - locked trim





              Close

              63 - locked trim

              Key outside unlocks/locks trim

              66 - keyed both sides





              Close

              66 - keyed both sides

              Key outside retracts latch

              Key inside unlocks/locks O/S trim

              70 - electrified mortise





              Close

              70 - electrified mortise

              Electrified Mortise Lock

              Power off, unlocks thumbpiece

              Key retracts latch

              71 - electrified mortise





              Close

              71 - electrified mortise

              Electrified Mortise Lock

              Power off, locks thumbpiece

              Key retracts latch

              73 - fail safe





              Close

              73 - fail safe

              Electrified ET Trim

              Fail safe, power off, unlocks lever

              (no cylinder)

              74 - fail secure





              Close

              74 - fail secure

              Electrified ET Trim

              Fail secure, power off, locks lever

              (no cylinder)

              75 - fail safe





              Close

              75 - fail safe

              Electrified ET Trim - Fail Safe

              Power off, unlocks lever, key retracts latch

              76 - fail secure





              Close

              76 - fail secure

              Electrified ET Trim - Fail Secure

              Power off, locks lever, key retracts latch

              76 - fail secure





              Close

              76 - fail secure

              Electrified ET Trim - Fail Secure

              Power off, locks lever, key retracts latch

              03 - Bright Brass





              Close

              03 - Bright Brass

              Clear coated (BHMA 605)

              04 - Satin Brass





              Close

              04 - Satin Brass

              Clear coated (BHMA 606)

              09 - Bright Bronze





              Close

              09 - Bright Bronze

              Clear coated (BHMA 611)

              10 - Satin Bronze





              Close

              10 - Satin Bronze

              Clear coated (BHMA 612)

              10B - Dark Oxidized Satin Bronze





              Close

              10B - Dark Oxidized Satin Bronze

              Oil rubbed (BHMA 613)

              20D - Statuary Dark Bronze





              Close

              20D - Statuary Dark Bronze

              Laquered (BHMA 624)

              26 - Bright Chrome





              Close

              26 - Bright Chrome

              Plated (BHMA 625)

              26D - Satin Chrome





              Close

              26D - Satin Chrome

              Plated (BHMA 626)

              32 - Bright Stainless Steel





              Close

              32 - Bright Stainless Steel

              Plated (BHMA 629)

              32D - Satin Stainless Steel





              Close

              32D - Satin Stainless Steel

              Plated (BHMA 630)

              10BL - Dark Oxidized Satin Bronze





              Close

              10BL - Dark Oxidized Satin Bronze

              Clear Coated (BHMA 614)
